Stainless Steel U Bolt w/ Plate manufacturers
Industrial Stainless Steel U Bolt w/ Plate, A2 Stainless Steel U Bolt w/ Plate exporter in India, Marine grade Stainless Steel U Bolt w/ Plate, Best price of M2 M4 M5 M6 M8 Stainless Steel U Bolt w/ Plate, 10% off for bulk order of 316 Stainless Steel U Bolt w/ Plate, Special offer on 18-8 Stainless Steel U Bolt w/ Plate
MD Exports LLP is a leading Stainless Steel U Bolt w/ Plate manufacturers, suppliers & exporters in India. A trusted company manufacturing and supplying SS U Bolt w/ Plate across India & overseas.
Stainless Steel U Bolt w/ Plate is a type of mechanical fastener that is usually used with a nut or washer nut for connecting two or more parts. A bolted joint can be readily disassembled and reassembled; for this reason bolts or screw fasteners are used to a greater extent than any other type of mechanical fastener and have very important role in the development of mass-produced articles and steel structures. Our extensive range of high quality fastenings in A4 /316 stainless steel U Bolt w/ Plate are specially suited to marine, swimming pool and other high corrosion applications.
Stainless Steel U Bolt w/ Plate
Stainless Steel U Bolt w/ Plate Specification
Grade: 304 Stainless Steel
UNC Thread
The U-Bolt with Plate is available in sizes ranging from 1/4″ to 1/2″ and includes 2 nuts. This U-bolt is UNC thread. It is made from grade 304 stainless steel for corrosion resistance and durability, making it perfect for marine and industrial applications. Custom sizes are available.

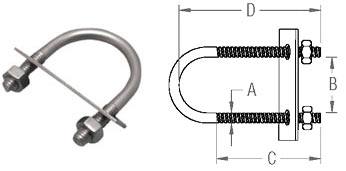

| A (SIZE) |
THREAD | B | C | D | PIPE | WLL (LB) |
WT (LB) |
|---|---|---|---|---|---|---|---|
| 1/4″ | 1/4″-20 | 0.75″ | 0.63″ | 1.25″ | 3/8″ | 435 | 0.07 |
| 1/4″ | 1/4″-20 | 1.00″ | 1.00″ | 1.75″ | 1/2″ | 435 | 0.09 |
| 1/4″ | 1/4″-20 | 1.13″ | 1.00″ | 2.00″ | 3/4″ | 435 | 0.10 |
| 1/4″ | 1/4″-20 | 1.50″ | 1.38″ | 2.75″ | 1″ | 435 | 0.12 |
| 1/4″ | 1/4″-20 | 1.75″ | 1.38″ | 3.00″ | 1-1/4″ | 435 | 0.13 |
| 1/4″ | 1/4″-20 | 2.00″ | 1.38″ | 3.25″ | 1-1/2″ | 435 | 0.14 |
| 5/16″ | 5/16″-18 | 1.00″ | 1.38″ | 2.19″ | 1/2″ | 610 | 0.14 |
| 5/16″ | 5/16″-18 | 1.50″ | 1.00″ | 2.19″ | 1″ | 610 | 0.15 |
| 5/16″ | 5/16″-18 | 1.75″ | 1.13″ | 2.69″ | 1-1/4″ | 610 | 0.18 |
| 5/16″ | 5/16″-18 | 2.00″ | 1.00″ | 2.69″ | 1-1/2″ | 610 | 0.20 |
| 5/16″ | 5/16″-18 | 2.50″ | 1.00″ | 3.19″ | 2″ | 610 | 0.22 |
| 5/16″ | 5/16″-18 | 3.00″ | 1.00″ | 3.69″ | 2-1/2″ | 610 | 0.25 |
| 3/8″ | 3/8″-16 | 1.00″ | 1.25″ | 2.25″ | 1/2″ | 1,090 | 0.20 |
| 3/8″ | 3/8″-16 | 1.25″ | 1.25″ | 2.25″ | 3/4″ | 1,090 | 0.21 |
| 3/8″ | 3/8″-16 | 1.50″ | 1.25″ | 2.50″ | 1″ | 1,090 | 0.23 |
| 3/8″ | 3/8″-16 | 1.75″ | 1.25″ | 2.75″ | 1-1/4″ | 1,090 | 0.25 |
| 3/8″ | 3/8″-16 | 2.00″ | 1.25″ | 2.63″ | 1-1/2″ | 1,090 | 0.26 |
| 3/8″ | 3/8″-16 | 2.50″ | 1.25″ | 3.13″ | 2″ | 1,090 | 0.30 |
| 3/8″ | 3/8″-16 | 3.00″ | 1.25″ | 3.63″ | 2-1/2″ | 1,090 | 0.33 |
| 3/8″ | 3/8″-16 | 3.50″ | 1.25″ | 4.13″ | 3″ | 1,090 | 0.38 |
| 1/2″ | 1/2″-13 | 3.00″ | 1.63″ | 4.50″ | 2-1/2″ | 2,020 | 0.70 |
| 1/2″ | 1/2″-13 | 3.50″ | 1.50″ | 5.00″ | 3″ | 2,020 | 0.74 |
| 1/2″ | 1/2″-13 | 4.00″ | 1.50″ | 5.50″ | 3-1/2″ | 2,020 | 0.82 |
| 1/2″ | 1/2″-13 | 4.50″ | 1.50″ | 6.00″ | 4″ | 2,020 | 0.90 |
| 1/2″ | 1/2″-13 | 5.63″ | 2.00″ | 7.25″ | 5″ | 2,020 | 1.06 |
| 1/2″ | 1/2″-13 | 6.75″ | 2.00″ | 8.38″ | 6″ | 2,020 | 1.18 |
| 1/2″ | 1/2″-13 | 8.75″ | 2.00″ | 10.38 | 8″ | 2,020 | 1.44 |
You might be interested in other types of Stainless Steel U Bolts
Stainless Steel U Bolt w/ Plate grades:
Stainless steels are used for their corrosion resistance, high-temperature strength, scaling resistance, and low-temperature toughness. These properties account for their extremely wide use in practically every industry. Austenitic Stainless Steels are designated by a 3 digit SAE Stainless Steel Grade beginning with the number 3 (e.g. 304, 316). Another common naming convention for Austenitic Stainless Steels are 18/8, 18/10, 18/0, etc. where the 18 refers to the % of Chromium and 8 to % of Nickel contained in the material.
- 18-8 Stainless Steel U Bolt w/ Plate
- 410 Stainless Steel U Bolt w/ Plate
- 304 Stainless Steel U Bolt w/ Plate
- 304L Stainless Steel U Bolt w/ Plate
- 304H Stainless Steel U Bolt w/ Plate
- 310 Stainless Steel U Bolt w/ Plate
- 316 Stainless Steel U Bolt w/ Plate
- 316H Stainless Steel U Bolt w/ Plate
- 316L Stainless Steel U Bolt w/ Plate
- 317 Stainless Steel U Bolt w/ Plate
- 317L Stainless Steel U Bolt w/ Plate
- 321 Stainless Steel U Bolt w/ Plate
- 347 Stainless Steel U Bolt w/ Plate
- 904L Stainless Steel U Bolt w/ Plate
Stainless Steel U Bolt w/ Plate Price List
