Stainless Steel Forged Hook Bolts manufacturers
Industrial Stainless Steel Forged Hook Bolts, A2 Stainless Steel Forged Hook Bolts exporter in India, Marine grade Stainless Steel Forged Hook Bolts, Best price of M2 M4 M5 M6 M8 Stainless Steel Forged Hook Bolts, 10% off for bulk order of 316 Stainless Steel Forged Hook Bolts, Special offer on 18-8 Stainless Steel Forged Hook Bolts
A range of Forged Hooks and Eye Bolts for use with our range of Drop in Anchors. Zinc Plated and Clear Passivated to a min coating thickness of 5µm. MD Exports LLP is a leading Stainless Steel Forged Hook Bolts manufacturers, suppliers & exporters in India. A trusted company manufacturing and supplying SS Forged Hook Bolts across India & overseas.
Stainless Steel Forged Hook Bolts is a type of mechanical fastener that is usually used with a nut or washer nut for connecting two or more parts. A bolted joint can be readily disassembled and reassembled; for this reason bolts or screw fasteners are used to a greater extent than any other type of mechanical fastener and have very important role in the development of mass-produced articles and steel structures. Our extensive range of high quality fastenings in A4 /316 stainless steel Forged Hook Bolts are specially suited to marine, swimming pool and other high corrosion applications.

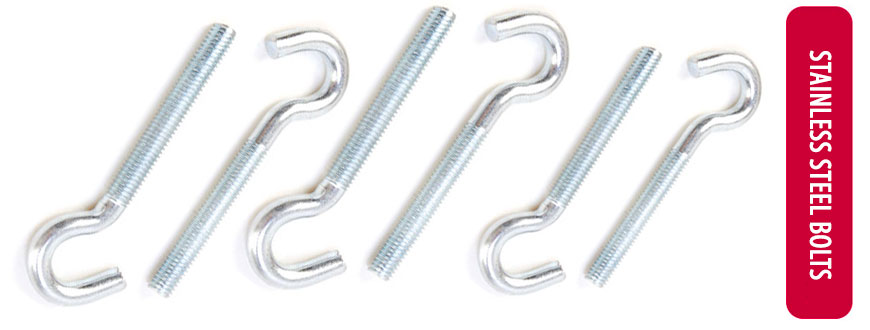

Stainless Steel Forged Hook Bolts
ASTM A193 / A194 Stainless Steel Forged Hook Bolts Specification
| Product name | Stainless Steel Forged Hook Bolts |
|---|---|
| Place of Origin | India |
| Standard | ISO 4017, DIN931, GB5783, DIN, ASTM, ANSI, JIS, EN, AS |
| DIN Standard | B.S. DIN933 DIN931 DIN934 DIN912 DIN603 DIN6923 |
|
Passivation /plain |
| Stainless Steel Forged Hook Bolts Size | M2 – M100 |
| Stainless Steel Forged Hook Bolts Diameter | M3-M60 |
| Stainless Steel Forged Hook Bolts Length | 6mm-500mm |
| Head | Hex, Square, Round, Hex flange, Flat, T-head & Triangular etc |
| Neck type | Hex, Square, Triangular, Oval & Knurled etc |
| Drive type | Phil, Slotted, Hex socket, Torx & square slot etc |
| Stainless Steel Forged Hook Bolts Application | Wind tower, Nuclear power, Railway, Automotive industry, Construction, Electronic industry |
| Dimensions | ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded. |
| Drive Style |
Type I |
| Stainless Steel Forged Hook Bolts Material | 18-8 Stainless Steel, stainless steel ss 304/ SS316 A2/A4, SS201, SS303, SS304, SS316, SS316L, SS904L, A2-70; A4-70; A4-80 |
| Thread Requirements | ASME B1.1, UNC & UNF, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge) |
| Finish | Per ASTM A380/A380M |
| Finishing | Zinc Plated (Yellow, White, Blue, Black), Hop Dip Galvanized (HDG) phosphorization, Black Oxide, Geomet, Dacroment, anodization, Nickel plated, Zinc-Nickel plated, Brass Plated, Tin Plated, Black Plated, Copper Plated, Gold Plated, Salt fog test |
| Stock Products | Stainless steel: All DIN, GB Standard and part ASNI standard stainless steel Forged Hook Bolts, Example: ISO7380, DIN7981, DIN7982, DIN916, DIN913, DIN7985, DIN912 |
| Production technology | Cold Forged |
| Manufacturing Process | Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing |
| MOQ | 10 pieces |
| Delivery time | Regular product is about 7-15 days, custom product will according to special requirement |
| Others | OEM, ODM, ±0.03MM tolerance |
| Surface treatment of stainless steel Forged Hook Bolts |
|
| Coatings | Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request |
| Tolerance of stainless steel Forged Hook Bolts | +/-0.01mm to +/-0.05mm |
| Samples | Yes |
| Production Capacity | 2,700,000 pieces per month |
| Payment Terms | T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping |
You might be interested in related types of Stainless Steel Forged Hook Bolts
Stainless Steel Forged Hook Bolts grades:
Stainless steels are used for their corrosion resistance, high-temperature strength, scaling resistance, and low-temperature toughness. These properties account for their extremely wide use in practically every industry. Austenitic Stainless Steels are designated by a 3 digit SAE Stainless Steel Grade beginning with the number 3 (e.g. 304, 316). Another common naming convention for Austenitic Stainless Steels are 18/8, 18/10, 18/0, etc. where the 18 refers to the % of Chromium and 8 to % of Nickel contained in the material.
- 18-8 Stainless Steel Forged Hook Bolts
- 410 Stainless Steel Forged Hook Bolts
- 304 Stainless Steel Forged Hook Bolts
- 304L Stainless Steel Forged Hook Bolts
- 304H Stainless Steel Forged Hook Bolts
- 310 Stainless Steel Forged Hook Bolts
- 316 Stainless Steel Forged Hook Bolts
- 316H Stainless Steel Forged Hook Bolts
- 316L Stainless Steel Forged Hook Bolts
- 317 Stainless Steel Forged Hook Bolts
- 317L Stainless Steel Forged Hook Bolts
- 321 Stainless Steel Forged Hook Bolts
- 347 Stainless Steel Forged Hook Bolts
- 904L Stainless Steel Forged Hook Bolts
Stainless Steel Forged Hook Bolts Dimensions
Dimensions for Stainless steel Forged Hook Bolts

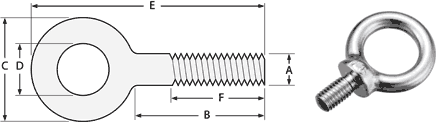

Dimensions of Forged Hook Bolts with Shoulder
| Length (B) |
Outside Eye Diameter (C) |
Inside Eye Diameter (D) |
Overall Length* (E) |
Thread Length* (F) |
|---|---|---|---|---|
| 1/4″-20 (A) | ||||
| 2″ | 1″ | 1/2″ | 3-7/32″ | 1-1/2″ |
| 3″ | 1″ | 1/2″ | 4-7/32″ | 1-1/2″ |
| 4″ | 1″ | 1/2″ | 5-7/32″ | 2″ |
| 5″ | 1″ | 1/2″ | 6-7/32″ | 2-1/2″ |
| 6″ | 1″ | 1/2″ | 7-7/32″ | 3″ |
| 5/16″-18 (A) | ||||
| 2-1/4″ | 1-1/4″ | 5/8″ | 3-23/32″ | 1-1/2″ |
| 3-1/4″ | 1-1/4″ | 5/8″ | 4-23/32″ | 1-1/2″ |
| 4-1/4″ | 1-1/4″ | 5/8″ | 5-23/32″ | 2-1/2″ |
| 5″ | 1-1/4″ | 5/8″ | 6-15/32″ | 2-1/2″ |
| 6″ | 1-1/4″ | 5/8″ | 7-15/32″ | 3″ |
| 3/8″-16 (A) | ||||
| 2-1/2″ | 1-1/2″ | 3/4″ | 4-1/4″ | 1-1/2″ |
| 3″ | 1-1/2″ | 3/4″ | 4-3/4″ | 1-1/2″ |
| 4″ | 1-1/2″ | 3/4″ | 5-3/4″ | 2″ |
| 4-1/4″ | 1-1/2″ | 3/4″ | 6″ | 2″ |
| 4-1/2″ | 1-1/2″ | 3/4″ | 6-1/4″ | 3″ |
| 5″ | 1-1/2″ | 3/4″ | 6-3/4″ | 3″ |
| 6″ | 1-1/2″ | 3/4″ | 7-3/4″ | 3″ |
| 8″ | 1-1/2″ | 3/4″ | 9-3/4″ | 4″ |
| 10″ | 1-1/2″ | 3/4″ | 11-3/4″ | 4″ |
| 1/2″-13 (A) | ||||
| 2″ | 2″ | 1″ | 4-3/16″ | 1-5/8″ |
| 3-1/4″ | 2″ | 1″ | 5-7/16″ | 2″ |
| 4″ | 2″ | 1″ | 6-3/16″ | 3″ |
| 4-1/2″ | 2″ | 1″ | 6-11/16″ | 3″ |
| 6″ | 2″ | 1″ | 8-3/16″ | 3″ |
| 8″ | 2″ | 1″ | 10-3/16″ | 4″ |
| 10″ | 2″ | 1″ | 12-3/16″ | 4″ |
| 12″ | 2″ | 1″ | 14-3/16″ | 4″ |
| 5/8″-11 (A) | ||||
| 4″ | 2-1/2″ | 1-3/8″ | 6-5/8″ | 3″ |
| 4-1/2″ | 2-1/2″ | 1-3/8″ | 7-1/8″ | 3″ |
| 6″ | 2-1/2″ | 1-3/8″ | 8-5/8″ | 3″ |
| 8″ | 2-1/2″ | 1-3/8″ | 10-5/8″ | 4″ |
| 10″ | 2-1/2″ | 1-3/8″ | 12-5/8″ | 4″ |
| 12″ | 2-1/2″ | 1-3/8″ | 14-5/8″ | 4″ |
| 15″ | 2-1/2″ | 1-3/8″ | 17-5/8″ | 6″ |
| 18″ | 2-1/2″ | 1-3/8″ | 20-5/8″ | 6″ |
| 24″ | 2-1/2″ | 1-3/8″ | 26-5/8″ | 6″ |
| 3/4″-10 (A) | ||||
| 4″ | 2-13/16″ | 1-1/2″ | 6-7/8″ | 3″ |
| 4-1/2″ | 2-13/16″ | 1-1/2″ | 7-3/8″ | 3″ |
| 6″ | 2-13/16″ | 1-1/2″ | 8-7/8″ | 3″ |
| 8″ | 2-13/16″ | 1-1/2″ | 10-7/8″ | 4″ |
| 10″ | 2-13/16″ | 1-1/2″ | 12-7/8″ | 4″ |
| 12″ | 2-13/16″ | 1-1/2″ | 14-7/8″ | 4″ |
| 15″ | 2-13/16″ | 1-1/2″ | 17-7/8″ | 6″ |
| 18″ | 2-13/16″ | 1-1/2″ | 20-7/8″ | 6″ |
| 24″ | 2-13/16″ | 1-1/2″ | 26-7/8″ | 6″ |
| 7/8″-9 (A) | ||||
| 5″ | 3-1/2″ | 1-3/4″ | 8-1/4″ | 3″ |
| 6″ | 3-1/2″ | 1-3/4″ | 9-1/4″ | 3″ |
| 8″ | 3-1/2″ | 1-3/4″ | 11-1/4″ | 4″ |
| 10″ | 3-1/2″ | 1-3/4″ | 13-1/4″ | 4″ |
| 12″ | 3-1/2″ | 1-3/4″ | 15-1/4″ | 4″ |
| 18″ | 3-1/2″ | 1-3/4″ | 21-1/4″ | 6″ |
| 24″ | 3-1/2″ | 1-3/4″ | 27-1/4″ | 6″ |
| 1″-8 (A) | ||||
| 6″ | 4″ | 2″ | 9-5/8″ | 3″ |
| 8″ | 4″ | 2″ | 11-5/8″ | 4″ |
| 10″ | 4″ | 2″ | 13-5/8″ | 4″ |
| 12″ | 4″ | 2″ | 15-5/8″ | 4″ |
| 15″ | 4″ | 2″ | 18-5/8″ | 6″ |
| 18″ | 4″ | 2″ | 21-5/8″ | 6″ |
| 24″ | 4″ | 2″ | 27-5/8″ | 6″ |
| 1-1/4″-7 (A) | ||||
| 6″ | 4-7/16″ | 2-3/16″ | 10-1/2″ | 3″ |
| 8″ | 4-7/16″ | 2-3/16″ | 12-1/2″ | 4″ |
| 12″ | 4-7/16″ | 2-3/16″ | 16-1/2″ | 4″ |
| 18″ | 4-7/16″ | 2-3/16″ | 22-1/2″ | 6″ |
| 24″ | 4-7/16″ | 2-3/16″ | 28-1/2″ | 6″ |
| 1-1/2″-6 (A) | ||||
| 6″ | 5-3/16″ | 2-1/2″ | 11-1/4″ | 3″ |
| 12″ | 5-3/16″ | 2-1/2″ | 17-1/4″ | 4″ |
| 18″ | 5-3/16″ | 2-1/2″ | 23-1/4″ | 6″ |
| 24″ | 5-3/16″ | 2-1/2″ | 29-1/4″ | 6″ |
| 2″-4-1/2 (A) | ||||
| 12″ | 6-7/8″ | 3-1/4″ | 19″ | 4″ |
| * Overall length and thread length for imported eye bolts are approximate. Their values may differ from those listed in this table. | ||||
Check Stainless Steel Forged Hook Bolts Dimensions full Catalog

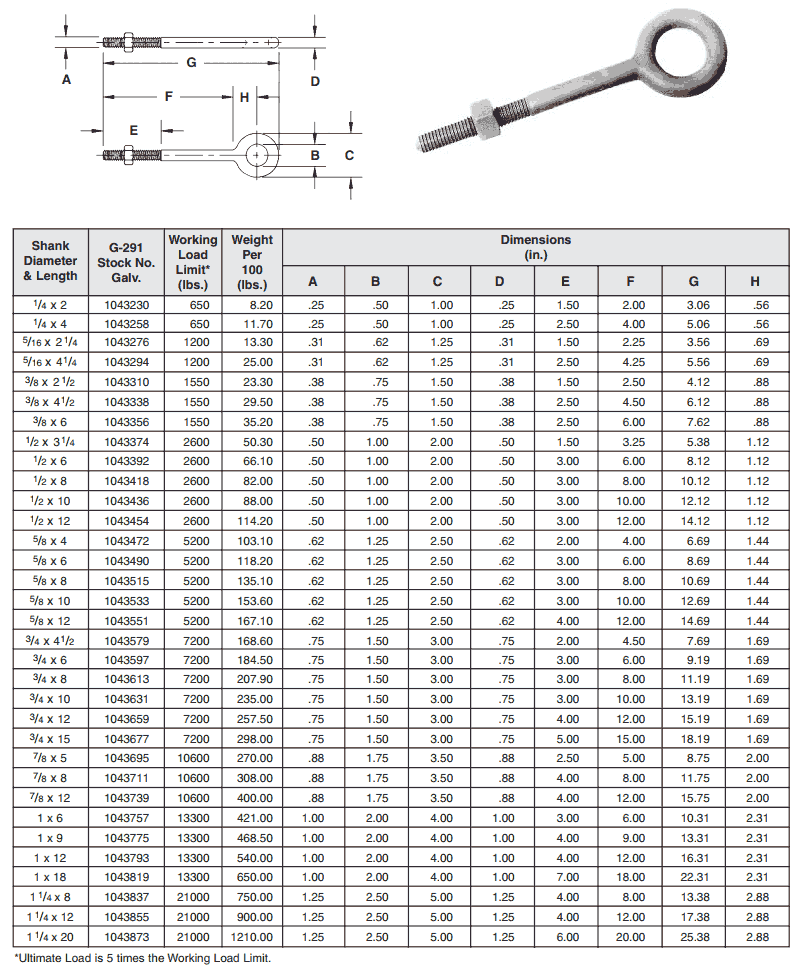

SS Forged Hook Bolts Weight Chart
Stainless Steel Forged Hook Bolts Price List
Stainless Steel Forged Hook Bolts Price List, Stainless Steel Forged Hook Bolts Prices, Stainless Steel Forged Hook Bolts Price, Stainless Steel Forged Hook Bolts Price List, Stainless Steel Forged Hook Bolts Price 2018, Stainless Steel Forged Hook Bolts Price in India, SS Forged Hook Bolts Price India, we offer best price of 18-8 Stainless Steel Forged Hook Bolts & 316 Stainless Steel Forged Hook Bolts
- China wholesale high quality din 444 eye bolts hook eye bolts m10
Price: US $0.2-9.99 / Piece
100 Pieces (Min. Order) - China suppliers fastener manufacture special hook anchor L type shape bolt
Price: US $0.001-0.01 / Piece
500 Pieces (Min. Order) - Made In Taiwan Metric Coarse Forged Steel Morton Carbon Steel Stainless Steel Rod End Eye Bolt
Price: US $0.01-0.1 / Unit
10000 Units (Min. Order) - Steel Eye Bolts/Stainless Steel Screw eyes/Eyebolts/Eye screws
Price: US $1-100 / Piece
500 Pieces (Min. Order) - Heavy duty oval stainless steel m4 hook anchor lifting eye bolt
Price: US $0.04-6 / Piece
1 Piece (Min. Order) - Heavy duty oval stainless steel m4 hook anchor lifting eye bolt
Price: US $0.11-20 / Piece
1 Piece (Min. Order) - China manufacturing high-quality steel hook eye bolts small eye bolts
Price: US $0.001-0.1 / Piece
10000 Pieces (Min. Order) - china supplier galvanized Forging carbon Steel Ring Eye Bolt
Price: US $0.01-0.22 / Piece
2000 Pieces (Min. Order) - hook eye bolts stainless steel bolt/snake eye security screw driver insert th5
Price: US $0.05-0.25 / Piece
100 Pieces (Min. Order) - ss steel 304 factory direct sale bolt and nut with cheap price
Price: US $1500-4850 / Ton
1 Ton (Min. Order) - High Quality Galvanized Roofing Hook Eye Bolts with Nuts
Price: US $0.1-0.2 / Piece
1000 Pieces (Min. Order) - directly factory manufacturing hot-forged thickening square head bolt with hook
Price: US $1-20 / Piece
500 Pieces (Min. Order) - made in china hook bolt with nut and washer long forged eye bolt with half thread screw j typed bolts
Price: US $0.01-0.5 / Piece
3000 Pieces (Min. Order) - Chinese novel products customized high strength bolt and screw
Price: US $0.01-0.12 / Piece
100 Pieces (Min. Order) - High-quality pigtail eye screw bolt with nut and washer
Price: US $0.2-20 / Set
1000 Sets (Min. Order) - Stainless steel 316 or 304 snap hook swivel eye bolt
Price: US $0.1-3 / Piece
100 Pieces (Min. Order) - hook bolt m10 for steel eyebolt GB798
Price: US $0.36-1.56 / Piece
25000 Pieces (Min. Order) - Stainless Steel Swivel Eye Bolt Snap
200 Pieces (Min. Order) - the16mm x 1200mm anchor rods,stub bolt
Price: US $0.01-3.5 / Piece
200 Pieces (Min. Order) - Heavy duty oval stainless steel m4 hook anchor lifting eye bolt
Price: US $0.1-10 / Piece
1000 Pieces (Min. Order) - Forged hook pigtail bolts
Price: US $0.01-0.05 / Piece
10000 Pieces (Min. Order) - Commercial Construction Turnbuckle With Eye Bolt And Hook
Price: US $0.4-28 / Piece
10 Pieces (Min. Order) - Wholesale Eye bolts hook bolts with washers and nuts
Price: US $0.01-5 / Kilogram
500 Kilograms (Min. Order) - forged hearvy duty hook expansion anchor bolts
Price: US $0.01-10 / Piece
100 Pieces (Min. Order) - Alibaba China brass eye bolt,brass eye hook
Price: US $0.001-0.01 / Piece
1 Ton (Min. Order) - cable forged lifting eye bolt hook bolt with nut
Price: US $0.01-100 / Piece
5000 Pieces (Min. Order) - l type hook bolt
Price: US $500-600 / Piece
1000 Pieces (Min. Order) - China Exporter Carbon Steel Hook Flat u Eye Bolt With Nut Grade4.8
Price: US $1-20 / Piece
100 Pieces (Min. Order) - Carbon Steel Forged Concrete Anchor Bolt with Hook
Price: US $300-600 / Ton
1 Ton (Min. Order) - Indian suppliers fastener manufacture hot forging high strength J hook hanger bolt 8mm
Price: US $0.5-0.6 / Pieces
50 Pieces (Min. Order) - China international Din 1480 Turn Buckles Eye Bolts
Price: US $10-150 / Unit
1 Unit (Min. Order) - 3pcs shield heavy duty anchor /3pcs shield fixing bolt with hook bolt
Price: US $0.001-10 / Box
300 Boxes (Min. Order) - factory supply High Quality OPEN EYE HOOK SCREW
Price: US $0.01-0.5 / Piece
10000 Pieces (Min. Order) - 2017 new design Rigging Swivel Bolt Snap Hook with double hole
Price: US $0.1-2 / Piece
1 Piece (Min. Order) - made in china hook bolt sleeve anchor with washer
Price: US $0.02-0.32 / Piece
1000 Pieces (Min. Order) - DIN Type Drop Forged Anchor Eye Bolt tow hook with factory price
Price: US $0.05-13 / Piece
1000 Pieces (Min. Order) - Drop Forged Eye Bolt Stainless Steel Bolt Eye Screw Hook Screw Eye
Price: US $0.1-100 / Piece
100 Pieces (Min. Order)
Stainless Steel Forged Hook Bolts For Sale
We have more than 18,000 products in stock. Order by the piece, bag or in bulk.
Stainless Steel Bolts Inventory
- Specialized in
- SS 304 Forged Hook Bolts
- SS 304L Forged Hook Bolts
- SS 316 Forged Hook Bolts
- SS 316L Forged Hook Bolts
- SS 410 Forged Hook Bolts
SS Bolts Inventory
Shoulder Stud Bolts Inventory
Shoulder Nut Eye Bolts Inventory
Stainless Steel Shoulder Nut Eye Bolts
Turned Eye Bolts & Wire Eye Bolts Inventory
Machinery Eye Bolts Inventory
Regular Nut Eye Bolts
Metric Eye Bolts Inventory
SS Bolt Ready Stock
- 10% Discount on:
- SS 310 Forged Hook Bolts
- SS 202 Forged Hook Bolts
- SS 347 Forged Hook Bolts
- SS 321 Forged Hook Bolts
- SS 321H Forged Hook Bolts
Long Tangent U-Bolts
Round U-Bolts
Carriage Bolts
Square Head Bolts
A193 B7 Cadmium Plated Stud Bolts
Xylan® Coated Stud Bolts
Carriage Bolts
ARP High Strength Stainless Steel 12-Point Flange Bolts Price
Stainless Steel Forged Hook Bolts DIN Grades available
- DIN 186 A – Tee-Head Bolts With Square Head
- DIN 188 – Tee-Head Bolts With Double Nip
- DIN 444 A – Eye Bolts
- DIN 478 – Square Head Bolts
- DIN 479 – Square Head Bolts
- DIN 480 – Square Head Bolts
- DIN 529 A – Anchor Bolts (Stone Bolt)
- DIN 529 B – Anchor Bolts (Stone Bolt)
- DIN 529 C – Masonry Bolts With Hexagon Nuts
- DIN 529 D – Anchor Bolts (Stone Bolt)
- DIN 529 E – Foundation Bolts With Hexagon Nuts
- DIN 529 F – Anchor Bolts (Stone Bolt)
- DIN 529 G Bolt
- DIN 558 – Fully Threaded Maching Bolts
- DIN 580 – Lifting Eye Bolts
- DIN 7969 – Slotted countersunk head bolts with hexagon nut for steel structures
Stainless Steel Forged Hook Bolts
- DIN 601- Hexagon head bolt with nut
- DIN 603 Mu – Carriage Bolts With Hexagon Nuts
- DIN 604 – Flat Countersunk Nip Bolts With Hex Nuts
- DIN 605 – Flat Countersunk Square Neck Bolts
- DIN 607 – Round Head Nip Bolts With Nuts
- DIN 608 – Countersunk Square Bolts (Short Neck)
- DIN 609 – Hex Fitting Bolts w/long Threaded Portion
- DIN 610 – Hex fitting Bolts w/short Threaded Portion
- DIN 3570 – U Bows U Bolts
- DIN 6914 – Hex Bolts For High Strength Struct. Bolting
- DIN 6915 – Hex Nuts For High Strength Struc. Bolting
- DIN 6916 – Washers For High Strength Structural Bolting
- DIN 6921 – Hex Flange Bolts
- DIN EN 1665 Hexagon bolts with flange – heavy series(Replace DIN 6922)
- DIN 7968 – Hexagon fit bolts with hexagon nut for steel structures
Packing of Stainless Steel Forged Hook Bolts
We export these Stainless Steel Forged Hook Bolts globally such as Peru, United States, Philippines, Canada, United Kingdom, United Arab Emirates, Singapore, Malaysia, Saudi Arabia, Indonesia, Thailand, Pakistan, Qatar, Australia, South Korea, South Africa, Iran, Turkey, Italy, Germany, Oman, Taiwan, Nigeria, Vietnam, Egypt, Mexico, Spain, Bahrain, Kuwait, Hong Kong, Netherlands, Bangladesh, Israel, Poland, Brazil, Norway, Sri Lanka, New Zealand, France, Finland, Romania, Denmark, Japan, Belgium, Russia, Kenya, Ireland, Greece, Portugal, Hungary, Serbia, Croatia, Bulgaria, Venezuela, Lithuania, Myanmar (Burma), Colombia, Azerbaijan, Iraq, Brunei, Laos, Cambodia, China, Czech Republic, Algeria, Chile and Croatia.
We have a wide network in India & overseas to supply urgent delivery of SS Forged Hook Bolts including Mumbai, Courbevoie, Faridabad, Chiyoda, Bangkok, Perth, Sharjah, Ahvaz, Ankara, Nashik, Petaling Jaya, Rajkot, Jakarta, Seoul, Al Khobar, Madrid, Calgary, Santiago, Lahore, Cairo, Gurgaon, Noida, Surat, Visakhapatnam, Navi Mumbai, Brisbane, Lagos, Karachi, Port-of-Spain, Thane, Houston, New Delhi, Ho Chi Minh City, Kolkata, Ernakulam, La Victoria, Dubai, Abu Dhabi, Melbourne, Sydney, Caracas, Doha, Vung Tau, Dammam, Kuala Lumpur, Geoje-si, Ludhiana, Secunderabad, Hong Kong, Mumbai, Milan, Bogota, Indore, Montreal, Toronto, Vadodara, Hyderabad, Nagpur, Thiruvananthapuram, Coimbatore, Kuwait City, Manama, Los Angeles, Pune, Bengaluru, Dallas, Mexico City, Kanpur, Jaipur, Aberdeen, Jamshedpur, Bhopal, Jeddah, Hanoi, Riyadh, Baroda, Chennai, Ahmedabad, Ranchi, Algiers, Moscow, Granada, Busan, New York, Rio de Janeiro, Singapore, Edmonton, Al Jubail, London, Chandigarh, Colombo, Howrah, Ulsan, Atyrau, Pimpri-Chinchwad, Muscat, Haryana, Istanbul, Gimhae-si & Tehran.
