Stainless Steel Countersunk Bolts manufacturers
Industrial Stainless Steel Countersunk Bolts, A2 Stainless Steel Countersunk Bolts exporter in India, Marine grade Stainless Steel Countersunk Bolts, Best price of M2 M4 M5 M6 M8 Stainless Steel Countersunk Bolts, 10% off for bulk order of 316 Stainless Steel Countersunk Bolts, Special offer on 18-8 Stainless Steel Countersunk Bolts
MD Exports LLP is a leading Stainless Steel Countersunk Bolts manufacturers, suppliers & exporters in India. A trusted company manufacturing and supplying SS Countersunk Bolts across India & overseas.
Stainless Steel Countersunk bolts are used when a smooth surface is required. Common applications include: bridge decking, walkways, and railing. MD Exports LLP produce countersunk bolts from 1/2" diameter through 1-1/2" diameter in most ASTM, AASHTO, and SAE specifications including, A307 Grade A, A449, and Grade 8. These SS Countersunk bolts have a head angle of approximately 80 degrees. Bolts are available with and without a slot in the head.
Stainless Steel Countersunk Bolts is a type of mechanical fastener that is usually used with a nut or washer nut for connecting two or more parts. A bolted joint can be readily disassembled and reassembled; for this reason bolts or screw fasteners are used to a greater extent than any other type of mechanical fastener and have very important role in the development of mass-produced articles and steel structures. Our extensive range of high quality fastenings in A4 /316 stainless steel Countersunk Bolts are specially suited to marine, swimming pool and other high corrosion applications.

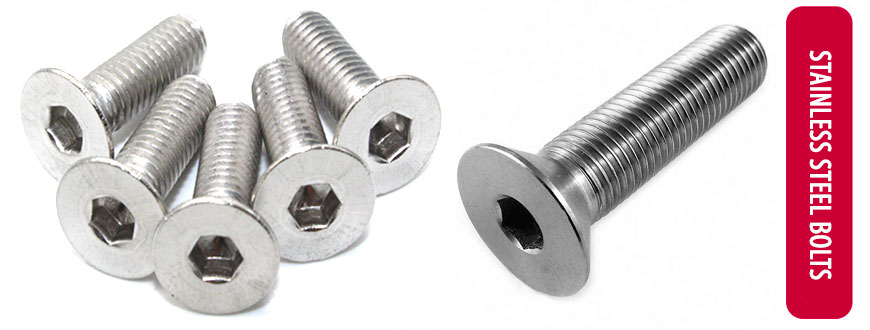

Stainless Steel Countersunk Bolts
ASTM A193 / A194 Stainless Steel Countersunk Bolts Specification
| Product name | Stainless Steel Countersunk Bolts |
|---|---|
| Place of Origin | India |
| Standard | ISO 4017, DIN931, GB5783, DIN, ASTM, ANSI, JIS, EN, AS |
| DIN Standard | B.S. DIN933 DIN931 DIN934 DIN912 DIN603 DIN6923 |
|
Passivation /plain |
| Stainless Steel Countersunk Bolts Size | M2 – M100 |
| Stainless Steel Countersunk Bolts Diameter | M3-M60 |
| Stainless Steel Countersunk Bolts Length | 6mm-500mm |
| Head | Hex, Square, Round, Hex flange, Flat, T-head & Triangular etc |
| Neck type | Hex, Square, Triangular, Oval & Knurled etc |
| Drive type | Phil, Slotted, Hex socket, Torx & square slot etc |
| Stainless Steel Countersunk Bolts Application | Wind tower, Nuclear power, Railway, Automotive industry, Construction, Electronic industry |
| Dimensions | ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded. |
| Drive Style | Type I |
| Stainless Steel Countersunk Bolts Material | 18-8 Stainless Steel, stainless steel ss 304/ SS316 A2/A4, SS201, SS303, SS304, SS316, SS316L, SS904L, A2-70; A4-70; A4-80 |
| Thread Requirements | ASME B1.1, UNC & UNF, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge) |
| Finish | Per ASTM A380/A380M |
| Finishing | Zinc Plated (Yellow, White, Blue, Black), Hop Dip Galvanized (HDG) phosphorization, Black Oxide, Geomet, Dacroment, anodization, Nickel plated, Zinc-Nickel plated, Brass Plated, Tin Plated, Black Plated, Copper Plated, Gold Plated, Salt fog test |
| Stock Products | Stainless steel: All DIN, GB Standard and part ASNI standard stainless steel Countersunk Bolts, Example: ISO7380, DIN7981, DIN7982, DIN916, DIN913, DIN7985, DIN912 |
| Production technology | Cold Forged |
| Manufacturing Process | Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing |
| MOQ | 10 pieces |
| Delivery time | Regular product is about 7-15 days, custom product will according to special requirement |
| Others | OEM, ODM, ±0.03MM tolerance |
| Surface treatment of stainless steel Countersunk Bolts |
|
| Coatings | Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request |
| Tolerance of stainless steel Countersunk Bolts | +/-0.01mm to +/-0.05mm |
| Samples | Yes |
| Production Capacity | 2,700,000 pieces per month |
| Payment Terms | T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping |
You might be interested in related types of Stainless Steel Countersunk Bolts
Stainless Steel Countersunk Bolts grades:
Stainless steels are used for their corrosion resistance, high-temperature strength, scaling resistance, and low-temperature toughness. These properties account for their extremely wide use in practically every industry. Austenitic Stainless Steels are designated by a 3 digit SAE Stainless Steel Grade beginning with the number 3 (e.g. 304, 316). Another common naming convention for Austenitic Stainless Steels are 18/8, 18/10, 18/0, etc. where the 18 refers to the % of Chromium and 8 to % of Nickel contained in the material.
- 18-8 Stainless Steel Countersunk Bolts
- 410 Stainless Steel Countersunk Bolts
- 304 Stainless Steel Countersunk Bolts
- 304L Stainless Steel Countersunk Bolts
- 304H Stainless Steel Countersunk Bolts
- 310 Stainless Steel Countersunk Bolts
- 316 Stainless Steel Countersunk Bolts
- 316H Stainless Steel Countersunk Bolts
- 316L Stainless Steel Countersunk Bolts
- 317 Stainless Steel Countersunk Bolts
- 317L Stainless Steel Countersunk Bolts
- 321 Stainless Steel Countersunk Bolts
- 347 Stainless Steel Countersunk Bolts
- 904L Stainless Steel Countersunk Bolts

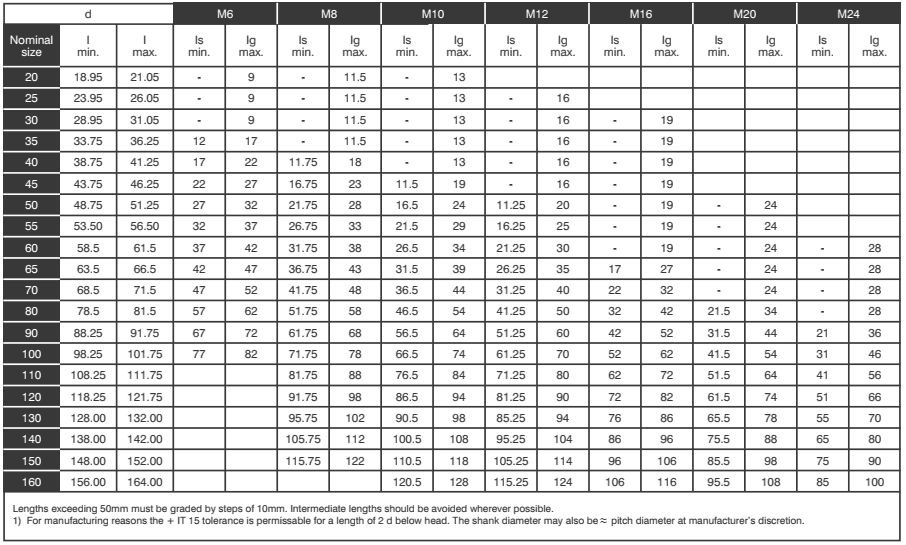

Stainless Steel Countersunk Bolts Dimensions
Dimensions for Stainless steel Countersunk Bolts

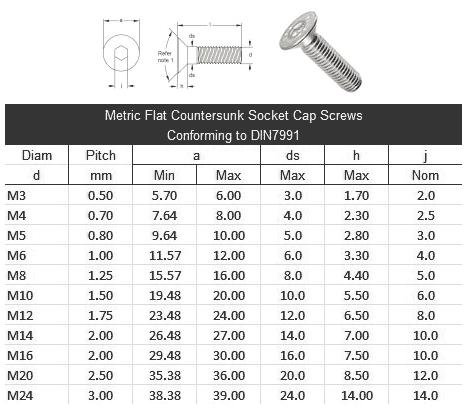

Countersunk (Flat) Socket Head Cap Screws

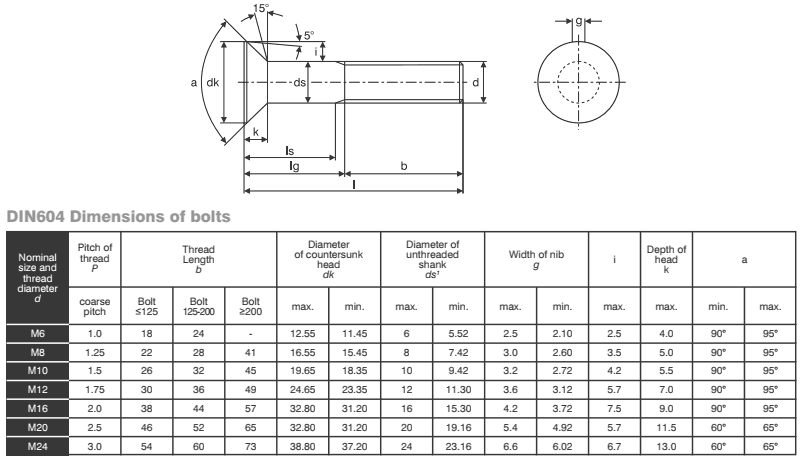

Flat Countersunk Nib Bolts, DIN 604
Check Stainless Steel Countersunk Bolts Dimensions full Catalog

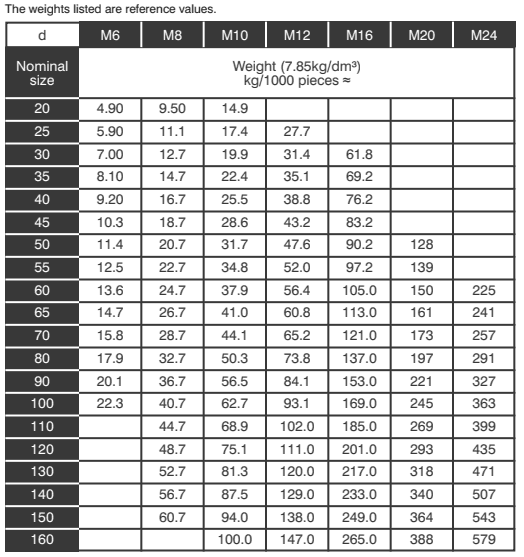

SS Countersunk Bolts Weight Chart
Stainless Steel Countersunk Bolts Price List
Stainless Steel Countersunk Bolts Price List, Stainless Steel Countersunk Bolts Prices, Stainless Steel Countersunk Bolts Price, Stainless Steel Countersunk Bolts Price List, Stainless Steel Countersunk Bolts Price 2018, Stainless Steel Countersunk Bolts Price in India, SS Countersunk Bolts Price India, we offer best price of 18-8 Stainless Steel Countersunk Bolts & 316 Stainless Steel Countersunk Bolts
Stainless Steel Countersunk Bolt M12 x (1.50mm) x 65mm
Price: £6.94
Stainless Steel Countersunk Bolt M5 x (0.8mm) x 15mm
Price: £2.57
Stainless Steel Countersunk Bolt M5 x (0.8mm) x 20mm
Price: £2.62
Stainless Steel Countersunk Bolt M5 x (0.8mm) x 25mm
Price: £2.69
Stainless Steel Countersunk Bolt M6 x (1.00mm) x 15mm
Price: £2.57
Stainless Steel Countersunk Bolt M6 x (1.00mm) x 20mm
Price: £2.69
Stainless Steel Countersunk Bolt M6 x (1.00mm) x 25mm
Price: £2.69
Stainless Steel Countersunk Bolt M6 x (1.00mm) x 30mm
Price: £2.81
Stainless Steel Countersunk Bolt M6 x (1.00mm) x 35mm
Price: £2.86
Stainless Steel Countersunk Bolt M6 x (1.00mm) x 40mm
Price: £2.93
Stainless Steel Countersunk Bolt M8 x (1.25mm) x 30mm
Price: £3.50
Stainless Steel Countersunk Bolt M8 x (1.25mm) x 40mm
Price: £3.74
Stainless Steel Countersunk Washer M5 x 15mm o/d
Price: £2.93
Stainless Steel Countersunk Washer M6 x 19mm o/d
Price: £3.04
Stainless Steel Countersunk Washer M6 x 22mm o/d
Price: £3.06
Stainless Steel Countersunk Washer M8 x 25mm o/d
Price: £3.26
Stainless Steel Countersunk Bolts For Sale
We have more than 18,000 products in stock. Order by the piece, bag or in bulk.
Stainless Steel Bolts Inventory
- Specialized in
- SS 304 Countersunk Bolts
- SS 304L Countersunk Bolts
- SS 316 Countersunk Bolts
- SS 316L Countersunk Bolts
- SS 410 Countersunk Bolts
SS Bolts Inventory
Shoulder Stud Bolts Inventory
Shoulder Nut Eye Bolts Inventory
Stainless Steel Shoulder Nut Eye Bolts
Turned Eye Bolts & Wire Eye Bolts Inventory
Machinery Eye Bolts Inventory
Regular Nut Eye Bolts
Metric Eye Bolts Inventory
SS Bolt Ready Stock
- 10% Discount on:
- SS 310 Countersunk Bolts
- SS 202 Countersunk Bolts
- SS 347 Countersunk Bolts
- SS 321 Countersunk Bolts
- SS 321H Countersunk Bolts
Long Tangent U-Bolts
Round U-Bolts
Carriage Bolts
Square Head Bolts
A193 B7 Cadmium Plated Stud Bolts
Xylan® Coated Stud Bolts
Carriage Bolts
ARP High Strength Stainless Steel 12-Point Flange Bolts Price
Stainless Steel Countersunk Bolts DIN Grades available
- DIN 186 A – Tee-Head Bolts With Square Head
- DIN 188 – Tee-Head Bolts With Double Nip
- DIN 444 A – Eye Bolts
- DIN 478 – Square Head Bolts
- DIN 479 – Square Head Bolts
- DIN 480 – Square Head Bolts
- DIN 529 A – Anchor Bolts (Stone Bolt)
- DIN 529 B – Anchor Bolts (Stone Bolt)
- DIN 529 C – Masonry Bolts With Hexagon Nuts
- DIN 529 D – Anchor Bolts (Stone Bolt)
- DIN 529 E – Foundation Bolts With Hexagon Nuts
- DIN 529 F – Anchor Bolts (Stone Bolt)
- DIN 529 G Bolt
- DIN 558 – Fully Threaded Maching Bolts
- DIN 580 – Lifting Eye Bolts
- DIN 7969 – Slotted countersunk head bolts with hexagon nut for steel structures
Stainless Steel Countersunk Bolts
- DIN 601- Hexagon head bolt with nut
- DIN 603 Mu – Carriage Bolts With Hexagon Nuts
- DIN 604 – Flat Countersunk Nip Bolts With Hex Nuts
- DIN 605 – Flat Countersunk Square Neck Bolts
- DIN 607 – Round Head Nip Bolts With Nuts
- DIN 608 – Countersunk Square Bolts (Short Neck)
- DIN 609 – Hex Fitting Bolts w/long Threaded Portion
- DIN 610 – Hex fitting Bolts w/short Threaded Portion
- DIN 3570 – U Bows U Bolts
- DIN 6914 – Hex Bolts For High Strength Struct. Bolting
- DIN 6915 – Hex Nuts For High Strength Struc. Bolting
- DIN 6916 – Washers For High Strength Structural Bolting
- DIN 6921 – Hex Flange Bolts
- DIN EN 1665 Hexagon bolts with flange – heavy series(Replace DIN 6922)
- DIN 7968 – Hexagon fit bolts with hexagon nut for steel structures
Packing of Stainless Steel Countersunk Bolts
