Since 1994 MD Exports LLP has gained immense prominence over the years as a Stainless Steel Fasteners manufacturer in India, Factory price offered by SS Fasteners manufacturer
MD Exports LLP is a leading Stainless Steel Fasteners manufacturers, suppliers & exporters in India. We have more than 18,000 products in stock. Order by the piece, bag or in bulk. A trusted company manufacturing and supplying SS Fasteners across India & overseas.
Our extensive range of high quality fastenings in A4 /316 stainless steel are specially suited to marine, swimming pool and other high corrosion applications. Manufacturer of high integrity SS Security Fasteners, Cold Forged Stainless Steel Fasteners, Industrial Stainless Steel fasteners. Certified Manufacturer & Stockist of all types of fasteners Clinching Fasteners, Furniture Fasteners, marine grade SS Fasteners. Fasteners made of stainless steel have become increasingly popular due to their inherent corrosion resistive properties.

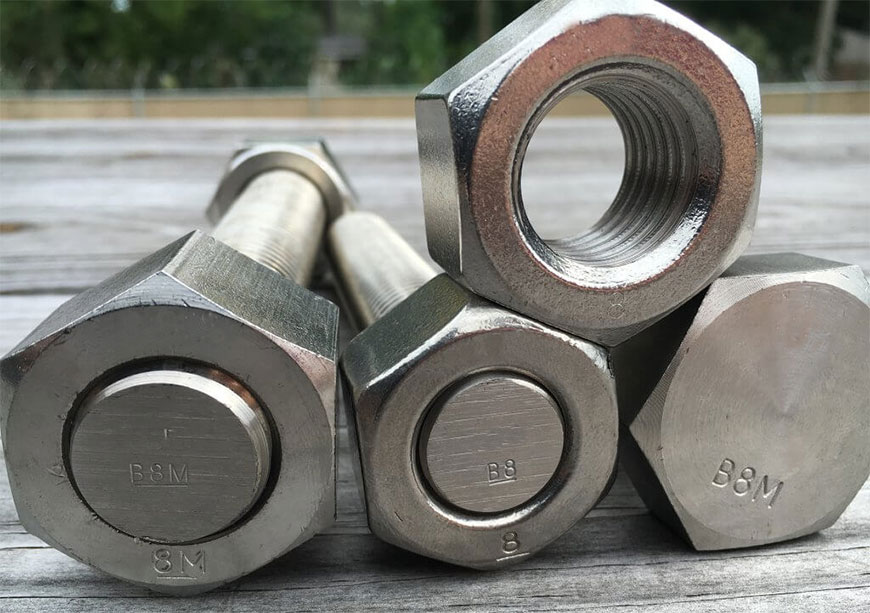

Stainless Steel Fasteners
ASTM A193 / A194 Stainless Steel fasteners Specification
SS Fasteners Standard : DIN, ASTM, BS and all International Standards
SS Fasteners Specification : ASTM A193 B8, B8M, B6, B8T, B8C, A194 G8, 8M, 8C, 8T
SS Fasteners Length : 3 mm to 200 mm
Stainless Steel Bolt / Screw Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes
Stainless Steel Nuts Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes
Stainless Steel Washers Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes
Stainless Steel Machine Screws Size : M1.6 – M12
SS Fasteners Size : M02 to M33
SS Fasteners Grades : 304, 304L, 316, 316L, 309, 310, 317L, 321, 347, 409, 410, 420, 430, 446, 202 etc.
SS Fasteners Types : Bolts, Nuts, Screws, Sockets, Studs, Screw, Hex Set Screw, Socket Screw, Cap Screw, Pan Head Screw, Machine Screw, Socket Head Cap Screw, Allen Cap screw, Wing Screw, Washers, Spring Washers, Studs, Anchors, Marine Anchors, Nut, Hexagon Nut, Hex Nut, Hex Coupling Nut, Hex Domed Cap Nuts, Square Nut, Stud Bolts, Hex Head Bolts, Socket Hexagon Head Screw Anchor Bolt, U- Bolts, J Bolts, Mushroom Head Square Neck Bolts, T-Head Bolts, Wing Screw, Eye Bolt, Foundation Bolts, Structural Bolts.
Metric Stainless Steel Fasteners
| SS Fasteners Type | SS Fasteners SIZE | PROPERTY CLASS | SS Fasteners Standard | |
|---|---|---|---|---|
| Socket Head Cap Screw |
 |
M3 to M30 | A2 – 70/80, A4 – 70/80 | DIN 912 / ISO 4762 |
| Hex Head Screw (Full Thread) |
 |
M3 to M30 | A2 – 70/80, A4 – 70/80 | DIN 933 / ISO 4017 |
| Hex Head Bolt (Partial Thread) |
 |
M4 to M30 | A2 – 70/80, A4 – 70/80 | DIN 931 / ISO 4014 |
| Hex Nut |
 |
M3 to M30 | A2 – 70/80, A4 – 70/80 | DIN 934 / ISO 4032 |
| Plain Washer |
 |
M3 to M64 | A2, A4 | DIN 125 A |
| Flat – Section Spring Washer |
 |
M3 to M36 | A2, A4 | DIN 127 B |
| Square – Section Spring Washer |
 |
M3 to M36 | A2, A4 | DIN 7980 |
| Threaded Rod |
 |
M3 to M36 | A2 – 70/80, A4 – 70/80 | DIN 975 |
Stainless Steel Fasteners Price List
Stainless Steel Fasteners Price List, Stainless Steel Fastener Prices, Stainless Steel Screws Price, Stainless Steel Screws Price List, Apl Stainless Steel Fasteners Price List, Stainless Steel Decking Screws Price, Stainless Steel Batten Screws Price, Stainless Steel Nuts And Bolts Prices, Stainless Steel Bolts And Nuts Price List, Stainless Steel Fasteners Price 2018, Stainless Steel Fasteners Price in India
METRIC SERIES, GRADE 8.8 Fasteners Price
| Dia Length | M6 | M8 | M10 | M12 | M14 | M16 | M20 |
|---|---|---|---|---|---|---|---|
| 12 | 398 | 705 | 1000 | ||||
| 16 | 350 | 705 | 1000 | ||||
| 18 | 147 | 270 | 650 | 950 | 1675 | 2250 | |
| 20 | 157 | 289 | 515 | 750 | 1675 | 2250 | |
| 25 | 185 | 320 | 570 | 832 | 1375 | 1883 | |
| 30 | 212 | 365 | 625 | 914 | 1375 | 1883 | |
| 35 | 241 | 415 | 680 | 998 | 1490 | 1965 | |
| 40 | 269 | 459 | 775 | 1110 | 1605 | 2110 | |
| 45 | 296 | 505 | 845 | 1207 | 1755 | 2270 | |
| 50 | 324 | 550 | 910 | 1306 | 1900 | 2470 | 4165 |
| 55 | 352 | 590 | 980 | 1408 | 2035 | 2645 | 4360 |
| 60 | 379 | 630 | 1050 | 1508 | 2175 | 2820 | 4593 |
| 65 | 408 | 685 | 1120 | 1605 | 2310 | 2995 | 4942 |
| 70 | 436 | 725 | 1185 | 1708 | 2445 | 3174 | 5233 |
| 75 | 463 | 775 | 1260 | 1805 | 2585 | 3350 | 5523 |
| 80 | 589 | 815 | 1325 | 1905 | 2720 | 3525 | 5756 |
| 85 | 855 | 1390 | 2025 | 2875 | 3685 | ||
| 90 | 910 | 1460 | 2100 | 2995 | 3875 | 6302 | |
| 95 | 950 | 1530 | 2200 | 3175 | 4075 | ||
| 100 | 1000 | 1600 | 2300 | 3270 | 4230 | 6837 | |
| 105 | 1045 | 1665 | 2425 | 3510 | 4425 | 7200 | |
| 110 | 1090 | 1738 | 2490 | 3661 | 4584 | 7442 | |
| 120 | 1182 | 1875 | 2691 | 3948 | 4935 | 7965 | |
| 125 | 1225 | 1940 | 2790 | 4100 | 5100 | ||
| 130 | 1260 | 1995 | 2900 | 4204 | 5260 | 8488 | |
| 140 | 1350 | 2135 | 3065 | 4491 | 5600 | 9128 | |
| 150 | 2275 | 3270 | 4651 | 5960 | 9628 | ||
| 160 | 3515 | 4805 | 6163 | 10674 | |||
| 180 | 3955 | 5390 | 6793 | 11837 | |||
| 200 | 4410 | 6203 | 7401 | 12207 | |||
| 220 | 4995 | 6790 | 8948 | 14884 | |||
| 240 | 5415 | 7490 | 9743 | 15581 | |||
| 250 | 5752 | 8050 | 10163 | 16744 |
1.The bolts & screws will generally confirms to IS: 1364, ISO 4014/4017 and DIN 931/933
2.Thread will be confirms to class 6g of IS 4218-1979, coarse series
3.Material High grade Carbon/ Alloy Steel
4.Heat Treatment: Property class 8.8 or 10.9 of IS : 1367
5.Finish: Blackened and Coated with rust preventive oil
Stainless Steel Fasteners Grades

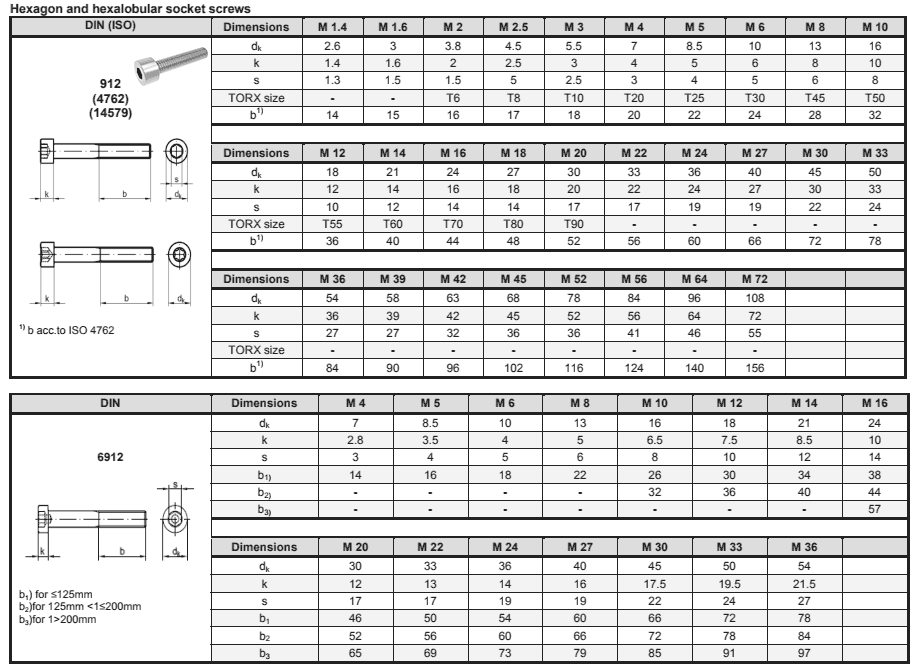

Stainless Steel Fasteners Dimensions
Dimensions for screws and bolts
Check Stainless Steel Fasteners Dimensions full Catalog
Stainless Steel Fasteners For Sale
SS Fasteners Weight Chart
Weight & Count Chart of SS fasteners
M.S. HEX HALF THREAD BOLTS WITH NUTS
|
MM THREADS AS PER IS 1363/67 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
APPROXIMATE WEIGHT IN KGS FOR 100 NOS |
||||||||||
|
LENGTH |
D I A M E T E R |
|||||||||
|
M 5 |
M 6 |
M 8 |
M 10 |
M 12 |
M 14 |
M 16 |
M 18 |
M 20 |
M 22 |
|
| 16 mm | 0.448 | 0.743 | 1.590 | 3.211 | ||||||
| 20 mm | 0.598 | 0.812 | 1.711 | 3.411 | 4.892 | |||||
| 25 mm | 0.660 | 0.897 | 1.871 | 3.660 | 5.252 | 8.170 | ||||
| 30 mm | 0.737 | 1.010 | 2.070 | 3.912 | 5.574 | 9.690 | 10.707 | 18.657 | ||
| 35 mm | 0.804 | 1.120 | 2.271 | 4.223 | 5.974 | 10.000 | 11.416 | 16.026 | 19.608 | |
| 40 mm | 0.881 | 1.230 | 2.470 | 4.533 | 6.410 | 10.288 | 12.107 | 16.667 | 20.747 | |
| 45 mm | 0.958 | 1.340 | 2.671 | 4.840 | 6.859 | 10.504 | 12.821 | 17.241 | 21.739 | |
| 50 mm | 1.030 | 1.450 | 2.870 | 5.155 | 7.299 | 11.261 | 13.624 | 17.857 | 22.727 | 28.409 |
| 55 mm | 1.560 | 3.071 | 5.464 | 7.740 | 11.628 | 14.409 | 18.868 | 23.810 | 30.120 | |
| 60 mm | 1.670 | 3.270 | 5.774 | 8.183 | 12.255 | 15.244 | 20.000 | 25.126 | 32.051 | |
| 65 mm | 1.781 | 3.472 | 6.083 | 8.621 | 12.626 | 16.026 | 21.008 | 26.455 | 34.014 | |
| 70 mm | 1.890 | 3.671 | 6.394 | 9.058 | 12.987 | 16.835 | 22.124 | 27.778 | 35.461 | |
| 75 mm | 2.000 | 3.873 | 6.702 | 9.506 | 13.228 | 17.606 | 23.256 | 29.070 | 39.063 | |
| 80 mm | 2.111 | 4.072 | 7.013 | 10.000 | 13.889 | 18.248 | 24.510 | 30.303 | 40.000 | |
| 90 mm | 4.472 | 7.634 | 10.917 | 14.925 | 19.841 | 26.042 | 33.113 | 41.667 | ||
| 100 mm | 4.873 | 8.251 | 11.820 | 16.340 | 21.459 | 27.778 | 35.714 | 46.296 | ||
| 110 mm | 8.881 | 12.723 | 17.730 | 23.041 | 31.250 | 38.168 | 47.170 | |||
| 120 mm | 9.506 | 13.624 | 18.797 | 24.631 | 32.895 | 40.984 | 50.000 | |||
| 130 mm | 10.101 | 14.535 | 20.000 | 26.316 | 34.722 | 43.478 | 52.632 | |||
| 140 mm | 10.707 | 15.432 | 20.833 | 27.933 | 35.461 | 46.296 | 55.556 | |||
| 150 mm | 11.312 | 16.340 | 22.222 | 29.412 | 37.594 | 48.544 | 58.824 | |||
| 160 mm | 11.905 | 17.241 | 24.272 | 31.056 | 40.984 | 50.505 | 61.728 | |||
| 170 mm | 12.500 | 18.116 | 32.680 | 53.191 | 64.935 | |||||
| 180 mm | 13.123 | 19.011 | 26.882 | 34.247 | 55.556 | 67.568 | ||||
| 190 mm | 13.736 | 19.920 | 35.971 | 58.140 | 70.423 | |||||
| 200 mm | 14.327 | 20.833 | 29.586 | 37.594 | 49.020 | 60.976 | 73.529 | |||
| 220 mm | 15.528 | 22.624 | 40.650 | 65.789 | 79.365 | |||||
| 240 mm | 16.722 | 24.510 | 43.860 | 71.429 | 84.746 | |||||
| 250 mm | 17.301 | 25.381 | 45.455 | 74.627 | 87.719 | |||||
| 260 mm | 17.921 | 26.316 | 47.170 | 76.923 | 90.909 | |||||
| 280 mm | 19.157 | 28.090 | 50.505 | 81.967 | 98.039 | |||||
| 300 mm | 20.325 | 29.940 | 53.763 | 87.719 | 104.167 | |||||
| 320 mm | 31.646 | 56.818 | 92.593 | |||||||
| 340 mm | 33.557 | 60.241 | 98.039 | |||||||
| 360 mm | 35.211 | 63.291 | 104.167 | |||||||
| 380 mm | 37.037 | 66.667 | 108.696 | |||||||
| 400 mm | 39.063 | 69.444 | 113.636 | |||||||
|
MM THREADS AS PER IS 1363/67 CONTD |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APPROXIMATE WEIGHT IN KGS FOR 100 NOS |
||||||||||||||
|
LENGTH |
D I A M E T E R |
|||||||||||||
|
M 24 |
M 27 |
M 30 |
M 33 |
M 36 |
M 39 |
M 42 |
M 45 |
M 48 |
M 52 |
M 56 |
M 60 |
M 64 |
M 72 |
|
| 60 mm | 42.373 | 57.471 | 70.423 | |||||||||||
| 65 mm | 43.860 | 59.524 | 75.758 | |||||||||||
| 70 mm | 45.455 | 60.976 | 81.967 | |||||||||||
| 75 mm | 47.170 | 63.291 | 84.746 | |||||||||||
| 80 mm | 49.020 | 65.789 | 87.719 | 108.696 | 135.135 | |||||||||
| 90 mm | 52.632 | 70.423 | 94.340 | 116.279 | 142.857 | |||||||||
| 100 mm | 56.180 | 74.627 | 100.000 | 125.000 | 156.250 | 192.308 | 217.391 | |||||||
| 110 mm | 60.241 | 79.365 | 104.167 | 131.579 | 166.667 | 200.000 | 238.095 | |||||||
| 120 mm | 63.291 | 83.333 | 108.696 | 135.135 | 172.414 | 208.333 | 250.000 | 312.500 | ||||||
| 130 mm | 66.667 | 87.719 | 113.636 | 142.857 | 178.571 | 217.391 | 263.158 | 357.143 | ||||||
| 140 mm | 69.444 | 92.593 | 119.048 | 151.515 | 185.185 | 227.273 | 277.778 | 384.615 | ||||||
| 150 mm | 73.529 | 98.039 | 125.000 | 156.250 | 192.308 | 238.095 | 294.118 | 333.333 | ||||||
| 160 mm | 76.923 | 102.041 | 131.579 | 166.667 | 200.000 | 250.000 | 294.118 | 416.667 | 714.286 | |||||
| 170 mm | 80.645 | 106.383 | 138.889 | 172.414 | 208.333 | 263.158 | 312.500 | 500.000 | 625.000 | 833.333 | ||||
| 180 mm | 83.333 | 111.111 | 142.857 | 178.571 | 217.391 | 263.158 | 312.500 | 357.143 | 454.545 | |||||
| 190 mm | 87.719 | 116.279 | 147.059 | 185.185 | 227.273 | 277.778 | 333.333 | |||||||
| 200 mm | 90.909 | 119.048 | 151.515 | 192.308 | 238.095 | 294.118 | 333.333 | 384.615 | 555.556 | |||||
| 220 mm | 98.039 | 128.205 | 166.667 | 208.333 | 250.000 | 312.500 | 357.143 | 500.000 | 714.286 | 833.333 | 1,250.000 | |||
| 240 mm | 106.383 | 138.889 | 178.571 | 217.391 | 277.778 | 333.333 | 384.615 | 416.667 | 625.000 | 1,000.000 | ||||
| 250 mm | 111.111 | 142.857 | 185.185 | 227.273 | 294.118 | 333.333 | 384.615 | 555.556 | ||||||
| 260 mm | 113.636 | 147.059 | 185.185 | 227.273 | 312.500 | 357.143 | 416.667 | |||||||
| 280 mm | 119.048 | 156.250 | 200.000 | 250.000 | 312.500 | 357.143 | 416.667 | 454.545 | 833.333 | 1,000.000 | ||||
| 300 mm | 128.205 | 166.667 | 208.333 | 263.158 | 333.333 | 384.615 | 454.545 | 625.000 | 714.286 | 1,250.000 | 1,666.667 | |||
| 320 mm | 135.135 | 178.571 | 217.391 | 277.778 | ||||||||||
| 340 mm | 142.857 | 185.185 | 238.095 | 294.118 | ||||||||||
| 360 mm | 147.059 | 192.308 | 250.000 | 294.118 | ||||||||||
| 380 mm | 156.250 | 200.000 | 250.000 | 312.500 | ||||||||||
| 400 mm | 161.290 | 217.391 | 263.158 | 333.333 | ||||||||||
|
BSW THREADS AS PER BS 916/53 |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APPROXIMATE WEIGHT IN KGS FOR 100 NOS |
||||||||||||||
|
LENGTH |
D I A M E T E R |
|||||||||||||
|
1/4″ |
5/16″ |
3/8″ |
7/16″ |
1/2″ |
5/8″ |
3/4″ |
7/8″ |
1″ |
1.1/8″ |
1.1/4″ |
1.1/2″ |
1.3/4″ |
2″ |
|
| 3/4″ | 1.111 | |||||||||||||
| 1″ | 1.252 | 2.041 | 3.123 | 4.950 | ||||||||||
| 1.1/4″ | 1.401 | 2.281 | 3.458 | 5.388 | 7.692 | 13.966 | ||||||||
| 1.1/2″ | 1.556 | 2.523 | 3.797 | 5.875 | 8.306 | 14.925 | 23.810 | 29.240 | ||||||
| 1.3/4″ | 1.705 | 2.762 | 4.132 | 6.329 | 8.897 | 15.924 | 25.253 | 31.056 | 45.045 | |||||
| 2″ | 1.864 | 3.003 | 4.468 | 6.793 | 9.506 | 16.949 | 26.882 | 32.680 | 47.619 | |||||
| 2.1/4″ | 2.005 | 3.245 | 4.826 | 7.246 | 10.121 | 17.921 | 28.249 | 34.483 | 50.505 | 70.423 | ||||
| 2.1/2″ | 2.159 | 3.484 | 5.144 | 7.704 | 10.707 | 18.868 | 29.762 | 36.765 | 52.632 | 73.529 | 98.039 | 156.250 | 227.273 | 312.500 |
| 3″ | 2.459 | 3.965 | 5.814 | 8.621 | 11.933 | 20.921 | 32.468 | 40.323 | 56.818 | 79.365 | 106.383 | 166.667 | 250.000 | 333.333 |
| 3.1/2″ | 2.762 | 4.444 | 6.485 | 9.542 | 13.123 | 22.831 | 35.714 | 43.860 | 60.976 | 84.746 | 113.636 | 178.571 | 250.000 | 333.333 |
| 4″ | 3.075 | 4.926 | 7.153 | 10.460 | 14.327 | 24.876 | 38.462 | 48.544 | 66.667 | 90.909 | 119.048 | 185.185 | 277.778 | 357.143 |
| 4.1/2″ | 3.367 | 5.405 | 7.813 | 11.364 | 15.528 | 26.882 | 40.984 | 51.546 | 69.444 | 98.039 | 128.205 | 192.308 | 277.778 | 384.615 |
| 5″ | 3.655 | 5.903 | 8.475 | 12.285 | 16.779 | 28.902 | 43.860 | 54.945 | 76.923 | 102.041 | 135.135 | 208.333 | 294.118 | 384.615 |
| 5.1/2″ | 3.946 | 6.386 | 9.141 | 13.158 | 17.921 | 30.864 | 47.170 | 58.824 | 81.967 | 108.696 | 147.059 | 227.273 | 333.333 | 416.667 |
| 6″ | 4.237 | 6.868 | 9.804 | 14.085 | 19.157 | 32.680 | 50.505 | 63.291 | 86.207 | 116.279 | 156.250 | 238.095 | 357.143 | 416.667 |
| 7″ | 20.833 | 34.722 | 53.763 | 73.529 | 96.154 | 128.205 | 172.414 | 250.000 | 384.615 | 500.000 | ||||
| 8″ | 23.585 | 38.462 | 58.140 | 79.365 | 106.383 | 142.857 | 185.185 | 277.778 | 416.667 | 555.556 | ||||
| 9″ | 25.907 | 42.735 | 64.935 | 87.719 | 116.279 | 156.250 | 200.000 | 312.500 | 454.545 | 555.556 | ||||
| 10″ | 28.736 | 47.619 | 71.429 | 96.154 | 125.000 | 166.667 | 217.391 | 333.333 | 454.545 | 625.000 | ||||
| 11″ | 31.250 | 50.505 | 75.758 | 104.167 | 135.135 | 178.571 | 238.095 | 357.143 | 500.000 | 714.286 | ||||
| 12″ | 33.557 | 53.763 | 80.645 | 113.636 | 147.059 | 192.308 | 250.000 | 384.615 | 555.556 | 714.286 | ||||
| 14″ | 38.462 | 60.976 | 92.593 | 125.000 | 166.667 | 217.391 | 277.778 | 416.667 | 625.000 | 833.333 | ||||
| 16″ | 43.478 | 68.493 | 104.167 | 142.857 | 185.185 | 238.095 | 312.500 | 500.000 | 714.286 | 1,000.000 | ||||
| 18″ | 48.544 | 76.923 | 113.636 | 156.250 | 208.333 | 263.158 | 333.333 | 555.556 | 714.286 | 1,000.000 | ||||
| 20″ | 53.763 | 84.746 | 125.000 | 172.414 | 227.273 | 294.118 | 384.615 | 625.000 | 833.333 | 1,250.000 | ||||
M.S. HEX FULL THREAD BOLTS WITH NUTS
|
MM THREADS AS PER IS 1363/67 |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APPROX WEIGHT IN KGS FOR 100 NOS. |
||||||||||||
|
LENGTH |
D I A M E T E R |
|||||||||||
|
M 2 |
M 3 |
M 4 |
M 5 |
M 6 |
M 7 |
M 8 |
M 10 |
M 12 |
M 14 |
M 16 |
M 18 |
|
| 3 mm | 0.031 | |||||||||||
| 4 mm | 0.032 | 0.081 | ||||||||||
| 5 mm | 0.034 | 0.086 | 0.194 | |||||||||
| 6 mm | 0.036 | 0.090 | 0.201 | 0.329 | 0.572 | 0.837 | ||||||
| 8 mm | 0.040 | 0.099 | 0.217 | 0.349 | 0.606 | 0.887 | 1.338 | |||||
| 10 mm | 0.044 | 0.108 | 0.232 | 0.374 | 0.640 | 0.937 | 1.392 | |||||
| 12 mm | 0.047 | 0.117 | 0.248 | 0.398 | 0.674 | 0.986 | 1.462 | 2.943 | 4.337 | |||
| 16 mm | 0.053 | 0.133 | 0.278 | 0.448 | 0.743 | 1.080 | 1.593 | 3.143 | 4.617 | |||
| 20 mm | 0.151 | 0.309 | 0.498 | 0.812 | 1.185 | 1.712 | 3.342 | 4.897 | ||||
| 25 mm | 0.173 | 0.348 | 0.560 | 0.897 | 1.304 | 1.873 | 3.595 | 5.258 | 7.716 | 10.121 | 14.124 | |
| 30 mm | 0.387 | 0.622 | 0.983 | 1.435 | 2.033 | 3.843 | 5.618 | 8.210 | 10.799 | 15.015 | ||
| 35 mm | 0.425 | 0.684 | 1.069 | 1.555 | 2.194 | 4.095 | 5.981 | 8.711 | 11.468 | 15.823 | ||
| 40 mm | 0.464 | 0.746 | 1.155 | 1.685 | 2.354 | 4.344 | 6.345 | 9.208 | 12.136 | 16.611 | ||
| 45 mm | 0.502 | 0.810 | 1.243 | 1.805 | 2.514 | 4.596 | 6.702 | 9.728 | 12.853 | 17.422 | ||
| 50 mm | 0.541 | 0.870 | 1.333 | 1.935 | 2.664 | 4.850 | 7.052 | 10.225 | 13.441 | 18.248 | ||
| 55 mm | 0.580 | 0.932 | 1.422 | 2.056 | 2.825 | 5.097 | 7.418 | 10.707 | 14.124 | 19.157 | ||
| 60 mm | 0.618 | 0.994 | 1.502 | 2.176 | 2.983 | 5.359 | 7.776 | 11.211 | 14.837 | 19.920 | ||
| 65 mm | 0.657 | 1.056 | 1.593 | 2.305 | 3.145 | 5.612 | 8.143 | 11.710 | 15.432 | 20.747 | ||
| 70 mm | 0.696 | 1.121 | 1.673 | 2.426 | 3.305 | 5.855 | 8.503 | 12.225 | 16.129 | 21.552 | ||
| 75 mm | 1.181 | 1.763 | 2.556 | 3.465 | 6.112 | 8.865 | 12.626 | 16.892 | 22.422 | |||
| 80 mm | 1.242 | 1.853 | 2.677 | 3.626 | 6.361 | 9.225 | 13.158 | 17.544 | 23.256 | |||
| 85 mm | 1.933 | 2.806 | 3.785 | 6.614 | 9.579 | 13.661 | 18.182 | 24.038 | ||||
| 90 mm | 2.023 | 2.926 | 3.946 | 6.868 | 9.940 | 14.164 | 18.868 | 24.876 | ||||
| 100 mm | 2.194 | 3.177 | 4.255 | 7.364 | 10.661 | 15.152 | 20.161 | 26.455 | ||||
| 110 mm | 2.361 | 4.579 | 7.886 | 11.390 | 16.181 | 21.645 | 28.249 | |||||
| 120 mm | 2.734 | 4.950 | 8.375 | 12.136 | 17.182 | 22.936 | 29.940 | |||||
| 130 mm | 2.865 | 5.297 | 8.881 | 12.821 | 18.182 | 24.155 | 31.646 | |||||
| 140 mm | 3.012 | 5.593 | 9.381 | 13.514 | 19.231 | 25.641 | 33.333 | |||||
| 150 mm | 3.175 | 5.869 | 9.881 | 14.245 | 20.243 | 27.027 | 34.722 | |||||
| 160 mm | 10.040 | 14.620 | 28.571 | 36.496 | ||||||||
| 170 mm | 10.395 | 15.528 | 29.940 | 38.168 | ||||||||
| 180 mm | 11.261 | 16.340 | 30.864 | 39.683 | ||||||||
| 190 mm | 17.007 | 32.258 | 41.667 | |||||||||
| 200 mm | 12.165 | 17.794 | 33.113 | 43.103 | ||||||||
| 225 mm | 19.305 | 36.765 | ||||||||||
| 250 mm | 14.749 | 21.645 | 40.000 | |||||||||
| 260 mm | ||||||||||||
| 280 mm | ||||||||||||
| 300 mm | 24.631 | 47.170 | ||||||||||
|
MM THREADS AS PER IS 1363/67 CONTD |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APPROX WEIGHT IN KGS FOR 100 NOS. |
||||||||||||
|
LENGTH |
D I A M E T E R |
|||||||||||
|
M 20 |
M 22 |
M 24 |
M 27 |
M 30 |
M 33 |
M 36 |
M 39 |
M 42 |
M 45 |
M 48 |
M 52 |
|
| 25 mm | 18.727 | |||||||||||
| 30 mm | 19.763 | |||||||||||
| 35 mm | 20.833 | 25.381 | ||||||||||
| 40 mm | 21.834 | 26.596 | 34.965 | |||||||||
| 45 mm | 22.831 | 27.933 | 36.496 | |||||||||
| 50 mm | 24.038 | 29.240 | 38.168 | 53.763 | 72.464 | 92.593 | ||||||
| 55 mm | 25.000 | 30.675 | 39.370 | 56.180 | 74.627 | 96.154 | ||||||
| 60 mm | 26.042 | 31.847 | 40.984 | 57.471 | 76.923 | 98.039 | 125.000 | 161.290 | 185.185 | 277.778 | ||
| 65 mm | 27.027 | 33.113 | 42.735 | 60.241 | 79.365 | 102.041 | 131.579 | 161.290 | 192.308 | 238.095 | 357.143 | |
| 70 mm | 28.090 | 34.483 | 44.248 | 61.728 | 81.967 | 104.167 | 135.135 | 166.667 | 294.118 | |||
| 75 mm | 29.070 | 35.714 | 45.872 | 64.103 | 84.746 | 108.696 | 138.889 | 178.571 | 200.000 | 250.000 | ||
| 80 mm | 30.303 | 37.037 | 47.170 | 65.789 | 87.719 | 111.111 | 142.857 | 178.571 | ||||
| 85 mm | 31.250 | 38.168 | 48.544 | 67.568 | 89.286 | 113.636 | 147.059 | 185.185 | 208.333 | 263.158 | 312.500 | 384.615 |
| 90 mm | 32.258 | 39.683 | 50.000 | 69.444 | 92.593 | 116.279 | 151.515 | 192.308 | 217.391 | |||
| 100 mm | 34.483 | 42.373 | 53.191 | 73.529 | 96.154 | 121.951 | 156.250 | 200.000 | 227.273 | 277.778 | 333.333 | 416.667 |
| 110 mm | 36.496 | 45.045 | 56.180 | 78.125 | 102.041 | 128.205 | 166.667 | 208.333 | 238.095 | 294.118 | ||
| 120 mm | 38.462 | 47.619 | 59.524 | 81.967 | 106.383 | 135.135 | 172.414 | 208.333 | 250.000 | 357.143 | ||
| 130 mm | 40.984 | 50.000 | 62.500 | 86.207 | 111.111 | 142.857 | 178.571 | 227.273 | 312.500 | 384.615 | 454.545 | |
| 140 mm | 42.735 | 52.632 | 65.789 | 89.286 | 116.279 | 147.059 | 185.185 | 238.095 | 263.158 | 333.333 | ||
| 150 mm | 45.045 | 55.556 | 68.493 | 94.340 | 121.951 | 151.515 | 192.308 | 250.000 | 277.778 | |||
| 160 mm | 47.170 | 57.471 | 71.429 | 98.039 | 128.205 | 161.290 | 200.000 | 250.000 | 416.667 | 500.000 | ||
| 170 mm | 49.020 | 60.241 | 74.627 | 102.041 | 131.579 | 166.667 | 208.333 | 263.158 | 294.118 | 357.143 | ||
| 180 mm | 51.020 | 62.500 | 79.365 | 106.383 | 135.135 | 178.571 | 217.391 | 263.158 | 555.556 | |||
| 190 mm | 53.191 | 65.789 | 80.645 | 111.111 | 142.857 | 178.571 | 227.273 | 277.778 | 312.500 | |||
| 200 mm | 54.945 | 68.493 | 84.746 | 113.636 | 147.059 | 185.185 | 227.273 | 294.118 | 333.333 | 384.615 | 454.545 | 625.000 |
| 225 mm | 60.241 | 92.593 | 156.250 | |||||||||
| 250 mm | 65.789 | 100.000 | 172.414 | |||||||||
| 300 mm | 78.125 | 113.636 | 192.308 | |||||||||
|
BSW THREADS AS PER BS 916/53 |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APPROXIMATE WEIGHT IN KGS FOR 100 NOS |
||||||||||||||
|
LENGTH |
D I A M E T E R |
|||||||||||||
|
3/16″ |
1/4″ |
5/16″ |
3/8″ |
7/16″ |
1/2″ |
5/8″ |
3/4″ |
7/8″ |
1″ |
1.1/8″ |
1.1/4″ |
1.1/2″ |
2″ |
|
| 1/4″ | 0.324 | |||||||||||||
| 3/8″ | 0.354 | 0.823 | ||||||||||||
| 1/2″ | 0.392 | 0.878 | 1.420 | |||||||||||
| 5/8″ | 0.417 | 0.948 | 1.511 | 2.356 | ||||||||||
| 3/4″ | 0.452 | 1.008 | 1.629 | 2.513 | 4.195 | 6.266 | ||||||||
| 1″ | 0.498 | 1.139 | 1.804 | 2.882 | 4.647 | 6.693 | 12.195 | |||||||
| 1.1/4″ | 0.583 | 1.257 | 1.990 | 3.159 | 4.995 | 7.184 | 12.987 | 21.008 | 27.473 | |||||
| 1.1/2″ | 0.643 | 1.375 | 2.176 | 3.436 | 5.365 | 7.692 | 13.774 | 22.124 | 29.240 | 42.017 | ||||
| 1.3/4″ | 0.683 | 1.493 | 2.362 | 3.715 | 5.767 | 8.183 | 14.535 | 23.364 | 30.864 | 44.248 | ||||
| 2″ | 0.743 | 1.611 | 2.548 | 3.990 | 6.143 | 8.681 | 15.291 | 24.510 | 32.468 | 46.296 | ||||
| 2.1/4″ | 0.818 | 1.730 | 2.732 | 4.266 | 6.527 | 9.191 | 16.129 | 25.641 | 34.014 | 48.077 | ||||
| 2.1/2″ | 0.891 | 1.848 | 2.921 | 4.545 | 6.897 | 9.690 | 16.892 | 26.738 | 35.714 | 50.505 | 94.340 | |||
| 3″ | 1.010 | 2.083 | 3.294 | 5.097 | 7.645 | 10.684 | 18.450 | 29.240 | 38.760 | 54.348 | 74.627 | 100.000 | 166.667 | |
| 3.1/2″ | 1.114 | 2.320 | 3.663 | 5.656 | 8.389 | 11.682 | 20.080 | 31.447 | 42.735 | 58.824 | 80.645 | 106.383 | ||
| 4″ | 1.220 | 2.556 | 4.039 | 6.203 | 9.141 | 12.690 | 21.645 | 33.784 | 44.643 | 63.291 | 87.719 | 113.636 | 185.185 | 357.143 |
| 4.1/2″ | 2.792 | 4.409 | 6.766 | 9.901 | 13.661 | 23.148 | 36.232 | 48.544 | 66.667 | 92.593 | 119.048 | |||
| 5″ | 3.025 | 4.776 | 7.310 | 10.661 | 14.663 | 24.752 | 38.760 | 52.083 | 71.429 | 98.039 | 128.205 | 208.333 | 416.667 | |
| 6″ | 3.489 | 5.513 | 8.432 | 12.136 | 16.667 | 27.933 | 43.103 | 58.824 | 80.645 | 108.696 | 142.857 | 227.273 | 454.545 | |
| 7″ | 9.690 | 18.939 | 31.056 | 47.619 | 65.789 | 87.719 | 161.290 | |||||||
| 8″ | 10.730 | 21.008 | 34.014 | 52.632 | 72.464 | 96.154 | 172.414 | 277.778 | 555.556 | |||||
| 9″ | 11.962 | 22.727 | 37.037 | 57.471 | 78.125 | 104.167 | 185.185 | |||||||
| 10″ | 12.887 | 24.752 | 40.984 | 61.728 | 84.746 | 113.636 | 192.308 | 625.000 | ||||||
| 11″ | 26.596 | 44.248 | 66.667 | 89.286 | 121.951 | 217.391 | ||||||||
| 12″ | 28.902 | 47.619 | 73.529 | 94.340 | 131.579 | 227.273 | ||||||||
|
M.S. HEX HALF THREAD BOLTS ONLY (WITHOUT NUTS) MM THREADS AS PER IS 1363/67 |
||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APPROXIMATE WEIGHT IN KGS FOR 100 NOS |
||||||||||||||||||
|
LENGTH |
D I A M E T E R |
|||||||||||||||||
|
M6 |
M8 |
M10 |
M12 |
M14 |
M16 |
M18 |
M20 |
M22 |
M24 |
M27 |
M30 |
M33 |
M36 |
M39 |
M42 |
M45 |
M48 |
|
| 25 mm | 0.714 | |||||||||||||||||
| 30 mm | 0.822 | 1.587 | ||||||||||||||||
| 35 mm | 0.935 | 1.779 | 3.145 | |||||||||||||||
| 40 mm | 1.035 | 1.976 | 3.436 | 4.936 | ||||||||||||||
| 45 mm | 1.149 | 2.165 | 3.745 | 5.319 | 9.881 | |||||||||||||
| 50 mm | 1.250 | 2.358 | 4.049 | 5.714 | 8.039 | 10.638 | 22.727 | 27.778 | 39.370 | 51.546 | 65.789 | 80.645 | ||||||
| 55 mm | 1.351 | 2.551 | 4.367 | 6.098 | 8.503 | 11.442 | 19.231 | 23.810 | 29.412 | 40.984 | 54.348 | 68.493 | 84.746 | |||||
| 60 mm | 1.462 | 2.740 | 4.651 | 6.494 | 9.091 | 12.255 | 16.026 | 20.492 | 25.000 | 31.250 | 43.103 | 56.818 | 70.423 | 87.719 | 111.111 | |||
| 65 mm | 1.577 | 2.941 | 4.950 | 6.897 | 10.000 | 13.021 | 16.892 | 21.739 | 26.596 | 33.333 | 45.045 | 59.524 | 73.529 | 92.593 | 113.636 | |||
| 70 mm | 1.672 | 3.030 | 5.236 | 7.278 | 10.616 | 13.850 | 18.116 | 22.936 | 27.933 | 35.211 | 46.729 | 61.728 | 76.923 | 96.154 | 119.048 | 142.857 | ||
| 75 mm | 1.773 | 3.257 | 5.531 | 7.657 | 11.161 | 14.577 | 18.868 | 24.155 | 29.412 | 37.037 | 48.544 | 63.291 | 79.365 | 102.041 | 125.000 | 147.059 | ||
| 80 mm | 1.887 | 3.509 | 5.862 | 8.065 | 11.765 | 15.385 | 19.685 | 25.381 | 30.864 | 39.063 | 50.000 | 66.667 | 83.333 | 106.383 | 131.579 | 151.515 | 192.308 | |
| 90 mm | 2.083 | 3.846 | 6.410 | 8.803 | 12.255 | 16.892 | 22.026 | 27.778 | 33.784 | 42.735 | 55.556 | 71.429 | 89.286 | 111.111 | 138.889 | 161.290 | 200.000 | 227.273 |
| 100 mm | 2.273 | 4.202 | 6.993 | 9.579 | 13.624 | 18.450 | 24.038 | 30.120 | 36.765 | 46.296 | 60.241 | 76.923 | 96.154 | 119.048 | 147.059 | 172.414 | 208.333 | 238.095 |
| 110 mm | 2.500 | 4.630 | 7.519 | 10.846 | 14.881 | 19.920 | 25.510 | 32.468 | 40.000 | 50.000 | 65.789 | 83.333 | 104.167 | 125.000 | 151.515 | 185.185 | 217.391 | 250.000 |
| 120 mm | 2.778 | 5.144 | 8.104 | 12.500 | 16.393 | 21.552 | 27.027 | 34.965 | 43.478 | 53.191 | 69.444 | 87.719 | 111.111 | 131.579 | 156.250 | 192.308 | 227.273 | 277.778 |
| 130 mm | 2.959 | 5.405 | 8.651 | 13.441 | 17.606 | 23.041 | 29.940 | 37.313 | 45.872 | 56.180 | 73.529 | 92.593 | 119.048 | 142.857 | 172.414 | 208.333 | 238.095 | 294.118 |
| 140 mm | 3.155 | 5.682 | 9.259 | 14.493 | 18.939 | 24.631 | 33.333 | 40.000 | 48.544 | 58.824 | 78.125 | 100.000 | 125.000 | 151.515 | 185.185 | 217.391 | 250.000 | 312.500 |
| 150 mm | 3.356 | 5.814 | 10.060 | 15.291 | 19.841 | 26.178 | 34.722 | 42.373 | 51.546 | 62.500 | 81.967 | 102.041 | 128.205 | 156.250 | 192.308 | 227.273 | 263.158 | 312.500 |
| 160 mm | 3.571 | 10.989 | 16.129 | 21.739 | 27.778 | 36.232 | 45.045 | 54.348 | 65.789 | 86.207 | 108.696 | 135.135 | 166.667 | 200.000 | 238.095 | 277.778 | 333.333 | |
| 180 mm | 11.628 | 16.949 | 24.390 | 30.864 | 40.000 | 50.000 | 60.241 | 73.529 | 96.154 | 121.951 | 151.515 | 178.571 | 217.391 | 263.158 | 312.500 | 357.143 | ||
| 200 mm | 12.821 | 18.868 | 27.027 | 33.784 | 44.248 | 54.945 | 66.667 | 80.645 | 104.167 | 131.579 | 166.667 | 200.000 | 238.095 | 294.118 | 333.333 | 384.615 | ||
| 225 mm | 14.286 | 20.408 | 37.879 | 60.241 | 73.529 | 87.719 | 116.279 | 142.857 | 178.571 | 217.391 | 263.158 | 312.500 | 357.143 | 416.667 | ||||
| 250 mm | 15.625 | 23.810 | 41.667 | 66.667 | 80.645 | 98.039 | 128.205 | 156.250 | 200.000 | 227.273 | 294.118 | 333.333 | 384.615 | 454.545 | ||||
| 275 mm | 17.241 | 26.316 | 45.872 | 72.464 | 87.719 | 106.383 | 135.135 | 166.667 | 208.333 | 250.000 | 312.500 | 357.143 | 416.667 | 500.000 | ||||
| 300 mm | 27.322 | 49.505 | 79.365 | 96.154 | 116.279 | 147.059 | 185.185 | 217.391 | 277.778 | 333.333 | 384.615 | 454.545 | 500.000 | |||||
|
BSW THREADS AS PER BS 916/53 |
||||||||||||||
|
APPROXIMATE WEIGHT IN KGS FOR 100 NOS. |
||||||||||||||
|
LENGTH |
D I A M E T E R |
|||||||||||||
|
1/4″ |
5/16″ |
3/8″ |
7/16″ |
1/2″ |
5/8″ |
3/4″ |
7/8″ |
1″ |
1.1/8″ |
1.1/4″ |
1.1/2″ |
1.3/4″ |
2″ |
|
| 3/4″ | 0.732 | |||||||||||||
| 7/8″ | 0.795 | 1.401 | ||||||||||||
| 1″ | 0.868 | 1.479 | 1.984 | |||||||||||
| 1.1/4″ | 1.071 | 1.712 | 2.320 | 4.167 | 5.181 | 8.803 | ||||||||
| 1.1/2″ | 1.160 | 1.946 | 2.660 | 4.587 | 5.800 | 9.804 | 15.432 | |||||||
| 1.3/4″ | 1.307 | 2.183 | 3.003 | 5.000 | 6.410 | 10.799 | 16.502 | 21.930 | ||||||
| 2″ | 1.458 | 2.410 | 3.344 | 5.388 | 7.013 | 11.820 | 17.921 | 23.810 | 33.557 | |||||
| 2.1/4″ | 1.603 | 2.646 | 3.676 | 5.794 | 7.634 | 12.821 | 19.380 | 25.773 | 36.232 | |||||
| 2.1/2″ | 1.751 | 2.874 | 4.016 | 6.196 | 8.237 | 13.812 | 20.833 | 27.624 | 38.760 | 51.020 | 67.568 | 104.167 | 151.515 | 217.391 |
| 3″ | 2.041 | 3.344 | 4.695 | 7.013 | 9.434 | 15.823 | 23.697 | 31.447 | 43.103 | 57.471 | 75.758 | 113.636 | 166.667 | 238.095 |
| 3.1/2″ | 2.336 | 3.817 | 5.376 | 7.813 | 10.638 | 17.794 | 26.596 | 35.211 | 49.020 | 64.103 | 84.746 | 125.000 | 185.185 | 250.000 |
| 4″ | 2.632 | 4.274 | 6.061 | 8.621 | 11.905 | 19.920 | 29.412 | 39.370 | 53.763 | 70.423 | 90.909 | 135.135 | 200.000 | 277.778 |
| 4.1/2″ | 2.924 | 4.753 | 6.729 | 9.434 | 13.158 | 21.186 | 31.250 | 42.735 | 56.818 | 76.923 | 98.039 | 142.857 | 217.391 | 294.118 |
| 5″ | 3.205 | 5.208 | 7.407 | 10.246 | 14.706 | 23.148 | 34.014 | 46.729 | 64.103 | 81.967 | 106.383 | 161.290 | 238.095 | 312.500 |
| 6″ | 3.817 | 6.150 | 8.741 | 11.848 | 16.393 | 27.027 | 39.683 | 54.945 | 72.464 | 94.340 | 125.000 | 185.185 | 277.778 | 357.143 |
| 7″ | 10.101 | 18.182 | 30.675 | 46.729 | 64.935 | 81.967 | 111.111 | 138.889 | 208.333 | 312.500 | 384.615 | |||
| 8″ | 11.416 | 21.739 | 34.247 | 50.505 | 67.568 | 90.909 | 121.951 | 151.515 | 238.095 | 333.333 | 454.545 | |||
| 9″ | 12.821 | 23.256 | 38.462 | 58.824 | 76.923 | 102.041 | 128.205 | 166.667 | 263.158 | 384.615 | 500.000 | |||
| 10″ | 14.286 | 25.000 | 43.478 | 63.291 | 84.746 | 113.636 | 138.889 | 185.185 | 277.778 | 416.667 | 555.556 | |||
| 11″ | 27.933 | 46.296 | 67.568 | 92.593 | 121.951 | 151.515 | 200.000 | 294.118 | 416.667 | 555.556 | ||||
| 12″ | 17.241 | 31.447 | 49.505 | 72.464 | 100.000 | 131.579 | 161.290 | 208.333 | 312.500 | 454.545 | 625.000 | |||
| 14″ | 35.971 | 56.818 | 83.333 | 113.636 | 151.515 | 192.308 | 238.095 | 357.143 | 500.000 | 714.286 | ||||
| 16″ | 41.667 | 64.935 | 94.340 | 131.579 | 172.414 | 217.391 | 277.778 | 416.667 | 555.556 | 833.333 | ||||
| 18″ | 45.455 | 72.464 | 106.383 | 147.059 | 192.308 | 238.095 | 312.500 | 454.545 | 625.000 | |||||
| 20″ | 50.000 | 80.645 | 119.048 | 161.290 | 217.391 | 263.158 | 357.143 | 500.000 | 714.286 | |||||
|
NUTS |
||||||||||||
|
APPROX. WEIGHT IN KGS FOR 100 NOS. |
||||||||||||
|
SIZE |
OLD SPEC IS 1363/67 |
NEW SPEC IS 1363/92 |
HEIGHT = DIA NUTS |
HEX LOCK NUTS IS 1364-84 |
HSS NUTS IS: 6623 |
Castle Nuts IS 2232-67 |
Nylock Nuts Din 985 |
SIZE |
HEX NUTS BSW / BSF |
HEX LOCK NUTS BSW / BSF |
SQUARE NUTS – BSW |
ASTM A-194 |
| M2 | 0.011 | 1/8″ | 0.041 | |||||||||
| M3 | 0.033 | 0.050 | 5/32″ | 0.053 | ||||||||
| M4 | 0.067 | 0.112 | 0.100 | 3/16″ | 0.133 | |||||||
| M5 | 0.111 | 0.080 | 0.230 | 0.140 | 1/4″ | 0.323 | 0.190 | 0.340 | ||||
| M6 | 0.232 | 0.120 | 0.316 | 0.240 | 5/16″ | 0.510 | 0.340 | 0.654 | 0.758 | |||
| M7 | 0.294 | 0.396 | 0.300 | 3/8″ | 0.817 | 0.510 | 0.966 | 1.370 | ||||
| M8 | 0.482 | 0.300 | 0.735 | 0.510 | 7/16″ | 1.389 | 0.930 | 1.683 | 2.000 | |||
| M10 | 1.020 | 0.909 | 1.282 | 0.670 | 1.580 | 1.060 | 1/2″ | 2.222 | 1.430 | 2.677 | 2.959 | |
| M12 | 1.590 | 1.389 | 1.942 | 1.090 | 2.000 | 1.720 | 5/8″ | 4.348 | 2.700 | 5.040 | 5.263 | |
| M14 | 2.400 | 3.049 | 1.680 | 2.700 | 2.600 | 3/4″ | 7.184 | 4.800 | 8.818 | 8.621 | ||
| M16 | 3.081 | 3.333 | 3.906 | 1.800 | 6.040 | 3.890 | 3.400 | 7/8″ | 8.621 | 5.600 | 10.917 | 12.658 |
| M18 | 4.448 | 5.814 | 2.690 | 5.750 | 4.500 | 1″ | 12.987 | 8.500 | 15.432 | 17.986 | ||
| M20 | 6.031 | 6.667 | 7.519 | 3.300 | 11.530 | 7.520 | 6.500 | 1.1/8″ | 18.182 | 11.800 | 23.364 | 26.316 |
| M22 | 7.143 | 8.929 | 9.091 | 3.890 | 14.280 | 9.300 | 7.500 | 1.1/4″ | 26.596 | 17.200 | 33.333 | 34.247 |
| M24 | 10.309 | 12.500 | 12.821 | 5.100 | 19.770 | 13.100 | 10.000 | 1.3/8″ | 37.879 | 23.000 | 44.248 | |
| M27 | 15.432 | 18.657 | 8.150 | 28.230 | 19.200 | 16.200 | 1.1/2″ | 45.455 | 28.000 | 60.241 | ||
| M30 | 21.645 | 26.596 | 10.400 | 36.500 | 26.400 | 21.200 | 1.5/8″ | 71.429 | 73.529 | |||
| M33 | 27.174 | 34.483 | 14.300 | 33.330 | 31.700 | 1.3/4″ | 71.429 | 46.000 | 90.909 | |||
| M36 | 37.037 | 43.860 | 17.600 | 28.180 | 44.700 | 41.500 | 2″ | 81.967 | 54.000 | 135.135 | ||
| M39 | 47.619 | 57.471 | 24.000 | 58.400 | 49.900 | 2.1/4″ | 111.111 | 185.185 | ||||
| M42 | 57.471 | 73.529 | 27.500 | 71.000 | 62.800 | 2.1/2″ | 172.414 | 238.095 | ||||
| M45 | 72.464 | 92.593 | 37.000 | 86.000 | 77.100 | 2.3/4″ | 263.158 | 333.333 | ||||
| M48 | 92.593 | 113.636 | 42.800 | 106.000 | 99.800 | 3″ | 333.333 | 454.545 | ||||
| M52 | 108.696 | 138.889 | 52.000 | 130.000 | 0 BA | 0.270 | ||||||
| M56 | 131.579 | 166.667 | 2 BA | 0.126 | ||||||||
| M60 | 161.290 | 192.308 | ||||||||||
| M64 | 185.185 | 227.273 | ||||||||||
| M72 | 250.000 | 312.500 | ||||||||||
| M80 | 333.333 | |||||||||||
| M90 | 454.545 | |||||||||||
| M100 | 625.000 | |||||||||||
SS Fasteners Materials overview
The following materials are generally in stock, with others available on request.
| AISI | ISO | SUS (JIS) | DIN | Description |
|---|---|---|---|---|
| 302 HQ | A2 | XM-7 | 1.4567 | Austenitic chromium-nickel steel, highly resistant to corrosion. Due to the additional copper content, it is particularly suitable for cold forming. |
| 304 | A2 | 304 | 1.4301 | Austenitic chromium-nickel steel, highly resistant to corrosion. |
| 316 | A4 | 316 | 1.4401 | Particularly corrosion-resistant austenitic chromium-nickel steel with molybdenum content. |
| 316 Cu | A4 | 316 Cu | Similar to 316 with additional copper content to improve cold formability. | |
| 316 L | A4 | 316 L | 1.4404 | Particularly corrosion-resistant austenitic chromium-nickel steel with molybdenum content and with lower carbon content compared to conventional 316. |
| 410 | C1 | 410 | 1.4006 | Heat-treatable, martensitic stainless steel. Polished against water and steam resistant. |
| 430 | F1 | 430 | 1.4016 | Ferritic chromium-nickel steel, mirror polishing, resistant to water, steam, weak acids. |
SS Fasteners US to Metric Conversion Table
| US (inches) |
Metric (millimeters) |
US (inches) |
Metric (millimeters) |
|---|---|---|---|
| 1/16 | 1.6 | 1-1/2 | 38 |
| 1/8 | 3.2 | 1-5/8 | 41 |
| 3/16 | 4.8 | 1-3/4 | 45 |
| 1/4 | 6.4 | 1-7/8 | 48 |
| 5/16 | 7.9 | 2 | 51 |
| 3/8 | 9.5 | 2-1/4 | 57 |
| 7/16 | 11 | 2-1/2 | 64 |
| 1/2 | 13 | 2-3/4 | 70 |
| 9/16 | 14 | 3 | 76 |
| 5/8 | 16 | 3-1/4 | 83 |
| 11/16 | 17 | 3-1/2 | 89 |
| 3/4 | 19 | 3-3/4 | 95 |
| 13/16 | 21 | 4 | 102 |
| 7/8 | 22 | 4-1/2 | 114 |
| 15/16 | 24 | 5 | 127 |
| 1 | 25 | 5-1/2 | 140 |
| 1-1/8 | 29 | 6 | 152 |
| 1-1/4 | 32 | 6-1/2 | 165 |
| 1-3/8 | 35 | 7 | 178 |
SS Fasteners Metric to US Conversion Table
| Metric (mm) |
US (in*) |
Metric (mm) |
US (in*) |
|---|---|---|---|
| 2 | 3/32 | 55 | 2-3/16 |
| 2.5 | 3/32 | 60 | 2-3/8 |
| 3 | 1/8 | 65 | 2-9/16 |
| 4 | 5/32 | 70 | 2-3/4 |
| 5 | 3/16 | 75 | 2-15/16 |
| 6 | 1/4 | 80 | 3-1/8 |
| 8 | 5/16 | 85 | 3-3/8 |
| 10 | 13/32 | 90 | 3-9/16 |
| 12 | 15/32 | 95 | 3-3/4 |
| 14 | 9/16 | 100 | 3-15/16 |
| 16 | 5/8 | 110 | 4-5/16 |
| 18 | 23/32 | 120 | 4-3/4 |
| 20 | 25/32 | 130 | 5-1/8 |
| 25 | 1 | 140 | 5-1/2 |
| 30 | 1-3/16 | 150 | 5-7/8 |
| 35 | 1-3/8 | 160 | 6-6/16 |
| 40 | 1-9/16 | 170 | 6-11/16 |
| 45 | 1-3/4 | 180 | 7-1/16 |
| 50 | 2 | 190 | 7-1/2 |
We export these Stainless Steel Fasteners globally such as Peru, United States, Philippines, Canada, United Kingdom, United Arab Emirates, Singapore, Malaysia, Saudi Arabia, Indonesia, Thailand, Pakistan, Qatar, Australia, South Korea, South Africa, Iran, Turkey, Italy, Germany, Oman, Taiwan, Nigeria, Vietnam, Egypt, Mexico, Spain, Bahrain, Kuwait, Hong Kong, Netherlands, Bangladesh, Israel, Poland, Brazil, Norway, Sri Lanka, New Zealand, France, Finland, Romania, Denmark, Japan, Belgium, Russia, Kenya, Ireland, Greece, Portugal, Hungary, Serbia, Croatia, Bulgaria, Venezuela, Lithuania, Myanmar (Burma), Colombia, Azerbaijan, Iraq, Brunei, Laos, Cambodia, China, Czech Republic, Algeria, Chile and Croatia.
We have a wide network in India & overseas to supply urgent delivery of SS Fasteners including Mumbai, Courbevoie, Faridabad, Chiyoda, Bangkok, Perth, Sharjah, Ahvaz, Ankara, Nashik, Petaling Jaya, Rajkot, Jakarta, Seoul, Al Khobar, Madrid, Calgary, Santiago, Lahore, Cairo, Gurgaon, Noida, Surat, Visakhapatnam, Navi Mumbai, Brisbane, Lagos, Karachi, Port-of-Spain, Thane, Houston, New Delhi, Ho Chi Minh City, Kolkata, Ernakulam, La Victoria, Dubai, Abu Dhabi, Melbourne, Sydney, Caracas, Doha, Vung Tau, Dammam, Kuala Lumpur, Geoje-si, Ludhiana, Secunderabad, Hong Kong, Mumbai, Milan, Bogota, Indore, Montreal, Toronto, Vadodara, Hyderabad, Nagpur, Thiruvananthapuram, Coimbatore, Kuwait City, Manama, Los Angeles, Pune, Bengaluru, Dallas, Mexico City, Kanpur, Jaipur, Aberdeen, Jamshedpur, Bhopal, Jeddah, Hanoi, Riyadh, Baroda, Chennai, Ahmedabad, Ranchi, Algiers, Moscow, Granada, Busan, New York, Rio de Janeiro, Singapore, Edmonton, Al Jubail, London, Chandigarh, Colombo, Howrah, Ulsan, Atyrau, Pimpri-Chinchwad, Muscat, Haryana, Istanbul, Gimhae-si & Tehran.
