A4-70 Stainless Steel Bolts manufacturers

Industrial A4-70 Stainless Steel Bolts, A4-70 Stainless Steel Coach Bolts exporter in India, Marine grade A4-70 Stainless Steel Hex Bolts, Best price of M2 M4 M5 M6 M8 A4-70 Stainless Steel Bolts, 10% off for bulk order of A4-70 Stainless Steel square u bolts, Special offer on A4-70 Stainless Steel Bolts & Nuts

A4-70 is an austenitic, acid proof stainless grade (usually 316 material – 316 or 316L) which has been cold worked to provide a nimimum tensile strength of 700N/mm² (MPa). DIN ES ISO 3506-1: 1997 specifies the mechanical properties of bolts, screws and nuts made of austenitic (amongst others) stainless steels, when tested over an ambient temperature range of 15ºC to 25ºC.

A4 stainless steel bolts is an austenitic, non magnetic and suitable for all the situations as A2 bolts BUT has the added advantage of being suitable for marine solutions. Often called Marine Grade stainless steel. The molybdenum increases the corrosion resistance to withstand attack from many industrial chemicals and solvents and of course, chlorides. Used in the production of inks, photographic chemicals, surgical implants, and the marine environment.

MD Exports LLP is a leading A4-70 Stainless Steel Bolts manufacturers, suppliers & exporters in India. A trusted company manufacturing and supplying A4-70 Stainless Steel Coach Bolts across India & overseas.

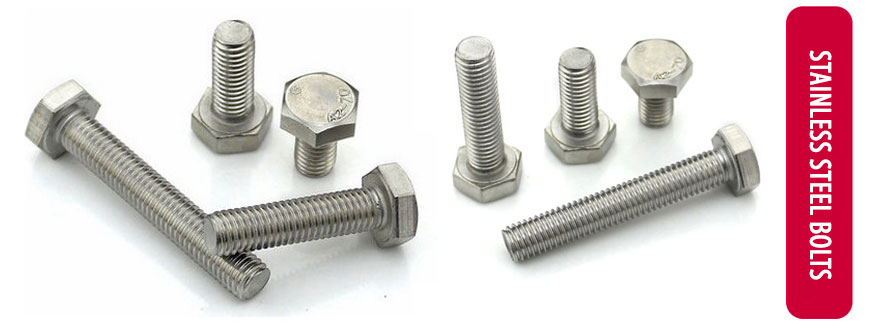

A4-70 Stainless Steel Bolts

A4-70 Stainless Steel Bolts Specification

Product name A4-70 Stainless Steel Bolts
Place of Origin India
Standard ISO 4017, DIN931, GB5783, DIN, ASTM, ANSI, JIS, EN, AS
DIN Standard B.S. DIN933 DIN931 DIN934 DIN912 DIN603 DIN6923
Surface treatment
Passivation /plain
A4-70 Stainless Steel Bolts Size M2 – M100
A4-70 Stainless Steel Bolts Diameter M3-M60
A4-70 Stainless Steel Bolts Length 6mm-500mm
Head Hex, Square, Round, Hex flange, Flat, T-head & Triangular etc
Neck type Hex, Square, Triangular, Oval & Knurled etc
Drive type Phil, Slotted, Hex socket, Torx & square slot etc
A4-70 Stainless Steel Bolts Application Wind tower, Nuclear power, Railway, Automotive industry, Construction, Electronic industry
Dimensions ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded.
Drive Style

Type I

A4-70 Stainless Steel Bolts Material 18-8 Stainless Steel, stainless steel ss 304/ SS316 A2/A4, SS201, SS303, SS304, SS316, SS316L, SS904L, A2-70; A4-70; A4-80
Thread Requirements ASME B1.1, UNC & UNF, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge)
Finish Per ASTM A380/A380M
Finishing Zinc Plated (Yellow, White, Blue, Black), Hop Dip Galvanized (HDG) phosphorization, Black Oxide, Geomet, Dacroment, anodization, Nickel plated, Zinc-Nickel plated, Brass Plated, Tin Plated, Black Plated, Copper Plated, Gold Plated, Salt fog test
Stock Products Stainless steel: All DIN, GB Standard and part ASNI standard A4-70 Stainless Steel Bolts, Example: ISO7380, DIN7981, DIN7982, DIN916, DIN913, DIN7985, DIN912
Production technology Cold Forged
Manufacturing Process Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing
MOQ 10 pieces
Delivery time Regular product is about 7-15 days, custom product will according to special requirement
Others OEM, ODM, ±0.03MM tolerance
Surface treatment of A4-70 Stainless Steel Bolts
  • Passivation
  • Polish
  • Anodizing
  • Sand blasting
  • Electroplating (color, blue, white, black zinc, Ni, Cr, tin, copper, silver)
  • Black oxide coating
  • Heat-disposing
  • Hot-dip galvanizing
  • Rust preventive oil
Coatings Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request
Tolerance of A4-70 Stainless Steel Bolts +/-0.01mm to +/-0.05mm
Samples Yes
Production Capacity 2,700,000 pieces per month
Payment Terms T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping

You might be interested in related types of A4-70 Stainless Steel Bolts

A4-70 Stainless Steel Bolts grades:

Stainless steels are used for their corrosion resistance, high-temperature strength, scaling resistance, and low-temperature toughness. These properties account for their extremely wide use in practically every industry.  Austenitic Stainless Steels are designated by a 3 digit SAE Stainless Steel Grade beginning with the number 3 (e.g. 304, 316). Another common naming convention for Austenitic Stainless Steels are 18/8, 18/10, 18/0, etc. where the 18 refers to the % of Chromium and 8 to % of Nickel contained in the material.

  • A4-70 Stainless Steel Bolts
  • 410 Stainless Steel Bolts
  • 304 Stainless Steel Bolts
  • 304L Stainless Steel Bolts
  • 304H Stainless Steel Bolts
  • 310 Stainless Steel Bolts
  • 316 Stainless Steel Bolts
  • 316H Stainless Steel Bolts
  • 316L Stainless Steel Bolts
  • 317 Stainless Steel Bolts
  • 317L Stainless Steel Bolts
  • 321 Stainless Steel Bolts
  • 347 Stainless Steel Bolts
  • 904L Stainless Steel Bolts

A4-70 Stainless Steel Bolts Dimensions

Dimensions for A4-70 Stainless Steel Bolts

A4 70 Stainless Steel Fasteners Type   SS Fasteners SIZE PROPERTY CLASS SS Fasteners Standard
A4 70 Stainless Steel Socket Head Cap Screw
Stainless Steel head Cap Screws
M3 to M30 A4 – 70 DIN 912 / ISO 4762
A4 70 Stainless Steel Hex Head Screw (Full Thread)
Stainless Steel Hex Head Screw
M3 to M30 A4 – 70 DIN 933 / ISO 4017
A4 70 Stainless Steel Hex Head Bolt (Partial Thread)
Stainless Steel Hex Head Bolt
M4 to M30 A4 – 70 DIN 931 / ISO 4014
A4 70 Stainless Steel Hex Nut
Stainless Steel Hex Nut
M3 to M30 A4 – 70 DIN 934 / ISO 4032
A4 70 Stainless Steel Plain Washer
Stainless Steel Plain Washer
M3 to M64 A4 DIN 125 A
A4 70 Stainless Steel Flat – Section Spring Washer
Stainless Steel Flat Section Spring Washer
M3 to M36 A4 DIN 127 B
A4 70 Stainless Steel Square – Section Spring Washer
Stainless Steel Square Section Spring Washer
M3 to M36 A4 DIN 7980
A4 70 Stainless Steel Threaded Rod
Stainless Steel Threaded Rod
M3 to M36 A4 – 70 DIN 975

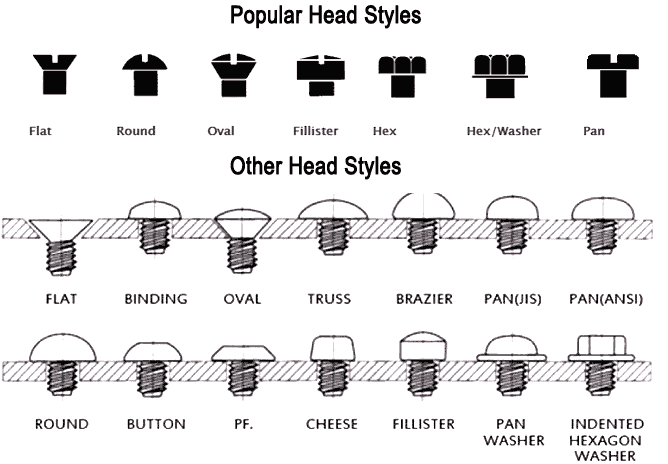

A4-70 Stainless Steel Bolts Head Styles

Check A4-70 Stainless Steel Bolts Dimensions full Catalog

A4-70 Stainless Steel Bolts Weight Chart

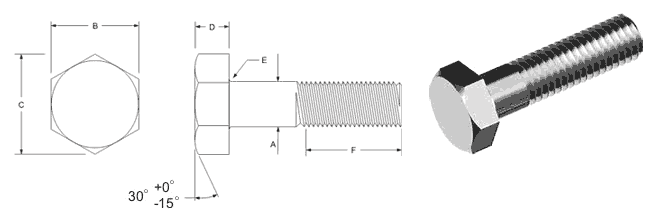

A4 70 Stainless Steel Hex Bolts Dimensions, Weight & Size

Stainless Steel Hex Bolts Dimensions

Table B1
HEX BOLT DIMENSIONS

Bolt Size A (max) B C (min) D E F
Thread Length
for Bolt Length
max min 6″ and
shorter
over 6″
1/4″ 0.260 7/16 0.484 11/64 0.03 0.01 0.750 1.000
5/16″ 0.324 1/2 0.552 7/32 0.03 0.01 0.875 1.125
3/8″ 0.388 9/16 0.620 1/4 0.03 0.01 1.000 1.250
7/16″ 0.452 5/8 0.687 19/64 0.03 0.01 1.125 1.375
1/2″ 0.515 3/4 0.826 11/32 0.03 0.01 1.250 1.500
5/8″ 0.642 15/16 1.033 27/64 0.06 0.02 1.500 1.750
3/4″ 0.768 1-1/8 1.240 1/2 0.06 0.02 1.750 2.000
7/8″ 0.895 1-5/16 1.447 37/64 0.06 0.02 2.000 2.250
1″ 1.022 1-1/2 1.653 43/64 0.09 0.03 2.250 2.500
1-1/8″ 1.149 1-11/16 1.859 3/4 0.09 0.03 2.500 2.750
1-1/4″ 1.277 1-7/8 2.066 27/32 0.09 0.03 2.750 3.000
1-3/8″ 1.404 2-1/16 2.273 29/32 0.09 0.03 3.000 3.250
1-1/2″ 1.531 2-1/4 2.480 1 0.09 0.03 3.250 3.500
1-3/4″ 1.785 2-5/8 2.893 1-5/32 0.12 0.04 3.750 4.000
2″ 2.039 3 3.306 1-11/32 0.12 0.04 4.250 4.500
2-1/4″ 2.305 3-3/8 3.719 1-1/2 0.19 0.06 4.750 5.000
2-1/2″ 2.559 3-3/4 4.133 1-21/32 0.19 0.06 5.250 5.500
2-3/4″ 2.837 4-1/8 4.546 1-13/16 0.19 0.06 5.750 6.000
3″ 3.081 4-1/2 4.959 2 0.19 0.06 6.250 6.500
3-1/4″ 3.335 4-7/8 5.372 2-3/16 0.19 0.06 6.750 7.000
3-1/2″ 3.589 5-1/4 5.786 2-5/16 0.19 0.06 7.250 7.500
3-3/4″ 3.858 5-5/8 6.198 2-1/2 0.19 0.06 7.750 8.000
4″ 4.111 6 6.612 2-11/16 0.19 0.06 8.250 8.500

Notes:

Body Diameter – There may be a reasonable swell or fin under the head or die seam on the body not to exceed the basic bolt diameter by the following:

  • 0.030″ for sizes up to 1/2″
  • 0.050″ for sizes 5/8″ and 3/4″
  • 0.060″ for sizes over 3/4″ to 1-1/4″
  • 0.090″ for sizes over 1-1/4″ to 2″
  • 0.120″ for sizes over 2″ to 3″
  • 0.190″ for sizes over 3″

A4 70 bolts Chemical Composition

Grade C Si Mn P S Cr Mo Ni Cu N
A4-70 Min 16.0 2.0 10.5
ISO Max 0.08 1.00 2.00 0.045 0.03 18.5 3.0 14.0 1.0
A4-70 Min 16.0 2.0 11.5 0.12
ISO² Max 0.03 1.00 2.00 0.045 0.03 18.5 3.0 14.0 1.0 0.22
316 Min 0 16.0 2.00 10.0
Max 0.08 0.75 2.0 0.045 0.03 18.0 3.00 14.0 0.10
316L Min 16.0 2.00 10.0
Max 0.03 0.75 2.0 0.045 0.03 18.0 3.00 14.0 0.10
316H Min 0.04 0 0.04 16.0 2.00 10.0
Max 0.10 0.75 0.10 0.045 0.03 18.0 3.00 14.0

A4 70 stainless steel bolt Mechanical Properties

The mechanical properties of bolts, screws and studs shall conform to the values below. For comparison, the “normal” mechanical properties of 316 stainless are given for information.Note: for fasteners with a nominal thread diameter of >24 mm, the mechanical properties are to be agreed between the user and the manufacturer.

Grade Tensile Strength (MPa) min Yield Strength
0.2% Proof
(MPa) min
Elong
(% in 50mm) min
Hardness
Rockwell B (HR B) max
Brinell (HB) max
A4-70 700 450 40 Not required Not required
316 515 205 40 95 217
316L 485 170 40 95 217
316H 515 205 40 95 217

A4 70 bolt stainless steel Physical Properties

Typical physical properties for 316 grade stainless steels:

Grade Density
(kg/m³)
Elastic Modulus (GPa) Mean Co-eff of Thermal Expansion (μm/m/°C) Thermal Conductivity (W/m.K) Specific Heat
0-100 °C (J/kg.K)
Elec Resistivity (nΩ.m)
0-100 °C 0-315 °C 0-538 °C
At 100 °C At 500 °C
316/L/H 8000 193
15.9 16.2 17.5
16.3 21.5
500 740
