Stainless Steel Stud Bolts manufacturers
Industrial Stainless Steel Stud Bolts, A2 Stainless Steel Stud Bolts exporter in India, Marine grade Stainless Steel Stud Bolts, Best price of M2 M4 M5 M6 M8 Stainless Steel Stud Bolts, 10% off for bulk order of 316 Stainless Steel Stud Bolts, Special offer on 18-8 Stainless Steel Stud Bolts
MD Exports LLP is a leading Stainless Steel Stud Bolts manufacturers, suppliers & exporters in India. A trusted company manufacturing and supplying SS Stud Bolts across India & overseas.
SS Stud bolts, a term used for cut-to-length all thread rod, are used for: bolting together flanges, anchor bolting, as well as general fastening. Stainless Steel Stud Bolt is a threaded rod with 2 heavy hexagon nuts, while the Hex Bolt has a head with one nut. Nuts and head are both six sided. We also supply Stud Bolts with Teflon, or Xylan cotings, coating provides for increased corrosive resistance, which improves corrosion resistance as well as the strength of B7 material.
Stainless Steel Stud Bolts is a type of mechanical fastener that is usually used with a nut or washer nut for connecting two or more parts. A bolted joint can be readily disassembled and reassembled; for this reason bolts or screw fasteners are used to a greater extent than any other type of mechanical fastener and have very important role in the development of mass-produced articles and steel structures. Our extensive range of high quality fastenings in A4 /316 stainless steel Stud Bolts are specially suited to marine, swimming pool and other high corrosion applications.
Stainless Steel Stud Bolts
ASTM A193 / A194 Stainless Steel Stud Bolts Specification
CLASS 1 VS CLASS 2 STUD BOLTS, DUAL CERTIFIED STUD BOLTS
Stainless Steel Stud bolts: B8, B8 CL2, B8M, B8M CL2, B16

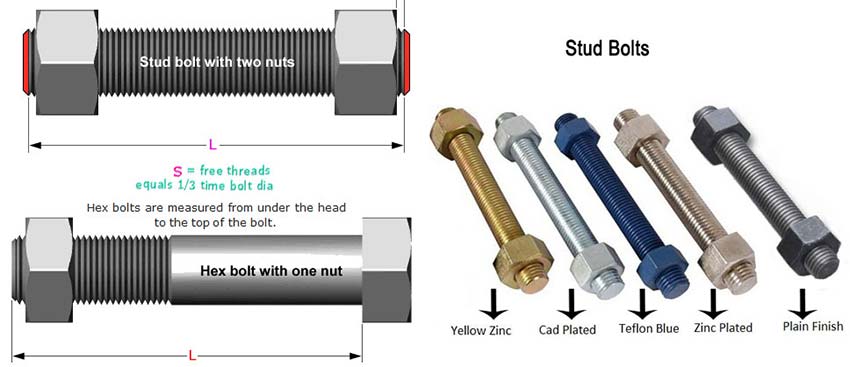

SS Stud bolts Types: All Thread, Double End, Single End
Stainless Steel Stud bolts Size Range: 1/4″ to 4″ Diameter (Metric & Standard)
Stud Bolt length: ASME B16.5 standard
Specialized in: ASTM A193 B7 B7M B16 Stud Bolt
STUD BOLTS RELATED HARDWARE
| Stud Bolt Grade | Nuts | Washers |
| L7 | A194 Grade 4 or 7 | F436 |
| L43 | A194 Grade 4 or 7 | F436 |
| B8 Class 1 | A194 Grade 8 | SS304 |
| B8M Class 1 | A194 Grade 8M | SS316 |
| B8 Class 2 | A194 Grade 8 | SS304 |
| B8M Class 2 | A194 Grade 8M | SS316 |
| B7 | A194 Grade 2H | F436 |
| B7M | A194 Grade 2HM | F436 |
| B16 | A194 Grade 4 or Grade 7 | F436 |
We Also Provide The Following Coating On Our ASTM A193 B7 B7M B16stud Bolts When Requested By The Client
- *Hot Dip Galvanized ASTM A193 B7 B7M B16 Stud Bolts(HDG)
- *Mechanical Galvanized (Cold Galvanizing) ASTM A193 B7 B7M B16 Stud Bolts
- *Zinc plated (Silver finish) ASTM A193 B7 B7M B16 Stud Bolts
- *Yellow Zinc plated ASTM A193 B7 B7M B16 Stud Bolts
- *Cadmium plated ASTM A193 B7 B7M B16 Stud Bolts
- *Xylan/Teflon ASTM A193 B7 B7M B16 Stud Bolts
- *Blackening ASTM A193 B7 B7M B16 Stud Bolts
| Product name | Stainless Steel Stud Bolts |
|---|---|
| Place of Origin | India |
| Standard | ISO 4017, DIN931, GB5783, DIN, ASTM, ANSI, JIS, EN, AS |
| DIN Standard | B.S. DIN933 DIN931 DIN934 DIN912 DIN603 DIN6923 |
|
Passivation /plain |
| Stainless Steel Stud Bolts Size | M2 – M100 |
| Stainless Steel Stud Bolts Diameter | M3-M60 |
| Stainless Steel Stud Bolts Length | 6mm-500mm |
| Head | Hex, Square, Round, Hex flange, Flat, T-head & Triangular etc |
| Neck type | Hex, Square, Triangular, Oval & Knurled etc |
| Drive type | Phil, Slotted, Hex socket, Torx & square slot etc |
| Stainless Steel Stud Bolts Application | Wind tower, Nuclear power, Railway, Automotive industry, Construction, Electronic industry |
| Dimensions | ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded. |
| Drive Style | Type I |
| Stainless Steel Stud Bolts Material | 18-8 Stainless Steel, stainless steel ss 304/ SS316 A2/A4, SS201, SS303, SS304, SS316, SS316L, SS904L, A2-70; A4-70; A4-80 |
| Thread Requirements | ASME B1.1, UNC & UNF, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge) |
| Finish | Per ASTM A380/A380M |
| Finishing | Zinc Plated (Yellow, White, Blue, Black), Hop Dip Galvanized (HDG) phosphorization, Black Oxide, Geomet, Dacroment, anodization, Nickel plated, Zinc-Nickel plated, Brass Plated, Tin Plated, Black Plated, Copper Plated, Gold Plated, Salt fog test |
| Stock Products | Stainless steel: All DIN, GB Standard and part ASNI standard stainless steel Stud Bolts, Example: ISO7380, DIN7981, DIN7982, DIN916, DIN913, DIN7985, DIN912 |
| Production technology | Cold Forged |
| Manufacturing Process | Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing |
| MOQ | 10 pieces |
| Delivery time | Regular product is about 7-15 days, custom product will according to special requirement |
| Others | OEM, ODM, ±0.03MM tolerance |
| Surface treatment of stainless steel Stud Bolts |
|
| Coatings | Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request |
| Tolerance of stainless steel Stud Bolts | +/-0.01mm to +/-0.05mm |
| Samples | Yes |
| Production Capacity | 2,700,000 pieces per month |
| Payment Terms | T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping |
You might be interested in related types of Stainless Steel Stud Bolts
Stainless Steel Stud Bolts grades:
Stainless steels are used for their corrosion resistance, high-temperature strength, scaling resistance, and low-temperature toughness. These properties account for their extremely wide use in practically every industry. Austenitic Stainless Steels are designated by a 3 digit SAE Stainless Steel Grade beginning with the number 3 (e.g. 304, 316). Another common naming convention for Austenitic Stainless Steels are 18/8, 18/10, 18/0, etc. where the 18 refers to the % of Chromium and 8 to % of Nickel contained in the material.
- 18-8 Stainless Steel Stud Bolts
- 410 Stainless Steel Stud Bolts
- 304 Stainless Steel Stud Bolts
- 304L Stainless Steel Stud Bolts
- 304H Stainless Steel Stud Bolts
- 310 Stainless Steel Stud Bolts
- 316 Stainless Steel Stud Bolts
- 316H Stainless Steel Stud Bolts
- 316L Stainless Steel Stud Bolts
- 317 Stainless Steel Stud Bolts
- 317L Stainless Steel Stud Bolts
- 321 Stainless Steel Stud Bolts
- 347 Stainless Steel Stud Bolts
- 904L Stainless Steel Stud Bolts

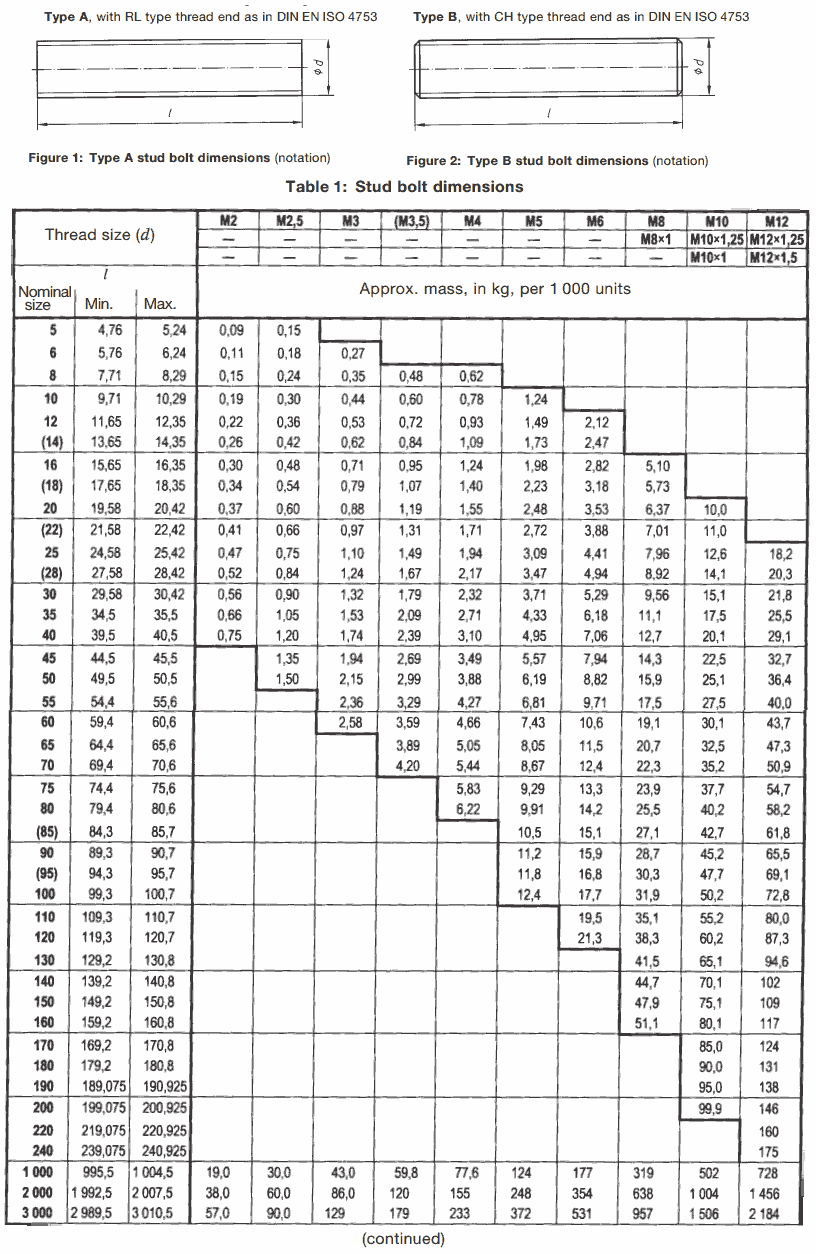

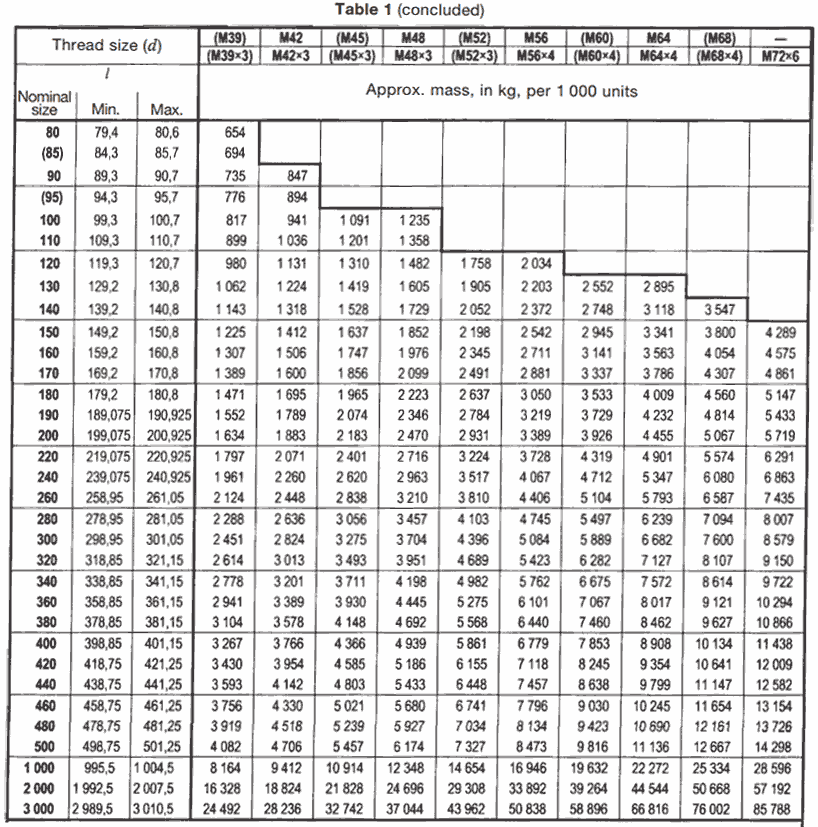

Stainless Steel Stud Bolts Dimensions
Dimensions for Stainless steel Stud Bolts
Stud bolts are generally manufactured in the sizes for which a value of mass has been specified.
Lengths between 500 mm and 1 000 mm shall be graded in 20 mm steps.
Bracketed sizes should not be used.
| Specification | Class | Material | Nominal Size Range (in.) |
Mechanical Properties | ||||
|---|---|---|---|---|---|---|---|---|
| Yield Strength, min, 0.2 % offset, ksi |
Tensile Strength, min, ksi |
Elongation in 4 D, min % |
Reduction of Area, min % |
Hardness, max |
||||
| ASTM A193 Grade B8 |
Class 1 Class 1A |
AISI 304 | All diameter | 30 | 75 | 30 | 50 | 223HB or 96HRBC |
| ASTM A193 Grade B8M |
AISI 316 | |||||||
| ASTM A193 Grade B8T |
AISI 321 | |||||||
| ASTM A193 Grade B8 |
Class 2 | AISI 304 Strain Hardened | 3/4 and under | 100 | 125 | 12 | 35 | 321HB or 35HRC |
| 3/4 to 1 incl | 80 | 115 | 15 | |||||
| 1 to 1-1/4 incl | 65 | 105 | 20 | |||||
| 1-1/4 to 1-1/2 incl | 50 | 100 | 28 | 45 | ||||
| ASTM A193 Grade B8M |
3/4 and under | 95 | 110 | 15 | ||||
| 3/4 to 1 incl | 80 | 100 | 20 | |||||
| 1 to 1-1/4 incl | 65 | 95 | 25 | |||||
| 1-1/4 to 1-1/2 incl | 50 | 90 | 30 | |||||
| ASTM A193 Grade B8T |
AISI 321 Strain Hardened | 3/4 and under | 100 | 125 | 12 | 35 | ||
| 3/4 to 1 incl | 80 | 115 | 15 | |||||
| 1 to 1-1/4 incl | 65 | 105 | 20 | |||||
| 1-1/4 to 1-1/2 incl | 50 | 100 | 28 | 45 | ||||
| ASTM A193 Grade B8M |
Class 2B | AISI 316 Strain Hardened | 2 and under | 75 | 95 | 25 | 40 | |
| 2 to 2-1/2 incl | 65 | 90 | 30 | |||||
| 2-1/2 to 3 incl | 55 | 80 | ||||||
| Class 2C | 2 and under | 65 | 85 | 60 | ||||
| Over 2 | 60 | |||||||
| Specification | Material | Class | Nominal Size (In.) | Proof Load Stress (ksi) | Hardness Rockwell | Nut Type | ||
| Min | Max | |||||||
| ASTM A194 Grade 8 | AISI 304 | Class 1 | All diameter | 80 | B60 | C32 | Heavy hex nut Hex thin nut Hex nut |
|
| ASTM A194 Grade 8M | AISI 316 | Class 1 Class 2 |
110 | |||||
| ASTM A194 Grade 8T | AISI 321 | 110 | ||||||
Colour coding
As an alternative to marking as in subclause 6.1, stud bolts may be marked at one end with a colour code as in table 3. The marking shall not impair proper use of the bolt.
Colour codes for stud bolts
| Steel stud bolts | |
|---|---|
| Property class 4.8 stud bolts | Marking not required. |
| Property class 5.6 stud bolts | Brown |
| Property class 5.8 stud bolts | Blue |
| Property class 8.8 stud bolts | Yellow |
| Property class 10.9 stud bolts | White |
| Property class 12.9 stud bolts | Black |
| Stainless steel stud bolts | |
| A2-70 stud bolts | Green |
| A4-70 stud bolts | Red |
Bottom Plate welded/J shaped /L shaped as per requirement.
Check Stainless Steel Stud Bolts Dimensions full Catalog
SS Stud Bolts Weight Chart
Weight Chart – Studs (No Nuts)
| Diameter | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Length | 1/2 | 5/8 | 3/4 | 7/8 | 1 | 1-1/8 | 1-1/4 | 1-3/8 | 1-1/2 |
| 3″ | 0.13 | 0.21 | 0.30 | 0.42 | 0.55 | 0.72 | 0.90 | 1.10 | 1.33 |
| 3-1/4″ | 0.14 | 0.22 | 0.33 | 0.46 | 0.60 | 0.78 | 0.97 | 1.19 | 1.44 |
| 3-1/2″ | 0.15 | 0.24 | 0.35 | 0.49 | 0.65 | 0.84 | 1.05 | 1.29 | 1.55 |
| 3-3/4″ | 0.16 | 0.26 | 0.38 | 0.53 | 0.69 | 0.90 | 1.12 | 1.38 | 1.66 |
| 4″ | 0.17 | 0.28 | 0.40 | 0.56 | 0.74 | 0.96 | 1.20 | 1.47 | 1.77 |
| 4-1/4″ | 0.18 | 0.29 | 0.43 | 0.60 | 0.79 | 1.02 | 1.27 | 1.56 | 1.88 |
| 4-1/2″ | 0.19 | 0.31 | 0.45 | 0.63 | 0.83 | 1.08 | 1.35 | 1.66 | 1.99 |
| 4-3/4″ | 0.20 | 0.33 | 0.48 | 0.67 | 0.88 | 1.14 | 1.42 | 1.75 | 2.10 |
| 5″ | 0.22 | 0.35 | 0.51 | 0.71 | 0.93 | 1.20 | 1.50 | 1.84 | 2.22 |
| 5-1/4″ | 0.23 | 0.36 | 0.53 | 0.74 | 0.97 | 1.26 | 1.58 | 1.93 | 2.33 |
| 5-1/2″ | 0.24 | 0.38 | 0.56 | 0.78 | 1.02 | 1.32 | 1.65 | 2.02 | 2.44 |
| 5-3/4″ | 0.25 | 0.40 | 0.58 | 0.81 | 1.06 | 1.38 | 1.73 | 2.12 | 2.55 |
| 6″ | 0.26 | 0.42 | 0.61 | 0.85 | 1.11 | 1.44 | 1.80 | 2.21 | 2.66 |
| 6-1/4″ | 0.27 | 0.43 | 0.63 | 0.88 | 1.16 | 1.50 | 1.88 | 2.30 | 2.77 |
| 6-1/2″ | 0.28 | 0.45 | 0.66 | 0.92 | 1.20 | 1.56 | 1.95 | 2.39 | 2.88 |
| 6-3/4″ | 0.29 | 0.47 | 0.68 | 0.95 | 1.25 | 1.62 | 2.03 | 2.49 | 2.99 |
| 7″ | 0.30 | 0.49 | 0.71 | 0.99 | 1.30 | 1.68 | 2.10 | 2.58 | 3.10 |
| 7-1/4″ | 0.31 | 0.50 | 0.73 | 1.02 | 1.34 | 1.74 | 2.18 | 2.67 | 3.21 |
| 7-1/2″ | 0.33 | 0.52 | 0.76 | 1.06 | 1.39 | 1.80 | 2.25 | 2.76 | 3.33 |
| 7-3/4″ | 0.34 | 0.54 | 0.79 | 1.10 | 1.44 | 1.86 | 2.33 | 2.85 | 3.44 |
| 8″ | 0.35 | 0.56 | 0.81 | 1.13 | 1.48 | 1.92 | 2.40 | 2.95 | 3.55 |
| 8-1/4″ | 0.36 | 0.57 | 0.84 | 1.17 | 1.53 | 1.98 | 2.48 | 3.04 | 3.66 |
| 8-1/2″ | 0.37 | 0.59 | 0.86 | 1.20 | 1.58 | 2.04 | 2.55 | 3.13 | 3.77 |
| 8-3/4″ | 0.38 | 0.61 | 0.91 | 1.24 | 1.62 | 2.10 | 2.63 | 3.22 | 3.88 |
| 9″ | 0.39 | 0.63 | 0.94 | 1.27 | 1.67 | 2.16 | 2.70 | 3.32 | 3.99 |
| 9-1/4″ | 0.40 | 0.64 | 0.95 | 1.31 | 1.72 | 2.22 | 2.78 | 3.41 | 4.10 |
| 9-1/2″ | 0.41 | 0.66 | 0.96 | 1.34 | 1.76 | 2.28 | 2.85 | 3.50 | 4.21 |
| 9-3/4″ | 0.42 | 0.68 | 0.99 | 1.38 | 1.81 | 2.34 | 2.93 | 3.59 | 4.32 |
| 10″ | 0.44 | 0.70 | 1.02 | 1.42 | 1.86 | 2.40 | 3.01 | 3.69 | 4.44 |
| 10-1/4″ | 0.45 | 0.71 | 1.04 | 1.45 | 1.90 | 2.46 | 3.08 | 3.78 | 4.55 |
| 10-1/2″ | 0.46 | 0.73 | 1.07 | 1.49 | 1.95 | 2.52 | 3.16 | 3.87 | 4.66 |
| 10-3/4″ | 0.47 | 0.75 | 1.09 | 1.52 | 1.99 | 2.58 | 3.23 | 3.96 | 4.77 |
| 11″ | 0.48 | 0.77 | 1.12 | 1.56 | 2.04 | 2.64 | 3.31 | 4.05 | 4.88 |
| 11-1/2″ | 0.50 | 0.80 | 1.17 | 1.63 | 2.13 | 2.76 | 3.46 | 4.24 | 5.10 |
| 12″ | 0.52 | 0.84 | 1.22 | 1.70 | 2.23 | 2.88 | 3.61 | 4.42 | 5.32 |
| 12-1/2″ | 0.55 | 0.87 | 1.27 | 1.77 | 2.32 | 3.00 | 3.76 | 4.61 | 5.55 |
| 13″ | 0.57 | 0.91 | 1.32 | 1.84 | 2.41 | 3.12 | 3.91 | 4.79 | 5.75 |
| 13-1/2″ | 0.59 | 0.94 | 1.37 | 1.91 | 2.51 | 3.24 | 4.06 | 4.98 | 5.99 |
| 14″ | 0.61 | 0.98 | 1.42 | 1.98 | 2.6 | 3.36 | 4.21 | 5.16 | 6.21 |
| Weight Per Inch | .044 | .070 | .102 | .142 | .186 | .240 | .301 | .369 | .444 |
| Weight Per Foot | 0.52 | 0.84 | 1.22 | 1.70 | 2.23 | 2.88 | 3.61 | 4.42 | 5.32 |
| 2 Hvy Hex Nuts Add | 0.13 | 0.24 | 0.39 | 0.60 | 0.85 | 1.19 | 1.57 | 2.04 | 2.62 |
| 2 Finished Hex Nuts Add | 0.08 | 0.14 | 0.24 | 0.36 | 0.53 | 0.80 | 1.04 | 1.46 | 1.76 |
METRIC STUD BOLTS
METRIC STUD BOLTS WITH 2 NUTS (WEIGHT IN KGS / 100 PIECES)
| DIAMETER LENGHT mm | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 60 | 5,6 | 8,1 | 12 | 15,6 | |||||||||
| 70 | 6,1 | 8,9 | 13 | 16,9 | 23,7 | ||||||||
| 80 | 6,6 | 9,6 | 14 | 18,2 | 25,4 | 32,5 | |||||||
| 90 | 7,1 | 10,3 | 15 | 19,6 | 27,1 | 34,5 | 45,5 | ||||||
| 100 | 7,6 | 11 | 16 | 21 | 28,8 | 36,7 | 47,2 | 54,2 | |||||
| 110 | 8,1 | 11,7 | 17 | 22,2 | 30,4 | 38,7 | 48,3 | 58,2 | 80 | ||||
| 120 | 8,6 | 12,4 | 18 | 23,6 | 32,1 | 40,7 | 50,9 | 60,2 | 84,7 | 107 | |||
| 130 | 9,1 | 13,2 | 19 | 24,9 | 33,7 | 42,8 | 53,4 | 63,2 | 88,6 | 111 | 141 | ||
| 140 | 9,6 | 14,2 | 20 | 26,2 | 35,4 | 44,9 | 55,9 | 66,2 | 92,4 | 116 | 147 | 185 | |
| 150 | 10,1 | 14,9 | 20,8 | 27,5 | 36,9 | 46,9 | 58,5 | 69,2 | 96,3 | 121 | 153 | 192 | 237 |
| 160 | 10,6 | 15,6 | 21,8 | 29,1 | 38,6 | 49 | 61 | 72,2 | 100,1 | 126 | 159 | 199 | 245 |
| 170 | 16,4 | 22,8 | 30,4 | 40,2 | 51,1 | 63,5 | 75,2 | 104 | 130 | 165 | 206 | 253 | |
| 180 | 23,8 | 31,8 | 41,9 | 52,3 | 66,1 | 78,1 | 108 | 135 | 171 | 213 | 261 | ||
| 190 | 33,1 | 43,5 | 54,4 | 68,4 | 81,1 | 112 | 140 | 176 | 219 | 269 | |||
| 200 | 34,5 | 45,2 | 56,2 | 71 | 84 | 116 | 144 | 182 | 226 | 278 | |||
| 210 | 35,8 | 46,8 | 58,5 | 73,5 | 88,4 | 120 | 149 | 188 | 233 | 286 | |||
| 220 | 37,1 | 48,4 | 60,6 | 76,1 | 91,4 | 124 | 154 | 194 | 240 | 294 | |||
| 230 | 38,5 | 50,1 | 62,6 | 78,6 | 94,4 | 127 | 159 | 201 | 247 | 302 | |||
| 240 | 39,8 | 51,7 | 64,7 | 81,2 | 97,4 | 130,9 | 164 | 208 | 253 | 310 | |||
| 250 | 41,1 | 53,4 | 66,8 | 83,7 | 100,4 | 134,8 | 172 | 214 | 260 | 319 | |||
| 260 | 55 | 68,8 | 86,3 | 103,4 | 138,6 | 177 | 220 | 267 | 327 | ||||
| 270 | 56,6 | 70,9 | 88,8 | 106,4 | 142,5 | 182 | 224 | 274 | 335 | ||||
| 280 | 58,3 | 73 | 91,4 | 109,4 | 146,3 | 187 | 230 | 281 | 343 | ||||
| 290 | 75 | 93,9 | 112,4 | 150,1 | 192 | 236 | 291 | 360 | |||||
| 300 | 77,1 | 96,5 | 115,4 | 154 | 196 | 241 | 298 | 368 | |||||
| 320 | 101,6 | 121,3 | 161,7 | 206 | 253 | 312 | 380 | ||||||
| 340 | 127,3 | 169,4 | 215 | 265 | 326 | 395 | |||||||
| 360 | 133,3 | 177,1 | 224 | 276 | 340 | 411 | |||||||
| 380 | 184,8 | 234 | 288 | 353 | 428 | ||||||||
| 400 | 192,5 | 243 | 299 | 367 | 444 | ||||||||
| 420 | 252 | 311 | 381 | 460 | |||||||||
| 440 | 262 | 322 | 394 | 477 | |||||||||
| 460 | 271 | 334 | 408 | 493 | |||||||||
| 480 | 281 | 345 | 422 | 509 | |||||||||
| 500 | 290 | 357 | 436 | 526 |
IMPERIAL STUD BOLTS
METRIC STUD BOLTS WITH 2 NUTS (WEIGHT IN KGS / 100 PIECES)
| DIAMETER in. LENGHT mm | 1/2 | 5/8 | 3/4 | 7/8 | 1 | 1.1/8 | 1.1/4 | 1.3/8 | 1.1/2 | 1.5/8 | 1.3/4 | 1.7/8 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2.1/2 | 10.8 | |||||||||||
| 2.3/4 | 11.6 | 19.8 | ||||||||||
| 3.1/4 | 12.4 | 21 | 32.4 | |||||||||
| 3.1/2 | 13.2 | 22.2 | 34.3 | 50 | ||||||||
| 4 | 14 | 23.4 | 36.2 | 52.6 | 71.8 | |||||||
| 4.1/2 | 14.8 | 24.6 | 38.1 | 55.2 | 75.2 | 102 | ||||||
| 4.3/4 | 15.6 | 25.8 | 40 | 57.8 | 78.6 | 106 | 137 | |||||
| 5 | 16.4 | 27 | 41.9 | 60.4 | 82 | 111 | 142 | 179 | ||||
| 5.1/2 | 17.2 | 28.2 | 43.8 | 63 | 85.4 | 115 | 147 | 186 | 234 | |||
| 6 | 18 | 29.4 | 45.7 | 65.6 | 88.8 | 119 | 153 | 193 | 242 | 289 | ||
| 6.1/4 | 18.8 | 30.6 | 47.6 | 68.2 | 92.2 | 123 | 158 | 200 | 250 | 298 | 263 | |
| 6.1/2 | 19.6 | 32.3 | 49.5 | 70.8 | 95.6 | 128 | 164 | 206 | 258 | 308 | 374 | 437 |
| 7 | 20.4 | 33.5 | 50.8 | 73.4 | 99 | 132 | 169 | 213 | 266 | 317 | 385 | 449 |
| 7.1/2 | 21.2 | 34.8 | 52.7 | 75.5 | 103 | 136 | 174 | 220 | 275 | 326 | 396 | 462 |
| 8 | 22 | 36.1 | 54.5 | 78 | 106 | 141 | 180 | 226 | 283 | 336 | 407 | 475 |
| 8.1/4 | 37.3 | 56.3 | 80.5 | 108 | 145 | 185 | 233 | 291 | 345 | 418 | 488 | |
| 8.3/4 | 38.6 | 58.1 | 83.1 | 112 | 149 | 191 | 240 | 299 | 354 | 429 | 500 | |
| 9 | 39.8 | 60 | 85.6 | 115 | 153 | 196 | 246 | 307 | 364 | 440 | 513 | |
| 9.1/2 | 41.1 | 61.8 | 88.2 | 118 | 158 | 201 | 253 | 316 | 373 | 451 | 526 | |
| 10 | 63.7 | 90.7 | 122 | 162 | 206 | 260 | 324 | 382 | 463 | 538 | ||
| 10/1.4 | 93.3 | 125 | 166 | 212 | 267 | 332 | 391 | 474 | 551 | |||
| 1.0.1/2 | 128 | 171 | 217 | 273 | 340 | 401 | 485 | 564 | ||||
| 11 | 132 | 175 | 223 | 279 | 345 | 410 | 496 | 576 | ||||
| 11.1/2 | 135 | 179 | 228 | 285 | 350 | 419 | 507 | 589 | ||||
| 12 | 138 | 184 | 233 | 292 | 358 | 429 | 518 | 602 |
Stainless Steel Stud Bolts Price List
Stainless Steel Stud Bolts Price List, Stainless Steel Stud Bolts Prices, Stainless Steel Stud Bolts Price, Stainless Steel Stud Bolts Price List, Stainless Steel Stud Bolts Price 2018, Stainless Steel Stud Bolts Price in India, SS Stud Bolts Price India, we offer best price of 18-8 Stainless Steel Stud Bolts & 316 Stainless Steel Stud Bolts
- Best Price Metal Processing Custom Anchor Nut Stud Bolt with Hole
FOB Price: US $ 0.1-5 / Piece
Min. Order: 1000 Pieces - Competitive Price Threaded Rod/Stud Bolt, Stainless Steel
FOB Price: US $ 0.01-0.015 / Piece
Min. Order: 1000 Pieces - ASTM A193 B7 Stud Bolt with A194 2h Heavy Hex Nut
FOB Price: US $ 0.01-0.5 / Piece
Min. Order: 5000 Pieces - Stud Bolts (ASTM A193 Gr. B7)
FOB Price: US $ 0.01 / Piece
Min. Order: 1 Piece - Hex Bolt, Eye Bolt, Stud Bolt, Chemical Stud, U Bolt, Stainless Steel Bolt
FOB Price: US $ 1-10 / Piece
Min. Order: 1 Piece - Stud Bolts ASTM A193 B16
FOB Price: US $ 0.3 / Piece
Min. Order: 500 Pieces - Stainless Steel A2 A4 Double End Stud Bolt with ISO Certificate
FOB Price: US $ 0.01-0.5 / Piece
Min. Order: 5000 Pieces - Stud Screw Dowel Screw Expansion Anchor Bolt Wedge Anchor Bolt
FOB Price: US $ 0.01-1 / Piece
Min. Order: 100 Pieces - DIN 976 Threaded Stud Full Thread Stud Bolt
Min. Order: 100 Pieces - Stud Bolt, High Strength Steel, ASTM A193,
FOB Price: US $ 0.1 / Piece
Min. Order: 1000 Pieces - B7 L7 L7m Black Stud Bolt and 2h Nut Stainless Steel ASTM A193 B8 B8m Ss304 Ss316 Stud Bolt with Heavy Hex Nut (M4-M100)
FOB Price: US $ 700-1000 / Ton
Min. Order: 1 Ton - Alloy Steel / Steel Thread Rod Stud Bolt Thread Bolt B7 B7m
FOB Price: US $ 0.086-0.09 / Piece
Min. Order: 10000 Pieces - Double End Stud Bolt B7 B7m L7
FOB Price: US $ 0.15 / Piece
Min. Order: 1000 Pieces
SS304/316 Fastener Full Thread Stud Bolt
FOB Price: US $ 0.0114-27.2394 / Piece
Min. Order: 1000 Pieces - Fasteners Double End Stud Bolt
Min. Order: 100 Pieces - High Quality A2-70 Stainless Steel SS304 Double Thread End Stud Bolt
FOB Price: US $ 0.06-0.5 / Piece
Min. Order: 500 Pieces - High Quality Carbon Steel Double Ended/B7 Black Stud Bolt
FOB Price: US $ 0.01 / Piece
Min. Order: 1000 Pieces - Heavy Hex Bolts & Stud Bolts (ASTM A193 B7)
FOB Price: US $ 0.1 / Piece
Min. Order: 5000 Pieces - High Quality Exotic Alloy Incoloy 825 Stud Bolt
FOB Price: US $ 1 / Piece
Min. Order: 1000 Pieces - ASTM A193 B7 Heavy Hex Nuts Stud Bolts
FOB Price: US $ 0.02 / Piece
Min. Order: 1000 Pieces - Ss304 Fastener Bolt Full Thread Stud Bolt
FOB Price: US $ 0.0114-27.2394 / Piece
Min. Order: 1000 Pieces - Stud Bolts DIN975/DIN934
Min. Order: 1 Ton - Carbon Steel HDG Double End Bolt / Stud Bolt M16
FOB Price: US $ 0.01 / Piece
Min. Order: 100 Pieces - 2015 Iking British Standard Arc Welding Stud Bolt
FOB Price: US $ 0.1 / Piece
Min. Order: 100000 Pieces - Nickle Alloy Stud Bolt with Nut and Washer
FOB Price: US $ 10 / Piece
Min. Order: 100 Pieces - China Supplier Ts16949 Stud Bolt with Blue PTFE Coating
FOB Price: US $ 2800 / Ton
Min. Order: 1 Ton - Galvanized Stud Bolt in Carbon Steel
Min. Order: 10000 Pieces - Stainless Steel Double Ended Stud Bolt
FOB Price: US $ 0.5-2 / Piece
Min. Order: 5000 Pieces - Carbon Steel 16mm to 48mm Stud Bolt
FOB Price: US $ 0.38-0.5 / Piece
Min. Order: 5000 Pieces - Stainless Steel A2-70 A4-80 Full Thread Bolt, Stud Bolt
FOB Price: US $ 0.5 / Piece
Min. Order: 1000 Pieces
Stainless Steel Stud Bolts For Sale
We have more than 18,000 products in stock. Order by the piece, bag or in bulk.
Stainless Steel Bolts Inventory
- Specialized in
- SS 304 Stud Bolts
- SS 304L Stud Bolts
- SS 316 Stud Bolts
- SS 316L Stud Bolts
- SS 410 Stud Bolts
SS Bolts Inventory
Shoulder Stud Bolts Inventory
Shoulder Nut Eye Bolts Inventory
Stainless Steel Shoulder Nut Eye Bolts
Turned Eye Bolts & Wire Eye Bolts Inventory
Machinery Eye Bolts Inventory
Regular Nut Eye Bolts
Metric Eye Bolts Inventory
SS Bolt Ready Stock
- 10% Discount on:
- SS 310 Stud Bolts
- SS 202 Stud Bolts
- SS 347 Stud Bolts
- SS 321 Stud Bolts
- SS 321H Stud Bolts
Long Tangent U-Bolts
Round U-Bolts
Carriage Bolts
Square Head Bolts
A193 B7 Cadmium Plated Stud Bolts
Xylan® Coated Stud Bolts
Carriage Bolts
ARP High Strength Stainless Steel 12-Point Flange Bolts Price
Stainless Steel Stud Bolts DIN Grades available
- DIN 186 A – Tee-Head Bolts With Square Head
- DIN 188 – Tee-Head Bolts With Double Nip
- DIN 444 A – Eye Bolts
- DIN 478 – Square Head Bolts
- DIN 479 – Square Head Bolts
- DIN 480 – Square Head Bolts
- DIN 529 A – Anchor Bolts (Stone Bolt)
- DIN 529 B – Anchor Bolts (Stone Bolt)
- DIN 529 C – Masonry Bolts With Hexagon Nuts
- DIN 529 D – Anchor Bolts (Stone Bolt)
- DIN 529 E – Foundation Bolts With Hexagon Nuts
- DIN 529 F – Anchor Bolts (Stone Bolt)
- DIN 529 G Bolt
- DIN 558 – Fully Threaded Maching Bolts
- DIN 580 – Lifting Eye Bolts
- DIN 7969 – Slotted countersunk head bolts with hexagon nut for steel structures
Stainless Steel Stud Bolts
- DIN 601- Hexagon head bolt with nut
- DIN 603 Mu – Carriage Bolts With Hexagon Nuts
- DIN 604 – Flat Countersunk Nip Bolts With Hex Nuts
- DIN 605 – Flat Countersunk Square Neck Bolts
- DIN 607 – Round Head Nip Bolts With Nuts
- DIN 608 – Countersunk Square Bolts (Short Neck)
- DIN 609 – Hex Fitting Bolts w/long Threaded Portion
- DIN 610 – Hex fitting Bolts w/short Threaded Portion
- DIN 3570 – U Bows U Bolts
- DIN 6914 – Hex Bolts For High Strength Struct. Bolting
- DIN 6915 – Hex Nuts For High Strength Struc. Bolting
- DIN 6916 – Washers For High Strength Structural Bolting
- DIN 6921 – Hex Flange Bolts
- DIN EN 1665 Hexagon bolts with flange – heavy series(Replace DIN 6922)
- DIN 7968 – Hexagon fit bolts with hexagon nut for steel structures
Packing of Stainless Steel Stud Bolts
We export these Stainless Steel Stud Bolts globally such as Peru, United States, Philippines, Canada, United Kingdom, United Arab Emirates, Singapore, Malaysia, Saudi Arabia, Indonesia, Thailand, Pakistan, Qatar, Australia, South Korea, South Africa, Iran, Turkey, Italy, Germany, Oman, Taiwan, Nigeria, Vietnam, Egypt, Mexico, Spain, Bahrain, Kuwait, Hong Kong, Netherlands, Bangladesh, Israel, Poland, Brazil, Norway, Sri Lanka, New Zealand, France, Finland, Romania, Denmark, Japan, Belgium, Russia, Kenya, Ireland, Greece, Portugal, Hungary, Serbia, Croatia, Bulgaria, Venezuela, Lithuania, Myanmar (Burma), Colombia, Azerbaijan, Iraq, Brunei, Laos, Cambodia, China, Czech Republic, Algeria, Chile and Croatia.
We have a wide network in India & overseas to supply urgent delivery of SS Stud Bolts including Mumbai, Courbevoie, Faridabad, Chiyoda, Bangkok, Perth, Sharjah, Ahvaz, Ankara, Nashik, Petaling Jaya, Rajkot, Jakarta, Seoul, Al Khobar, Madrid, Calgary, Santiago, Lahore, Cairo, Gurgaon, Noida, Surat, Visakhapatnam, Navi Mumbai, Brisbane, Lagos, Karachi, Port-of-Spain, Thane, Houston, New Delhi, Ho Chi Minh City, Kolkata, Ernakulam, La Victoria, Dubai, Abu Dhabi, Melbourne, Sydney, Caracas, Doha, Vung Tau, Dammam, Kuala Lumpur, Geoje-si, Ludhiana, Secunderabad, Hong Kong, Mumbai, Milan, Bogota, Indore, Montreal, Toronto, Vadodara, Hyderabad, Nagpur, Thiruvananthapuram, Coimbatore, Kuwait City, Manama, Los Angeles, Pune, Bengaluru, Dallas, Mexico City, Kanpur, Jaipur, Aberdeen, Jamshedpur, Bhopal, Jeddah, Hanoi, Riyadh, Baroda, Chennai, Ahmedabad, Ranchi, Algiers, Moscow, Granada, Busan, New York, Rio de Janeiro, Singapore, Edmonton, Al Jubail, London, Chandigarh, Colombo, Howrah, Ulsan, Atyrau, Pimpri-Chinchwad, Muscat, Haryana, Istanbul, Gimhae-si & Tehran.
