Stainless Steel Hex Head Bolts manufacturers
Industrial Stainless Steel Hex Head Bolts, A2 Stainless Steel Hex Head Bolts exporter in India, Marine grade Stainless Steel Hex Head Bolts, Best price of M2 M4 M5 M6 M8 Stainless Steel Hex Head Bolts, 10% off for bulk order of 316 Stainless Steel Hex Head Bolts, Special offer on 18-8 Stainless Steel Hex Head Bolts
MD Exports LLP is a leading Stainless Steel Hex Head Bolts manufacturers, suppliers & exporters in India. A trusted company manufacturing and supplying SS Hex Head Bolts across India & overseas.
Stainless Steel Hex bolts have hexagonal heads and machine threads for use with a nut or in a tapped hole. Also known as SS hex cap screws or SS machine bolts.. Stainless Steel Hex Head Bolts is a type of mechanical fastener that is usually used with a nut or washer nut for connecting two or more parts. A bolted joint can be readily disassembled and reassembled; for this reason bolts or screw fasteners are used to a greater extent than any other type of mechanical fastener and have very important role in the development of mass-produced articles and steel structures. Our extensive range of high quality fastenings in A4 /316 stainless steel Hex Head Bolts are specially suited to marine, swimming pool and other high corrosion applications.
Stainless Steel Hex Head Bolts
ASTM A193 / A194 Stainless Steel Hex Head Bolts Specification
| Product name | Stainless Steel Hex Head Bolts |
|---|---|
| Place of Origin | India |
| Standard | ISO 4017, DIN931, GB5783, DIN, ASTM, ANSI, JIS, EN, AS |
| DIN Standard | B.S. DIN933 DIN931 DIN934 DIN912 DIN603 DIN6923 |
|
Passivation /plain |
| Stainless Steel Hex Head Bolts Size | M2 – M100 |
| Stainless Steel Hex Head Bolts Diameter | M3-M60 |
| Stainless Steel Hex Head Bolts Length | 6mm-500mm |
| Head | Hex, Square, Round, Hex flange, Flat, T-head & Triangular etc |
| Neck type | Hex, Square, Triangular, Oval & Knurled etc |
| Drive type | Phil, Slotted, Hex socket, Torx & square slot etc |
| Stainless Steel Hex Head Bolts Application | Wind tower, Nuclear power, Railway, Automotive industry, Construction, Electronic industry |
| Dimensions | ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded. |
| Drive Style | Type I |
| Stainless Steel Hex Head Bolts Material | 18-8 Stainless Steel, stainless steel ss 304/ SS316 A2/A4, SS201, SS303, SS304, SS316, SS316L, SS904L, A2-70; A4-70; A4-80 |
| Thread Requirements | ASME B1.1, UNC & UNF, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge) |
| Finish | Per ASTM A380/A380M |
| Finishing | Zinc Plated (Yellow, White, Blue, Black), Hop Dip Galvanized (HDG) phosphorization, Black Oxide, Geomet, Dacroment, anodization, Nickel plated, Zinc-Nickel plated, Brass Plated, Tin Plated, Black Plated, Copper Plated, Gold Plated, Salt fog test |
| Stock Products | Stainless steel: All DIN, GB Standard and part ASNI standard stainless steel Hex Head Bolts, Example: ISO7380, DIN7981, DIN7982, DIN916, DIN913, DIN7985, DIN912 |
| Production technology | Cold Forged |
| Manufacturing Process | Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing |
| MOQ | 10 pieces |
| Delivery time | Regular product is about 7-15 days, custom product will according to special requirement |
| Others | OEM, ODM, ±0.03MM tolerance |
| Surface treatment of stainless steel Hex Head Bolts |
|
| Coatings | Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request |
| Tolerance of stainless steel Hex Head Bolts | +/-0.01mm to +/-0.05mm |
| Samples | Yes |
| Production Capacity | 2,700,000 pieces per month |
| Payment Terms | T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping |
You might be interested in related types of Stainless Steel Hex Head Bolts
Stainless Steel Hex Head Bolts grades:
Stainless steels are used for their corrosion resistance, high-temperature strength, scaling resistance, and low-temperature toughness. These properties account for their extremely wide use in practically every industry. Austenitic Stainless Steels are designated by a 3 digit SAE Stainless Steel Grade beginning with the number 3 (e.g. 304, 316). Another common naming convention for Austenitic Stainless Steels are 18/8, 18/10, 18/0, etc. where the 18 refers to the % of Chromium and 8 to % of Nickel contained in the material.
- 18-8 Stainless Steel Hex Head Bolts
- 410 Stainless Steel Hex Head Bolts
- 304 Stainless Steel Hex Head Bolts
- 304L Stainless Steel Hex Head Bolts
- 304H Stainless Steel Hex Head Bolts
- 310 Stainless Steel Hex Head Bolts
- 316 Stainless Steel Hex Head Bolts
- 316H Stainless Steel Hex Head Bolts
- 316L Stainless Steel Hex Head Bolts
- 317 Stainless Steel Hex Head Bolts
- 317L Stainless Steel Hex Head Bolts
- 321 Stainless Steel Hex Head Bolts
- 347 Stainless Steel Hex Head Bolts
- 904L Stainless Steel Hex Head Bolts
Stainless Steel Hex Head Bolts Dimensions
Dimensions for Stainless steel Hex Head Bolts

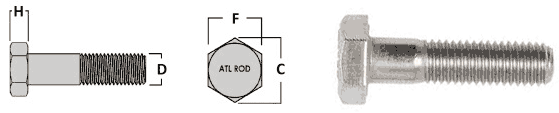

Metric Hex Bolt Dimensions
**All measurements in millimeters**
| NOMINAL SIZE (D) | BODY DIAMETER | HEAD THICKNESS | ACROSS THE FLATS | ACROSS CORNERS | ||||
|---|---|---|---|---|---|---|---|---|
| D (MAX) | D (MIN) | H (MAX) | H (MIN) | F (MAX) | F (MIN) | C (MAX) | C (MIN) | |
| m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
| m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
| m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
| m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
| m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
| m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
| m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
| m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
| m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
| m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
| m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
| m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
| m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
| m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
| m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
| m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |

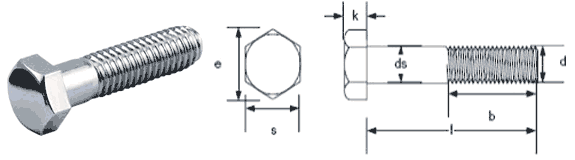

Standard Metric Hex Head Bolt/ Screw Dimensions Chart
This international standard gives specifications partly threaded hexagon head bolts with metric dimensions and thread diameters from 3 mm up to and including 36 mm with product grade A for sizes M 3 to M 24 and with product grade B for sizes M 30 and M 36. Dimensions in mm.
| d | ds | s | k | b & l | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Diameter | Thread Pitch | Body Diameter | Width Across Flats | Head Height | Thread Length b for Nom. Length l | ||||||||
| (coarse) | Max. | Min. | Max. | Min. | Nominal | Length Below 150mm | Length Over 150mm | 125mm & < | 125 – 200mm | 200mm & > | |||
| Min. | Max. | Min. | Max. | ||||||||||
| M6 | 1 | 6 | 5.82 | 10 | 9.78 | 4 | 3.85 | 4.15 | 3.76 | 4.24 | 18 | – | – |
| M8 | 1.25 | 8 | 7.78 | 13 | 12.73 | 5.3 | 5.15 | 5.45 | 5.06 | 5.54 | 22 | 28 | – |
| M10 | 1.5 | 10 | 9.78 | 16 | 15.73 | 6.4 | 6.22 | 6.58 | 6.11 | 6.69 | 26 | 32 | – |
| M12 | 1.75 | 12 | 11.73 | 18 | 17.73 | 7.5 | 7.32 | 7.68 | 7.21 | 7.79 | 30 | 36 | – |
| M16 | 2 | 16 | 15.73 | 24 | 23.67 | 10 | 9.82 | 10.18 | 9.71 | 10.29 | 38 | 44 | 57 |
| M20 | 2.5 | 20 | 19.67 | 30 | 29.67 | 12.5 | 12.28 | 12.72 | 12.15 | 12.85 | 46 | 52 | 65 |
| M24 | 3 | 24 | 23.67 | 36 | 35.38 | 15 | 14.78 | 15.22 | 14.65 | 15.35 | 54 | 60 | 73 |
| M30 | 3.5 | 30 | 29.67 | 46 | 45 | 18.7 | – | – | 18.28 | 19.12 | 66 | 72 | 85 |
| M36 | 4 | 36 | 35.61 | 55 | 53.8 | 22.5 | – | – | 22.08 | 22.92 | 78 | 84 | 97 |
Check Stainless Steel Hex Head Bolts Dimensions full Catalog
SS Hex Head Bolts Weight Chart
Weight Chart for Hexagon Bolts & Nuts
DIN 931 & DIN 934
Approximate weights in kilograms (Kg’s) each
Stainless Steel Hex Head Bolts Price List
Stainless Steel Hex Head Bolts Price List, Stainless Steel Hex Head Bolts Prices, Stainless Steel Hex Head Bolts Price, Stainless Steel Hex Head Bolts Price List, Stainless Steel Hex Head Bolts Price 2018, Stainless Steel Hex Head Bolts Price in India, SS Hex Head Bolts Price India, we offer best price of 18-8 Stainless Steel Hex Head Bolts & 316 Stainless Steel Hex Head Bolts
| M6 X 30 G304 STAINLESS HEX BOLTS | $0.9048 NZD (Each) |
| M6 X 30 G316 STAINLESS HEX BOLTS | $1.3237 NZD (Each) |
| M6 X 35 G304 STAINLESS HEX BOLTS | $0.9427 NZD (Each) |
| M6 X 35 G316 STAINLESS HEX BOLTS | $1.3905 NZD (Each) |
| M6 X 40 G304 STAINLESS HEX BOLTS | $0.9806 NZD (Each) |
| M6 X 40 G316 STAINLESS HEX BOLTS | $1.6170 NZD (Each) |
| M6 X 45 G304 STAINLESS HEX BOLTS | $1.0644 NZD (Each) |
| M6 X 45 G316 STAINLESS HEX BOLTS | $1.6589 NZD (Each) |
| M6 X 50 G304 STAINLESS HEX BOLTS | $1.3577 NZD (Each) |
| M6 X 50 G316 STAINLESS HEX BOLTS | $1.7008 NZD (Each) |
| M6 X 55 G304 STAINLESS HEX BOLTS | $1.8773 NZD (Each) |
| M6 X 60 G304 STAINLESS HEX BOLTS | $1.9395 NZD (Each) |
| M6 X 60 G316 STAINLESS HEX BOLTS | $2.2793 NZD (Each) |
| M6 X 65 G304 STAINLESS HEX BOLTS | $1.9611 NZD (Each) |
| M6 X 65 G316 STAINLESS HEX BOLTS | $2.6145 NZD (Each) |
| M6 X 70 G304 STAINLESS HEX BOLTS | $2.0778 NZD (Each) |
| M6 X 70 G316 STAINLESS HEX BOLTS | $2.6893 NZD (Each) |
| M6 X 75 G304 STAINLESS HEX BOLTS | $2.0948 NZD (Each) |
| M6 X 75 G316 STAINLESS HEX BOLTS | $3.3347 NZD (Each) |
| M6 X 80 G304 STAINLESS HEX BOLTS | $2.5387 NZD (Each) |
Stainless Steel Hex Head Bolts For Sale
We have more than 18,000 products in stock. Order by the piece, bag or in bulk.
Stainless Steel Bolts Inventory
- Specialized in
- SS 304 Hex Head Bolts
- SS 304L Hex Head Bolts
- SS 316 Hex Head Bolts
- SS 316L Hex Head Bolts
- SS 410 Hex Head Bolts
SS Bolts Inventory
Shoulder Stud Bolts Inventory
Shoulder Nut Eye Bolts Inventory
Stainless Steel Shoulder Nut Eye Bolts
Turned Eye Bolts & Wire Eye Bolts Inventory
Machinery Eye Bolts Inventory
Regular Nut Eye Bolts
Metric Eye Bolts Inventory
SS Bolt Ready Stock
- 10% Discount on:
- SS 310 Hex Head Bolts
- SS 202 Hex Head Bolts
- SS 347 Hex Head Bolts
- SS 321 Hex Head Bolts
- SS 321H Hex Head Bolts
Long Tangent U-Bolts
Round U-Bolts
Carriage Bolts
Square Head Bolts
A193 B7 Cadmium Plated Stud Bolts
Xylan® Coated Stud Bolts
Carriage Bolts
ARP High Strength Stainless Steel 12-Point Flange Bolts Price
Stainless Steel Hex Head Bolts DIN Grades available
- DIN 186 A – Tee-Head Bolts With Square Head
- DIN 188 – Tee-Head Bolts With Double Nip
- DIN 444 A – Eye Bolts
- DIN 478 – Square Head Bolts
- DIN 479 – Square Head Bolts
- DIN 480 – Square Head Bolts
- DIN 529 A – Anchor Bolts (Stone Bolt)
- DIN 529 B – Anchor Bolts (Stone Bolt)
- DIN 529 C – Masonry Bolts With Hexagon Nuts
- DIN 529 D – Anchor Bolts (Stone Bolt)
- DIN 529 E – Foundation Bolts With Hexagon Nuts
- DIN 529 F – Anchor Bolts (Stone Bolt)
- DIN 529 G Bolt
- DIN 558 – Fully Threaded Maching Bolts
- DIN 580 – Lifting Eye Bolts
- DIN 7969 – Slotted countersunk head bolts with hexagon nut for steel structures
Stainless Steel Hex Head Bolts
- DIN 601- Hexagon head bolt with nut
- DIN 603 Mu – Carriage Bolts With Hexagon Nuts
- DIN 604 – Flat Countersunk Nip Bolts With Hex Nuts
- DIN 605 – Flat Countersunk Square Neck Bolts
- DIN 607 – Round Head Nip Bolts With Nuts
- DIN 608 – Countersunk Square Bolts (Short Neck)
- DIN 609 – Hex Fitting Bolts w/long Threaded Portion
- DIN 610 – Hex fitting Bolts w/short Threaded Portion
- DIN 3570 – U Bows U Bolts
- DIN 6914 – Hex Bolts For High Strength Struct. Bolting
- DIN 6915 – Hex Nuts For High Strength Struc. Bolting
- DIN 6916 – Washers For High Strength Structural Bolting
- DIN 6921 – Hex Flange Bolts
- DIN EN 1665 Hexagon bolts with flange – heavy series(Replace DIN 6922)
- DIN 7968 – Hexagon fit bolts with hexagon nut for steel structures
Packing of Stainless Steel Hex Head Bolts
We export these Stainless Steel Hex Head Bolts globally such as Peru, United States, Philippines, Canada, United Kingdom, United Arab Emirates, Singapore, Malaysia, Saudi Arabia, Indonesia, Thailand, Pakistan, Qatar, Australia, South Korea, South Africa, Iran, Turkey, Italy, Germany, Oman, Taiwan, Nigeria, Vietnam, Egypt, Mexico, Spain, Bahrain, Kuwait, Hong Kong, Netherlands, Bangladesh, Israel, Poland, Brazil, Norway, Sri Lanka, New Zealand, France, Finland, Romania, Denmark, Japan, Belgium, Russia, Kenya, Ireland, Greece, Portugal, Hungary, Serbia, Croatia, Bulgaria, Venezuela, Lithuania, Myanmar (Burma), Colombia, Azerbaijan, Iraq, Brunei, Laos, Cambodia, China, Czech Republic, Algeria, Chile and Croatia.
We have a wide network in India & overseas to supply urgent delivery of SS Hex Head Bolts including Mumbai, Courbevoie, Faridabad, Chiyoda, Bangkok, Perth, Sharjah, Ahvaz, Ankara, Nashik, Petaling Jaya, Rajkot, Jakarta, Seoul, Al Khobar, Madrid, Calgary, Santiago, Lahore, Cairo, Gurgaon, Noida, Surat, Visakhapatnam, Navi Mumbai, Brisbane, Lagos, Karachi, Port-of-Spain, Thane, Houston, New Delhi, Ho Chi Minh City, Kolkata, Ernakulam, La Victoria, Dubai, Abu Dhabi, Melbourne, Sydney, Caracas, Doha, Vung Tau, Dammam, Kuala Lumpur, Geoje-si, Ludhiana, Secunderabad, Hong Kong, Mumbai, Milan, Bogota, Indore, Montreal, Toronto, Vadodara, Hyderabad, Nagpur, Thiruvananthapuram, Coimbatore, Kuwait City, Manama, Los Angeles, Pune, Bengaluru, Dallas, Mexico City, Kanpur, Jaipur, Aberdeen, Jamshedpur, Bhopal, Jeddah, Hanoi, Riyadh, Baroda, Chennai, Ahmedabad, Ranchi, Algiers, Moscow, Granada, Busan, New York, Rio de Janeiro, Singapore, Edmonton, Al Jubail, London, Chandigarh, Colombo, Howrah, Ulsan, Atyrau, Pimpri-Chinchwad, Muscat, Haryana, Istanbul, Gimhae-si & Tehran.
