Button Head Cap Screws manufacturers
Industrial Stainless Steel Button Head Cap Screws, A2 Stainless Steel Button Head Cap Screws exporter in India, Marine grade Stainless Steel Button Head Cap Screws, Best price of M2 M4 M5 M6 M8 Stainless Steel Button Head Cap Screws, 10% off for bulk order of 316 Stainless Steel Button Head Cap Screws, Special offer on 18-8 Stainless Steel Button Head Cap Screws
Button Head Cap Screws Specification
METRIC BUTTON HEAD SCREWS
Dome-shaped head is wider and has a lower profile than a socket cap screw. APPLICATION: Used when a wider bearing surface or smoother, more finished appearance is desired. Button head cap screws do not afford the strength of socket head cap screws and are designed for light fastening applications.

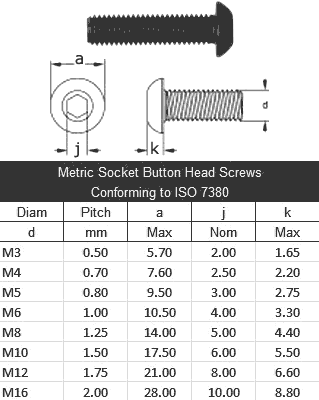

Dimensions
Button Socket Head Cap Screws
Standard Dimensions : UN0106
Button Socket Head Cap Screws Property Class 10.9 Black ISO7380
Weight Chart
|
UN |
PN |
Diameter |
Length |
Box Qty |
Box Weight |
|---|---|---|---|---|---|
| UN0106 | 03006 | M3 | 6 | 100 | 0.04 |
| UN0106 | 03008 | M3 | 8 | 100 | 0.05 |
| UN0106 | 03010 | M3 | 10 | 100 | 0.07 |
| UN0106 | 03012 | M3 | 12 | 100 | 0.07 |
| UN0106 | 03016 | M3 | 16 | 100 | 0.08 |
| UN0106 | 03020 | M3 | 20 | 100 | 0.10 |
| UN0106 | 03025 | M3 | 25 | 100 | 0.12 |
| UN0106 | 04006 | M4 | 6 | 100 | 0.10 |
| UN0106 | 04008 | M4 | 8 | 100 | 0.10 |
| UN0106 | 04010 | M4 | 10 | 100 | 0.12 |
| UN0106 | 04012 | M4 | 12 | 100 | 0.13 |
| UN0106 | 04016 | M4 | 16 | 100 | 0.17 |
| UN0106 | 04020 | M4 | 20 | 100 | 0.20 |
| UN0106 | 04025 | M4 | 25 | 100 | 0.23 |
| UN0106 | 04030 | M4 | 30 | 100 | 0.27 |
| UN0106 | 04035 | M4 | 35 | 100 | 0.34 |
| UN0106 | 04040 | M4 | 40 | 100 | 0.38 |
| UN0106 | 05006 | M5 | 6 | 100 | 0.16 |
| UN0106 | 05008 | M5 | 8 | 100 | 0.18 |
| UN0106 | 05010 | M5 | 10 | 100 | 0.21 |
| UN0106 | 05012 | M5 | 12 | 100 | 0.23 |
| UN0106 | 05016 | M5 | 16 | 100 | 0.28 |
| UN0106 | 05020 | M5 | 20 | 100 | 0.34 |
| UN0106 | 05025 | M5 | 25 | 100 | 0.39 |
| UN0106 | 05030 | M5 | 30 | 100 | 0.49 |
| UN0106 | 05035 | M5 | 35 | 100 | 0.53 |
| UN0106 | 05040 | M5 | 40 | 100 | 0.58 |
| UN0106 | 05045 | M5 | 45 | 100 | 0.72 |
| UN0106 | 05050 | M5 | 50 | 100 | 0.80 |
| UN0106 | 06006 | M6 | 6 | 100 | 0.25 |
| UN0106 | 06008 | M6 | 8 | 100 | 0.28 |
| UN0106 | 06010 | M6 | 10 | 100 | 0.30 |
| UN0106 | 06012 | M6 | 12 | 100 | 0.35 |
| UN0106 | 06014 | M6 | 14 | 100 | 0.36 |
| UN0106 | 06016 | M6 | 16 | 100 | 0.41 |
| UN0106 | 06018 | M6 | 18 | 100 | 0.44 |
| UN0106 | 06020 | M6 | 20 | 100 | 0.48 |
| UN0106 | 06025 | M6 | 25 | 100 | 0.57 |
| UN0106 | 06030 | M6 | 30 | 100 | 0.68 |
| UN0106 | 06035 | M6 | 35 | 100 | 0.75 |
| UN0106 | 06040 | M6 | 40 | 100 | 0.84 |
| UN0106 | 06045 | M6 | 45 | 100 | 0.92 |
| UN0106 | 06050 | M6 | 50 | 100 | 1.01 |
| UN0106 | 06055 | M6 | 55 | 100 | 1.26 |
| UN0106 | 06060 | M6 | 60 | 100 | 1.32 |
| UN0106 | 06065 | M6 | 65 | 100 | 1.37 |
| UN0106 | 06070 | M6 | 70 | 100 | 1.43 |
| UN0106 | 06075 | M6 | 75 | 100 | 1.56 |
| UN0106 | 06080 | M6 | 80 | 100 | 1.80 |
| UN0106 | 08010 | M8 | 10 | 100 | 0.63 |
| UN0106 | 08012 | M8 | 12 | 100 | 0.68 |
| UN0106 | 08016 | M8 | 16 | 100 | 0.84 |
| UN0106 | 08020 | M8 | 20 | 100 | 0.94 |
| UN0106 | 08025 | M8 | 25 | 100 | 1.12 |
| UN0106 | 08030 | M8 | 30 | 100 | 1.24 |
| UN0106 | 08035 | M8 | 35 | 100 | 1.40 |
| UN0106 | 08040 | M8 | 40 | 100 | 1.56 |
| UN0106 | 08045 | M8 | 45 | 100 | 1.73 |
| UN0106 | 08020 | M8 | 50 | 100 | 1.92 |
| UN0106 | 08055 | M8 | 55 | 100 | 2.08 |
| UN0106 | 08060 | M8 | 60 | 100 | 2.20 |
| UN0106 | 08070 | M8 | 70 | 100 | 2.53 |
| UN0106 | 08080 | M8 | 80 | 100 | 2.72 |
| UN0106 | 08100 | M8 | 100 | 100 | 3.10 |
| UN0106 | 10012 | M10 | 12 | 100 | 1.31 |
| UN0106 | 10016 | M10 | 16 | 100 | 1.39 |
| UN0106 | 10018 | M10 | 18 | 100 | 1.52 |
| UN0106 | 10020 | M10 | 20 | 100 | 1.68 |
| UN0106 | 10025 | M10 | 25 | 100 | 1.86 |
| UN0106 | 10030 | M10 | 30 | 100 | 2.12 |
| UN0106 | 10035 | M10 | 35 | 100 | 2.41 |
| UN0106 | 10040 | M10 | 40 | 100 | 2.58 |
| UN0106 | 10045 | M10 | 45 | 50 | 1.49 |
| UN0106 | 10050 | M10 | 50 | 50 | 1.62 |
| UN0106 | 10055 | M10 | 55 | 50 | 1.74 |
| UN0106 | 10060 | M10 | 60 | 50 | 1.86 |
| UN0106 | 10070 | M10 | 70 | 50 | 2.01 |
| UN0106 | 10080 | M10 | 80 | 50 | 2.25 |
| UN0106 | 10100 | M10 | 100 | 50 | 2.73 |
| UN0106 | 12020 | M12 | 20 | 100 | 2.50 |
| UN0106 | 12025 | M12 | 25 | 100 | 2.84 |
| UN0106 | 12030 | M12 | 30 | 100 | 3.29 |
| UN0106 | 12035 | M12 | 35 | 100 | 3.62 |
| UN0106 | 12040 | M12 | 40 | 100 | 4.01 |
| UN0106 | 12045 | M12 | 45 | 100 | 4.31 |
| UN0106 | 12050 | M12 | 50 | 100 | 4.65 |
| UN0106 | 12060 | M12 | 60 | 50 | 2.72 |
| UN0106 | 12070 | M12 | 70 | 50 | 2.77 |
| UN0106 | 12080 | M12 | 80 | 50 | 2.95 |
| UN0106 | 12090 | M12 | 90 | 50 | 4.36 |
| UN0106 | 12100 | M12 | 100 | 50 | 4.70 |
| UN0106 | 16045 | M16 | 45 | 25 | 2.08 |
| UN0106 | 16050 | M16 | 50 | 25 | 2.40 |
Plating: Black
Quality: PC10.9
You might be interested in other types of Fasteners
Stainless Steel Button Head Cap Screws grades:
Stainless steels are used for their corrosion resistance, high-temperature strength, scaling resistance, and low-temperature toughness. These properties account for their extremely wide use in practically every industry. Austenitic Stainless Steels are designated by a 3 digit SAE Stainless Steel Grade beginning with the number 3 (e.g. 304, 316). Another common naming convention for Austenitic Stainless Steels are 18/8, 18/10, 18/0, etc. where the 18 refers to the % of Chromium and 8 to % of Nickel contained in the material.
- 18-8 Stainless Steel Button Head Cap Screws
- 410 Stainless Steel Button Head Cap Screws
- 304 Stainless Steel Button Head Cap Screws
- 304L Stainless Steel Button Head Cap Screws
- 304H Stainless Steel Button Head Cap Screws
- 310 Stainless Steel Button Head Cap Screws
- 316 Stainless Steel Button Head Cap Screws
- 316H Stainless Steel Button Head Cap Screws
- 316L Stainless Steel Button Head Cap Screws
- 317 Stainless Steel Button Head Cap Screws
- 317L Stainless Steel Button Head Cap Screws
- 321 Stainless Steel Button Head Cap Screws
- 347 Stainless Steel Button Head Cap Screws
- 904L Stainless Steel Button Head Cap Screws
