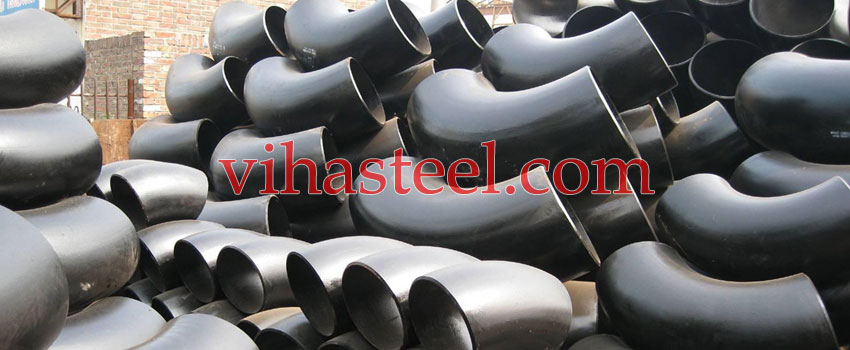

Carbon Steel Elbow Specifications
|
Type
|
Butt weld (BW)
|
|
Butt weld (BW) Standard
|
ASME / ANSI – B 16.9ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’
API 590-605 ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings’ ASME B16.25 – ‘Buttwelding Ends’ ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’ MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’ |
|
Butt Weld 90 Deg Long Radius Elbow Dimension
|
ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313
|
|
Butt Weld 90 Deg Long Radius Elbow Size
|
1/2” TO 36”, (Seamless Butt weld up to 24”), (Welded Butt weld 8” TO 36”)
|
|
Butt Weld 90 Deg Long Radius Elbow Thickness
|
SCH: 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS, Custom Thickness.
|
|
Butt weld fittings Range
|
Elbow, Tee, Reducer, Stubend, Cross, Pipe Cap, Pipe Bend
|
|
Stainless Steel Butt Weld 90 Deg Long Radius Elbow
|
ASTM A403 WP316/316LASTM A403 WP304/304L
ASTM A182 F316L, 304L DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
|
Duplex Steel Butt Weld 90 Deg Long Radius Elbow
|
ASTM / ASME A815 / SA815 UNS No. S31803, S32205, S32550, S32750, S32760
|
|
Carbon Steel Butt Weld 90 Deg Long Radius Elbow
|
ASTM A234 Gr. WPBASTM A420 Gr. WPL6
ASTM A105 ASTM A350 Gr. LF2 ASTM A234 Gr WPB ST37.2, ST35 ASTM / ASME A/SA 234 / 420 WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70 |
|
Alloy Steel Butt Weld 90 Deg Long Radius Elbow
|
ASTM A 234 WP – P5, P9, P11, P12, P21, P22 & P91ASTM A234 wp1 / wp5 / wp9 / wp11 / wp22 / wp91
|

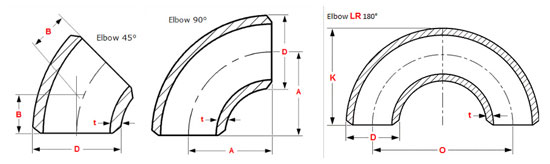

Butt Weld 90 Deg Long Radius Elbow Dimensions
|
Nominal Diameter
|
Outside Diameter at Bevel
|
Center to End
|
Center to Center
|
Back to Face
|
||||||
|
45°Elbow
|
90°Elbow
|
180°Elbow
|
||||||||
|
B
|
A
|
O
|
K
|
|||||||
|
DN
|
NPS
|
Series A
|
Series B
|
LongRadius
|
LongRadius
|
Short Radius
|
Long Radius
|
Short Radius
|
Long Radius
|
Short Radius
|
|
15
|
1/2
|
21.3
|
18
|
16
|
38
|
–
|
76
|
–
|
48
|
–
|
|
20
|
3/4
|
26.9
|
25
|
19
|
38
|
–
|
76
|
–
|
51
|
–
|
|
25
|
1
|
33.7
|
32
|
22
|
38
|
25
|
76
|
51
|
56
|
41
|
|
32
|
1.1/4
|
42.4
|
38
|
25
|
48
|
32
|
95
|
64
|
70
|
52
|
|
40
|
1.1/2
|
48.3
|
45
|
29
|
57
|
38
|
114
|
76
|
83
|
62
|
|
50
|
2
|
60.3
|
57
|
35
|
76
|
51
|
152
|
102
|
106
|
81
|
|
65
|
2.1/2
|
76.1(73)
|
76
|
44 |
95
|
64
|
190
|
127
|
132
|
100
|
|
80
|
3
|
88.9
|
89
|
51
|
114
|
76
|
229
|
152
|
159
|
121
|
|
90
|
3.1/2
|
101.6
|
–
|
57
|
133
|
89
|
267
|
178
|
184
|
140
|
|
100
|
4
|
114.3
|
108
|
64
|
152
|
102
|
305
|
203
|
210
|
159
|
|
125
|
5
|
139.7
|
133
|
79
|
190
|
127
|
381
|
254
|
262
|
197
|
|
150
|
6
|
168.3
|
159
|
95
|
229
|
152
|
457
|
305
|
313
|
237
|
|
200
|
8
|
219.1
|
219
|
127
|
305
|
203
|
610
|
406
|
414
|
313
|
|
250
|
10
|
273.0
|
273
|
159
|
381
|
254
|
762
|
508
|
518
|
391
|
|
300
|
12
|
323.9
|
325
|
190
|
457
|
305
|
914
|
610
|
619
|
467
|
|
350
|
14
|
355.6
|
377
|
222
|
533
|
356
|
1067
|
711
|
711
|
533
|
|
400
|
16
|
406.4
|
426
|
254
|
610
|
406
|
1219
|
813
|
813
|
610
|
|
450
|
18
|
457.2
|
478
|
286
|
686
|
457
|
1372
|
914
|
914
|
686
|
|
500
|
20
|
508.0
|
529
|
318
|
762
|
508
|
1524
|
1016
|
1016
|
762
|
|
550
|
22
|
559
|
–
|
343
|
838
|
559
|
1676
|
1118
|
1118
|
838
|
|
600
|
24
|
610
|
630
|
381
|
914
|
610
|
1829
|
1219
|
1219
|
914
|
|
650
|
26
|
660
|
–
|
406
|
991
|
660
|
1982
|
1320
|
–
|
–
|
|
700
|
28
|
711
|
720
|
438
|
1067
|
711
|
2134
|
1422
|
–
|
–
|
|
750
|
30
|
762
|
–
|
470
|
1143
|
762
|
2286
|
1524
|
–
|
–
|
|
800
|
32
|
813
|
820
|
502
|
1219
|
813
|
2438
|
1626
|
–
|
–
|
|
850
|
34
|
864
|
–
|
533
|
1295
|
864
|
2590
|
1728
|
–
|
–
|
|
900
|
36
|
914
|
920
|
565
|
1372
|
914
|
2744
|
1828
|
–
|
–
|
|
950
|
38
|
965
|
–
|
600
|
1448
|
965
|
2896
|
1930
|
–
|
–
|
|
1000
|
40
|
1016
|
1020
|
632
|
1524
|
1016
|
3048
|
2032
|
–
|
–
|
|
1050
|
42
|
1067
|
–
|
660
|
1600
|
1067
|
3200
|
2134
|
–
|
–
|
|
1100
|
44
|
1118
|
1120
|
695
|
1676
|
1118
|
3352
|
2236
|
–
|
–
|
|
1150
|
46
|
1168
|
–
|
727
|
1753
|
1168
|
3506
|
2336
|
–
|
–
|
|
1200
|
48
|
1220
|
1220
|
759
|
1829
|
1219
|
3658
|
2440
|
–
|
–
|
Dimensional Tolerances of Butt Weld Elbows – 45° and 90° – LR and 3D – ASME B16.9 –
|
Nominal Pipe Size
|
1/2 to 2½
|
3 to 3½
|
4
|
5 to 8
|
10 to 18
|
20 to 24
|
26 to 30
|
32 to 48
|
|
Outside Diameterat Bevel (D)
|
+ 1.6– 0.8
|
1.6
|
1.6
|
+ 2.4– 1.6
|
+ 4– 3.2
|
+ 6.4– 4.8
|
+ 6.4– 4.8
|
+ 6.4– 4.8
|
|
Inside Diameter at End
|
0.8
|
1.6
|
1.6
|
1.6
|
3.2
|
4.8
|
+ 6.4– 4.8
|
+ 6.4– 4.8
|
|
Center-to-End LR (A/B)
|
2
|
2
|
2
|
2
|
2
|
2
|
3
|
5
|
|
Center-to-End 3D (A/B)
|
3
|
3
|
3
|
3
|
3
|
3
|
6
|
6
|
|
Wall Thickness (t)
|
Not less than 87.5% of Nominal Wall Thickness
|
|||||||
Dimensional tolerances are in millimeters unless otherwise indicated and are equal ± except as noted.
Note:
MSS SP-43 only covers stainless steel buttweld fittings made for use with Schedule 5S and 10S pipe and Stub Ends suitable for use with Schedule 40S pipe, as defined in ASME B36.19. The dimensions and dimensional tolerances defined in MSS SP-43 are substantially the same as those in ASME B16.9 specifications from NPS 1/2 – NPS 24. Except with regard to the outside diameter at the bevel.
| Angularity Tolerances | ||
| ND | Max off angle | Max off plane |
| Q | P | |
| 1/2 a 4 | 1 | 2 |
| 5 a 8 | 2 | 4 |
| 10 a 12 | 3 | 5 |
| 14 a 16 | 3 | 7 |
| 18 a 24 | 4 | 10 |
| 26 a 30 | 5 | 10 |
| 32 a 42 | 5 | 13 |
| 44 a 48 | 5 | 20 |
Type of Elbow
Type A Elbow, Decreased pressure factor
Same wall thickness on the weld ends and on the fi tting body as for a pipe with the same specifi ed wall thickness. Their resistance to internal pressure is less than that of a pipe with the same diameter, same wall thickness and made of the same grade of steel.
The required calculation methods are based on the calculation standards defined in EN 13480-3
Type B Elbow, Full pressure factor
Increased wall thicknesses on the fi tting body, same resistance to internal pressure as for a pipe with the same diameter, same wall thickness and made of the same grade of steel.
The required calculation methods are based on the calculation standards defined in EN 13480-3
Steel Elbow Marking
Each fitting must be permanently marked.
Marking through hard stamping.
- Manufacturer‘s mark or logo
- Country of manufacture (ISO-Code)
- “EN2” as reference to this standard
- “B” for fittings of type B
- Steel name or steel number
- “W” (for welded fittings or fittings that are manufactured from welded pipes)
- Cast number or code number
- Mark of the inspection representative
- Outside diameter D*
- Wall thickness T*
Steel Elbow for handling and packaging
EN 10253-2 Fittings & Elbow are delivered with or without surface protection at the discretion of the manufacturer.
EN 10253-4 Fittings & Elbow are delivered by the manufacturer in normal packaging, without surface protection, and without end protectors (caps). Special packaging, protective coverings, and end protectors (caps) can be agreed.
|
Ready Stock Of
|
||||
|
|
|
||
Carbon Steel Fittings Price List
Carbon Steel Elbow Price in India ASTM/ASME A/SA 234-WPB ANSI B16.9, B16.28, and B16.25
|
ASTM A403 WP 304 WPB B16.9 BW R=1.5D, SCH-40S
|
ASTM A234 GR. WPB B16.9 BW R=1.5D, SCH-40
|
ASTM A403 WP 304 WPB B16.9 BW R=1.5D, SCH-40S
|
|
|
|
|
ASTM A403 WP 304 WPB B16.9 BW R=1.5D, SCH-40S
|
ASTM A234 GR. WPB B16.9 BW R=1.5D, SCH-40
|
ASTM A403 WP 304 WPB B16.9 BW R=1.5D, SCH-40S
|
|
|
|
Find Our Dealer & Distributors In Following Countries & Cities
We are having our sub dealers & distributor with adequate stock of SS Elbow in India, United States, UK, Italy, Canada, UAE, Iran, South Korea, Indonesia, Saudi Arabia, Germany, Malaysia, Thailand, Venezuela, Spain, Mexico, Turkey, Poland, France, Australia, Singapore, Brazil, Netherlands, Russia, Vietnam, Colombia, Bangladesh, South Africa, Iran, Iraq, United Arab Emirates (Uae), Qatar, Dubai, Abu Dhabi, Bahrain, Oman, India, Kuwait, Turkey, Yemen, Syria, Jordan, Cyprus, Portugal, Russia, Norway, Germany, France, Egypt, Singapore, Malaysia, Indonesia, Thailand (Bangkok), Vietnam, South Korea, China, Japan, Sri Lanka, Maldives, Bangladesh, Myanmar, Taiwan, Cambodia, Malta, Italy, United Kingdom (Uk), Spain, Ukraine, Netherland, The Republic Of Congo, Argentina, Bolivia, Brazil, Chile, Venezuela, Colombia, Ecuador, Guyana, Paraguay, Israel, Czechia, Albania, Australia, Perth, Tanzania, Finland, Belgium, Greece, Czech Republic, Ireland, Croatia, Slovenia, Equatorial Guinea, United States Of America, Canada, Mexico, Panama, Costa Rica, Puerto Rica, Trinidad And Tobago, Jamaica, Bahamas, Denmark, Switzerland, Slovakia, Tunisia, Nigeria, Algeria, Angola, South Africa, Libya, Gabon, Philippines & Sudan for quick delivery of Carbon Steel Elbow with mill certificate & all required documents.
Origin: Indian Origin, Japanese Origin, Korean Origin, European Origin, US Origin, Ukraine Origin, Russian Origin
We offer fastest delivery of A234 WP11 Elbow in Mumbai, Lucknow, Coimbatore, Imphal, Mysore, Ratlam, Delhi, Kanpur, Darjeeling, Jalandhar, Nagpur, Solapur, Kolkata, Allahabad, Dehradun, Jammu, Nashik, Srinagar, Chennai, Ahmedabad, Faridabad, Jamshedpur, Bhadravati, Chattisgarh, Durgapur, Asansol, Hospet, Bellary, Visakhapatnam, Nellore, Surat, Bangalore, Chandigarh, Ghaziabad, Jhansi, Patna, Siliguri, Hyderabad, Amritsar, Noida, Kochi, Pune, Thiruvanthapuram, Jaipur, Aizawl, Guwahati, Kozhikode, Raipur, Vishakhapatnam, Jabalpur, Bhopal, Gwalior, Ludhiana, Rajahmundry, Thane, Agra, Bhubaneshwar, Gurgaon, Madurai, Rajkot, Varanasi, Bhilai, Haridwar, Meerut, Ranchi, Ahmednagar, Akola, Amravati, Aurangabad, Baramati, Beed, Bhandara, Bhiwandi, Buldhana, Chandrapur, Chimur, Dahanu, Dhule, Dindori, Erandol, Gadchiroli, Hatkanangle, Hingoli, Ichalkaranji, Jalgaon, Jalna, Salem, Karad, Khed, Yavatmal, Kolaba, Kolhapur, Kopargaon, Latur, Malegaon, Mumbai, Nagpur, Nanded, Nandurbar, Nashik, Osmanabad, Pandharpur, Parbhani, Pune, Rajapur, Ramtek, Ratnagiri, Raver, Sangli, Satara, Shirdi, Shirur, Solapur, Thane, Wardha, Washim, Andhra Pradesh, Jammu and Kashmir, Nagaland, Uttarakhand, Haryana, Lakshadweep, Arunachal Pradesh, Jharkhand, Odisha, West Bengal, Himachal Pradesh, Assam, Karnataka, Punjab, Andaman and Nicobar Islands, Puducherry, Bihar, Kerala, Rajasthan, Chandigarh, Meghalaya, Chhattisgarh, Madhya Pradesh, Sikkim, Dadar and Nagar Haveli, Mizoram, Goa, Maharashtra, Tamil Nadu, Daman and Diu, Tripura, Gujarat, Manipur, Telangana, Delhi and Uttar Pradesh in India.
Contact MD Exports LLP & Forging today for a best offer & competitive quotation Of Steel Elbow
Call: | Email: [email protected]
