Stainless Steel Carriage Bolts manufacturers
Industrial Stainless Steel Carriage Bolts, A2 Stainless Steel Carriage Bolts exporter in India, Marine grade Stainless Steel Carriage Bolts, Best price of M2 M4 M5 M6 M8 Stainless Steel Carriage Bolts, 10% off for bulk order of 316 Stainless Steel Carriage Bolts, Special offer on 18-8 Stainless Steel Carriage Bolts
A carriage bolt is also called coach bolt or round head square neck bolt or mushroom bolt. A stainless steel carriage bolt has a square shoulder under a rounded head which resists turning when the nut is tightened or removed. They are good for wood-to-wood connections when the head may not be accessible for tightening. They are suitable for construction of docks, swing sets and decks as well as other surfaces where a smooth finish is needed. SS Carriage Bolts or Carriage Screws have a square neck that keeps them from turning once tightened. Use in square holes for wood-to-wood and wood-to-metal fastening. Length is measured from under the head.
MD Exports LLP is a leading Stainless Steel Carriage Bolts manufacturers, suppliers & exporters in India. A trusted company manufacturing and supplying SS Carriage Bolts across India & overseas.

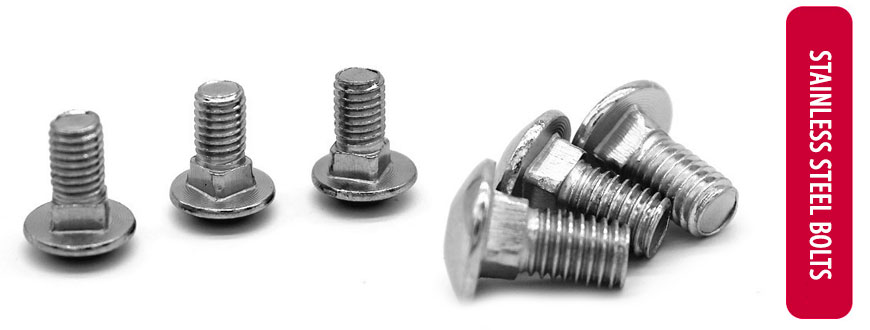

Stainless Steel Carriage Bolts
ASTM A193 / A194 Stainless Steel Carriage Bolts Specification
| Product name | Stainless Steel Carriage Bolts |
|---|---|
| Place of Origin | India |
| Standard | ISO 4017, DIN931, GB5783, DIN, ASTM, ANSI, JIS, EN, AS |
| DIN Standard | B.S. DIN933 DIN931 DIN934 DIN912 DIN603 DIN6923 |
|
Passivation /plain |
| Stainless Steel Carriage Bolts Size | M2 – M100 |
| Stainless Steel Carriage Bolts Diameter | M3-M60 |
| Stainless Steel Carriage Bolts Length | 6mm-500mm |
| Head | Hex, Square, Round, Hex flange, Flat, T-head & Triangular etc |
| Neck type | Hex, Square, Triangular, Oval & Knurled etc |
| Drive type | Phil, Slotted, Hex socket, Torx & square slot etc |
| Stainless Steel Carriage Bolts Application | Wind tower, Nuclear power, Railway, Automotive industry, Construction, Electronic industry |
| Dimensions | ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded. |
| Drive Style |
Type I |
| Stainless Steel Carriage Bolts Material | 18-8 Stainless Steel, stainless steel ss 304/ SS316 A2/A4, SS201, SS303, SS304, SS316, SS316L, SS904L, A2-70; A4-70; A4-80 |
| Thread Requirements | ASME B1.1, UNC & UNF, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge) |
| Finish | Per ASTM A380/A380M |
| Finishing | Zinc Plated (Yellow, White, Blue, Black), Hop Dip Galvanized (HDG) phosphorization, Black Oxide, Geomet, Dacroment, anodization, Nickel plated, Zinc-Nickel plated, Brass Plated, Tin Plated, Black Plated, Copper Plated, Gold Plated, Salt fog test |
| Stock Products | Stainless steel: All DIN, GB Standard and part ASNI standard stainless steel Carriage Bolts, Example: ISO7380, DIN7981, DIN7982, DIN916, DIN913, DIN7985, DIN912 |
| Production technology | Cold Forged |
| Manufacturing Process | Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing |
| MOQ | 10 pieces |
| Delivery time | Regular product is about 7-15 days, custom product will according to special requirement |
| Others | OEM, ODM, ±0.03MM tolerance |
| Surface treatment of stainless steel Carriage Bolts |
|
| Coatings | Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request |
| Tolerance of stainless steel Carriage Bolts | +/-0.01mm to +/-0.05mm |
| Samples | Yes |
| Production Capacity | 2,700,000 pieces per month |
| Payment Terms | T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping |
You might be interested in related types of Stainless Steel Carriage Bolts
Stainless Steel Carriage Bolts grades:
Stainless steels are used for their corrosion resistance, high-temperature strength, scaling resistance, and low-temperature toughness. These properties account for their extremely wide use in practically every industry. Austenitic Stainless Steels are designated by a 3 digit SAE Stainless Steel Grade beginning with the number 3 (e.g. 304, 316). Another common naming convention for Austenitic Stainless Steels are 18/8, 18/10, 18/0, etc. where the 18 refers to the % of Chromium and 8 to % of Nickel contained in the material.
- 18-8 Stainless Steel Carriage Bolts
- 410 Stainless Steel Carriage Bolts
- 304 Stainless Steel Carriage Bolts
- 304L Stainless Steel Carriage Bolts
- 304H Stainless Steel Carriage Bolts
- 310 Stainless Steel Carriage Bolts
- 316 Stainless Steel Carriage Bolts
- 316H Stainless Steel Carriage Bolts
- 316L Stainless Steel Carriage Bolts
- 317 Stainless Steel Carriage Bolts
- 317L Stainless Steel Carriage Bolts
- 321 Stainless Steel Carriage Bolts
- 347 Stainless Steel Carriage Bolts
- 904L Stainless Steel Carriage Bolts
Stainless Steel Carriage Bolts Dimensions
Dimensions for Stainless steel Carriage Bolts
Stainless Steel Carriage Bolts: Dimensions & Mechanical Properties

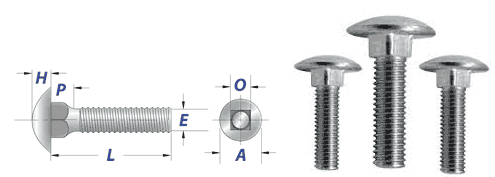

Carriage Bolts: Round Head Square Neck
| Carriage Bolts: Round Head, Square Neck (ASME B18.5-1990) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
Basic Bolt Diameter |
Body Diameter (E) | Head Diameter (A) | Head Height (H) | Square Width (O) | Square Depth (P) | |||||
| Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | |
| 8 | .1640 | .157 | .328 | .298 | .102 | .083 | .169 | .155 | .108 | .078 |
| 10 | .1900 | .182 | .436 | .436 | .114 | .094 | .199 | .185 | .125 | .094 |
| 12 | .2160 | .206 | .500 | .468 | .149 | .125 | .215 | .197 | .135 | .105 |
| 1/4 | .2500 | .237 | .594 | .563 | .145 | .125 | .260 | .245 | .156 | .125 |
| 5/16 | .3125 | .298 | .719 | .688 | .176 | .156 | .324 | .307 | .187 | .156 |
| 3/8 | .3750 | .360 | .844 | .782 | .208 | .188 | .388 | .368 | .219 | .188 |
| 7/16 | .4375 | .421 | .969 | .907 | .239 | .219 | .452 | .431 | .250 | .219 |
| 1/2 | .5000 | .483 | 1.094 | 1.032 | .270 | .250 | .515 | .492 | .281 | .250 |
| 5/8 | .6250 | .605 | 1.344 | 1.219 | .344 | .313 | .642 | .616 | .344 | .313 |
| 3/4 | .7500 | .729 | 1.594 | 1.469 | .406 | .375 | .768 | .741 | .406 | .375 |
| Carriage Bolts: Round Head, Square Neck: Tolerance on Length | |||||||
|---|---|---|---|---|---|---|---|
| Nominal Bolt Size |
Nominal Bolt Length | ||||||
| Up to 1″ | Over 1″ – 2-1/2″ | Over 2-1/2″ – 4″ | Over 4″ – 6″ | Longer than 6″ | |||
| No. 8 – 3/8 | +.02, -.03 | +.02, -.04 | +.04, -.06 | +.06, -.10 | +.10, -.18 | ||
| 7/16 & 1/2 | +.02, -.03 | +.04, -.05 | +.06, -.08 | +.08, -.10 | +.12, -.18 | ||
| 9/16 – 3/4 | +.02, -.03 | +.06, -.08 | +.08, -.10 | +.10, -.10 | +.14, -.18 | ||

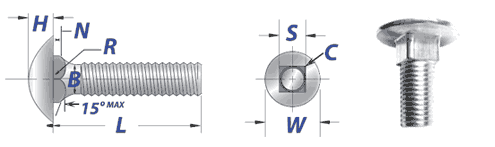

Carriage Bolts: Round Head Short Neck
| Carriage Bolts: Round Head, Short Neck (ANSI/ASME B18.5) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Nominal Size or Basic Bolt Diameter |
Body Diameter (B) | Head Diameter (W) | Head Height (H) | Square Width (S) | Square Depth (N) | Corner Radius on Square (C) | Fillet Radius (R) | ||||||
| Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Max | ||
| 1/4 | .2500 | .260 | .213 | .594 | .563 | .145 | .125 | .260 | .245 | .124 | .093 | .031 | .031 |
| 5/16 | .3125 | .324 | .272 | .719 | .688 | .176 | .156 | .324 | .307 | .124 | .093 | .031 | .031 |
| 3/8 | .3750 | .388 | .329 | .844 | .782 | .208 | .188 | .388 | .368 | .156 | .125 | .047 | .031 |
| 7/16 | .4375 | .452 | .385 | .969 | .907 | .239 | .219 | .452 | .431 | .156 | .125 | .047 | .031 |
| 1/2 | .5000 | .515 | .444 | 1.094 | 1.032 | .270 | .250 | .515 | .492 | .156 | .125 | .047 | .031 |
| 5/8 | .6250 | .642 | .559 | 1.344 | 1.219 | .344 | .313 | .642 | .616 | .218 | .187 | .078 | .062 |
| 3/4 | .7500 | .768 | .678 | 1.594 | 1.469 | .406 | .375 | .768 | .741 | .218 | .187 | .078 | .062 |
| Carriage Bolts: Round Head, Short Neck: Tolerance on Length | |||||||
|---|---|---|---|---|---|---|---|
| Nominal Bolt Size |
Nominal Bolt Length | ||||||
| Up to 1″ | Over 1″ – 2-1/2″ | Over 2-1/2″ – 4″ | Over 4″ – 6″ | Longer than 6″ | |||
| No. 10 – 3/8 | +.02, -.03 | +.02, -.04 | +.04, -.06 | +.06, -.10 | +.10, -.18 | ||
| 7/16 & 1/2 | +.02, -.03 | +.04, -.05 | +.06, -.08 | +.08, -.10 | +.12, -.18 | ||
| 9/16 – 3/4 | +.02, -.03 | +.06, -.08 | +.08, -.10 | +.10, -.10 | +.14, -.18 | ||
| 7/8 & 1 | +.08, -.10 | +.10, -.14 | +.12, -.16 | +.16, -.20 | |||
| 1-1/8 – 1-1/2 | +.12, -.12 | +.16, -.16 | +.18, -.18 | +.22, -.22 | |||

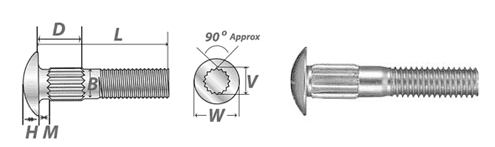

Carriage Bolts: Round Head, Ribbed Neck
| Carriage Bolts: Round Head, Ribbed Neck (ASME B18.5-1998) | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Nominal Size or Basic Bolt Diameter |
Body Diameter (B) | Head Diameter (W) | Head Height (H) | Head to Ribs (M) | Number of Ribs | Diameter Over Ribs (V) | Depth Over Ribs (D) | Fillet Radius (R) | |||||||
| Max | Min | Max | Min | Max | Min | Up to 7/8″ Length | 1″+ Length | Approx. | Min | Up to 7/8″ Length | 1″ & 1-1/8″ Length | 1-1/4″+ Length | Max | ||
| No 10 | .1900 | .199 | .182 | .469 | .438 | .114 | .094 | .031 | .063 | 9 | .210 | .250 | .407 | .594 | .031 |
| 1/4 | .2500 | .260 | .237 | .594 | .563 | .145 | .125 | .031 | .063 | 10 | .274 | .250 | .407 | .594 | .031 |
| 5/16 | .3125 | .324 | .298 | .719 | .688 | .176 | .156 | .031 | .063 | 12 | .340 | .250 | .407 | .594 | .031 |
| 3/8 | .3750 | .388 | .360 | .844 | .782 | .208 | .188 | .031 | .063 | 12 | .405 | .250 | .407 | .594 | .031 |
| 7/16 | .4375 | .425 | .421 | .969 | .907 | .239 | .219 | .031 | .063 | 14 | .470 | .250 | .407 | .594 | .031 |
| 1/2 | .5000 | .515 | .483 | 1.094 | 1.032 | .270 | .250 | .031 | .063 | 16 | .534 | .250 | .407 | .594 | .031 |
| 5/8 | .6250 | .642 | .605 | 1.344 | 1.219 | .344 | .313 | .094 | .094 | 19 | .660 | .313 | .438 | .625 | .062 |
| 3/4 | .7500 | .768 | .729 | 1.594 | 1.469 | .406 | .375 | .094 | .094 | 22 | .785 | .313 | .438 | .625 | .062 |
| Carriage Bolts: Round Head, Ribbed Neck: Tolerance on Length | |||||||
|---|---|---|---|---|---|---|---|
| Nominal Bolt Size |
Nominal Bolt Length | ||||||
| Up to 1″ | Over 1″ – 2-1/2″ | Over 2-1/2″ – 4″ | Over 4″ – 6″ | Longer than 6″ | |||
| No. 10 – 3/8 | +.02, -.03 | +.02, -.04 | +.04, -.06 | +.06, -.10 | +.10, -.18 | ||
| 7/16 & 1/2 | +.02, -.03 | +.04, -.05 | +.06, -.08 | +.08, -.10 | +.12, -.18 | ||
| 9/16 – 3/4 | +.02, -.03 | +.06, -.08 | +.08, -.10 | +.10, -.10 | +.14, -.18 | ||
| 7/8 & 1 | +.08, -.10 | +.10, -.14 | +.12, -.16 | +.16, -.20 | |||
| 1-1/8 – 1-1/2 | +.12, -.12 | +.16, -.16 | +.18, -.18 | +.22, -.22 | |||

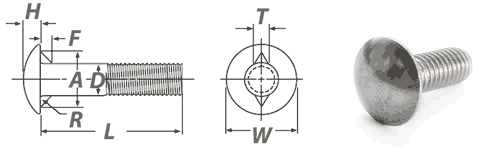

Stainless Steel Carriage Bolts: Fin Neck
| Carriage Bolts: Fin Neck (ASME B18.5-1990) | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Nominal Size or Basic Bolt Diameter |
Body Diameter (D) | Head Diameter (W) | Head Height (H) | Fin Thickness (T) | Distance Across Fins (A) |
Fin Depth (F) | Fillet Radius (R) | ||||||||
| Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | ||
| No 10 | .1900 | .199 | .182 | .469 | .438 | .114 | .094 | .098 | .078 | .395 | .375 | .088 | .076 | .031 | .015 |
| 1/4 | .2500 | .260 | .237 | .594 | .563 | .145 | .125 | .114 | .094 | .458 | .438 | .104 | .094 | .031 | .015 |
| 5/16 | .3125 | .324 | .298 | .719 | .688 | .176 | .156 | .145 | .125 | .551 | .531 | .135 | .125 | .031 | .015 |
| 3/8 | .3750 | .388 | .360 | .844 | .782 | .208 | .188 | .161 | .141 | .645 | .625 | .151 | .141 | .031 | .015 |
| 7/16 | .4375 | .452 | .421 | .969 | .907 | .239 | .219 | .192 | .172 | .739 | .719 | .182 | .172 | .031 | .015 |
| 1/2 | .5000 | .515 | .483 | 1.094 | 1.032 | .270 | .250 | .208 | .188 | .833 | .813 | .198 | .188 | .031 | .015 |

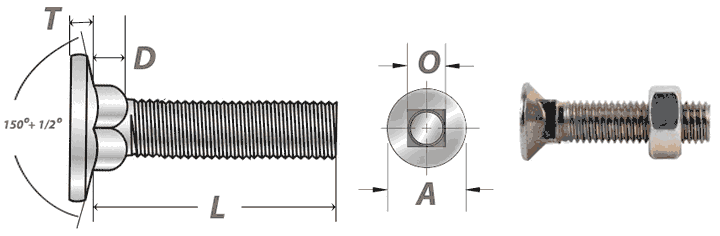

Stainless Steel Carriage Bolts: Flat Head, Square Neck
| Carriage Bolts: Flat Head, Square Neck | ||||||||
|---|---|---|---|---|---|---|---|---|
|
Bolt Diameter & Thread Pitch |
Head Diameter (A) | Head Height (T) | Square Width (O) | Square Depth (D) | ||||
| Max | Min | Max | Min | Max | Min | Max | Min | |
| 1/4-20 | .640 | .590 | .098 | .078 | .260 | .245 | .156 | .125 |
Stainless steel carriage bolt
- Standard DIN 603,
- Also known as Carriage Bolts,
- Dome head for visually pleasing joints,
- Square under neck to prevent rotating of bolt during tightning,
- Low load carrying joints,
- Used in predrilled holes,
- Do Not confuse Coach Bolts with Coach Screws,
Check Stainless Steel Carriage Bolts Dimensions full Catalog
SS Carriage Bolts Weight Chart
|
M.S. ROUND HEAD SQUARE NECK CARRIAGE BOLTS WITH SQUARE NUTS |
|||||
|
APPROXIMATE WEIGHT IN KGS FOR 100 NOS |
|||||
|
LENGTH |
D I A M E T E R |
||||
|
1/4″ |
5/16″ |
3/8″ |
7/16″ |
1/2″ |
|
|
1″ |
1.070 |
1.859 |
2.844 |
4.322 |
6.165 |
|
1.1/4″ |
1.243 |
2.050 |
3.125 |
4.708 |
6.667 |
|
1.1/2″ |
1.397 |
2.335 |
3.492 |
5.102 |
7.163 |
|
1.3/4″ |
1.551 |
2.581 |
3.846 |
5.631 |
7.776 |
|
2″ |
1.706 |
2.825 |
4.198 |
6.112 |
8.432 |
|
2.1/4″ |
1.864 |
3.071 |
4.554 |
6.588 |
9.058 |
|
2.1/2″ |
2.023 |
3.316 |
4.907 |
7.072 |
9.671 |
|
2.3/4″ |
2.182 |
3.561 |
5.258 |
7.564 |
10.309 |
|
3″ |
2.340 |
3.805 |
5.612 |
8.039 |
10.941 |
|
3.1/2″ |
2.653 |
4.296 |
6.274 |
8.993 |
12.225 |
|
4″ |
2.971 |
4.785 |
7.022 |
9.960 |
13.477 |
|
4.1/2″ |
3.287 |
5.274 |
7.728 |
10.917 |
14.706 |
|
5″ |
3.605 |
5.767 |
8.446 |
11.905 |
15.974 |
|
5.1/2″ |
3.922 |
6.258 |
9.158 |
12.853 |
17.241 |
|
6″ |
4.241 |
6.748 |
9.862 |
13.812 |
18.519 |
|
7″ |
15.674 |
20.921 |
|||
|
8″ |
17.606 |
23.364 |
|||
DIN 603 Carriage Bolt Weight (KG/1000pcs)
| l\d | M5 | M6 | M8 | M10 | M12 | M16 | M20 |
| 16 | 4 | 6.9 | |||||
| 20 | 4.5 | 7.6 | 13.8 | 22.7 | |||
| 25 | 5.1 | 8.5 | 15.4 | 25.2 | |||
| 30 | 5.9 | 9.6 | 17 | 27.7 | 45.7 | ||
| 35 | 6.7 | 10.7 | 19 | 30.2 | 49.4 | ||
| 40 | 7.5 | 11.8 | 21 | 32.7 | 53.1 | ||
| 45 | 8.3 | 12.9 | 23 | 35.8 | 56.8 | ||
| 50 | 9.1 | 14 | 25 | 38.9 | 61.2 | 119 | |
| 55 | 9.9 | 15.1 | 26.9 | 42 | 65.6 | 126 | |
| 60 | 10.7 | 16.2 | 28.9 | 45.1 | 70 | 133 | |
| 65 | 11.5 | 17.3 | 30.9 | 48.2 | 74.4 | 141 | |
| 70 | 12.3 | 18.4 | 32.9 | 51.3 | 78.8 | 149 | 247 |
| 80 | 13.9 | 20.6 | 36.8 | 57.5 | 87 | 165 | 272 |
| 90 | 22.8 | 40.8 | 63.7 | 96 | 181 | 297 | |
| 100 | 25 | 44.8 | 69.9 | 105 | 197 | 322 | |
| 110 | 27.2 | 48.8 | 76.1 | 114 | 213 | 347 | |
| 120 | 29.4 | 52.8 | 82.3 | 123 | 229 | 372 | |
| 130 | 31.6 | 56.8 | 88.5 | 132 | 245 | 397 | |
| 140 | 32.8 | 60.8 | 95 | 141 | 261 | 422 | |
| 150 | 35 | 64.8 | 101 | 150 | 277 | 447 | |
| 160 | 107 | 159 | 293 | 497 | |||
| 180 | 119 | 177 | 325 | 547 | |||
| 200 | 131 | 195 | 357 | 597 |
Stainless Steel Carriage Bolts Price List
Stainless Steel Carriage Bolts Price List, Stainless Steel Carriage Bolts Prices, Stainless Steel Carriage Bolts Price, Stainless Steel Carriage Bolts Price List, Stainless Steel Carriage Bolts Price 2018, Stainless Steel Carriage Bolts Price in India, SS Carriage Bolts Price India, we offer best price of 18-8 Stainless Steel Carriage Bolts & 316 Stainless Steel Carriage Bolts
|
M6 X 20 G304 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$2.8818 NZD (Each) |
|
M6 X 20 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$3.6194 NZD (Each) |
|
M6 X 25 G304 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$3.1822 NZD (Each) |
|
M6 X 25 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$4.2749 NZD (Each) |
|
M6 X 30 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$4.4388 NZD (Each) |
|
M6 X 40 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$4.6983 NZD (Each) |
|
M6 X 50 G304 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$5.1080 NZD (Each) |
|
M6 X 50 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$8.9186 NZD (Each) |
|
M6 X 60 G304 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$6.8426 NZD (Each) |
|
M6 X 60 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$7.1703 NZD (Each) |
|
M6 X 70 G304 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$8.4679 NZD (Each) |
|
M6 X 70 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$7.9626 NZD (Each) |
|
M6 X 80 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$7.6894 NZD (Each) |
|
M6 X 100 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$16.7168 NZD (Each) |
|
M8 X 20 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$6.5012 NZD (Each) |
|
M8 X 25 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$10.3254 NZD (Each) |
|
M8 X 30 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$7.3343 NZD (Each) |
|
M8 X 40 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$11.0629 NZD (Each) |
|
M8 X 50 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$9.0143 NZD (Each) |
|
M8 X 60 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$7.3753 NZD (Each) |
|
M8 X 70 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$10.1888 NZD (Each) |
|
M8 X 80 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$18.9743 NZD (Each) |
|
M10 X 30 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$14.0642 NZD (Each) |
|
M10 X 40 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$10.5848 NZD (Each) |
|
M10 X 50 G304 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$9.4103 NZD (Each) |
|
M10 X 50 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$13.3983 NZD (Each) |
|
M10 X 60 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$11.6375 NZD (Each) |
|
M10 X 70 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$17.8456 NZD (Each) |
|
M10 X 80 G304 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$19.1098 NZD (Each) |
|
M10 X 80 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$24.5616 NZD (Each) |
|
M10 X 90 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$18.9179 NZD (Each) |
|
M10 X 100 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$26.4918 NZD (Each) |
|
M10 X 110 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$30.4199 NZD (Each) |
|
M10 X 120 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$37.7906 NZD (Each) |
|
M10 X 140 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$47.1931 NZD (Each) |
|
M10 X 150 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$52.6337 NZD (Each) |
|
M12 X 50 G316 Stainless Steel Carriage Bolts/ Cup Head BoltS |
$24.6293 NZD (Each) |
|
M12 X 60 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$29.9006 NZD (Each) |
|
M12 X 80 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$26.8756 NZD (Each) |
|
M12 X 90 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$29.6523 NZD (Each) |
|
M12 X 100 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$31.0181 NZD (Each) |
|
M12 X 110 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$37.3504 NZD (Each) |
|
M12 X 120 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$37.9260 NZD (Each) |
|
M12 X 130 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$40.0142 NZD (Each) |
|
M12 X 150 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$55.5910 NZD (Each) |
|
M12 X 160 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$61.3137 NZD (Each) |
|
M12 X 180 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$83.9113 NZD (Each) |
|
M12 X 200 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$85.6496 NZD (Each) |
|
M12 X 220 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$92.0045 NZD (Each) |
|
M12 X 280 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$167.9354 NZD (Each) |
|
M12 X 360 G316 Stainless Steel Carriage Bolts/ Cup Head Bolt |
$244.3857 NZD (Each) |
- Professional standard m12 stainless steel carriage bolt
Price: US $0.2-2 / Piece
1000 Pieces (Min. Order) - China suppliers hardware manufacture fastener stainless steel ISO8677 custom size carriage bolt
Price: US $0.001-0.01 / Piece
500 Pieces (Min. Order) - stainless steel carriage bolts round head bolt high tensile carriage bolt
Price: US $0.01-0.1 / Piece
1 Piece (Min. Order) - Specialty bolts metric stainless steel fasteners carriage
Price: US $0.01-5 / Piece
1000 Pieces (Min. Order) - stainless steel carbon steel flat head m4 carriage bolt
Price: US $0.02-0.1 / Piece
1000000 Pieces (Min. Order) - stainless steel 316 304 carriage bolt m6 to m8 DIN603
Customs Data
Price: US $0.01-2 / Piece
1000 Pieces (Min. Order) - 316 stainless steel carriage bolt with nut and washer sets
Price: US $0.01-1 / Piece
1000 Pieces (Min. Order) - Stainless Steel 304 DIN603 M6 M8 Carriage Bolt,M6, M8, M10, M12 CUP SQUARE BOLTS & NUTS Hexagon Carriage Coach Screw
Price: US $0.003-0.2 / Piece
1000 Pieces (Min. Order) - stainless steel carriage bolt
Price: US $0.01-1 / Piece
1000 Pieces (Min. Order) - DIN603 304 Stainless Steel Carriage Bolt
Price: US $0.1-7 / Piece
1 Piece (Min. Order) - Stainless Steel 316 304 Carriage Bolt M6 To M8 DIN603 Blots
Price: US $0.006-0.33 / Piece
1 Piece (Min. Order) - hardware of stainless steel carriage bolts with nut
Price: US $0.001-0.055 / Piece
100 Pieces (Min. Order) - China factory supply sus304 stainless steel pan head carriage bolt
Price: US $0.009-0.5 / Piece
1000 Pieces (Min. Order) - China supplier 316 stainless steel carriage bolt with nut and washer
Price: US $0.01-0.5 / Piece
3000 Pieces (Min. Order) - round head square neck DIN603 stainless steel carriage bolt
Price: US $0.01-0.1 / Piece
1 Piece (Min. Order) - Stainless Steel Carriage Bolts,Carriage Bolts DIN 603 manufacturer.
25 Tons (Min. Order) - stainless steel half round head square neck carriage bolt
Price: US $0.01-0.05 / Pieces
10000 Pieces (Min. Order) - Stainless steel flat head square neck carriage bolt long carriage bolts
Price: US $0.18-0.21 / Piece
1000 Pieces (Min. Order) - Stainless steel mushroom flat head square neck carriage bolts with high quality
Price: US $0.01-0.5 / Piece
1000 Pieces (Min. Order) - Stainless steel carriage bolts standard ansi/asme b 18.5
Price: US $0.01-0.2 / Piece
1 Piece (Min. Order) - Stainless steel 304 316 DIN603 long neck carriage bolt with ISO certification
Price: US $0.001-0.005 / Piece
3000 Pieces (Min. Order) - Hardware Fastener Supplier 316 Stainless Steel Flat Head Square Neck DIN603 M4 Carriage Bolt
Price: US $0.1-0.2 / Piece
1000 Pieces (Min. Order) - M8 Zinc Plated Carriage Bolt/Round Head Bolt/stainless steel fastener
Price: US $0.001-1 / Piece
1000 Pieces (Min. Order) - SS304 SS316 A2 A4 Stainless steel Mushroom Head Square Neck Carriage Bolt DIN603
Price: US $0.0002-0.1 / Piece
100 Pieces (Min. Order) - High quality round head square neck bolt DIN603 carbon steel stainless steel carriage bolt
5000 Pieces (Min. Order) - Stainless steel round head oval neck bolt half thread carriage bolt
Price: US $0.01-1 / Piece
500 Pieces (Min. Order) - Factory offer DIN603 stainless steel carriage bolt
2 Tons (Min. Order) - DIN603 Round head Square Neck Carbon Stainless Steel Carriage Bolts m3 Grade a4-70 Carriage Bolt
Price: US $0.01-0.08 / Piece
10000 Pieces (Min. Order) - Stainless steel carriage bolt M14 grade 4.8 Mushroom Head Cup Square Coach Screws Din 603
Price: US $0.001-0.005 / Piece
5000 Pieces (Min. Order) - ANSIB18.5 18-8 Stainless Steel Square-Neck Carriage Bolts Size from 10-24X1/2" to 3/4"-10X8"
Price: US $0.12-7.5 / Piece
5000 Pieces (Min. Order) - Fasteners wholesale DIN603 stainless steel Carriage bolt
Price: US $0.01-5 / Kilogram
500 Kilograms (Min. Order) - Stud And Nut Black T Slot Din 603 M16 Hex Socket Head Cap Screw Anchor M42 Stainless Steel Carriage Brass Bolt
Price: US $0.001-10 / Piece
1000000 Pieces (Min. Order) - 316 Stainless Steel Carriage Bolt
Price: US $0.001-0.6 / Piece
10000 Pieces (Min. Order) - Stainless steel 304 316 carriage bolts,round head square neck bolt
Price: US $0.2-0.3 / Piece
5000 Pieces (Min. Order) - M3-M6 steel stainless steel carriage bolt
Price: US $0.001-0.1 / Piece
50000 Pieces (Min. Order) - 304 316 stainless steel DIN 603 5 16 carriage bolt with full thread
Price: US $0.25-1.32 / Piece
1000 Pieces (Min. Order) - Stainless Steel Round Head Square Head Neck Carriage Bolt
Price: US $0.0531-0.1 / Piece
1 Piece (Min. Order) - stainless steel SUS304 customized buttom head carriage bolts from china fasteners factory
Price: US $0.0061-0.0185 / Piece
30000 Pieces (Min. Order) - MD Exports LLP supply stainless steel 316 round head bolt carriage bolt
Price: US $0.01-0.1 / Piece
1 Piece (Min. Order) - DIN603 SS304 SS316 stainless steel carriage bolt
Customs Data
Price: US $0.01-0.1 / Piece
1000 Pieces (Min. Order) - DIN603 round head oval neck stainless steel carriage bolt
Price: US $0.01-0.1 / Piece
1 Piece (Min. Order) - Half round head carriage bolt DIN603 GB12 stainless steel carbon steel zinc plated brass Grade 4.8 6.8 8.8 10.9 12.9
Price: US $0.01-1 / Piece
100 Pieces (Min. Order) - 304 316 stainless steel din 603 carriage bolts
Price: US $0.01-0.1 / Piece
1 Piece (Min. Order) - Stainless Steel 18-8 Carriage Bolt, Oval Head, 1/4"-20, 4-1/2" Length
Price: US $0.01 / Pieces
1000 Pieces (Min. Order) - Stainless Steel Button Slotted Head Carriage Bolt
Price: US $0.05-0.1 / Piece
100000 Pieces (Min. Order) - din603 Square Neck carbon steel Stainless steel Carriage Bolt
Price: US $500.0-800.0 / Ton
1 Ton (Min. Order) - Round head square neck din 603 stainless steel carriage fix bolt
Price: US $0.1-99 / Piece
50000 Pieces (Min. Order) - Factory supply high tensile stainless steel din 603 black carriage bolts
Price: US $0.1-0.25 / Pieces
10000 Pieces (Min. Order) - A4 MARINE GRADE Stainless Steel Cup Square Carriage Bolts, M6 M8 M10 M12
Price: US $0.001-0.86 / Piece
1 Piece (Min. Order) - DIN603 Stainless Steel Carriage Bolts Customized Screws
Price: US $0.01-1.0 / Pieces
5000 Pieces (Min. Order)
Stainless Steel Carriage Bolts For Sale
We have more than 18,000 products in stock. Order by the piece, bag or in bulk.
Stainless Steel Bolts Inventory
- Specialized in
- SS 304 Carriage Bolts
- SS 304L Carriage Bolts
- SS 316 Carriage Bolts
- SS 316L Carriage Bolts
- SS 410 Carriage Bolts
SS Bolts Inventory
Shoulder Stud Bolts Inventory
Shoulder Nut Eye Bolts Inventory
Stainless Steel Shoulder Nut Eye Bolts
Turned Eye Bolts & Wire Eye Bolts Inventory
Machinery Eye Bolts Inventory
Regular Nut Eye Bolts
Metric Eye Bolts Inventory
SS Bolt Ready Stock
- 10% Discount on:
- SS 310 Carriage Bolts
- SS 202 Carriage Bolts
- SS 347 Carriage Bolts
- SS 321 Carriage Bolts
- SS 321H Carriage Bolts
Long Tangent U-Bolts
Round U-Bolts
Carriage Bolts
Square Head Bolts
A193 B7 Cadmium Plated Stud Bolts
Xylan® Coated Stud Bolts
Carriage Bolts
ARP High Strength Stainless Steel 12-Point Flange Bolts Price
Stainless Steel Carriage Bolts DIN Grades available
- DIN 186 A – Tee-Head Bolts With Square Head
- DIN 188 – Tee-Head Bolts With Double Nip
- DIN 444 A – Eye Bolts
- DIN 478 – Square Head Bolts
- DIN 479 – Square Head Bolts
- DIN 480 – Square Head Bolts
- DIN 529 A – Anchor Bolts (Stone Bolt)
- DIN 529 B – Anchor Bolts (Stone Bolt)
- DIN 529 C – Masonry Bolts With Hexagon Nuts
- DIN 529 D – Anchor Bolts (Stone Bolt)
- DIN 529 E – Foundation Bolts With Hexagon Nuts
- DIN 529 F – Anchor Bolts (Stone Bolt)
- DIN 529 G Bolt
- DIN 558 – Fully Threaded Maching Bolts
- DIN 580 – Lifting Eye Bolts
- DIN 7969 – Slotted countersunk head bolts with hexagon nut for steel structures
Stainless Steel Carriage Bolts
- DIN 601- Hexagon head bolt with nut
- DIN 603 Mu – Carriage Bolts With Hexagon Nuts
- DIN 604 – Flat Countersunk Nip Bolts With Hex Nuts
- DIN 605 – Flat Countersunk Square Neck Bolts
- DIN 607 – Round Head Nip Bolts With Nuts
- DIN 608 – Countersunk Square Bolts (Short Neck)
- DIN 609 – Hex Fitting Bolts w/long Threaded Portion
- DIN 610 – Hex fitting Bolts w/short Threaded Portion
- DIN 3570 – U Bows U Bolts
- DIN 6914 – Hex Bolts For High Strength Struct. Bolting
- DIN 6915 – Hex Nuts For High Strength Struc. Bolting
- DIN 6916 – Washers For High Strength Structural Bolting
- DIN 6921 – Hex Flange Bolts
- DIN EN 1665 Hexagon bolts with flange – heavy series(Replace DIN 6922)
- DIN 7968 – Hexagon fit bolts with hexagon nut for steel structures
Packing of Stainless Steel Carriage Bolts
We export these Stainless Steel Carriage Bolts globally such as Peru, United States, Philippines, Canada, United Kingdom, United Arab Emirates, Singapore, Malaysia, Saudi Arabia, Indonesia, Thailand, Pakistan, Qatar, Australia, South Korea, South Africa, Iran, Turkey, Italy, Germany, Oman, Taiwan, Nigeria, Vietnam, Egypt, Mexico, Spain, Bahrain, Kuwait, Hong Kong, Netherlands, Bangladesh, Israel, Poland, Brazil, Norway, Sri Lanka, New Zealand, France, Finland, Romania, Denmark, Japan, Belgium, Russia, Kenya, Ireland, Greece, Portugal, Hungary, Serbia, Croatia, Bulgaria, Venezuela, Lithuania, Myanmar (Burma), Colombia, Azerbaijan, Iraq, Brunei, Laos, Cambodia, China, Czech Republic, Algeria, Chile and Croatia.
We have a wide network in India & overseas to supply urgent delivery of SS Carriage Bolts including Mumbai, Courbevoie, Faridabad, Chiyoda, Bangkok, Perth, Sharjah, Ahvaz, Ankara, Nashik, Petaling Jaya, Rajkot, Jakarta, Seoul, Al Khobar, Madrid, Calgary, Santiago, Lahore, Cairo, Gurgaon, Noida, Surat, Visakhapatnam, Navi Mumbai, Brisbane, Lagos, Karachi, Port-of-Spain, Thane, Houston, New Delhi, Ho Chi Minh City, Kolkata, Ernakulam, La Victoria, Dubai, Abu Dhabi, Melbourne, Sydney, Caracas, Doha, Vung Tau, Dammam, Kuala Lumpur, Geoje-si, Ludhiana, Secunderabad, Hong Kong, Mumbai, Milan, Bogota, Indore, Montreal, Toronto, Vadodara, Hyderabad, Nagpur, Thiruvananthapuram, Coimbatore, Kuwait City, Manama, Los Angeles, Pune, Bengaluru, Dallas, Mexico City, Kanpur, Jaipur, Aberdeen, Jamshedpur, Bhopal, Jeddah, Hanoi, Riyadh, Baroda, Chennai, Ahmedabad, Ranchi, Algiers, Moscow, Granada, Busan, New York, Rio de Janeiro, Singapore, Edmonton, Al Jubail, London, Chandigarh, Colombo, Howrah, Ulsan, Atyrau, Pimpri-Chinchwad, Muscat, Haryana, Istanbul, Gimhae-si & Tehran.
