Stainless Steel Torx Screws manufacturers
Industrial Stainless Steel Torx Screws, A2 Stainless Steel Torx Screws exporter in India, Marine grade Stainless Steel Torx Screws, Best price of M2 M4 M5 M6 M8 Stainless Steel Torx Screws, 10% off for bulk order of 316 Stainless Steel Torx Screws, Special offer on 18-8 Stainless Steel Torx Screws
MD Exports LLP is a leading Stainless Steel Torx Screws manufacturers, suppliers & exporters in India. We have more than 18,000 products in stock. Order by the piece, bag or in bulk. A trusted company manufacturing and supplying SS Torx Screws across India & overseas.
Our extensive range of high quality fastenings in A4 /316 stainless steel Torx Screws are specially suited to marine, swimming pool and other high corrosion applications.

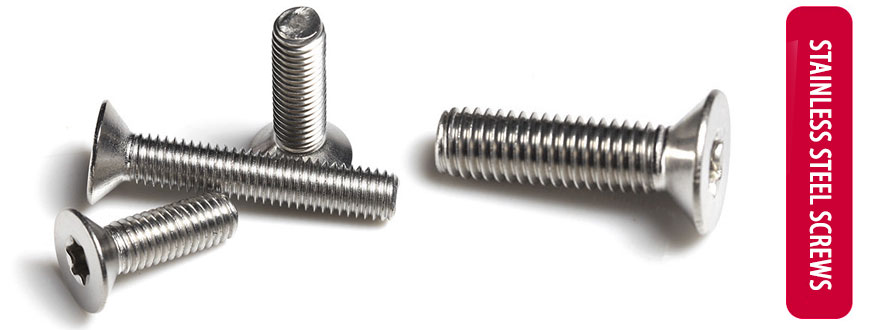

Stainless Steel Torx Screws
ASTM A193 / A194 Stainless Steel Torx Screws Specification
| Product name | Stainless Steel Torx Screws |
|---|---|
| Place of Origin | India |
| Standard | ISO 7380, DIN, ASTM, ANSI, JIS, EN, AS, GB |
|
Passivation /plain |
| Stainless Steel Torx Screws Size | M2 – M100 |
| Type | Pan/ Round/ Oval/ countersunk/ Truss head |
| Head | Pan head, flat head, oval head, hex head, phillips head |
| Stainless Steel Torx Screws Usage | Electric Heating, Machine |
| Dimensions | ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded. |
| Drive Style | Type I |
| Stainless Steel Torx Screws Material | 18-8 Stainless Steel, stainless steel ss 304/ SS316 A2/A4, SS201, SS303, SS304, SS316, SS316L, SS904L, A2-70, A4-80 |
| Thread Requirements | ASME B1.1, UNC & UNF, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge) |
| Finish | Per ASTM A380/A380M |
| Finishing | Zinc Plated(Yellow, White, Blue, Black), Hop Dip Galvanized (HDG) phosphorization, Black Oxide, Geomet, Dacroment, anodization, Nickel plated, Zinc-Nickel plated, Brass Plated, Tin Plated, Black Plated, Copper Plated, Gold Plated, Salt fog test |
| Stock Products | Stainless steel: All DIN, GB Standard and part ASNI standard stainless steel Torx Screws, Example: ISO7380, DIN7981, DIN7982, DIN916, DIN913, DIN7985, DIN912 |
| Specialized in | Stainless steel CSK philip screw, CSK socket screw, Pan head Ph screw, Pan head socket screw, Socket cap head screw, set screw, Pan head torx screw, CSK head trox screw, Wood screw |
| Production technology | Cold Forged |
| Manufacturing Process | Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing |
| MOQ | 10 pieces |
| Delivery time | Regular product is about 7-15 days, custom product will according to special requirement |
| Others | OEM, ODM, ±0.03MM tolerance |
| Surface treatment of stainless steel Torx Screws |
|
| Tolerance of stainless steel Torx Screws | +/-0.01mm to +/-0.05mm |
| Samples | Yes |
| Production Capacity | 2,700,000 pieces per month |
| Payment Terms | T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping |
You might be interested in related types of Stainless Steel Torx Screws
Stainless Steel Torx Screws grades:
Stainless steel is an alloy of low carbon steel and chromium for enhanced corrosion characteristics. Stainless steel is highly corrosion resistant for the price. Because the anti-corrosive properties are inherent to the metal, it will not lose this resistance if scratched during installation or use.
- 18-8 Stainless Steel Torx Screws
- 410 Stainless Steel Torx Screws
- 304 Stainless Steel Torx Screws
- 304L Stainless Steel Torx Screws
- 304H Stainless Steel Torx Screws
- 310 Stainless Steel Torx Screws
- 316 Stainless Steel Torx Screws
- 316H Stainless Steel Torx Screws
- 316L Stainless Steel Torx Screws
- 317 Stainless Steel Torx Screws
- 317L Stainless Steel Torx Screws
- 321 Stainless Steel Torx Screws
- 347 Stainless Steel Torx Screws
- 904L Stainless Steel Torx Screws
Stainless Steel Torx Screws Grades
Stainless Steel Torx Screws Dimensions
Dimensions for Stainless steel Torx Screws
TORX PLUS SCREW SIZE CHART
Drive Size |
Pan Head |
Flat Head |
Socket Head |
Socket Button |
||||
Inch |
Metric |
Inch |
Metric |
Inch |
Metric |
Inch |
Metric |
|
| 1IP | — | M0.9 | — | M0.9 & M1 | — | M0.9 | — | — |
| 2IP | — | M1 | — | M1.2 | — | M1 | — | — |
| 3IP | — | M1.2 | — | M1.4 | — | M1.2 | — | — |
| 5IP | — | M1.4 & M1.6 | — | M1.6 & M1.8 | — | M1.4 & M1.6 | — | — |
| 6IP | #1 | M1.8 & M2 | #2 | M2 | #0 | M1.8 & M2 | #2 | — |
| 7IP | #2 | — | — | — | #1 | — | #3 | — |
| 8IP | #3 | M2.5 | #3 & #4 | M2.5 | #2 & #3 | M2.5 | #4 | M3 |
| 10IP | #4 & #5 | M3 | #5 & #6 | M3 | #4 & #5 | M3 | #5 & #6 | M3.5 |
| 15IP | #6 | M3.5 | #8 | M3.5 | #6 | M3.5 | #8 | M4 |
| 20IP | #8 | M4 | #10 | M4 | — | — | — | — |
| 25IP | #10 | M5 | #12 | M5 | #8 | M4 | #10 | M5 |
| 27IP | #12 | — | 1/4 | — | #10 | M4.5 & M5 | 1/4 | M6 |
| 30IP | 1/4 | M6 | — | M6 | 1/4 | M6 | — | — |
| 40IP | 5/16 | M8 | 5/16 | M8 | — | M7 | 5/16 | M8 |
| 45IP | 3/8 | — | 3/8 | — | 5/16 | M8 | 3/8 | M10 |
| 50IP | 7/16 | M10 | 7/16 & 1/2 | M10 | 3/8 | M10 | — | — |
| 55IP | 1/2 | M12 | 9/16 | M12 | 7/16 | M12 | 1/2 | M12 |
| 55IP | — | — | 5/8 | — | 1/2 | — | — | M14 |
| 60IP | — | — | 3/4 | — | 9/16 | M14 | 5/8 | M16 |
| 70IP | — | — | — | — | 5/8 | M16 | — | — |
| 80IP | — | — | — | — | 3/4 | M18 | — | — |
| 90IP | — | — | — | — | — | M20 | — | — |
| 100IP | — | — | — | — | 7/8 & 1 | M22 & M24 | — | — |
SS Torx Screws Weight Chart
WEIGHTS
MACHINE SCREWS & Type 1, 23, F and G TAPPING SCREWS
LBS. Per 1000 pieces
|
LENGTHS
|
#2
|
#3
|
#4
|
#5
|
#6
|
#8
|
#10
|
#12
|
1/4″
|
5/16″
|
3/8″
|
|
1/8
|
0.40 | 0.55 | 0.70 | 1.1 | 1.4 | — | — | — | — | — | — |
|
3/16
|
0.50 | 0.70 | 0.90 | 1.2 | 1.5 | 2.5 | 3.9 | — | — | — | — |
|
1/4
|
0.60 | 0.80 | 1.00 | 1.4 | 1.7 | 2.8 | 4.3 | 5.6 | 8.5 | — | — |
|
5/16
|
0.60 | 0.90 | 1.20 | 1.5 | 1.9 | 3.1 | 4.6 | 6.1 | 9.1 | 16.7 | — |
|
3/8
|
0.70 | 0.90 | 1.30 | 1.7 | 2.1 | 3.4 | 5.0 | 6.5 | 9.8 | 17.7 | 29.2 |
|
7/16
|
0.80 | 1.00 | 1.50 | 1.9 | 2.2 | 3.6 | 5.4 | 6.9 | 10.4 | 18.8 | 30.7 |
|
1/2
|
0.80 | 1.10 | 1.60 | 2.0 | 2.4 | 3.9 | 5.8 | 7.4 | 11.1 | 19.8 | 32.2 |
|
9/16
|
0.90 | 1.20 | 1.70 | 2.2 | 2.6 | 4.2 | 6.2 | 7.8 | 11.7 | 20.9 | 33.6 |
|
5/8
|
1.00 | 1.30 | 1.80 | 2.3 | 2.8 | 4.5 | 6.6 | 8.3 | 12.4 | 21.9 | 35.1 |
|
3/4
|
1.10 | 1.50 | 2.10 | 2.6 | 3.2 | 5.0 | 7.3 | 9.2 | 13.6 | 24.0 | 38.0 |
|
7/8
|
1.30 | 1.70 | 2.30 | 3.0 | 3.5 | 5.6 | 8.1 | 10.1 | 14.9 | 26.1 | 41.0 |
|
1″
|
1.40 | 1.90 | 2.50 | 3.4 | 3.9 | 6.2 | 8.9 | 11.0 | 16.1 | 28.8 | 44.0 |
|
1-1/8″
|
1.50 | 2.00 | 2.80 | 3.8 | 4.3 | 6.7 | 9.6 | 11.9 | 17.4 | 30.2 | 47.0 |
|
1-1/4″
|
1.60 | 2.20 | 3.00 | 4.1 | 4.6 | 7.3 | 10.4 | 12.8 | 18.7 | 32.3 | 49.8 |
|
1-1/2″
|
1.80 | 2.50 | 3.50 | 4.7 | 5.3 | 8.3 | 11.9 | 14.7 | 21.2 | 36.5 | 55.8 |
|
1-3/4″
|
2.10 | 2.90 | 4.00 | 5.3 | 6.1 | 9.4 | 13.5 | 16.5 | 23.7 | 40.7 | 61.7 |
|
2″
|
2.40 | 3.30 | 4.50 | 6.0 | 6.8 | 10.6 | 15.0 | 18.3 | 26.2 | 44.8 | 67.6 |
|
2-1/4″
|
2.60 | 3.60 | 5.00 | 6.7 | 7.6 | 11.8 | 16.6 | 20.1 | 28.8 | 19.0 | 73.5 |
|
2-1/2″
|
2.80 | 3.90 | 5.50 | 7.3 | 8.3 | 12.9 | 18.1 | 22.0 | 31.3 | 53.2 | 79.5 |
|
2-3/4″
|
3.10 | 4.30 | 6.00 | 7.9 | 9.1 | 13.9 | 19.7 | 23.8 | 33.9 | 57.3 | 85.3 |
|
3″
|
3.40 | 4.70 | 6.50 | 8.6 | 9.8 | 15.0 | 21.2 | 25.6 | 36.4 | 61.5 | 91.3 |
|
* Weights above are approximate and are based on pan head machine screws
|
|||||||||||
