Stainless Steel Dowel Screws manufacturers
Industrial Stainless Steel Dowel Screws, A2 Stainless Steel Dowel Screws exporter in India, Marine grade Stainless Steel Dowel Screws, Best price of M2 M4 M5 M6 M8 Stainless Steel Dowel Screws, 10% off for bulk order of 316 Stainless Steel Dowel Screws, Special offer on 18-8 Stainless Steel Dowel Screws
MD Exports LLP is a leading Stainless Steel Dowel Screws manufacturers, suppliers & exporters in India. We have more than 18,000 products in stock. Order by the piece, bag or in bulk. A trusted company manufacturing and supplying SS Dowel Screws across India & overseas.

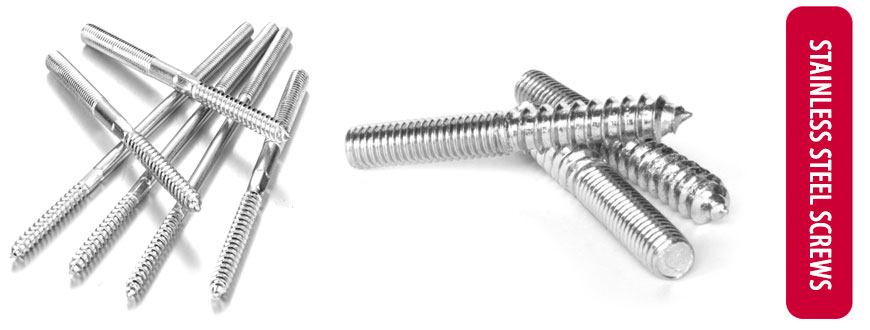

Our extensive range of high quality fastenings in A4 /316 stainless steel Dowel Screws are specially suited to marine, swimming pool and other high corrosion applications. SS Dowel screws are lag threaded dowels (studs) used to fasten two pieces of wood. Like typical studs, they are headless, double-ended screws but have wood screw threads at both ends. Common uses include furniture making, attaching balusters to stairs and flooring, installing finials, creating end-to-end joints and other woodworking applications where wood needs to be joined using a single hidden fastener and blind holes.
Stainless Steel Dowel Screws
ASTM A193 / A194 Stainless Steel Dowel Screws Specification
| Product name | Stainless Steel Dowel Screws |
|---|---|
| Place of Origin | India |
| Standard | ISO 7380, DIN, ASTM, ANSI, JIS, EN, AS, GB |
|
Passivation /plain |
| Stainless Steel Dowel Screws Size | M2 – M100 |
| Type | Pan/ Round/ Oval/ countersunk/ Truss head |
| Head | Pan head, flat head, oval head, hex head, phillips head |
| Stainless Steel Dowel Screws Usage | Electric Heating, Machine |
| Dimensions | ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded. |
| Drive Style | Type I |
| Stainless Steel Dowel Screws Material | 18-8 Stainless Steel, stainless steel ss 304/ SS316 A2/A4, SS201, SS303, SS304, SS316, SS316L, SS904L, A2-70, A4-80 |
| Thread Requirements | ASME B1.1, UNC & UNF, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge) |
| Finish | Per ASTM A380/A380M |
| Finishing | Zinc Plated(Yellow, White, Blue, Black), Hop Dip Galvanized (HDG) phosphorization, Black Oxide, Geomet, Dacroment, anodization, Nickel plated, Zinc-Nickel plated, Brass Plated, Tin Plated, Black Plated, Copper Plated, Gold Plated, Salt fog test |
| Stock Products | Stainless steel: All DIN, GB Standard and part ASNI standard stainless steel Dowel Screws, Example: ISO7380, DIN7981, DIN7982, DIN916, DIN913, DIN7985, DIN912 |
| Specialized in | Stainless steel CSK philip screw, CSK socket screw, Pan head Ph screw, Pan head socket screw, Socket cap head screw, set screw, Pan head torx screw, CSK head trox screw, Wood screw |
| Production technology | Cold Forged |
| Manufacturing Process | Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing |
| MOQ | 10 pieces |
| Delivery time | Regular product is about 7-15 days, custom product will according to special requirement |
| Others | OEM, ODM, ±0.03MM tolerance |
| Surface treatment of stainless steel Dowel Screws |
|
| Tolerance of stainless steel Dowel Screws | +/-0.01mm to +/-0.05mm |
| Samples | Yes |
| Production Capacity | 2,700,000 pieces per month |
| Payment Terms | T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping |
You might be interested in related types of Stainless Steel Dowel Screws
Stainless Steel Dowel Screws grades:
Stainless steel is an alloy of low carbon steel and chromium for enhanced corrosion characteristics. Stainless steel is highly corrosion resistant for the price. Because the anti-corrosive properties are inherent to the metal, it will not lose this resistance if scratched during installation or use.
- 18-8 Stainless Steel Dowel Screws
- 410 Stainless Steel Dowel Screws
- 304 Stainless Steel Dowel Screws
- 304L Stainless Steel Dowel Screws
- 304H Stainless Steel Dowel Screws
- 310 Stainless Steel Dowel Screws
- 316 Stainless Steel Dowel Screws
- 316H Stainless Steel Dowel Screws
- 316L Stainless Steel Dowel Screws
- 317 Stainless Steel Dowel Screws
- 317L Stainless Steel Dowel Screws
- 321 Stainless Steel Dowel Screws
- 347 Stainless Steel Dowel Screws
- 904L Stainless Steel Dowel Screws
Stainless Steel Dowel Screws Grades
Stainless Steel Dowel Screws Dimensions
Dimensions for Stainless steel Dowel Screws
Dowel Screw Pilot Hole Sizes |
||
|---|---|---|
| Screw Size | Pilot Hole Size | |
| Soft Wood | Hard Wood | |
| 1/8 [#6] | 7/64 | 7/64 |
| 5/32 [#8] | 9/64 | 9/64 |
| 3/16 [#10] | 5/32 | 11/64 |
| 1/4 | 7/32 | 15/64 |
| 5/16 | 9/32 | 19/64 |
| 3/8 | 11/32 | 23/64 |
| 1/2 | 7/16 | 29/64 |
Check Stainless Steel Dowel Screws Dimensions full Catalog
SS Dowel Screws Weight Chart
MACHINE SCREWS & Type 1, 23, F and G TAPPING SCREWS
LBS. Per 1000 pieces
|
LENGTHS
|
#2
|
#3
|
#4
|
#5
|
#6
|
#8
|
#10
|
#12
|
1/4″
|
5/16″
|
3/8″
|
|
1/8
|
0.40 | 0.55 | 0.70 | 1.1 | 1.4 | — | — | — | — | — | — |
|
3/16
|
0.50 | 0.70 | 0.90 | 1.2 | 1.5 | 2.5 | 3.9 | — | — | — | — |
|
1/4
|
0.60 | 0.80 | 1.00 | 1.4 | 1.7 | 2.8 | 4.3 | 5.6 | 8.5 | — | — |
|
5/16
|
0.60 | 0.90 | 1.20 | 1.5 | 1.9 | 3.1 | 4.6 | 6.1 | 9.1 | 16.7 | — |
|
3/8
|
0.70 | 0.90 | 1.30 | 1.7 | 2.1 | 3.4 | 5.0 | 6.5 | 9.8 | 17.7 | 29.2 |
|
7/16
|
0.80 | 1.00 | 1.50 | 1.9 | 2.2 | 3.6 | 5.4 | 6.9 | 10.4 | 18.8 | 30.7 |
|
1/2
|
0.80 | 1.10 | 1.60 | 2.0 | 2.4 | 3.9 | 5.8 | 7.4 | 11.1 | 19.8 | 32.2 |
|
9/16
|
0.90 | 1.20 | 1.70 | 2.2 | 2.6 | 4.2 | 6.2 | 7.8 | 11.7 | 20.9 | 33.6 |
|
5/8
|
1.00 | 1.30 | 1.80 | 2.3 | 2.8 | 4.5 | 6.6 | 8.3 | 12.4 | 21.9 | 35.1 |
|
3/4
|
1.10 | 1.50 | 2.10 | 2.6 | 3.2 | 5.0 | 7.3 | 9.2 | 13.6 | 24.0 | 38.0 |
|
7/8
|
1.30 | 1.70 | 2.30 | 3.0 | 3.5 | 5.6 | 8.1 | 10.1 | 14.9 | 26.1 | 41.0 |
|
1″
|
1.40 | 1.90 | 2.50 | 3.4 | 3.9 | 6.2 | 8.9 | 11.0 | 16.1 | 28.8 | 44.0 |
|
1-1/8″
|
1.50 | 2.00 | 2.80 | 3.8 | 4.3 | 6.7 | 9.6 | 11.9 | 17.4 | 30.2 | 47.0 |
|
1-1/4″
|
1.60 | 2.20 | 3.00 | 4.1 | 4.6 | 7.3 | 10.4 | 12.8 | 18.7 | 32.3 | 49.8 |
|
1-1/2″
|
1.80 | 2.50 | 3.50 | 4.7 | 5.3 | 8.3 | 11.9 | 14.7 | 21.2 | 36.5 | 55.8 |
|
1-3/4″
|
2.10 | 2.90 | 4.00 | 5.3 | 6.1 | 9.4 | 13.5 | 16.5 | 23.7 | 40.7 | 61.7 |
|
2″
|
2.40 | 3.30 | 4.50 | 6.0 | 6.8 | 10.6 | 15.0 | 18.3 | 26.2 | 44.8 | 67.6 |
|
2-1/4″
|
2.60 | 3.60 | 5.00 | 6.7 | 7.6 | 11.8 | 16.6 | 20.1 | 28.8 | 19.0 | 73.5 |
|
2-1/2″
|
2.80 | 3.90 | 5.50 | 7.3 | 8.3 | 12.9 | 18.1 | 22.0 | 31.3 | 53.2 | 79.5 |
|
2-3/4″
|
3.10 | 4.30 | 6.00 | 7.9 | 9.1 | 13.9 | 19.7 | 23.8 | 33.9 | 57.3 | 85.3 |
|
3″
|
3.40 | 4.70 | 6.50 | 8.6 | 9.8 | 15.0 | 21.2 | 25.6 | 36.4 | 61.5 | 91.3 |
|
* Weights above are approximate and are based on pan head machine screws
|
|||||||||||
Stainless Steel Dowel Screws Price List
Stainless Steel Dowel Screws Price List, Stainless Steel Dowel Screws Prices, Stainless Steel Dowel Screws Price, Stainless Steel Dowel Screws Price List, Stainless Steel Dowel Screws Price 2018, Stainless Steel Dowel Screws Price in India, SS Dowel Screws Price India, we offer best price of 18-8 Stainless Steel Dowel Screws & 316 Stainless Steel Dowel Screws
Stainless Steel Dowel Screws For Sale
Stainless Steel Machine screws
A2 Stainless Steel Slotted Pan Machine Screws (DIN 85)
Stainless Steel Self Tapping Screws
Flanged Hexagon Head Self Tapping Screws Zinc Plated Steel
Stainless Steel Dowel Screws DIN Grades
- DIN 933 – Hexagon Cap Screws Fully Threaded
- DIN 933 Sz – Hexagon Cap Screws With Slot
- DIN 960 – Hex Cap Screws, Metric Fine Thread – Part Thread
- DIN 961 – Hex Cap Screws, Metric Fine Thread – Full Thread
- DIN 963 A- Slotted Flat Head Machine Screws
- DIN 964 A- Slotted Oval Head Machine Screws
- DIN 965 A – Cross Recessed Flat Head Machine Screws
- DIN 966 A – Cross Recessed Oval Head Machine Screws
- DIN 6332 – Grub screws with thrust point
- DIN 6911 – Hexagon Socket Screw Keys With Pilot
- DIN 6912 – Low Head Socket Cap Screws With Pilot
- DIN 7504 – N P K head self drilling screws
- DIN 7970 – Tapping screw threads
- DIN 7981 B(BZ) – Cross Recessed Pan Head Tapping Screws
- DIN 7982 B – Cross Rec. Flat hd Tapping Screws, hd Angle 80
- DIN 7983 B – Cross Rec. Oval hd Tapping Screw, hd Angle 80
- DIN 7984 – Socket Low Head Cap Screws
- DIN 7985 A – Cross Recessed Pan Head Machine Screws
- DIN 7985 Z1 – Cr. Rec. Pan Head Screws w/captive Flt. Washer
- DIN 7985 Z4 – Cr. Rec. Pan Head Screws w/captive l/washer
- DIN 7991 – Flat Socket Head Cap Screws
- DIN 7997 – Cross recessed countersunk head wood screws
- DIN 7998 – Threads and Thread Ends for Wood Screws
Stainless Steel Screws
- DIN 316 – Wing Screws
- DIN 404 – Slotted Drilled Fillister Head Screws
- DIN 417 – Slotted set screws with full dog point
- DIN 427 – Slotted Headless Screws
- DIN 438 – Slotted set screws with cup point
- DIN 464 – Knurled Thumb Screws
- DIN 551 – Slotted Set Screws With Flat Point
- DIN 553 – Slotted Set Screws With Cone Point
- DIN 571 – Hexagon Lag Screws
- DIN 653 – Flat Knurled Thumb Screws
- DIN 908 – Hexagon Socket Screw Plugs
- DIN 910 – Hexagon Head Screw Plugs
- DIN 911 – Hexagon Socket Screw Keys
- DIN 912 – Socket Head Cap Screws
- DIN 913 – Socket Set Screws With Flat Point
- DIN 914 – Socket Set Screws With Cone Point
- DIN 915 – Socket Set Screws With Dog Point
- DIN 916 – Socket Set Screws With Cup Point
- DIN 920 – Slotted Pan Head Screws, Small Head
- DIN 921 – Slotted pan head screws with large head
- DIN 923 – Slotted Pan Head Screws With Shoulder
- DIN 927 – Slotted Shoulder Screws
- DIN 931 – Hexagon Cap Screws Partially Threaded
- DIN 7505 – Chipboard screws
