410 Stainless Steel Screws manufacturers
Industrial 410 Stainless Steel Screws, 410 Stainless Steel Screws exporter in India, Marine grade 410 Stainless Steel Screws, Best price of M2 M4 M5 M6 M8 410 Stainless Steel Screws, 10% off for bulk order of 410 Stainless Steel Screws, Special offer on 410 Stainless Steel Self Tapping Screws
MD Exports LLP is a leading 410 Stainless Steel Screws manufacturers, suppliers & exporters in India. We have more than 18,000 products in stock. Order by the piece, bag or in bulk. A trusted company manufacturing and supplying SS 410 Screws across India & overseas.
Our extensive range of high quality fastenings in 410 Stainless Steel Screws are specially suited to marine, swimming pool and other high corrosion applications.

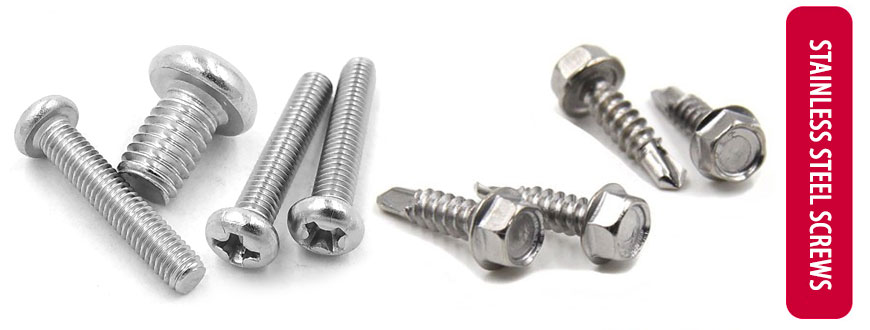

410 Stainless Steel Screws
ASTM A193 / A194 410 Stainless Steel Screws Specification
| Product name | 410 Stainless Steel Screws |
|---|---|
| Place of Origin | India |
| Standard | ISO 7380, DIN, ASTM, ANSI, JIS, EN, AS, GB |
|
Passivation /plain |
| 410 Stainless Steel Screws Size | M2 – M100 |
| Type | Pan/ Round/ Oval/ countersunk/ Truss head |
| Head | Pan head, flat head, oval head, hex head, phillips head |
| 410 Stainless Steel Screws Usage | Electric Heating, Machine |
| Dimensions | ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded. |
| Drive Style | Type I |
| 410 Stainless Steel Screws Material | 18-8 Stainless Steel, stainless steel ss 304/ SS316 A2/A4, SS201, SS303, SS304, SS316, SS316L, SS904L, A2-70, A4-80 |
| Thread Requirements | ASME B1.1, UNC & UNF, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge) |
| Finish | Per ASTM A380/A380M |
| Finishing | Zinc Plated(Yellow, White, Blue, Black), Hop Dip Galvanized (HDG) phosphorization, Black Oxide, Geomet, Dacroment, anodization, Nickel plated, Zinc-Nickel plated, Brass Plated, Tin Plated, Black Plated, Copper Plated, Gold Plated, Salt fog test |
| Stock Products | Stainless steel: All DIN, GB Standard and part ASNI standard 410 Stainless Steel Screws, Example: ISO7380, DIN7981, DIN7982, DIN916, DIN913, DIN7985, DIN912 |
| Specialized in | Stainless steel CSK philip screw, CSK socket screw, Pan head Ph screw, Pan head socket screw, Socket cap head screw, set screw, Pan head torx screw, CSK head trox screw, Wood screw |
| Production technology | Cold Forged |
| Manufacturing Process | Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing |
| MOQ | 10 pieces |
| Delivery time | Regular product is about 7-15 days, custom product will according to special requirement |
| Others | OEM, ODM, ±0.03MM tolerance |
| Surface treatment of 410 Stainless Steel Screws |
|
| Tolerance of 410 Stainless Steel Screws | +/-0.01mm to +/-0.05mm |
| Samples | Yes |
| Production Capacity | 2,700,000 pieces per month |
| Payment Terms | T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping |
You might be interested in related types of 410 Stainless Steel Screws
Other Stainless Steel Screws grades:
Stainless steel is an alloy of low carbon steel and chromium for enhanced corrosion characteristics. Stainless steel is highly corrosion resistant for the price. Because the anti-corrosive properties are inherent to the metal, it will not lose this resistance if scratched during installation or use.
- 18-8 Stainless Steel Screws
- 410 Stainless Steel Screws
- 304 Stainless Steel Screws
- 304L Stainless Steel Screws
- 304H Stainless Steel Screws
- 310 Stainless Steel Screws
- 316 Stainless Steel Screws
- 316H Stainless Steel Screws
- 316L Stainless Steel Screws
- 317 Stainless Steel Screws
- 317L Stainless Steel Screws
- 321 Stainless Steel Screws
- 347 Stainless Steel Screws
- 904L Stainless Steel Screws
410 Stainless Steel Screws Grades
410 Stainless Steel Screws Dimensions
Dimensions for 410 Stainless Steel Screws
SS 410 Pan Head Screws Dimensions
Check 410 Stainless Steel Screws Dimensions full Catalog
SS 410 Screws Weight Chart
WEIGHTS
SS 410 MACHINE SCREWS & Type 1, 23, F and G TAPPING SCREWS
LBS. Per 1000 pieces
|
LENGTHS
|
#2
|
#3
|
#4
|
#5
|
#6
|
#8
|
#10
|
#12
|
1/4″
|
5/16″
|
3/8″
|
|
1/8
|
0.40 | 0.55 | 0.70 | 1.1 | 1.4 | — | — | — | — | — | — |
|
3/16
|
0.50 | 0.70 | 0.90 | 1.2 | 1.5 | 2.5 | 3.9 | — | — | — | — |
|
1/4
|
0.60 | 0.80 | 1.00 | 1.4 | 1.7 | 2.8 | 4.3 | 5.6 | 8.5 | — | — |
|
5/16
|
0.60 | 0.90 | 1.20 | 1.5 | 1.9 | 3.1 | 4.6 | 6.1 | 9.1 | 16.7 | — |
|
3/8
|
0.70 | 0.90 | 1.30 | 1.7 | 2.1 | 3.4 | 5.0 | 6.5 | 9.8 | 17.7 | 29.2 |
|
7/16
|
0.80 | 1.00 | 1.50 | 1.9 | 2.2 | 3.6 | 5.4 | 6.9 | 10.4 | 18.8 | 30.7 |
|
1/2
|
0.80 | 1.10 | 1.60 | 2.0 | 2.4 | 3.9 | 5.8 | 7.4 | 11.1 | 19.8 | 32.2 |
|
9/16
|
0.90 | 1.20 | 1.70 | 2.2 | 2.6 | 4.2 | 6.2 | 7.8 | 11.7 | 20.9 | 33.6 |
|
5/8
|
1.00 | 1.30 | 1.80 | 2.3 | 2.8 | 4.5 | 6.6 | 8.3 | 12.4 | 21.9 | 35.1 |
|
3/4
|
1.10 | 1.50 | 2.10 | 2.6 | 3.2 | 5.0 | 7.3 | 9.2 | 13.6 | 24.0 | 38.0 |
|
7/8
|
1.30 | 1.70 | 2.30 | 3.0 | 3.5 | 5.6 | 8.1 | 10.1 | 14.9 | 26.1 | 41.0 |
|
1″
|
1.40 | 1.90 | 2.50 | 3.4 | 3.9 | 6.2 | 8.9 | 11.0 | 16.1 | 28.8 | 44.0 |
|
1-1/8″
|
1.50 | 2.00 | 2.80 | 3.8 | 4.3 | 6.7 | 9.6 | 11.9 | 17.4 | 30.2 | 47.0 |
|
1-1/4″
|
1.60 | 2.20 | 3.00 | 4.1 | 4.6 | 7.3 | 10.4 | 12.8 | 18.7 | 32.3 | 49.8 |
|
1-1/2″
|
1.80 | 2.50 | 3.50 | 4.7 | 5.3 | 8.3 | 11.9 | 14.7 | 21.2 | 36.5 | 55.8 |
|
1-3/4″
|
2.10 | 2.90 | 4.00 | 5.3 | 6.1 | 9.4 | 13.5 | 16.5 | 23.7 | 40.7 | 61.7 |
|
2″
|
2.40 | 3.30 | 4.50 | 6.0 | 6.8 | 10.6 | 15.0 | 18.3 | 26.2 | 44.8 | 67.6 |
|
2-1/4″
|
2.60 | 3.60 | 5.00 | 6.7 | 7.6 | 11.8 | 16.6 | 20.1 | 28.8 | 19.0 | 73.5 |
|
2-1/2″
|
2.80 | 3.90 | 5.50 | 7.3 | 8.3 | 12.9 | 18.1 | 22.0 | 31.3 | 53.2 | 79.5 |
|
2-3/4″
|
3.10 | 4.30 | 6.00 | 7.9 | 9.1 | 13.9 | 19.7 | 23.8 | 33.9 | 57.3 | 85.3 |
|
3″
|
3.40 | 4.70 | 6.50 | 8.6 | 9.8 | 15.0 | 21.2 | 25.6 | 36.4 | 61.5 | 91.3 |
|
* Weights above are approximate and are based on pan head machine screws
|
|||||||||||
410 Stainless Steel Screws Useful Info
Stainless steel 410 is a basic martensitic grade which contains 11.5% chromium, offering both exceptional wear and corrosion resistance. SS 410 screws have corrosion resistant to some chemicals, food, mild acids, water, and air. It also proves adequate resistance to nitric acid, concentrated sulfuric acid, dilute acetic acid and naphtha. Elevated mechanical properties and corrosion resistance are achieved with stainless steel 410 when it’s hardened and tempered.
410 stainless steel screw is used in applications such as dental and surgical instruments, pipelines, valves and nozzles, automotive parts and more. 410 SS is generally used for applications which involve mild corrosion, high strength, and heat resistance.
Heat Treatment:
Galvanizing: Heat slowly to 1500 -1650°F, cool to 1100°F in furnace, air cool. Process Galvanizing: Heat to 1350 -1450°F, air cool. Hardening: Heat to 1700 – 1850°F, air cool or oil quench. Follow by temper or stress-relief. Stress Relieving: Heat at 300 – 800°F for 1 to 2 hours, air cool.
Forming:
410 SS has cold working properties which allow it to be temperately drawn and shaped in the galvanized condition.
Fabrication:
The martensitic alloys offer unique hardening capabilities which limit their capability of being welded using conventional techniques. 410 stainless steel must first be pre-heated, followed by a post-weld galvanizing treatment to alleviate cracking.
Composition (%)
- Carbon 0.080-0.150
- Chromium 11.50-13.50
- Manganese 1.0 Max
- Phosphorus 1.0 Max
- Silicon 1.00 Max
- Sulfur 0.030 Max
410 Stainless Steel Mechanical Properties
| Material Type | Condition | Ultimate Tensile Strength (PSI) | 0.2% Yield Strength (PSI) | Elongation (% In 2in.) | Reduction Of Area (%) | Hardness Brinell | Hardness Rockwell |
|---|---|---|---|---|---|---|---|
| 410 SS | T | 100,000 | 80,000 | 12 | 40 | * | * |
| H | 120,000 | 90,000 | 12 | 40 | * | * | |
| Annealed | 70,000 | 40,000 | 16 | 45 | * | * | |
| Class2 | 110,000 | 85,000 | 15 | 45 | 269 Max | * | |
| NACE MRO 175 | * | * | * | * | * | 22 HRC Max |
410 Stainless Steel Screws Price List
410 Stainless Steel Screws Price List, 410 Stainless Steel Screws Prices, 410 Stainless Steel Screws Price, 410 Stainless Steel Screws Price List, 410 Stainless Steel Screws Price 2018, 410 Stainless Steel Screws Price in India, SS 410 Screws Price India, we offer best price of 18-8 410 Stainless Steel Screws & 316 410 Stainless Steel Screws
410 Stainless Steel Screws For Sale
Stainless Steel Machine screws
A2 Stainless Steel Slotted Pan Machine Screws (DIN 85)
Stainless Steel Self Tapping Screws
Flanged Hexagon Head Self Tapping Screws Zinc Plated Steel
410 Stainless Steel Screws DIN Grades
- DIN 933 – Hexagon Cap Screws Fully Threaded
- DIN 933 Sz – Hexagon Cap Screws With Slot
- DIN 960 – Hex Cap Screws, Metric Fine Thread – Part Thread
- DIN 961 – Hex Cap Screws, Metric Fine Thread – Full Thread
- DIN 963 A- Slotted Flat Head Machine Screws
- DIN 964 A- Slotted Oval Head Machine Screws
- DIN 965 A – Cross Recessed Flat Head Machine Screws
- DIN 966 A – Cross Recessed Oval Head Machine Screws
- DIN 6332 – Grub screws with thrust point
- DIN 6911 – Hexagon Socket Screw Keys With Pilot
- DIN 6912 – Low Head Socket Cap Screws With Pilot
- DIN 7504 – N P K head self drilling screws
- DIN 7970 – Tapping screw threads
- DIN 7981 B(BZ) – Cross Recessed Pan Head Tapping Screws
- DIN 7982 B – Cross Rec. Flat hd Tapping Screws, hd Angle 80
- DIN 7983 B – Cross Rec. Oval hd Tapping Screw, hd Angle 80
- DIN 7984 – Socket Low Head Cap Screws
- DIN 7985 A – Cross Recessed Pan Head Machine Screws
- DIN 7985 Z1 – Cr. Rec. Pan Head Screws w/captive Flt. Washer
- DIN 7985 Z4 – Cr. Rec. Pan Head Screws w/captive l/washer
- DIN 7991 – Flat Socket Head Cap Screws
- DIN 7997 – Cross recessed countersunk head wood screws
- DIN 7998 – Threads and Thread Ends for Wood Screws
Stainless Steel Screws
- DIN 316 – Wing Screws
- DIN 404 – Slotted Drilled Fillister Head Screws
- DIN 417 – Slotted set screws with full dog point
- DIN 427 – Slotted Headless Screws
- DIN 438 – Slotted set screws with cup point
- DIN 464 – Knurled Thumb Screws
- DIN 551 – Slotted Set Screws With Flat Point
- DIN 553 – Slotted Set Screws With Cone Point
- DIN 571 – Hexagon Lag Screws
- DIN 653 – Flat Knurled Thumb Screws
- DIN 908 – Hexagon Socket Screw Plugs
- DIN 910 – Hexagon Head Screw Plugs
- DIN 911 – Hexagon Socket Screw Keys
- DIN 912 – Socket Head Cap Screws
- DIN 913 – Socket Set Screws With Flat Point
- DIN 914 – Socket Set Screws With Cone Point
- DIN 915 – Socket Set Screws With Dog Point
- DIN 916 – Socket Set Screws With Cup Point
- DIN 920 – Slotted Pan Head Screws, Small Head
- DIN 921 – Slotted pan head screws with large head
- DIN 923 – Slotted Pan Head Screws With Shoulder
- DIN 927 – Slotted Shoulder Screws
- DIN 931 – Hexagon Cap Screws Partially Threaded
- DIN 7505 – Chipboard screws
Packing of 410 Stainless Steel Screws
We export these 410 Stainless Steel Screws globally such as Peru, United States, Philippines, Canada, United Kingdom, United Arab Emirates, Singapore, Malaysia, Saudi Arabia, Indonesia, Thailand, Pakistan, Qatar, Australia, South Korea, South Africa, Iran, Turkey, Italy, Germany, Oman, Taiwan, Nigeria, Vietnam, Egypt, Mexico, Spain, Bahrain, Kuwait, Hong Kong, Netherlands, Bangladesh, Israel, Poland, Brazil, Norway, Sri Lanka, New Zealand, France, Finland, Romania, Denmark, Japan, Belgium, Russia, Kenya, Ireland, Greece, Portugal, Hungary, Serbia, Croatia, Bulgaria, Venezuela, Lithuania, Myanmar (Burma), Colombia, Azerbaijan, Iraq, Brunei, Laos, Cambodia, China, Czech Republic, Algeria, Chile and Croatia.
We have a wide network in India & overseas to supply urgent delivery of SS 410 Screws including Mumbai, Courbevoie, Faridabad, Chiyoda, Bangkok, Perth, Sharjah, Ahvaz, Ankara, Nashik, Petaling Jaya, Rajkot, Jakarta, Seoul, Al Khobar, Madrid, Calgary, Santiago, Lahore, Cairo, Gurgaon, Noida, Surat, Visakhapatnam, Navi Mumbai, Brisbane, Lagos, Karachi, Port-of-Spain, Thane, Houston, New Delhi, Ho Chi Minh City, Kolkata, Ernakulam, La Victoria, Dubai, Abu Dhabi, Melbourne, Sydney, Caracas, Doha, Vung Tau, Dammam, Kuala Lumpur, Geoje-si, Ludhiana, Secunderabad, Hong Kong, Mumbai, Milan, Bogota, Indore, Montreal, Toronto, Vadodara, Hyderabad, Nagpur, Thiruvananthapuram, Coimbatore, Kuwait City, Manama, Los Angeles, Pune, Bengaluru, Dallas, Mexico City, Kanpur, Jaipur, Aberdeen, Jamshedpur, Bhopal, Jeddah, Hanoi, Riyadh, Baroda, Chennai, Ahmedabad, Ranchi, Algiers, Moscow, Granada, Busan, New York, Rio de Janeiro, Singapore, Edmonton, Al Jubail, London, Chandigarh, Colombo, Howrah, Ulsan, Atyrau, Pimpri-Chinchwad, Muscat, Haryana, Istanbul, Gimhae-si & Tehran.
