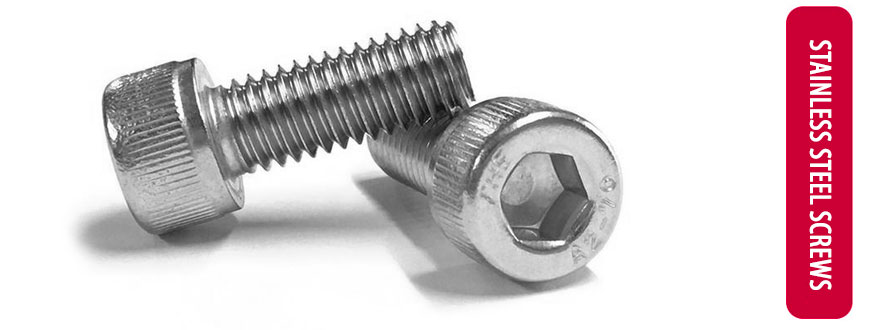

Stainless Steel Socket Head Cap Screws manufacturers

Industrial Stainless Steel Socket Head Cap Screws, A2 Stainless Steel Socket Head Cap Screws exporter in India, Marine grade Stainless Steel Socket Head Cap Screws, Best price of M2 M4 M5 M6 M8 Stainless Steel Socket Head Cap Screws, 10% off for bulk order of 316 Stainless Steel Socket Head Cap Screws, Special offer on 18-8 Stainless Steel Socket Head Cap Screws

MD Exports LLP is a leading Stainless Steel Socket Head Cap Screws manufacturers, suppliers & exporters in India. We have more than 18,000 products in stock. Order by the piece, bag or in bulk. A trusted company manufacturing and supplying SS Socket Head Cap Screws across India & overseas.

Our extensive range of high quality fastenings in A4 /316 stainless steel Socket Head Cap Screws are specially suited to marine, swimming pool and other high corrosion applications.

Stainless Steel Socket Head Cap Screws

ASTM A193 / A194 Stainless Steel Socket Head Cap Screws Specification

Product name Stainless Steel Socket Head Cap Screws
Place of Origin India
Standard ISO 7380, DIN, ASTM, ANSI, JIS, EN, AS, GB
Surface treatment
Passivation /plain
Stainless Steel Socket Head Cap Screws Size M2 – M100
Type Pan/ Round/ Oval/ countersunk/ Truss head
Head Pan head, flat head, oval head, hex head, phillips head
Stainless Steel Socket Head Cap Screws Usage Electric Heating, Machine
Dimensions ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded.
Drive Style Type I
Stainless Steel Socket Head Cap Screws Material 18-8 Stainless Steel, stainless steel ss 304/ SS316 A2/A4, SS201, SS303, SS304, SS316, SS316L, SS904L, A2-70, A4-80
Thread Requirements ASME B1.1, UNC & UNF, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge)
Finish Per ASTM A380/A380M
Finishing Zinc Plated(Yellow, White, Blue, Black), Hop Dip Galvanized (HDG) phosphorization, Black Oxide, Geomet, Dacroment, anodization, Nickel plated, Zinc-Nickel plated, Brass Plated, Tin Plated, Black Plated, Copper Plated, Gold Plated, Salt fog test
Stock Products Stainless steel: All DIN, GB Standard and part ASNI standard stainless steel Socket Head Cap Screws, Example: ISO7380, DIN7981, DIN7982, DIN916, DIN913, DIN7985, DIN912
Specialized in Stainless steel CSK philip screw, CSK socket screw, Pan head Ph screw, Pan head socket screw, Socket cap head screw, set screw, Pan head torx screw, CSK head trox screw, Wood screw
Production technology Cold Forged
Manufacturing Process Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing
MOQ 10 pieces
Delivery time Regular product is about 7-15 days, custom product will according to special requirement
Others OEM, ODM, ±0.03MM tolerance
Surface treatment of stainless steel Socket Head Cap Screws
  • Passivation
  • Polish
  • Anodizing
  • Sand blasting
  • Electroplating (color, blue, white, black zinc, Ni, Cr, tin, copper, silver)
  • Black oxide coating
  • Heat-disposing
  • Hot-dip galvanizing
  • Rust preventive oil
Tolerance of stainless steel Socket Head Cap Screws +/-0.01mm to +/-0.05mm
Samples Yes
Production Capacity 2,700,000 pieces per month
Payment Terms T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping

You might be interested in related types of Stainless Steel Socket Head Cap Screws

Stainless Steel Socket Head Cap Screws grades:

Stainless steel is an alloy of low carbon steel and chromium for enhanced corrosion characteristics. Stainless steel is highly corrosion resistant for the price. Because the anti-corrosive properties are inherent to the metal, it will not lose this resistance if scratched during installation or use.

  • 18-8 Stainless Steel Socket Head Cap Screws
  • 410 Stainless Steel Socket Head Cap Screws
  • 304 Stainless Steel Socket Head Cap Screws
  • 304L Stainless Steel Socket Head Cap Screws
  • 304H Stainless Steel Socket Head Cap Screws
  • 310 Stainless Steel Socket Head Cap Screws
  • 316 Stainless Steel Socket Head Cap Screws
  • 316H Stainless Steel Socket Head Cap Screws
  • 316L Stainless Steel Socket Head Cap Screws
  • 317 Stainless Steel Socket Head Cap Screws
  • 317L Stainless Steel Socket Head Cap Screws
  • 321 Stainless Steel Socket Head Cap Screws
  • 347 Stainless Steel Socket Head Cap Screws
  • 904L Stainless Steel Socket Head Cap Screws

Stainless Steel Socket Head Cap Screws Grades

Stainless Steel Socket Head Cap Screws Dimensions

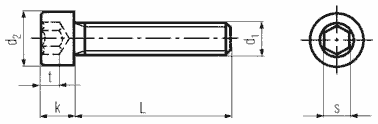

Dimensions for Stainless steel Socket Head Cap Screws

Socket Cap Screws

8.8 Grade Stainless Steel

DIN 912
ISO 4762
ANSI B18.3.1M

S001- 912-8.8 Bare Steel
S002- 912-8.8 Zinc Plated

Socket Cap Screws Specifications

Diameter d1 M3 M4 M5 M6 M8
t min. 1.3 2 2.5 3 4
s 2.5 3 4 5 6
k max. 3 4 5 6 8
d2 5.5 7 8.5 10 13
Length (mm) Bare Zinc Bare Zinc Bare Zinc Bare Zinc Bare Zinc
S001 S002 S001 S002 S001 S002 S001 S002 S001 S002
4 100
5 100
6 100 100 100
8 100 100 100 100 100
10 100 100 100 100 100 100 100 100 100
12 100 100 100 100 100 100 100 100
14 100 100 100 100 100 100 100 100 100
16 100 100 100 100 100 100 100 100
18 100 100 100 100 100 100 100 100
20 100 100 100 100 100 100 100 100 100
22 100 100
25 100 100 100 100 100 100 100 100
30 100 100 100 100 100 100 100 100
35 100 100 100 100 100 100 100 100
40 100 100 100 100 100 100 100 100
45 100 100 100 100 100 100 100 100
50 100 100 100 100 100 100 100 100
55 100 100 100 100 100 100
60 100 100 100 100 100 100
65 100 100 100 100
70 100 100 100 100 100 100
75 100 100
80 100 100 100 100 100 100
85 100
90 100 100 100 100 100
100 100 100 100 100 100
110 100 100 100
120 100 100
Order Number -> 912.8.8 Bare 4×20 = S001-004-0020 | 912-8.8 Zinc 4×50 = S002-004-0050
Diameter d1 M10 M12 M14 M16 M20
t min. 5 6 7 8 10
s 8 10 12 14 17
k max. 10 12 14 16 20
d2 16 18 21 24 30
Length (mm) Bare Zinc Bare Zinc Bare Zinc Bare Zinc Bare Zinc
S001 S002 S001 S002 S001 S002 S001 S002 S001 S002
16 100 100
20 100 100 50 50 25
25 100 100 50 50 50 25
30 100 100 50 50 50 25 25
35 100 100 50 50 50 50 25 25 25
40 100 100 50 50 50 50 25 25 25 25
45 50 50 50 50 50 50 25 25 25
50 50 50 50 50 50 50 25 25 25 25
55 50 50 50 50 50 50 25 25
60 50 50 50 50 25 25 25 25 25 25
65 50 50 50 25 25
70 50 50 25 25 25 25 25 25 25 25
75 50 50 25
80 50 50 25 25 25 25 25 25 25 25
90 50 50 25 25 25 25 25 25 25
100 50 50 25 25 25 25 25 25 25 25
110 50 50 25
120 50
130 25 25
140 25
Order Number -> 912-8.8 Bare 12×20 = S001-012-0020 | 912-8.8 Zinc 14×130 = S002-014-0130

Check Stainless Steel Socket Head Cap Screws Dimensions full Catalog

SS Screws Weight Chart

HEXAGONAL SOCKET HEAD CAP SCREWS TO IS 2269/2006 ISO 4762 : 2004

APPROXIMATE WEIGHT IN KGS FOR 100 NOS

LENGTH\DIA M2 M3 M4 M5 M6 M8 M10 M12 M14 M16 M20 M24 M30 M36 M42 M48 M56 M64
3 0.0155
4 0.0175
5 0.0195 0.067
6 0.0215 0.071 0.150
8 0.0255 0.080 0.165 0.245
10 0.0295 0.088 0.180 0.270 0.470
12 0.0355 0.096 0.195 0.295 0.507 1.09
16 0.0415 0.116 0.225 0.345 0.575 1.21 2.09
20 0.0495 0.136 0.265 0.401 0.653 1.34 2.29 3.21
25 0.161 0.315 0.478 0.759 1.50 2.54 3.57 4.80 7.13
30 0.186 0.365 0.555 0.830 1.69 2.79 3.93 5.30 7.78 12.8
35 0.415 0.632 0.991 1.89 3.04 4.29 5.80 8.44 13.9
40 0.465 0.709 1.100 2.09 3.29 4.65 6.30 9.10 15.0 27.0
45 0.786 1.210 2.29 3.61 5.01 6.80 9.76 16.1 28.5 50.0
50 0.863 1.320 2.49 3.93 5.45 7.30 10.60 17.2 30.0 52.7
55 1.430 2.69 4.25 5.89 7.80 11.40 18.3 31.6 55.4 87
60 1.540 2.89 4.57 6.34 8.40 12.20 19.4 33.0 58.1 91 137
65 3.10 4.89 6.78 9.00 13.00 20.5 34.5 60.8 95 142
70 3.30 5.21 7.13 9.60 13.80 21.6 36.3 63.5 99 147 204
80 3.70 5.85 8.02 10.80 15.40 24.1 39.9 69.0 107 158 218 334
90 6.49 8.91 12.00 17.00 26.6 43.5 74.5 115 168 232 353 522
100 7.12 9.80 13.20 18.6. 29.1 47.1 80.0 123 179 246 372 547
110 10.70 14.40 20.20 31.6 50.7 85.5 131 189 260 392 573
120 11.60 15.60 21.80 34.1 54.3 91.0 139 200 274 411 598
130 16.80 23.40 36.6 57.9 96.5 147 210 288 430 623
140 18.00 25.00 39.1 61.5 102 155 221 302 449 649
150 26.60 41.6 65.1 108 163 232 316 468 674
160 28.20 44.1 68.7 113 171 242 330 488 690
180 49.1 75.9 124 187 264 359 527 725
200 54.1 83.1 135 203 286 387 565 775
220 90.3 146 219 308 415 604 825
240 97.5 157 225 330 443 642 875
260 168 241 352 471 681 926
280 179 257 374 499 720 976
300 190 273 396 527 758 1030

HEXAGONAL SOCKET SET SCREWS (GRUB SCREWS) With cup point TO IS 6094(PART 4)2006, ISO 4029 : 2003 (DIN 916)APPROXIMATE WEIGHT IN KGS FOR 100 NOS

LENGTH\DIA M1.6 M2 M2.5 M3 M4 M5 M6 M8 M10 M12 M16 M20 M24
2 0.0019 0.0029
2.5 0.0025 0.0037 0.0063
3 0.0029 0.0044 0.0075 0.010
4 0.0037 0.0059 0.0100 0.014 0.023
5 0.0046 0.0074 0.0125 0.018 0.0305 0.042
6 0.0054 0.0089 0.0150 0.022 0.038 0.054 0.074
8 0.0070 0.0119 0.0199 0.030 0.053 0.078 0.109 0.188
10 0.0148 0.0249 0.038 0.068 0.102 0.144 0.251 0.372
12 0.0299 0.046 0.083 0.126 0.179 0.314 0.473 0.67
16 0.062 0.113 0.174 0.249 0.440 0.673 0.95 1.57
20 0.140 0.222 0.319 0.566 0.872 1.23 2.09 3.13
25 0.282 0.407 0.724 1.120 1.58 2.74 4.14 5.52
30 0.494 0.881 1.370 1.93 3.39 5.17 7.03
35 1.040 1.620 2.27 4.04 6.20 8.53
40 1.200 1.870 2.62 4.69 7.23 10.00
45 2.120 2.97 5.33 8.26 11.50
50 2.360 3.32 5.98 9.26 13.00
55 3.66 6.63 10.30 14.50
60 4.01 7.28 11.40 16.00

Stainless Steel Socket Head Cap Screws Price List

Stainless Steel Socket Head Cap Screws Price List, Stainless Steel Socket Head Cap Screws Prices, Stainless Steel Socket Head Cap Screws Price, Stainless Steel Socket Head Cap Screws Price List, Stainless Steel Socket Head Cap Screws Price 2018, Stainless Steel Socket Head Cap Screws Price in India, SS Socket Head Cap Screws Price India, we offer best price of 18-8 Stainless Steel Socket Head Cap Screws & 316 Stainless Steel Socket Head Cap Screws

Socket Head Cap Screws Price

Description Price per 100 Pack
M1.4 X 2 SOCKET CAP SCREW DIN 912 A2 Stainless Steel $31.43 25
M1.4 X 3 SOCKET CAP SCREW DIN 912 A2 Stainless Steel $32.31 25
M1.4 X 4 SOCKET CAP SCREW DIN 912 A2 Stainless Steel $33.07 25
M1.4 X 5 SOCKET CAP SCREW DIN 912 A2 Stainless Steel $33.70 25
M1.4 X 6 SOCKET CAP SCREW DIN 912 A2 Stainless Steel $34.40 25
M1.4 X 8 SOCKET CAP SCREW DIN 912 A2 Stainless Steel $35.03 25
M1.4 X 10 SOCKET CAP SCREW DIN 912 A2 Stainless Steel $36.29 25
M1.4 X 12 SOCKET CAP SCREW DIN 912 A2 Stainless Steel $36.97 25
M1.4 X 16 SOCKET CAP SCREW DIN 912 A2 Stainless Steel $39.06 25
M1.6 X 3 SOCKET CAP SCREW DIN 912 A2 Stainless Steel $7.56 100
M1.6 X 4 SOCKET CAP SCREW DIN 912 A2 Stainless Steel $6.96 100
M1.6 X 5 SOCKET CAP SCREW DIN 912 A2 Stainless Steel $7.18 100
M1.6 X 6 SOCKET CAP SCREW DIN 912 A2 Stainless Steel $7.18 100
M1.6 X 8 SOCKET CAP SCREW DIN 912 A2 Stainless Steel $7.66 100
M1.6 X 10 SOCKET CAP SCREW DIN 912 A2 Stainless Steel $8.50 100
M1.6 X 12 SOCKET CAP SCREW DIN 912 A2 Stainless Steel $8.86 100
M1.6 X 14 SOCKET CAP SCREW DIN 912 A2 Stainless Steel $13.26 100
M1.6 X 16 SOCKET CAP SCREW DIN 912 A2 Stainless Steel $9.76 50
M1.6 X 18 SOCKET CAP SCREW DIN 912 A2 Stainless Steel $21.00 50
M1.6 X 20 SOCKET CAP SCREW DIN 912 A2 Stainless Steel $34.16 50
M2 X 3 SOCKET CAP SCREW DIN 912 A2 Stainless Steel $4.62 100
M2 X 4 SOCKET CAP SCREW DIN 912 A2 Stainless Steel $4.10 100
M2 X 5 SOCKET CAP SCREW DIN 912 A2 Stainless Steel $4.52 100
M2 X 6 SOCKET CAP SCREW DIN 912 A2 Stainless Steel $4.98 100
M2 X 7 SOCKET CAP SCREW DIN 912 A2 Stainless Steel $51.80 100
M2 X 8 SOCKET CAP SCREW DIN 912 A2 Stainless Steel $5.64 100
M2 X 10 SOCKET CAP SCREW DIN 912 A2 Stainless Steel $4.93 100
M2 X 12 SOCKET CAP SCREW DIN 912 A2 Stainless Steel $5.49 100
M2 X 14 SOCKET CAP SCREW DIN 912 A2 Stainless Steel $6.31 100
M2 X 16 SOCKET CAP SCREW DIN 912 A2 Stainless Steel $6.57 100
M2 X 18 SOCKET CAP SCREW DIN 912 A2 Stainless Steel $10.16 100
M2 X 20 SOCKET CAP SCREW DIN 912 A2 Stainless Steel $7.39 100

Stainless Steel Socket Head Cap Screws For Sale

Stainless Steel Machine screws

A2 Stainless Steel Slotted Pan Machine Screws (DIN 85)

Stainless Steel Self Tapping Screws

Flanged Hexagon Head Self Tapping Screws Zinc Plated Steel



Stainless Steel Socket Head Cap Screws DIN Grades

  • DIN 933 – Hexagon Cap Screws Fully Threaded
  • DIN 933 Sz – Hexagon Cap Screws With Slot
  • DIN 960 – Hex Cap Screws, Metric Fine Thread – Part Thread
  • DIN 961 – Hex Cap Screws, Metric Fine Thread – Full Thread
  • DIN 963 A- Slotted Flat Head Machine Screws
  • DIN 964 A- Slotted Oval Head Machine Screws
  • DIN 965 A – Cross Recessed Flat Head Machine Screws
  • DIN 966 A – Cross Recessed Oval Head Machine Screws
  • DIN 6332 – Grub screws with thrust point
  • DIN 6911 – Hexagon Socket Screw Keys With Pilot
  • DIN 6912 – Low Head Socket Cap Screws With Pilot
  • DIN 7504 – N P K head self drilling screws
  • DIN 7970 – Tapping screw threads
  • DIN 7981 B(BZ) – Cross Recessed Pan Head Tapping Screws
  • DIN 7982 B – Cross Rec. Flat hd Tapping Screws, hd Angle 80
  • DIN 7983 B – Cross Rec. Oval hd Tapping Screw, hd Angle 80
  • DIN 7984 – Socket Low Head Cap Screws
  • DIN 7985 A – Cross Recessed Pan Head Machine Screws
  • DIN 7985 Z1 – Cr. Rec. Pan Head Screws w/captive Flt. Washer
  • DIN 7985 Z4 – Cr. Rec. Pan Head Screws w/captive l/washer
  • DIN 7991 – Flat Socket Head Cap Screws
  • DIN 7997 – Cross recessed countersunk head wood screws
  • DIN 7998 – Threads and Thread Ends for Wood Screws

Stainless Steel Screws

  • DIN 316 – Wing Screws
  • DIN 404 – Slotted Drilled Fillister Head Screws
  • DIN 417 – Slotted set screws with full dog point
  • DIN 427 – Slotted Headless Screws
  • DIN 438 – Slotted set screws with cup point
  • DIN 464 – Knurled Thumb Screws
  • DIN 551 – Slotted Set Screws With Flat Point
  • DIN 553 – Slotted Set Screws With Cone Point
  • DIN 571 – Hexagon Lag Screws
  • DIN 653 – Flat Knurled Thumb Screws
  • DIN 908 – Hexagon Socket Screw Plugs
  • DIN 910 – Hexagon Head Screw Plugs
  • DIN 911 – Hexagon Socket Screw Keys
  • DIN 912 – Socket Head Cap Screws
  • DIN 913 – Socket Set Screws With Flat Point
  • DIN 914 – Socket Set Screws With Cone Point
  • DIN 915 – Socket Set Screws With Dog Point
  • DIN 916 – Socket Set Screws With Cup Point
  • DIN 920 – Slotted Pan Head Screws, Small Head
  • DIN 921 – Slotted pan head screws with large head
  • DIN 923 – Slotted Pan Head Screws With Shoulder
  • DIN 927 – Slotted Shoulder Screws
  • DIN 931 – Hexagon Cap Screws Partially Threaded
  • DIN 7505 – Chipboard screws

Packing of Stainless Steel Socket Head Cap Screws

Packing of Stainless Steel Socket Head Cap Screws

We export these Stainless Steel Socket Head Cap Screws globally such as Peru, United States, Philippines, Canada, United Kingdom, United Arab Emirates, Singapore, Malaysia, Saudi Arabia, Indonesia, Thailand, Pakistan, Qatar, Australia, South Korea, South Africa, Iran, Turkey, Italy, Germany, Oman, Taiwan, Nigeria, Vietnam, Egypt, Mexico, Spain, Bahrain, Kuwait, Hong Kong, Netherlands, Bangladesh, Israel, Poland, Brazil, Norway, Sri Lanka, New Zealand, France, Finland, Romania, Denmark, Japan, Belgium, Russia, Kenya, Ireland, Greece, Portugal, Hungary, Serbia, Croatia, Bulgaria, Venezuela, Lithuania, Myanmar (Burma), Colombia, Azerbaijan, Iraq, Brunei, Laos, Cambodia, China, Czech Republic, Algeria, Chile and Croatia.

We have a wide network in India & overseas to supply urgent delivery of SS Socket Head Cap Screws including Mumbai, Courbevoie, Faridabad, Chiyoda, Bangkok, Perth, Sharjah, Ahvaz, Ankara, Nashik, Petaling Jaya, Rajkot, Jakarta, Seoul, Al Khobar, Madrid, Calgary, Santiago, Lahore, Cairo, Gurgaon, Noida, Surat, Visakhapatnam, Navi Mumbai, Brisbane, Lagos, Karachi, Port-of-Spain, Thane, Houston, New Delhi, Ho Chi Minh City, Kolkata, Ernakulam, La Victoria, Dubai, Abu Dhabi, Melbourne, Sydney, Caracas, Doha, Vung Tau, Dammam, Kuala Lumpur, Geoje-si, Ludhiana, Secunderabad, Hong Kong, Mumbai, Milan, Bogota, Indore, Montreal, Toronto, Vadodara, Hyderabad, Nagpur, Thiruvananthapuram, Coimbatore, Kuwait City, Manama, Los Angeles, Pune, Bengaluru, Dallas, Mexico City, Kanpur, Jaipur, Aberdeen, Jamshedpur, Bhopal, Jeddah, Hanoi, Riyadh, Baroda, Chennai, Ahmedabad, Ranchi, Algiers, Moscow, Granada, Busan, New York, Rio de Janeiro, Singapore, Edmonton, Al Jubail, London, Chandigarh, Colombo, Howrah, Ulsan, Atyrau, Pimpri-Chinchwad, Muscat, Haryana, Istanbul, Gimhae-si & Tehran.

© Copyright 2018 | Website & SEO by MD Steel India
