Stainless Steel Self Drilling Screws manufacturers
Industrial Stainless Steel Self Drilling Screws, A2 Stainless Steel Self Drilling Screws exporter in India, Marine grade Stainless Steel Self Drilling Screws, Best price of M2 M4 M5 M6 M8 Stainless Steel Self Drilling Screws, 10% off for bulk order of 316 Stainless Steel Self Drilling Screws, Special offer on 18-8 Stainless Steel Self Drilling Screws
MD Exports LLP is a leading Stainless Steel Self Drilling Screws manufacturers, suppliers & exporters in India. We have more than 18,000 products in stock. Order by the piece, bag or in bulk. A trusted company manufacturing and supplying SS Self Drilling Screws, Stainless Steel Self Drilling Screws, Stainless Steel Hexagon Washer Self Drilling, Stainless Steel Hexagon Self Drilling with Sealing Washer, Stainless Steel Pozi Pan Self Drilling, Stainless Steel Phillips Pan Self Drilling, Stainless Steel TX Pan Self Drilling, Stainless Steel Pozi Countersunk Self Drilling, Stainless Steel Phillips Countersunk Self Drilling and Stainless Steel TX Countersunk Self Drilling across India & overseas.
Our extensive range of high quality fastenings in A4 /316 stainless steel Self Drilling Screws are specially suited to marine, swimming pool and other high corrosion applications. Self Drilling Screws also known as TEK Screws, “Drill-Bit Points” Eliminate Pre-Drilling. Stainless Steel Self drilling screws are used for fastening roofing sheets. Available in Hex head (with EDPM washer), Pan Phillips head, CSK Phillips head and Modi Truss head. Hex screws are also available with partial thread and anti corrosive coating.
Stainless Steel Self Drilling Screws
ASTM A193 / A194 Stainless Steel Self Drilling Screws Specification
| Product name | Stainless Steel Self Drilling Screws |
|---|---|
| Place of Origin | India |
| Standard | ISO 7380, DIN, ASTM, ANSI, JIS, EN, AS, GB |
|
Passivation /plain |
| Stainless Steel Self Drilling Screws Size | M2 – M100 |
| Type | Pan/ Round/ Oval/ countersunk/ Truss head |
| Head | Pan head, flat head, oval head, hex head, phillips head |
| Stainless Steel Self Drilling Screws Usage | Electric Heating, Machine |
| Dimensions | ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded. |
| Drive Style | Type I |
| Stainless Steel Self Drilling Screws Material | 18-8 Stainless Steel, stainless steel ss 304/ SS316 A2/A4, SS201, SS303, SS304, SS316, SS316L, SS904L, A2-70, A4-80 |
| Thread Requirements | ASME B1.1, UNC & UNF, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge) |
| Finish | Per ASTM A380/A380M |
| Finishing | Zinc Plated(Yellow, White, Blue, Black), Hop Dip Galvanized (HDG) phosphorization, Black Oxide, Geomet, Dacroment, anodization, Nickel plated, Zinc-Nickel plated, Brass Plated, Tin Plated, Black Plated, Copper Plated, Gold Plated, Salt fog test |
| Stock Products | Stainless steel: All DIN, GB Standard and part ASNI standard stainless steel Self Drilling Screws, Example: ISO7380, DIN7981, DIN7982, DIN916, DIN913, DIN7985, DIN912 |
| Specialized in | Stainless steel CSK philip screw, CSK socket screw, Pan head Ph screw, Pan head socket screw, Socket cap head screw, set screw, Pan head torx screw, CSK head trox screw, Wood screw |
| Production technology | Cold Forged |
| Manufacturing Process | Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing |
| MOQ | 10 pieces |
| Delivery time | Regular product is about 7-15 days, custom product will according to special requirement |
| Others | OEM, ODM, ±0.03MM tolerance |
| Surface treatment of stainless steel Self Drilling Screws |
|
| Tolerance of stainless steel Self Drilling Screws | +/-0.01mm to +/-0.05mm |
| Samples | Yes |
| Production Capacity | 2,700,000 pieces per month |
| Payment Terms | T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping |

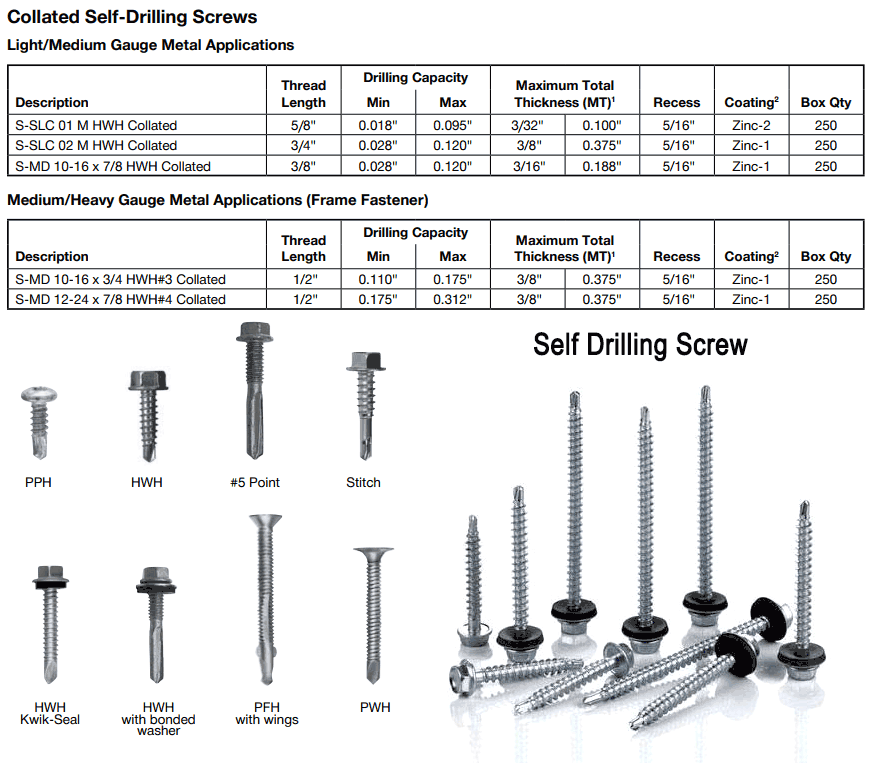

Self Drilling Screw (DIN 7504 )
1.Size Range: #4-5/16″ (M2.9-M8)
2.Length Range: 3/8″-6″ (9.5mm-150mm)

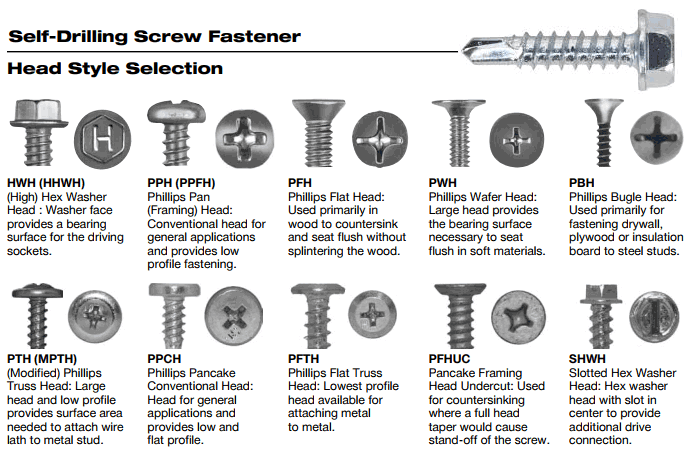

3.Head type :
|
Ind. Hex Washer Head
|
Modified Truss Head
|
Pan Framing Head
|
Trim Head
|
|---|---|---|---|
|
Ind. Hex Flange Head
|
Truss Head
|
Pancake Head
|
Flat Head
|
|
Large Wafer Head
|
Pan Head
|
Thin Wafer Head
|
Bugle Head
|
4.Thread Type: Type BSD, Type CSD (with wings, notich or shank slot )
5.Point: #1PT,#2PT,#3PT,#4PT, #5PT, Reduce #1PT
6.Standard: IFI, ANSI, ASTM, ISO, DIN, JIS, BS, AS & Special Request Per Customer’s Sample Or Drawing
7.Self-Drilling Screw can drill into thickness test plate, because their hardness condition is higher than Tapping Screw.
You might be interested in related types of Stainless Steel Self Drilling Screws
Stainless Steel Self Drilling Screws grades:
Stainless steel is an alloy of low carbon steel and chromium for enhanced corrosion characteristics. Stainless steel is highly corrosion resistant for the price. Because the anti-corrosive properties are inherent to the metal, it will not lose this resistance if scratched during installation or use.
- 18-8 Stainless Steel Self Drilling Screws
- 410 Stainless Steel Self Drilling Screws
- 304 Stainless Steel Self Drilling Screws
- 304L Stainless Steel Self Drilling Screws
- 304H Stainless Steel Self Drilling Screws
- 310 Stainless Steel Self Drilling Screws
- 316 Stainless Steel Self Drilling Screws
- 316H Stainless Steel Self Drilling Screws
- 316L Stainless Steel Self Drilling Screws
- 317 Stainless Steel Self Drilling Screws
- 317L Stainless Steel Self Drilling Screws
- 321 Stainless Steel Self Drilling Screws
- 347 Stainless Steel Self Drilling Screws
- 904L Stainless Steel Self Drilling Screws
Stainless Steel Self Drilling Screws Grades
Stainless Steel Self Drilling Screws Dimensions
Dimensions for Stainless steel Self Drilling Screws
Check Stainless Steel Self Drilling Screws Dimensions full Catalog
SS Self Drilling Screws Weight Chart
|
DIAMETERS
|
|||||||||||
|
LENGTHS
|
#2
|
#3
|
#4
|
#5
|
#6
|
#8
|
#10
|
#12
|
1/4″
|
5/16″
|
3/8″
|
|
1/8
|
0.40 | 0.55 | 0.70 | 1.1 | 1.4 | — | — | — | — | — | — |
|
3/16
|
0.50 | 0.70 | 0.90 | 1.2 | 1.5 | 2.5 | 3.9 | — | — | — | — |
|
1/4
|
0.60 | 0.80 | 1.00 | 1.4 | 1.7 | 2.8 | 4.3 | 5.6 | 8.5 | — | — |
|
5/16
|
0.60 | 0.90 | 1.20 | 1.5 | 1.9 | 3.1 | 4.6 | 6.1 | 9.1 | 16.7 | — |
|
3/8
|
0.70 | 0.90 | 1.30 | 1.7 | 2.1 | 3.4 | 5.0 | 6.5 | 9.8 | 17.7 | 29.2 |
|
7/16
|
0.80 | 1.00 | 1.50 | 1.9 | 2.2 | 3.6 | 5.4 | 6.9 | 10.4 | 18.8 | 30.7 |
|
1/2
|
0.80 | 1.10 | 1.60 | 2.0 | 2.4 | 3.9 | 5.8 | 7.4 | 11.1 | 19.8 | 32.2 |
|
9/16
|
0.90 | 1.20 | 1.70 | 2.2 | 2.6 | 4.2 | 6.2 | 7.8 | 11.7 | 20.9 | 33.6 |
|
5/8
|
1.00 | 1.30 | 1.80 | 2.3 | 2.8 | 4.5 | 6.6 | 8.3 | 12.4 | 21.9 | 35.1 |
|
3/4
|
1.10 | 1.50 | 2.10 | 2.6 | 3.2 | 5.0 | 7.3 | 9.2 | 13.6 | 24.0 | 38.0 |
|
7/8
|
1.30 | 1.70 | 2.30 | 3.0 | 3.5 | 5.6 | 8.1 | 10.1 | 14.9 | 26.1 | 41.0 |
|
1″
|
1.40 | 1.90 | 2.50 | 3.4 | 3.9 | 6.2 | 8.9 | 11.0 | 16.1 | 28.8 | 44.0 |
|
1-1/8″
|
1.50 | 2.00 | 2.80 | 3.8 | 4.3 | 6.7 | 9.6 | 11.9 | 17.4 | 30.2 | 47.0 |
|
1-1/4″
|
1.60 | 2.20 | 3.00 | 4.1 | 4.6 | 7.3 | 10.4 | 12.8 | 18.7 | 32.3 | 49.8 |
|
1-1/2″
|
1.80 | 2.50 | 3.50 | 4.7 | 5.3 | 8.3 | 11.9 | 14.7 | 21.2 | 36.5 | 55.8 |
|
1-3/4″
|
2.10 | 2.90 | 4.00 | 5.3 | 6.1 | 9.4 | 13.5 | 16.5 | 23.7 | 40.7 | 61.7 |
|
2″
|
2.40 | 3.30 | 4.50 | 6.0 | 6.8 | 10.6 | 15.0 | 18.3 | 26.2 | 44.8 | 67.6 |
|
2-1/4″
|
2.60 | 3.60 | 5.00 | 6.7 | 7.6 | 11.8 | 16.6 | 20.1 | 28.8 | 19.0 | 73.5 |
|
2-1/2″
|
2.80 | 3.90 | 5.50 | 7.3 | 8.3 | 12.9 | 18.1 | 22.0 | 31.3 | 53.2 | 79.5 |
|
2-3/4″
|
3.10 | 4.30 | 6.00 | 7.9 | 9.1 | 13.9 | 19.7 | 23.8 | 33.9 | 57.3 | 85.3 |
|
3″
|
3.40 | 4.70 | 6.50 | 8.6 | 9.8 | 15.0 | 21.2 | 25.6 | 36.4 | 61.5 | 91.3 |
|
* Weights above are approximate and are based on pan head machine screws
|
|||||||||||
Stainless Steel Self Drilling Screws Price List
Stainless Steel Self Drilling Screws Price List, Stainless Steel Self Drilling Screws Prices, Stainless Steel Self Drilling Screws Price, Stainless Steel Self Drilling Screws Price List, Stainless Steel Self Drilling Screws Price 2018, Stainless Steel Self Drilling Screws Price in India, SS Self Drilling Screws Price India, we offer best price of 18-8 Stainless Steel Self Drilling Screws & 316 Stainless Steel Self Drilling Screws
Price of Metric A2 POZI PAN Self Drilling Screws in India (DIN 7504N)
| Description | Price per 100 | Pack |
|---|---|---|
| 2.9 X 9.5 POZI PAN Self Drilling Screws A2 Stainless Steel | £2.61 | 500 |
| 2.9 X 13 POZI PAN Self Drilling Screws A2 Stainless Steel | £2.76 | 500 |
| 3.5 X 9.5 POZI PAN Self Drilling Screws A2 Stainless Steel | £2.76 | 500 |
| 3.5 X 13 POZI PAN Self Drilling Screws A2 Stainless Steel | £2.87 | 500 |
| 3.5 X 16 POZI PAN Self Drilling Screws A2 Stainless Steel | £3.14 | 500 |
| 3.5 X 19 POZI PAN Self Drilling Screws A2 Stainless Steel | £3.45 | 500 |
| 3.5 X 22 POZI PAN Self Drilling Screws A2 Stainless Steel | £4.14 | 500 |
| 3.5 X 25 POZI PAN Self Drilling Screws A2 Stainless Steel | £4.56 | 500 |
| 3.9 X 13 POZI PAN Self Drilling Screws A2 Stainless Steel | £3.53 | 500 |
| 3.9 X 16 POZI PAN Self Drilling Screws A2 Stainless Steel | £3.76 | 500 |
| 3.9 X 19 POZI PAN Self Drilling Screws A2 Stainless Steel | £4.18 | 500 |
| 3.9 X 22 POZI PAN Self Drilling Screws A2 Stainless Steel | £4.48 | 500 |
| 3.9 X 25 POZI PAN Self Drilling Screws A2 Stainless Steel | £4.79 | 500 |
| 3.9 X 32 POZI PAN Self Drilling Screws A2 Stainless Steel | £5.71 | 500 |
| 4.2 X 13 POZI PAN Self Drilling Screws A2 Stainless Steel | £3.76 | 500 |
| 4.2 X 16 POZI PAN Self Drilling Screws A2 Stainless Steel | £4.25 | 500 |
| 4.2 X 19 POZI PAN Self Drilling Screws A2 Stainless Steel | £4.37 | 500 |
| 4.2 X 22 POZI PAN Self Drilling Screws A2 Stainless Steel | £4.94 | 500 |
| 4.2 X 25 POZI PAN Self Drilling Screws A2 Stainless Steel | £5.29 | 500 |
| 4.2 X 32 POZI PAN Self Drilling Screws A2 Stainless Steel | £6.09 | 500 |
| 4.2 X 38 POZI PAN Self Drilling Screws A2 Stainless Steel | £7.24 | 500 |
| 4.8 X 13 POZI PAN Self Drilling Screws A2 Stainless Steel | £5.33 | 500 |
| 4.8 X 16 POZI PAN Self Drilling Screws A2 Stainless Steel | £5.75 | 500 |
| 4.8 X 19 POZI PAN Self Drilling Screws A2 Stainless Steel | £6.25 | 500 |
| 4.8 X 22 POZI PAN Self Drilling Screws A2 Stainless Steel | £6.67 | 500 |
| 4.8 X 25 POZI PAN Self Drilling Screws A2 Stainless Steel | £7.17 | 500 |
| 4.8 X 32 POZI PAN Self Drilling Screws A2 Stainless Steel | £8.55 | 200 |
| 4.8 X 38 POZI PAN Self Drilling Screws A2 Stainless Steel | £9.54 | 200 |
| 4.8 X 45 POZI PAN Self Drilling Screws A2 Stainless Steel | £11.12 | 200 |
| 4.8 X 50 POZI PAN Self Drilling Screws A2 Stainless Steel | £12.11 | 200 |
| 4.8 X 60 POZI PAN Self Drilling Screws A2 Stainless Steel | £16.52 | 200 |
| 4.8 X 70 POZI PAN Self Drilling Screws A2 Stainless Steel | £18.55 | 200 |
| 5.5 X 19 POZI PAN Self Drilling Screws A2 Stainless Steel | £10.04 | 200 |
| 5.5 X 25 POZI PAN Self Drilling Screws A2 Stainless Steel | £10.81 | 200 |
| 5.5 X 32 POZI PAN Self Drilling Screws A2 Stainless Steel | £12.23 | 200 |
| 5.5 X 38 POZI PAN Self Drilling Screws A2 Stainless Steel | £13.57 | 200 |
| 5.5 X 45 POZI PAN Self Drilling Screws A2 Stainless Steel | £14.99 | 100 |
| 5.5 X 50 POZI PAN Self Drilling Screws A2 Stainless Steel | £16.67 | 100 |
| 5.5 X 60 POZI PAN Self Drilling Screws A2 Stainless Steel | £25.38 | 100 |
Stainless Steel Self Drilling Screws For Sale
Stainless Steel Machine screws
A2 Stainless Steel Slotted Pan Machine Screws (DIN 85)

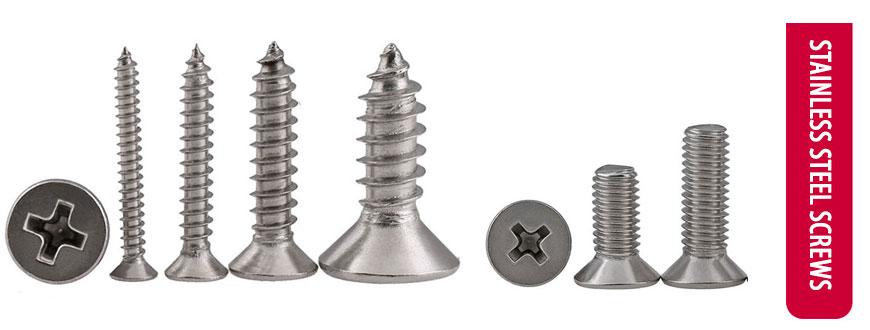

Stainless Steel Self Tapping Screws
Flanged Hexagon Head Self Tapping Screws Zinc Plated Steel
Stainless Steel Self Drilling Screws DIN Grades
- DIN 933 – Hexagon Cap Screws Fully Threaded
- DIN 933 Sz – Hexagon Cap Screws With Slot
- DIN 960 – Hex Cap Screws, Metric Fine Thread – Part Thread
- DIN 961 – Hex Cap Screws, Metric Fine Thread – Full Thread
- DIN 963 A- Slotted Flat Head Machine Screws
- DIN 964 A- Slotted Oval Head Machine Screws
- DIN 965 A – Cross Recessed Flat Head Machine Screws
- DIN 966 A – Cross Recessed Oval Head Machine Screws
- DIN 6332 – Grub screws with thrust point
- DIN 6911 – Hexagon Socket Screw Keys With Pilot
- DIN 6912 – Low Head Socket Cap Screws With Pilot
- DIN 7504 – N P K head self drilling screws
- DIN 7970 – Tapping screw threads
- DIN 7981 B(BZ) – Cross Recessed Pan Head Tapping Screws
- DIN 7982 B – Cross Rec. Flat hd Tapping Screws, hd Angle 80
- DIN 7983 B – Cross Rec. Oval hd Tapping Screw, hd Angle 80
- DIN 7984 – Socket Low Head Cap Screws
- DIN 7985 A – Cross Recessed Pan Head Machine Screws
- DIN 7985 Z1 – Cr. Rec. Pan Head Screws w/captive Flt. Washer
- DIN 7985 Z4 – Cr. Rec. Pan Head Screws w/captive l/washer
- DIN 7991 – Flat Socket Head Cap Screws
- DIN 7997 – Cross recessed countersunk head wood screws
- DIN 7998 – Threads and Thread Ends for Wood Screws
Stainless Steel Screws
- DIN 316 – Wing Screws
- DIN 404 – Slotted Drilled Fillister Head Screws
- DIN 417 – Slotted set screws with full dog point
- DIN 427 – Slotted Headless Screws
- DIN 438 – Slotted set screws with cup point
- DIN 464 – Knurled Thumb Screws
- DIN 551 – Slotted Set Screws With Flat Point
- DIN 553 – Slotted Set Screws With Cone Point
- DIN 571 – Hexagon Lag Screws
- DIN 653 – Flat Knurled Thumb Screws
- DIN 908 – Hexagon Socket Screw Plugs
- DIN 910 – Hexagon Head Screw Plugs
- DIN 911 – Hexagon Socket Screw Keys
- DIN 912 – Socket Head Cap Screws
- DIN 913 – Socket Set Screws With Flat Point
- DIN 914 – Socket Set Screws With Cone Point
- DIN 915 – Socket Set Screws With Dog Point
- DIN 916 – Socket Set Screws With Cup Point
- DIN 920 – Slotted Pan Head Screws, Small Head
- DIN 921 – Slotted pan head screws with large head
- DIN 923 – Slotted Pan Head Screws With Shoulder
- DIN 927 – Slotted Shoulder Screws
- DIN 931 – Hexagon Cap Screws Partially Threaded
- DIN 7505 – Chipboard screws
Packing of Stainless Steel Self Drilling Screws
We export these Stainless Steel Self Drilling Screws globally such as Peru, United States, Philippines, Canada, United Kingdom, United Arab Emirates, Singapore, Malaysia, Saudi Arabia, Indonesia, Thailand, Pakistan, Qatar, Australia, South Korea, South Africa, Iran, Turkey, Italy, Germany, Oman, Taiwan, Nigeria, Vietnam, Egypt, Mexico, Spain, Bahrain, Kuwait, Hong Kong, Netherlands, Bangladesh, Israel, Poland, Brazil, Norway, Sri Lanka, New Zealand, France, Finland, Romania, Denmark, Japan, Belgium, Russia, Kenya, Ireland, Greece, Portugal, Hungary, Serbia, Croatia, Bulgaria, Venezuela, Lithuania, Myanmar (Burma), Colombia, Azerbaijan, Iraq, Brunei, Laos, Cambodia, China, Czech Republic, Algeria, Chile and Croatia.
We have a wide network in India & overseas to supply urgent delivery of SS Self Drilling Screws including Mumbai, Courbevoie, Faridabad, Chiyoda, Bangkok, Perth, Sharjah, Ahvaz, Ankara, Nashik, Petaling Jaya, Rajkot, Jakarta, Seoul, Al Khobar, Madrid, Calgary, Santiago, Lahore, Cairo, Gurgaon, Noida, Surat, Visakhapatnam, Navi Mumbai, Brisbane, Lagos, Karachi, Port-of-Spain, Thane, Houston, New Delhi, Ho Chi Minh City, Kolkata, Ernakulam, La Victoria, Dubai, Abu Dhabi, Melbourne, Sydney, Caracas, Doha, Vung Tau, Dammam, Kuala Lumpur, Geoje-si, Ludhiana, Secunderabad, Hong Kong, Mumbai, Milan, Bogota, Indore, Montreal, Toronto, Vadodara, Hyderabad, Nagpur, Thiruvananthapuram, Coimbatore, Kuwait City, Manama, Los Angeles, Pune, Bengaluru, Dallas, Mexico City, Kanpur, Jaipur, Aberdeen, Jamshedpur, Bhopal, Jeddah, Hanoi, Riyadh, Baroda, Chennai, Ahmedabad, Ranchi, Algiers, Moscow, Granada, Busan, New York, Rio de Janeiro, Singapore, Edmonton, Al Jubail, London, Chandigarh, Colombo, Howrah, Ulsan, Atyrau, Pimpri-Chinchwad, Muscat, Haryana, Istanbul, Gimhae-si & Tehran.
