Stainless Steel Jam Nuts manufacturers
SS Jam Nuts suppliers, ANSI B18.2.2 Stainless Steel Jam Nuts, High density zinc plated stainless steel Jam Nuts
Manufacturer and supplier of Stainless Steel Jam Nuts, best price of SS Jam Nuts, 18-8 Stainless Steel Jam Nuts, M8 Jam Nuts, M6 Jam Nuts, M10 Stainless Steel Jam Nuts For Sale, stainless steel a2 a4 DIN934 UNC UNF Jam Nuts, A2 70 304 Stainless Steel DIN 6334 Jam Nuts
MD Exports LLP is a leading Stainless Steel Jam Nuts manufacturers, suppliers & exporters in India. A trusted company manufacturing and supplying SS Jam Nuts across India & overseas.
Stainless Steel Jam Nuts is a type of mechanical fastener. Stainless Steel Jam Nuts are used in conjunction with a variety of Bolts or Screws. Our extensive range of high quality fastenings in A4 /316 stainless steel Jam Nuts are specially suited to marine, swimming pool and other high corrosion applications. A wide variety of types are available to suit most applications from the normal Jam Nuts, hex full nuts and thin nuts (lock Nuts) through to various self locking types(Nylon Insert or All-Metal) to help combat loosening due to vibration.
Thread forms available include Metric Coarse, Metric Fine, Metric Left Hand Thread. Some Imperial items are also available in UNC, UNF, BSF, BSW and BA subject to availbility. Material grades for Metric and UNC threaded Jam Nuts are A2(304) A4 (316). Some UNF may also be available in A4 (316). BSF, BSW and BA are mainly A2 (304). We carry Jam Nuts in grade 2, 5, and 8 as well as exotic materials such as Inconel and Monel.
MD Exports LLP also supply a wide range of quality Stainless Steel Jam Nuts including SS Nyloc Nuts, SS Locking Nuts, SS Coupling Nuts, Stainless Steel M10 Nuts, Stainless Steel Jam Nuts, Thin Nuts Stainless Steel, 12-Point Stainless Steel Nuts, Stainless Steel Hex Nuts, Stainless Steel T Nuts, Stainless Steel Tee Nuts, Stainless Steel Wing Nuts, Stainless Steel Lock Nuts, Stainless Steel Self Locking Nuts, Stainless Steel Acorn Nuts, Stainless Steel Dome Nuts, Stainless Steel Flange Nuts, Stainless Steel Cap Nuts, Stainless Steel Square Nuts, Stainless Steel Castle Nuts, Stainless Steel Insert Nuts, Stainless Steel Lug Nuts, Stainless Steel Wheel Nuts, Stainless Steel Nylon Lock Nuts, Stainless Steel Security Nuts, Stainless Steel Rivet Nuts, Stainless Steel Metric Nuts, Stainless Steel Sleeve Nuts, Stainless Steel Captive Nuts, Stainless Steel Nyloc Nuts, ASTM A194 Hex Nuts, SS Tee Nuts, SS Flange Nuts and SS Barrel Nuts.
We produces critical application, high integrity Jam Nuts to ASTM, ASME, DIN, ISO, SAE, and ANSI or to your company specifications and drawings.

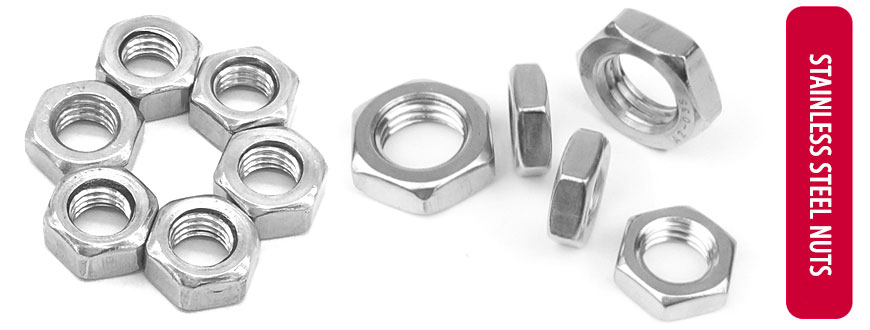

Stainless Steel Jam Nuts
Stainless Steel Hex Jam Nuts Suppliers in India | Learn More About hex jam nuts dimensions, heavy hex jam nuts, metric hex jam nuts, hex jam nut grade 8, hex jam nut grade 5, hex jam nut grades, heavy hex jam nut galvanized
316 stainless steel fastener properties, 316 stainless steel fastener strength, 316 stainless steel nuts and bolts, type 316 stainless steel fasteners, 316 stainless steel metric fasteners, 316 stainless steel coupling nuts, 316 stainless steel weld nuts, 316 stainless steel wing nuts, 316 stainless steel eye nuts, 316 stainless steel hex nuts
heavy hex jam nuts dimensions, slotted hex jam nut dimensions, metric heavy hex jam nut dimensions, hex jam nut español, hex jam nut grade 8, hex jam nut grade 5, hex jam nut grades, heavy hex jam nut galvanized, hex jam nut heavy, hex jam lock nut, hex jam nut metric, hex jam nut manufacturers, heavy hex jam nut metric, heavy hex jam nut metric dimensions, hex jam nut sizes, hex jam nut standard, hex jam nut specification, hex jam nut vs hex nut, hex jam nut 3/8-16, 1-14 hex jam nut
ASTM A193 / A194 Stainless Steel Jam Nuts Specification
| Product name | Stainless Steel Jam Nuts |
|---|---|
| Place of Origin | India |
| Stainless Steel Jam Nuts Size | M2-M60, UNC:1/4”-4” |
| Stainless Steel Jam Nuts Length | 6mm-500mm |
| Specialized manufacturer of | Din934 Hex nut, DIN6923 Flange hex nut, DIN985 Nylon lock nut, DIN1587 Cup nut, DIN315 Wing nut, Main products are Stainless steel bolts and nuts, SS 304 bolts and nuts, 304 Nuts and bolts, 304 bolt nut, 304 nut bolt, 316 Bolts and nuts, 316 hex nuts, 316S31 bolts and nuts. |
| Standard | DIN934 DIN936 DIN439 DIN555 A194 2H ASTM A563 |
| Grade | 4, 8, 10, AISI 2, AISI 5, AISI 8 |
| Stainless Steel Jam Nuts Application | Wind tower, Nuclear power, Railway, Automotive industry, Construction, Electronic industry |
| Stainless Steel Jam Nuts Material | 18-8 Stainless Steel, Stainless steel 201, stainless steel ss 304/ SS316 A2/A4, SS201, SS303, SS304, SS316, SS316L, SS904L, A2-70; A4-70; A4-80 |
| Thread Requirements | ASME B1.1, UNC & UNF, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge) |
| Finish | Per ASTM A380/A380M |
| Finishing | Zinc Plated (Yellow, White, Blue, Black), Hop Dip Galvanized (HDG) phosphorization, Black Oxide, Geomet, Dacroment, anodization, Nickel plated, Zinc-Nickel plated, Brass Plated, Tin Plated, Black Plated, Copper Plated, Gold Plated, Salt fog test |
| Stock Products | Stainless steel: All DIN, GB Standard and part ASNI standard stainless steel Jam Nuts, Example: ISO7380, DIN7981, DIN7982, DIN916, DIN913, DIN7985, DIN912 |
| Production technology | Cold Forged |
| Manufacturing Process | Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing |
| MOQ | 10 pieces |
| Delivery time | Regular product is about 7-15 days, custom product will according to special requirement |
| Others | OEM, ODM, ±0.03MM tolerance |
| Surface treatment of stainless steel Jam Nuts |
|
| Jam Nuts Specifications |
|
| Coatings | Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request |
| Tolerance of stainless steel Jam Nuts | +/-0.01mm to +/-0.05mm |
| Samples | Yes |
| Production Capacity | 2,700,000 pieces per month |
| Payment Terms | T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping |
| Specialized in | SS Hex Finished Nuts ~ Hex Jam Nuts ~ Heavy Hex Nut ~ Hex Machine Screw Nuts ~ Stainless Steel Lock Nuts ~ Nylon Insert Lock Nuts ~ Serrated Flange Lock Nuts ~ Acorn Nuts ~ Cap Nuts Stainless Steel ~ T Nuts ~ Hex Rod Coupling Nuts ~ Wing Nuts ~ Square Nuts |
You might be interested in related types of Stainless Steel Jam Nuts
Stainless Steel Jam Nuts grades:
All stainless steel Jam Nuts provide an attractive finish for exposed threads. SS Jam Nuts is available, also in 316 grade stainless steel & stainless steel grade 304. Buy from SS Nut Bolt manufacturer in Mumbai. Before you buy compare our quality & SS Nut Bolt Price List.
- 18-8 Stainless Steel Jam Nuts
- 410 Stainless Steel Jam Nuts
- 304 Stainless Steel Jam Nuts
- 304L Stainless Steel Jam Nuts
- 304H Stainless Steel Jam Nuts
- 310 Stainless Steel Jam Nuts
- 316 Stainless Steel Jam Nuts
- 316H Stainless Steel Jam Nuts
- 316L Stainless Steel Jam Nuts
- 317 Stainless Steel Jam Nuts
- 317L Stainless Steel Jam Nuts
- 321 Stainless Steel Jam Nuts
- 347 Stainless Steel Jam Nuts
- 904L Stainless Steel Jam Nuts
- Stainless Steel 316 Marine Grade Jam Nuts
Stainless Steel Jam Nuts Dimensions
Dimensions for Stainless steel Jam Nuts
Dimensions of Hex Jam Nuts
| Hex Jam Nuts | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Nominal or Basic Major Diameter of Thread |
F | G | H1 | ||||||
| Width Across Flats | Width Across Corners | Thickness | |||||||
| Basic | Max | Min | Max | Min | Basic | Max | Min | ||
| 1/4 | 0.2500 | 7/16 | 0.438 | 0.428 | 0.505 | 0.488 | 5/32 | 0.163 | 0.150 |
| 5/16 | 0.3125 | 1/2 | 0.500 | 0.489 | 0.577 | 0.557 | 3/16 | 0.195 | 0.180 |
| 3/8 | 0.3750 | 9/16 | 0.562 | 0.551 | 0.650 | 0.628 | 7/32 | 0.227 | 0.210 |
| 7/16 | 0.4375 | 11/16 | 0.688 | 0.675 | 0.794 | 0.768 | 1/4 | 0.260 | 0.240 |
| 1/2 | 0.5000 | 3/4 | 0.750 | 0.736 | 0.866 | 0.840 | 5/16 | 0.323 | 0.302 |
| 9/16 | 0.5625 | 7/8 | 0.845 | 0.861 | 1.010 | 0.982 | 5/16 | 0.324 | 0.301 |
| 5/8 | 0.6250 | 15/16 | 0.938 | 0.922 | 1.083 | 1.051 | 3/8 | 0.387 | 0.363 |
| 3/4 | 0.7500 | 1-1/8 | 1.125 | 1.088 | 1.299 | 1.240 | 27/64 | 0.880 | 0.808 |
| 7/8 | 0.8750 | 1-5/16 | 1.312 | 1.269 | 1.516 | 1.447 | 31/64 | 0.510 | 0.458 |
| 1″ | 1.0000 | 1-1/2 | 1.500 | 1.450 | 1.732 | 1.653 | 35/64 | 0.575 | 0.519 |
| 1-1/8 | 1.1250 | 1-11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 39/64 | 0.639 | 0.579 |
| 1-1/4 | 1.2500 | 1-7/8 | 1.875 | 1.812 | 2.165 | 2.066 | 23/32 | 0.751 | 0.687 |
| 1-3/8 | 1.3750 | 2-1/16 | 2.062 | 1.994 | 2.382 | 2.273 | 25/32 | 0.815 | 0.747 |
| 1-1/2 | 1.5000 | 2-1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 27/32 | 0.880 | 0.808 |
| 1-3/4 | 1.7500 | 2-5/8 | 2.625 | 2.538 | 3.031 | 2.893 | 31/32 | 1.009 | 0.929 |
| 2″ | 2.0000 | 3″ | 3.000 | 2.900 | 3.464 | 3.306 | 1-3/32 | 1.138 | 1.050 |

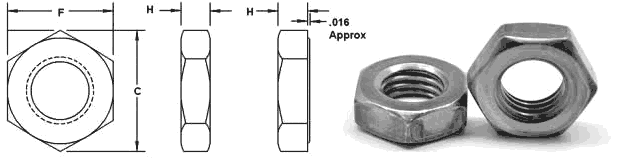

Heavy hex jam nuts dimensions
| Nominal Size | F | C | H | |||||
|---|---|---|---|---|---|---|---|---|
| Width Across Flats | Width Across Corners | Thickness | ||||||
| Basic | Max | Min | Max | Min | Basic | Max | Min | |
| 3⁄8 | 11⁄16 | 0.688 | 0.669 | 0.794 | 0.763 | 15⁄64 | 0.252 | 0.216 |
| 1⁄2 | 7⁄8 | 0.875 | 0.850 | 1.010 | 0.969 | 19⁄64 | 0.317 | 0.277 |
| 5⁄8 | 11⁄16 | 1.062 | 1.031 | 1.227 | 1.175 | 23⁄64 | 0.381 | 0.337 |
| 3⁄4 | 11⁄4 | 1.250 | 1.212 | 1.443 | 1.382 | 27⁄64 | 0.446 | 0.398 |
| 7⁄8 | 17⁄16 | 1.438 | 1.394 | 1.660 | 1.589 | 31⁄64 | 0.510 | 0.458 |
| 1 | 15⁄8 | 1.625 | 1.575 | 1.876 | 1.796 | 35⁄64 | 0.575 | 0.519 |
| 11⁄8 | 113⁄16 | 1.812 | 1.756 | 2.093 | 2.002 | 39⁄64 | 0.639 | 0.579 |
| 11⁄4 | 2 | 2.000 | 1.938 | 2.309 | 2.209 | 23⁄32 | 0.751 | 0.687 |
| 13⁄8 | 213⁄16 | 2.188 | 2.119 | 2.526 | 2.416 | 25⁄32 | 0.815 | 0.747 |
| 11⁄2 | 23⁄8 | 2.375 | 2.300 | 2.742 | 2.622 | 27⁄32 | 0.880 | 0.808 |
| 15⁄8 | 29⁄16 | 2.562 | 2.481 | 2.959 | 2.828 | 29⁄32 | 0.944 | 0.868 |
| 13⁄4 | 23⁄4 | 2.750 | 2.662 | 3.175 | 3.035 | 31⁄32 | 1.009 | 0.929 |
| 17⁄8 | 215⁄16 | 2.938 | 2.844 | 3.392 | 3.242 | 11⁄32 | 1.073 | 0.989 |
| 2 | 31⁄8 | 3.125 | 3.025 | 3.608 | 3.449 | 13⁄32 | 1.138 | 1.050 |
| 21⁄4 | 31⁄2 | 3.500 | 3.388 | 4.041 | 3.862 | 113⁄64 | 1.251 | 1.155 |
| 21⁄2 | 37⁄8 | 3.875 | 3.750 | 4.474 | 4.275 | 129⁄64 | 1.505 | 1.401 |
| 23⁄4 | 41⁄4 | 4.250 | 4.112 | 4.907 | 4.688 | 137⁄64 | 1.634 | 1.522 |
| 3 | 45⁄8 | 4.625 | 4.475 | 5.340 | 5.102 | 145⁄64 | 1.763 | 1.643 |
| 31⁄4 | 5 | 5.000 | 4.838 | 5.774 | 5.515 | 113⁄16 | 1.876 | 1.748 |
| 31⁄2 | 53⁄8 | 5.375 | 5.200 | 6.207 | 5.928 | 115⁄16 | 2.006 | 1.870 |
| 33⁄4 | 53⁄4 | 5.750 | 5.562 | 6.640 | 6.341 | 21⁄16 | 2.134 | 1.990 |
| 4 | 61⁄8 | 6.125 | 5.925 | 7.073 | 6.755 | 23⁄16 | 2.264 | 2.112 |
|
Dimensions per ASME B18.2.2 1987 (R 1999) |
||||||||
Check Stainless Steel Jam Nuts Dimensions full Catalog
| Standard Dimension | Description | Size | Threads | Finish | Material Grade |
|---|---|---|---|---|---|
| ISO 4032 | Jam Nuts | M-16 to M-100 | MM | Bright | SS 304, SS 316, SS 316L, 316S31 |
| DIN 934 | Jam Nuts | M-16 to M-100 | MM | Bright | SS 304, SS 316, SS 316L, 316S31 |
| ANSI B18.2.2 | Jam Nuts | 5/8″ to 4″ | Unc | Bright | ASTM A-194 8 , 8M, 8T |
| BS 1083 | Jam Nuts | 5/8″ to 4″ | BSW | Bright | ASTM A-194 8 , 8M, 8T |
| Fastener Type | Diameter | Grades | Grades | Grades | Grades |
|---|---|---|---|---|---|
| Hex nuts | M-30 to M-72 | 304 / 304 L | 316 / 316 L | 310 / 310 S | 410 / 431 |
| Hex lock nuts | M-30 to M-72 | 304 / 304 L | 316 / 316 L | 310 / 310 S | 410 / 431 |
| Hex nylock nuts | M-30 to M-64 | 304 / 304 L | 316 / 316 L | 310 / 310 S | 410 / 431 |
| Hex castle nuts | M-12 to M-72 | 304 / 304 L | 316 / 316 L | 310 / 310 S | 410 / 431 |
| Heavy hex nuts | M-12 to M-72 | 304 / 304 L | 316 / 316 L | 310 / 310 S | 410 / 431 |
* Comparison chart for international steel grades for stainless steel Jam Nuts
| Type | Grades | European Number | ASTM grade | UNS | British standard | DIN |
|---|---|---|---|---|---|---|
| SS Jam Nuts | 304 | 1.4301 | ASTM A 193 Gr B8 | S 30400 | BS 970 | X 5CrNi1810 |
| SS Jam Nuts | 304 L | 1.4306 | ASTM A 320 Ge B8 | S 30403 | BS 970 | X 2CrNi1911 |
| SS Jam Nuts | 316 | 1.4401 | ASTM A 193 Gr B8M | S 31600 | BS 970 | X 5 CrNiMo 17 13 2 |
| SS Jam Nuts | 316 L | 1.4404 | ASTM A 320 Ge B8M | S 31603 | BS 970 | X 2 CrNiMo 17 13 2 |
| SS Jam Nuts | 310 | 1.4841 | ASTM A 479 | S 31000 | BS 970 | X 12 CrNi 25 21 |
| SS Jam Nuts | 310 S | 1.4845 | S 31008 | BS 970 | X 12 CrNi 25 21 | |
| SS Jam Nuts | 410 | 1.4006 | S 41000 | BS 970 | X 10Cr13 | |
| SS Jam Nuts | 431 | 1.4057 | S 43100 | BS 970 | X 20CrNi172 | |
| SS Jam Nuts | 316S31 | 1.4401 | ASTM A 193 Gr B8M | S 31600 | BS 970 | X 5 CrNiMo 17 12 2 |
Alloy Steel Jam Nuts
| Standard Dimension | Description | Size | Threads | Finish | Material Grade |
|---|---|---|---|---|---|
| ISO 4032 | Jam Nuts | M-16 to M-100 | MM | Plain / Zinc plated / HDG / Teflon / PTFE / Zinc aluminum flake / Geomet | 10, 12 |
| DIN 934 | Jam Nuts | M-16 to M-100 | MM | Plain / Zinc plated / HDG / Teflon / PTFE / Zinc aluminum flake / Geomet | 10, 12 |
| ANSI B18.2.2 | Jam Nuts | 5/8″ to 4″ | Unc | Plain / Zinc plated / HDG / Teflon / PTFE / Zinc aluminum flake / Geomet | ASTM A-194 4 , L4, 7 , 7M |
| BS 1083 | Jam Nuts | 5/8″ to 4″ | BSW | Plain / Zinc plated / HDG / Teflon / PTFE / Zinc aluminum flake / Geomet | ASTM A-194 4 , L4, 7 , 7M |
| Standard / Material grade | C | MN | P | S | Si | CR | MO |
|---|---|---|---|---|---|---|---|
| ASTM A193 B7 (Cr- Mo AISI 4140,4142,4145 ) | 0.37-0.49 | 0.65-1.10 | 0.035 Max | 0.04 Max | 0.15-0.35 | 30.75-1.20 | 0.15-0.25 |
| ASTM A1193 B7M (Cr- Mo AISI 4140,4142,4145 ) | 0.37-0.49 | 0.65-1.10 | 0.035 Max | 0.04 Max | 0.15-0.35 | 30.75-1.20 | 0.15-0.25 |
| ASTM A193 B16 (Cr- Mo -V ) | 0.36-0.47 | 0.45-0.70 | 0.035 Max | 0.04 Max | 0.15-0.35 | 0.80-1.15 | 0.50-0.65 |
| ASTM A193 B5 (5% Cr AISI 501) | 0.10 max | 1.00 max | 0.040 max | 0.030 Max | 1.00 Max | 0.40 -6.00 | 0.40 -0.65 |
| ASTM A320-L7 (Cr- Mo AISI 4140,4142,4145 ) | 0.38-0.48 | 0.75-1.00 | 0.035 Max | 0.04 Max | 0.15-0.35 | 0.80-1.10 | 0.15-0.25 |
| ASTM A 320 L7M | 0.38-0.48 | 0.75-1.00 | 0.035 Max | 0.04 Max | 0.15-0.35 | 0.80-1.10 | 0.15-0.25 |
| ASTM A194 Gr.2H | 0.40 Min | 1.00 Max | 0.040 Max | 0.050 Max | 0.40 Max | – | – |
| ASTM A194 Gr.2HM | 0.40 Min | 1.00 Max | 0.040 Max | 0.050 Max | 0.40 Max | – | – |
| ASTM A194 Gr.4 | 0.40-0.50 | 0.70-0.90 | 0.035 Max | 0.04 Max | 0.15 – 0.35 | 0.20 – 0.30 | 0.15-0.25 |
Carbon Steel Jam Nuts
| Standard Dimension | Description | Size | Threads | Finish | Material Grade |
|---|---|---|---|---|---|
| ISO 4032 | Jam Nuts | M-16 to M-100 | MM | Plain / Zinc plated / HDG | 4.6, 5.6, 6.6, 8.8 |
| DIN 934 | Jam Nuts | M-16 to M-100 | MM | Plain / Zinc plated / HDG | 4.6, 5.6, 6.6, 8.8 |
| ANSI B18.2.2 | Jam Nuts | 5/8″ to 4″ | Unc | Plain / Zinc plated / HDG | S, R, T |
| BS 1083 | Jam Nuts | 5/8″ to 4″ | BSW | Plain / Zinc plated / HDG | A, B, C |
High Tensile Jam Nuts | Jam Nuts Grades | Jam Nuts Dimensions | Jam Nuts Manufacturers | Jam Nuts Suppliers
| Standard / Material grade | C | MN | P | S |
|---|---|---|---|---|
| A 307 Grade B | 0.29 | 1.2 | 0.04 | 0.15 |
| 4.6 | 0.55 max | – | 0.05 | 0.06 |
| 5.6 | 0.13-0.55 | – | 0.05 | 0.06 |
| 6.8 | 0.15-0.55 | – | 0.05 | 0.06 |
| 8.8 | 0.25-0.55 | – | 0.05 | 0.06 |
Carbon steel grades of steel are generally used in manufacturing low carbon steel Jam Nuts mentioned above in the above standards, gradesupto 6.8 are in non heat treated condition whereas Jam Nuts from 8.8 and above are heat treated to provide them with extra strength. We produce and export over 200 tons of high tensile Jam Nuts to middle east and Europe.
Duplex Steel Jam Nuts
| Standard Dimension | Description | Size | Threads | Finish | Material Grade |
|---|---|---|---|---|---|
| ISO 4032 | Jam Nuts | M-16 to M-100 | MM | Bright | S32205 , S31803 |
| DIN 934 | Jam Nuts | M-16 to M-100 | MM | Bright | S32205 , S31803 |
| ANSI B18.2.2 | Jam Nuts | 5/8″ to 4″ | Unc | Bright | S32205 , S31803 |
| BS 1083 | Jam Nuts | 5/8″ to 4″ | BSW | Bright | S32205 , S31803 |
SS Jam Nuts Weight Chart
| Size | Finished Hex | Heavy Hex | Finished Jam | Heavy Hex Jam | Square | Heavy Square |
|---|---|---|---|---|---|---|
| 1/2″ | 3.750 | 6.540 | 2.620 | 4.000 | 5.780 | 7.870 |
| 5/8″ | 7.330 | 11.900 | 4.930 | 6.960 | 10.800 | 14.300 |
| 3/4″ | 11.900 | 19.300 | 7.700 | 11.000 | 15.400 | 23.500 |
| 7/8″ | 19.000 | 29.700 | 12.000 | 16.700 | 24.500 | 36.200 |
| 1″ | 28.300 | 42.500 | 17.600 | 23.500 | 36.300 | 51.500 |
| 1-1/8″ | 40.300 | 59.200 | 24.700 | 32.400 | 52.500 | 72.400 |
| 1-1/4″ | 54.300 | 78.600 | 36.100 | 45.800 | 70.600 | 95.500 |
| 1-3/8″ | 73.000 | 102.000 | 47.900 | 59.300 | 94.500 | 125.000 |
| 1-1/2″ | 94.300 | 131.000 | 60.900 | 74.800 | 122.000 | 161.000 |
| 1-5/8″ | 162.000 | 91.600 | ||||
| 1-3/4″ | 151.000 | 204.000 | 100.000 | 114.000 | ||
| 1-7/8″ | 241.000 | 134.000 | ||||
| 2″ | 224.000 | 299.000 | 140.000 | 165.000 | ||
| 2-1/4″ | 419.000 | 227.000 | ||||
| 2-1/2″ | 564.000 | 332.000 | ||||
| 2-3/4″ | 738.000 | 429.000 | ||||
| 3″ | 950.000 | 545.000 | ||||
| 3-1/4″ | 1194.000 | 651.000 | ||||
| 3-1/2″ | 1526.000 | 851.000 | ||||
| 3-3/4″ | 1812.000 | 1005.000 | ||||
| 4″ | 2180.000 | 1200.000 |
Stainless Steel Jam Nuts Price List
Stainless Steel Jam Nuts Price List, Stainless Steel Jam Nuts Prices, Stainless Steel Jam Nuts Price, Stainless Steel Jam Nuts Price List, Stainless Steel Jam Nuts Price 2018, Stainless Steel Jam Nuts Price in India, SS Jam Nuts Price India, we offer best price of 18-8 Stainless Steel Jam Nuts & 316 Stainless Steel Jam Nuts
- Super Quality Durable Using Various stainless/carbon steel /copper/brass pipe fifting Hex Jam Nut
Price: US $0.13-0.5 / Pieces
500 Pieces (Min. Order) - DIN934 hex stainless steel jam nut
Price: US $0.01-0.5 / Piece
Custom stainless steel thin hex jam nut
Price: US $600-1500 / Ton
2000 Kilograms (Min. Order) - A2 Stainless Steel 304 self locking jam nut
Price: US $0.02-0.05 / Piece
20000 Pieces (Min. Order) - No China supplier stainless steel wheel hex jam nut
Price: US $0.01-1 / Piece
500 Pieces (Min. Order) - High quality stainless steel 304 M32 jam A2-70 a194 2h heavy hex nut
Price: US $0.001-0.5 / Piece
0.5 Metric Tons (Min. Order) - Made in Taiwan Metric Coarse Aluminum Stainless Steel Jam Zinc Plated Nylon Insert Lock Nut
Price: US $0.01-0.1 / Unit
10000 Units (Min. Order) - Hot sale stainless steel A2 grade hex jam nut
Customs Data
Price: US $0.001-0.1 / Piece
5000 Pieces (Min. Order) - Black Oxide Carbon Steel m20 Hex Nut,stainless steel hex jam nut DIN934,stainless steel hex nut a4 70
Price: US $0.15-0.17 / Piece
1000 Pieces (Min. Order) - High quality stainless steel 304 M32 jam A2-70 a194 2h heavy hex nut
Price: US $560-820 / Ton
2 Tons (Min. Order) - m20 jam a2-70 hex thin nut/zinc plated nut/din934 in nut
Price: US $0.001-1 / Piece
1000 Pieces (Min. Order) - K Manufacturer 304ss Din934k Hex Kep Jam Din1587 Stainless Steel Cap M6 Lifting Square Din985 Nylon Weld Nut Plain
Price: US $0.001-10 / Piece
1000000 Pieces (Min. Order) - Complete specifications t slot nylon nut
Customs Data
Price: US $900-1400 / Ton
1 Ton (Min. Order) - High quality Rosh zinc plated stainless steel hex thin nut
Price: US $0.02-0.2 / Piece
500 Pieces (Min. Order) - Zinc plated/ plain DIN439 grade 6 hex head jam nut
Price: US $0.5-5 / Piece
100 Pieces (Min. Order) - Stainless Steel Nylon Insert Jam Nut
Price: US $0.001-0.003 / Piece
10000 Pieces (Min. Order) - 304 stainless steel hexagon jam nut No China
Price: US $0.002-0.91 / Piece
800 Pieces (Min. Order) - carbon steel stainless steel grade 8.8 Hex jam nut
Price: US $350-500 / Ton
1 Ton (Min. Order) - DIN439 stainless steel chamfered hex head thin nut jam nut
Price: US $0.01-0.1 / Piece
1000 Pieces (Min. Order) - No china precision stainless steel jam nut supplier
Price: US $0.0005-0.1 / Piece
10000 Pieces (Min. Order) - High quality stainless steel 304 jam A4-80 a194 2h heavy hex nut
Price: US $0.001-0.01 / Piece
1 Ton (Min. Order) - customized brass stainless steel hex thin nut hex jam nut
Price: US $0.01-0.3 / Piece
1000 Pieces (Min. Order) - No China Fasteners stainless steel jam nut
Price: US $0.01-0.9 / Piece
3000 Pieces (Min. Order) - High quality stainless steel 304 M32 jam A2-70 a194 2h heavy hex nut / Long Nut Hex Nuts DIN934 High Quality
Price: US $550.0 / Pieces
10 Pieces (Min. Order) - M2 M2.5 M5 SS304 SS316 stainless steel A2-70 square jam nut DIN562
Price: US $0.015-0.25 / Piece
500 Pieces (Min. Order) - Wholesale Hardware Stainless Steel 304 316 Heavy Hex Jam Nut
Price: US $0.0126-0.1 / Piece
1 Piece (Min. Order) - custom made cnc machining brass/stainless steel long hex jam coupling nut
Price: US $0.01-0.45 / Piece
100 Pieces (Min. Order) - High Quality Stainless Steel 304 M32 Jam A2-70 A194 2H Heavy Hex Nut
Price: US $690-850 / Ton
2 Tons (Min. Order) - Zhejiang Jiaxing Haiyan nut manufacturer in India for stainless steel hex jam nut DIN439 DIN936
Price: US $0.02-0.2 / Piece
10000 Pieces (Min. Order) - hardware manufacture stainless steel hex slot nut castle jam nut DIN935
Price: US $0.01-1 / Piece
500 Pieces (Min. Order) - Stainless Steel Hex Jam Nut
Price: US $0.03-3.8 / Piece
1 Piece (Min. Order) - popular sale stainless steel hex nut hex jam nut
Price: US $0.001-0.0825 / Piece
500 Pieces (Min. Order) - Stainless steel M6 hex jam nut
Price: US $0.001-0.5 / Piece
1000 Pieces (Min. Order) - High quality stainless steel 304 M32 jam A2-70 a194 2h heavy hex nut
Price: US $0.01-1 / Piece
1 Piece (Min. Order) - In stock DIN936 stainless steel hex jam nut
Price: US $0.1-0.2 / Piece
1000 Pieces (Min. Order) - stainless steel hex jam nut DIN934
Price: US $0.01-0.02 / Pieces
1000 Pieces (Min. Order) - Custom stainless steel thin hex jam nut
Price: US $600-1500 / Ton
2000 Kilograms (Min. Order) - Hex Thin Nuts, Jam Nut M16 Stainless Steel 50 Pcs
No China High quality stainless steel 304 M32 jam A2-70 a194 2h heavy hex nut
Price: US $1400-1600 / Kilogram
500 Kilograms (Min. Order) - ANSI/ASME Hexagon Jam Fixing Nut 1/4~3/4 Stainless Steel
Price: US $0.001-0.010 / Piece
1000 Pieces (Min. Order)
Stainless Steel Jam Nuts For Sale
We have more than 18,000 products in stock. Order by the piece, bag or in bulk.
Stainless Steel Jam Nuts Inventory
SS Nut Bolt Inventory
SS Nut Bolt Ready Stock
- 10% Discount on:
- SS 310 Jam Nuts
- SS 202 Jam Nuts
- SS 347 Jam Nuts
- SS 321 Jam Nuts
- SS 321H Jam Nuts
Stainless Steel Nut Bolt Stock List
Stainless Steel Nuts DIN Grades available in our Mumbai Factory
- DIN 315 – Wing Nuts
- DIN 439 A – Hexagon Nuts – 0,5d Unchamfered
- DIN 439 B – Hexagon Nuts – 0,5d Chamfered
- DIN 466 – Knurled Nuts, Full
- DIN 467 – Flat Knurled Nuts
- DIN 431 – Jam Nut, Hexagonal
- DIN 525 – Weld Studs With Hexagon Nuts
- DIN 529 C – Masonry Bolts With Hexagon Nuts
- DIN 529 E – Foundation Bolts With Hexagon Nuts
- Din 546 – Slotted Round Nut
- DIN 547 – Round nuts with drilled holes in one face
- DIN 548 – Round nuts with set pin holes in side
- DIN 555 – Hexagon Nuts – 0,8d
- DIN 557 – Square Nuts
- DIN 562 – Square Thin Nuts
- DIN 582 – Lifting Eye Nuts
- DIN 601- Hexagon head bolt with nut
- DIN 603 Mu – Carriage Bolts With Hexagon Nuts
- DIN 604 – Flat Countersunk Nip Bolts With Hex Nuts
- DIN 607 – Round Head Nip Bolts With Nuts
- DIN 917 – Hexagon Cup Nuts – Low Pattern
- DIN 928 – Square Weld Nuts
- DIN 929 – Hexagon Weld Nuts
Stainless Steel Jam Nuts
- DIN 934 – Hexagon Nuts – 0,8d
- DIN 935 – Castle Nuts
- DIN 936 – Hexagon Jam Nuts
- DIN 937 – Hexagon Thin Slotted And Castle Nuts
- DIN 980 V – Self-Locking Nuts; All Metal Conctruction
- DIN 982 – Self- Locking Nuts w/nylon Insert: Heavy Series
- DIN 985 – Self Locking Nuts w/locking Insert: Standard Series
- DIN 986 – Self Locking Domed Cap Nuts With Nylon Insert
- DIN 1587 – Hexagon Domed Cap Nuts, Full Pattern
- DIN 1804 w – Slotted Round Nuts
- DIN 6334 – Hexagon Nuts – 3d
- DIN 6915 – Hex Nuts For High Strength Struc. Bolting
- DIN 6923 – Hexagonal Flange Nuts
- DIN 6924 Prevailing torque type hexagon nut with nylon insert ISO 7040
- DIN 6925 – Prevailing torque type hexagon nut all metal
- DIN 6926 – Self-Locking Hex Flange Nuts: Non Metallic Insert
- DIN EN 1663 – Prevailing torque type hexagon nuts with flange with non-metallic insert
- DIN 7968 – Hexagon fit bolts with hexagon nut for steel structures
- DIN 7969 – Slotted countersunk head bolts with hexagon nut for steel structures
Packing of Stainless Steel Jam Nuts
We export these Stainless Steel Jam Nuts globally such as Peru, United States, Philippines, Canada, United Kingdom, United Arab Emirates, Singapore, Malaysia, Saudi Arabia, Indonesia, Thailand, Pakistan, Qatar, Australia, South Korea, South Africa, Iran, Turkey, Italy, Germany, Oman, Taiwan, Nigeria, Vietnam, Egypt, Mexico, Spain, Bahrain, Kuwait, Hong Kong, Netherlands, Bangladesh, Israel, Poland, Brazil, Norway, Sri Lanka, New Zealand, France, Finland, Romania, Denmark, Japan, Belgium, Russia, Kenya, Ireland, Greece, Portugal, Hungary, Serbia, Croatia, Bulgaria, Venezuela, Lithuania, Myanmar (Burma), Colombia, Azerbaijan, Iraq, Brunei, Laos, Cambodia, China, Czech Republic, Algeria, Chile and Croatia.
We have a wide network in India & overseas to supply urgent delivery of SS Jam Nuts including Mumbai, Courbevoie, Faridabad, Chiyoda, Bangkok, Perth, Sharjah, Ahvaz, Ankara, Nashik, Petaling Jaya, Rajkot, Jakarta, Seoul, Al Khobar, Madrid, Calgary, Santiago, Lahore, Cairo, Gurgaon, Noida, Surat, Visakhapatnam, Navi Mumbai, Brisbane, Lagos, Karachi, Port-of-Spain, Thane, Houston, New Delhi, Ho Chi Minh City, Kolkata, Ernakulam, La Victoria, Dubai, Abu Dhabi, Melbourne, Sydney, Caracas, Doha, Vung Tau, Dammam, Kuala Lumpur, Geoje-si, Ludhiana, Secunderabad, Hong Kong, Mumbai, Milan, Bogota, Indore, Montreal, Toronto, Vadodara, Hyderabad, Nagpur, Thiruvananthapuram, Coimbatore, Kuwait City, Manama, Los Angeles, Pune, Bengaluru, Dallas, Mexico City, Kanpur, Jaipur, Aberdeen, Jamshedpur, Bhopal, Jeddah, Hanoi, Riyadh, Baroda, Chennai, Ahmedabad, Ranchi, Algiers, Moscow, Granada, Busan, New York, Rio de Janeiro, Singapore, Edmonton, Al Jubail, London, Chandigarh, Colombo, Howrah, Ulsan, Atyrau, Pimpri-Chinchwad, Muscat, Haryana, Istanbul, Gimhae-si & Tehran.
