ASTM A194 Grade 8 Fasteners
ASTM A194 Grade 8 Heavy Hex Nuts Manufacturer, ASTM A194 Nuts
ASME SA 194 Grade 8 Nuts, GR.8 Square Nuts, SS Astm A194 Nut, Astm A194 GR.8 Nuts , ASTM A194 GR.8 Stainless Steel Nuts exporter in India, Astm A194 GR.8 Nylon Insert Nut Dealer in India, Stockholder of Astm A194 GR.8 Hex Nuts, Grade 8 Nuts suppliers
ASTM A194 Grade 8 Heavy Hex Nuts manufacturer & suppliers
- What is ASTM A194 Grade 8 Heavy Hex Nuts ?
- Standard Specification For ASTM A194 Grade 8 Heavy Hex Nuts
- Types Of ASTM A194 Grade 8 Heavy Hex Nuts
- Chemical Composition of Stainless Steel ASTM A194 Grade 8 Heavy Hex Nuts
- SS ASTM A194 Grade 8 Heavy Hex Nuts Mechanical Properties
- Other Types Of ASME SA 193 GR.8 SS Fasteners
- ASTM A194 Grade 8 Heavy Hex Nuts Price
- Export Destinations For Astm A194 GR.8 SS Fasteners

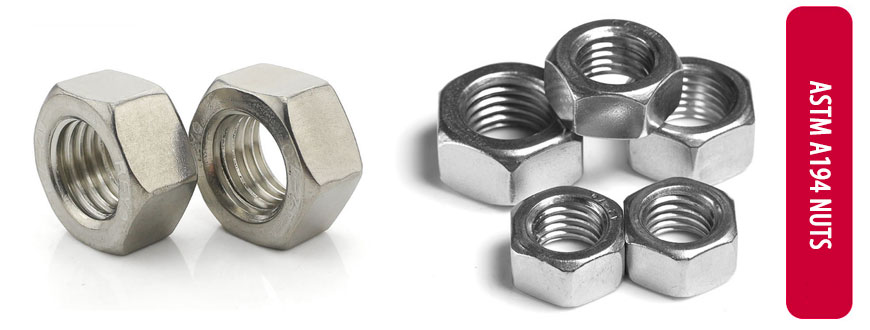

What is ASTM A194 Grade 8 Heavy Hex Nuts ?
The ASTM A194 specification covers carbon, alloy and stainless steel nuts intended for use in high-pressure and/or high-temperature service. Bars from which the nuts are made shall be hot-wrought. The material may be further processed by centerless grinding or by cold drawing. These A194 nuts are produced in the size range 1⁄4 through 4 in. and metric M6 through M100 nominal. ASTM A194 austenitic stainless steel nuts can be available the size range 1⁄4 in. and M6 nominal and above.
Standard Specification For ASTM A194 Grade 8 Heavy Hex Nuts
Standard: ASME/ANSI B18.2.2; DIN439
Size: 1/4”–1-1/2’’; M6 – M42
Material: Carbon Steel, Alloy Steel, Stainless Steel, Brass
Grade: ASTM A563 Gr. DH; SAE J995 Gr.5.8
Thread: M, UNC, UNF
Finish: Plain, Zinc Plated(Clear/Blue/Yellow/Black), Black oxide, Nickel, Chrome, H.D.G.
|
Material
|
Specification
|
Standards
|
Size
|
Length
|
|
ASTM A194 Grade 8 Heavy Hex Nuts
|
IS BS ASTM |
DIN, ISO, JIS, GB, IS, BS, ASTM
|
M 02 to M 160 |
3 mm to 200 mm |
|
Stud Bolt Grade |
ASTM A194 Nuts |
Washers |
|
L7 |
A194 Grade 4 or 7 |
F436 |
|
L43 |
A194 Grade 4 or 7 |
F436 |
|
B8 Class 1 |
A194 Grade 8 |
SS304 |
|
B8M Class 1 |
A194 Grade 8M |
SS316 |
|
B8 Class 2 |
A194 Grade 8 |
SS304 |
|
B8M Class 2 |
A194 Grade 8M |
SS316 |
|
B7 |
A194 Grade 2H |
F436 |
|
B7M |
A194 Grade 2HM |
F436 |
|
B16 |
A194 Grade 4 or Grade 7 |
F436 |
Types Of ASTM A194 Grade 8 Heavy Hex Nuts
Chemical Composition of Stainless Steel ASTM A194 Grade 8 Heavy Hex Nuts
| Element | ASTM A194 GR.8 |
| Carbon | 0.08 max |
| Manganese | 2.00 Max |
| Phosphorus, max | 0.05% |
| Sulfur, max | 0.03% |
| Silicon | 1.00% max |
| Chromium | 18.0-20.0% |
| Nickel | 8.0-11.0% |
| Molybdenum | – |
SS ASTM A194 Grade 8 Heavy Hex Nuts Mechanical Properties
| Tensile Strength/Ultimate Tensile Stress (UTS) – (Mpa) | 550 |
| Yield Strength/Proof Stress(0.2% Offset) (YS) – (Mpa) | 240 |
| Elongation in 4D (El) | 30 |
| Reduction | 40 |
| Hardness – (BHN) | 223 |
A194 Nuts Grades
| ASTM A194 Grade 2 | Carbon steel heavy hex nuts |
|---|---|
| ASTM A194 Grade 2H | Quenched & tempered carbon steel heavy hex nuts |
| ASTM A194 Grade 2HM | Quenched & tempered carbon steel heavy hex nuts, 100% hardness tested |
| ASTM A194 Grade 4 | Quenched & tempered carbon-molybdenum heavy hex nuts (withdrawn in 2017) |
| ASTM A194 Grade 7 | Quenched & tempered alloy steel heavy hex nuts |
| ASTM A194 Grade 7M | Quenched & tempered alloy steel heavy hex nuts, 100% hardness tested |
| ASTM A194 Grade 7L | Quenched & tempered alloy steel heavy hex nuts, Charpy impact tested |
| ASTM A194 Grade 8 | Stainless AISI 304 heavy hex nuts |
| ASTM A194 Grade 8M | Stainless AISI 316 heavy hex nuts |
ASTM A194 Nuts Mechanical Properties
| Nuts Grade Identification Marking 5 | ASTM A194 Nuts Specification | ASTM A194 Nuts Material | Nominal Size, In. | Tempering Temp. °F | Proof Load Stress, ksi | Hardness Rockwell | |
|---|---|---|---|---|---|---|---|
| Min | Max | ||||||
 |
ASTM A194 Grade 2 Nuts | Medium Carbon Steel | 1/4 – 4 | 0 | 150 | 159 | 352 |
 |
ASTM A194 Grade 2H Nuts | Medium Carbon Steel, Quenched and Tempered | 1/4 – 4 | 850 | 175 | C24 | C38 |
 |
ASTM A194 Grade 2HM Nuts | Medium Carbon Steel, Quenched and Tempered | 1/4 – 4 | 1150 | 150 | 159 | 237 |
 |
ASTM A194 Grade 4 Nuts | Medium Carbon Alloy Steel, Quenched and Tempered | 1/4 – 4 | 1100 | 175 | C24 | C38 |
 |
ASTM A194 Grade 7 Nuts | Medium Carbon Alloy Steel, Quenched and Tempered | 1/4 – 4 | 1100 | 175 | C24 | C38 |
 |
ASTM A194 Grade 7M Nuts | Medium Carbon Alloy Steel, Quenched and Tempered | 1/4 – 4 | 1150 | 150 | 159 | 237 |
 |
ASTM A194 Grade 8 Nuts | Stainless AISI 304 | 1/4 – 4 | – | 80 | 126 | 300 |
 |
ASTM A194 Grade 8M Nuts | Stainless AISI 316 | 1/4 – 4 | – | 80 | 126 | 300 |
ASTM A194 Nuts Chemical Properties
| Element | 2, 2H, and 2HM | 4 | 7 and 7M (AISI 4140) | 8 (AISI 304) | 8M (AISI 316) |
|---|---|---|---|---|---|
| Carbon | 0.40% min | 0.40 – 0.50% | 0.37 – 0.49% | 0.08% max | 0.08% max |
| Manganese | 1.00% max | 0.70 – 0.90% | 0.65 – 1.10% | 2.00% max | 2.00% max |
| Phosphorus, max | 0.040% | 0.035% | 0.035% | 0.045% | 0.045% |
| Sulfur, max | 0.050% | 0.040% | 0.040% | 0.030% | 0.030% |
| Silicon | 0.40% max | 0.15 – 0.35% | 0.15 – 0.35% | 1.00% max | 1.00% max |
| Chromium | 0.75 – 1.20% | 18.0 – 20.0% | 16.0 – 18.0% | ||
| Nickel | 8.0 – 11.0% | 10.0 – 14.0% | |||
| Molybdenum | 0.20 – 0.30% | 0.15 – 0.25% | 2.00 – 3.00% |
ASTM A194 Nuts Chemical Requirements
| Grade | Carbon | Manganese | Phosphorous, max | Sulfur, max | Silicon | Chromium | Nickel | Molybdenum | Other Elements |
|---|---|---|---|---|---|---|---|---|---|
| 2, 2H and 2 HM | 0.40% min. | 1.00% max. | 0.04% | 0.05% | 0.40% max | ||||
| 3 | 0.10% min. | 1.00% max. | 0.04% | 0.03% | 1.00% | 4.0-6.0% | 0.20-0.30% | ||
| 4 | 0.40 -0.50% | 0.70-0.90% | 0.035% | 0.04% | 0.15-0.35% | 0.20-0.30% | |||
| 6 | 0.15% | 1.00% | 0.04% | 0.03% | 1.00% | 11.5-13.5% | |||
| 6F | 0.15% | 1.25% | 0.06% | 0.06% | 1.00% | 12.0-14.0% | Selenium-0.15% min | ||
| 7 and 7M (AISI 4140) | 0.37-0.49% | 0.65-1.10% | 0.04% | 0.04% | 0.15-0.035% | 0.75-1.20% | 0.15-0.25% | ||
| 8 (AISI 304) | 0.08% | 2.00% max | 0.05% | 0.03% | 1.00% max | 18.0-20.0% | 8.0-11.0% | ||
| 8M (AISI 316) | 0.08% | 2.00% max | 0.05% | 0.30% | 1.00% max | 16.0-18.0% | 10.0-14.0% | 2.00-3.00% | |
| 8C | 0.08% | 2.00% | 0.045% | 0.03% | 1.00% | 17.0-19.0% | 9.0-12.0% | Columbium and Tantalum – 10x carbon content, min | |
| 8T | 0.80% | 2.00% | 0.045% | 0.30% | 1.00% | 17.0-19.0% | 9.0-12.0% | Titanium-0.70%max, Nitrogen-0.10% | |
| 8F | 0.15% | 2.00% | 0.20% | 0.15%min | 1.00% | 17.0-19.0% | 8.0-10.0% | ||
| 8R | 0.06% | 4.0-6.0% | 0.045% | 0.03% | 1.00% | 20.5-23.5% | 11.5-13.5% | 1.50-3.00% | Columbium and Tantalum-0.10-0.30%, Nirogen-0.20-0.40%, Vanadium-0.10-0.30% |
| 8S | 0.10% | 7.0-9.0% | 0.060% | 0.03% | 3.5-4.5% | 16.0-18.0% | 8.0-9.0% | Nitrogen-0.08-0.18% | |
| 16 | 0.36-0.47% | 0.45-0.70% | 0.035% | 0.40% | 0.15-0.35% | 0.80-1.15% | 0.50-0.65% | Vanadium-0.25-0.35%, Aluminum-0.015% |
Also Find Here
|
|
ASTM A194 GR.8 Nuts Price – Updated 15/02/2018
- M8 Heavy Hexagon Nut – A194 Grade 8 (T304 Stainless Steel)
NUTS/GR8SS/HEX-M8
Price £ 0.60 - M10 Heavy Hexagon Nut – A194 Grade 8 (T304 Stainless Steel)
NUTS/GR8SS/HEX-M10
Price £ 0.72 - M12 Heavy Hexagon Nut – A194 Grade 8 (T304 Stainless Steel)
NUTS/GR8SS/HEX-M12
Price £ 0.96 - M16 Heavy Hexagon Nut – A194 Grade 8 (T304 Stainless Steel)
NUTS/GR8SS/HEX-M16
Price £ 1.18 - M6 Heavy Hexagon Nut – A194 Grade 8 (T304 Stainless Steel)
NUTS/GR8SS/HEX-M6
Price £ 1.22 - M8 Thin Hexagon Nut – A194 Grade 8 (T304 Stainless Steel)
NUTS/GR8SS/THIN-M8
Price £ 1.56 - M20 Heavy Hexagon Nut – A194 Grade 8 (T304 Stainless Steel)
NUTS/GR8SS/HEX-M20
Price £ 2.69 - M24 Heavy Hexagon Nut – A194 Grade 8 (T304 Stainless Steel)
NUTS/GR8SS/HEX-M24
Price £ 3.60
ASTM A194 Nuts Inventory
Export Destinations For Astm A194 GR.8 SS Fasteners
We are Exporter of ASME SA 193 GR.8 Stainless Steel Fasteners including United States, Philippines, Canada, United Kingdom, United Arab Emirates, Singapore, Malaysia, Saudi Arabia, Indonesia, Thailand, Pakistan, Qatar, Australia, South Korea, South Africa, Iran, Turkey, Italy, Germany, Oman, Taiwan, Nigeria, Vietnam, Egypt, Mexico, Spain, Bahrain, Kuwait, Hong Kong, Netherlands, Bangladesh, Israel, Poland, Brazil, Norway, Sri Lanka, New Zealand, France, Finland, Romania, Denmark, Japan, Belgium, Russia, Kenya, Ireland, Greece, Portugal, Hungary, Serbia, Croatia, Bulgaria, Venezuela, Lithuania, Myanmar (Burma), Colombia, Azerbaijan, Iraq, Brunei, Laos, Cambodia, China, Czech Republic, Algeria & many others.
We Are Supplier Of Fasteners In India
We are Suppliers of ASTM A194 Grade 8 Heavy Hex Nuts in India Such as Mumbai, Courbevoie, Faridabad, Chiyoda, Bangkok, Perth, Sharjah, Ahvaz, Ankara, Nashik, Petaling Jaya, Rajkot, Jakarta, Seoul, Al Khobar, Madrid, Calgary, Santiago, Lahore, Cairo, Gurgaon, Noida, Surat, Visakhapatnam, Navi Mumbai, Brisbane, Lagos, Karachi, Port-of-Spain, Thane, Houston, New Delhi, Ho Chi Minh City, Kolkata, Ernakulam, La Victoria, Dubai, Abu Dhabi, Melbourne, Sydney, Caracas, Doha, Vung Tau, Dammam, Kuala Lumpur, Geoje-si, Ludhiana, Secunderabad, Hong Kong, Mumbai, Milan, Bogota, Indore, Montreal, Toronto, Vadodara, Hyderabad, Nagpur, Thiruvananthapuram, Coimbatore, Kuwait City, Manama, Los Angeles, Pune, Bengaluru, Dallas, Mexico City, Kanpur, Jaipur, Aberdeen, Jamshedpur, Bhopal, Jeddah, Hanoi, Riyadh, Baroda, Chennai, Ahmedabad, Ranchi, Algiers, Moscow, Granada, Busan, New York, Rio de Janeiro, Singapore, Edmonton, Al Jubail, London, Chandigarh, Colombo, Howrah, Ulsan, Atyrau, Pimpri-Chinchwad, Muscat, Tehran, Haryana, Istanbul, Gimhae-si.
ASTM A194 GR.8 Heavy Hex Nuts, ASTM A194 GR.8 Hex Nuts distributor, stockholder and supplier in Malaysia, UAE, Iran, Singapore & Saudi Arabia
Contact MD Exports LLP & Forging today for a best offer & competitive quotation Of ASTM A194 Grade 8 Heavy Hex Nuts
