Metric flange bolts

MD Exports LLP — Wed, 28 Feb 2018 11:03:23 +0000

Metric flange bolts
Metric flange bolts Price
Metric flange bolts For Sale

Metric flange bolts

DIN 6921 Hex Flange Bolt Grade 10.9 Flanges and Bolt Dimensions ASME/ANSI B16.5 Metric flange bolts, gr4.8 8.8 hex flanged bolts DIN6921 metric flange bolts

1.Standard: DIN6921, IFI-111
2.Size: M5-M20; 1/4″-3/4″
3.Length: 10mm-300mm
4.Grade: 4.8 8.8 10.9
5.Mark :4.8 8.8 10.9
6.Material: carbon steel or alloy steel

Metric flange bolts

Standard:	ASME B 18.2.1, IFI149, DIN931, DIN933, DIN558, DIN960, DIN961, DIN558, ISO4014 and etc.
Size:	standard & non-standard, spport customized
Material:	Carbon Steel, Alloy Steel, Stainless Steel, Brass and etc.
Grade:	SAE J429 Gr.2, 5,8; ASTM A307 Gr.A, Class 4.8, 5.8, 6.8, 8.8, 10.9, 12.9 and etc.
Thread:	UNC,UNF
Finish:	Plain, Zinc Plated(Clear/ Blue/ Yellow/ Black), Black oxide, Nickel, Chrome, H.D.G and etc.
Packing:	Bulk in cartons (25kg Max.) +wood Pallet or according to customer special demand
Application:	Structural Steel; Metal Buliding; Oil&Gas; Tower&Pole; Wind Energy; Mechanical Machine; Automobile: Home Decorating and etc.
Test Equipments:	Desktop direct- reading spectrometer, cutting machine, automatic pre- milling machine, polishing machin, hard-testing gauge(Vickers), metallography microscope, electrolytic thickness gauge, tensile testing machine, salt spray device, magnetic detection machine(magnetic particle flaw detector), Caliper, Go&No-go gauge and etc.
Supply Ability:	2000 tons per month
Minimum Order:	Not limited
Trade Term:	FOB/CIF/ CFR/ CNF/ EXW/ DDU/ DDP
Payment	T/T, L/C, D/A , D/P, Western Union ,MoneyGram ,etc
Market:	South & north Amrica/ Europe/ East & South east Asia/ Australia and Africa etc.
Our advantage:	One-stop shopping; High quality; Competitive price; Timely delivery; Technical support; Supply Material and Test Reports;
Note:	Please lets know the Size, quantity, Material or Grade, surface, If it is special and Non-standard products, please supply the Drawing or Photos or Samples to us

ASTM A325 BOLTS PRICE IN INDIA

DIN 6921 Hex Flange Bolt Grade 10.9 Flanges and Bolt Dimensions ASME/ANSI B16.5 Metric flange bolts
Price: US $0.01-0.1 / Piece
3000 Pieces (Min. Order)
gr4.8 8.8 hex flanged bolts DIN6921 metric flange bolts
Price: US $0.01-0.5 / Piece
1 Piece (Min. Order)
ASME/ANSI M2 M2.5 M6 A193 stainless steel metric heavy hex flange bolt
Price: US $0.005-0.1 / Piece
500 Pieces (Min. Order)
Metric self tapping hex flange head screw bolts in stainless steel
Price: US $600-2000 / Ton
0.9 Tons (Min. Order)
stainless steel A2 A4 metric Hexagon flange bolt with fine pitch
Price: US $0.15-6.59 / Set
1000 Sets (Min. Order)
High quality stainless steel a2 a4 metric hexagon flange bolt
Price: US $0.02-1 / Piece
3000 Pieces (Min. Order)
Viha manufacturer grade 8.8 metric hex flange bolt with zinc plated
Price: US $0.01-0.8 / Quart
5000 Quarts (Min. Order)
Grade 8.8s Metric Hexagon Flange Bolts
Price: US $0.01-0.05 / Pieces
1000 Pieces (Min. Order)
Grade 8.8s Metric Hexagon Flange Bolts
Price: US $0.001-0.1 / Piece
50 Pieces (Min. Order)
Grade 8.8s Metric Hexagon Flange Bolts M24 Dimensions, bolt
Price: US $0-0.1 / Kilogram
1 Kilogram (Min. Order)
metric titanium nuts M8 Gr5 best price
Price: US $2.5-3.5 / Piece
100 Pieces (Min. Order)
Hot sale grade 8.8 metric hex flange bolt
Price: US $0.01-0.8 / Piece
3000 Pieces (Min. Order)
Factory wholesale high strength hex head special flange bolts
Price: US $0.01-0.8 / Piece
3000 Pieces (Min. Order)

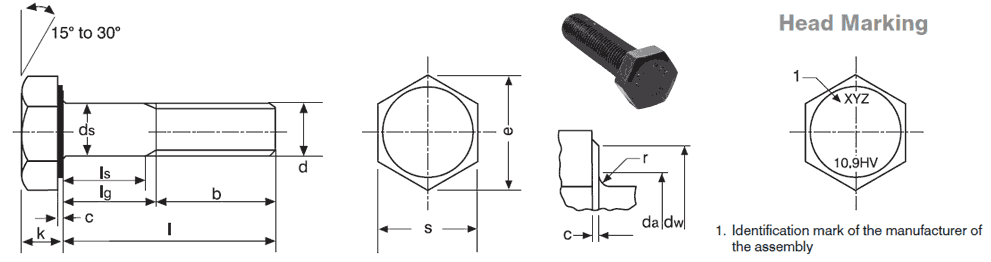

cheap wholesale hexagon fit bolt with nut and washer en14399 in India
Price: US $0.0002-0.005 / Piece
5000 Pieces (Min. Order)
Hot sale grade 9.8 shoulder hex flange bolt
Price: US $0.01-0.8 / Piece
3000 Pieces (Min. Order)
High Tensile Fastener nut and bolt, m22 bolt nut grade 4.8
Price: US $0.02-0.5 / Piece
5000 Pieces (Min. Order)
Factory Price din 6921 metric stainless steel flange bolt
Price: US $0.036-0.45 / Piece
20000 Pieces (Min. Order)
metric hex flange head roofing screw torx m8 bolt
Price: US $0.001-0.3 / Piece
1 Piece (Min. Order)
Carbon Steel Metric Hex Flange Bolt in china Manufacturer
Price: US $0.006-0.5 / Piece
500 Pieces (Min. Order)
DIN 6921 Hex Flange Bolts,Metric Flange Bolts M8
Price: US $0.01-1.0 / Piece
100 Pieces (Min. Order)
M16 ASME ANSI carbon steel 12 spline Metric flange bolt
Price: US $0.15-6.59 / Set
1000 Sets (Min. Order)
DIN6921 Quality metric steel triangle flange bolt
Price: US $0.01-0.18 / Piece
1000 Pieces (Min. Order)
Metric flange bolts, Partial thread (DIN 6921), Zinc plated class 8.8 steel, 8mm x 1.25mm x 35mm
Price: US $650.0 / Ton
1 Ton (Min. Order)
Made in India stainless steel metric m4 m19 flange hex shoulder bolts
Price: US $0.01-2.5 / Piece
5000 Pieces (Min. Order)
Hot sales metric stainless steel 12 point flange bolt
Price: US $0.01-0.1 / Piece
1000 Pieces (Min. Order)
China wholesale bolt and nut dimensions with ASTM DIN JIS Standard
Price: US $0.0005-0.01 / Piece
5000 Pieces (Min. Order)
cheap wholesale metric threaded rod in china
Price: US $0.0002-0.005 / Piece
5000 Pieces (Min. Order)
Concrete Fasteners Metric Bolts Grade 8.8 Hex Head Cap Flange Bolt M8
Price: US $0.01-0.08 / Piece
10000 Pieces (Min. Order)
metric hexagon flange bolts
Price: US $0.1-1 / Piece
5000 Pieces (Min. Order)
SS304 DIN6921 serrated flange bolt stainless metric flange bolt
Price: US $0.05-0.5 / Piece
1 Piece (Min. Order)
China manufacturer high quality black metric flange bolt
Price: US $0.1-0.99 / Piece
1000 Pieces (Min. Order)
Serrated metric hex head flange self drilling cap bolt M8 8mm x 1.25 Coarse x 100mm Long / 16mm Thread
Price: US $0.001-0.01 / Pieces
1000 Pieces (Min. Order)
OEM DIN6921 Gr5 Titanium Metric 12 Point Hexagon Flange Bolts
Price: US $0.1-10 / Piece
500 Pieces (Min. Order)
Manufacture metric hex flange titanium fine thread bolt
Price: US $0.33-4.03 / Piece
50 Pieces (Min. Order)
Online wholesale shop metric heavy hex flange bolts new products on china market 2018
Price: US $0.01-1 / Piece
1 Piece (Min. Order)
Ningbo GONUO Hardware supply Stainless Steel Metric Hex Head Flange Bolt
Price: US $0.01-0.1 / Piece
1 Piece (Min. Order)
metric flange bolts high-ranking newest m18 flange bolt
Price: US $0.01-1 / Piece
1000 Pieces (Min. Order)
Metric 8.8 Steel Zinc Plated Hex Flange Bolts
Price: US $0.01-0.02 / Piece
100000 Pieces (Min. Order)
Stainless Steel A2 A4 Metric Hexagon Flange Bolt With Fine Pitch
Price: US $0.01-1 / Piece
10000 Pieces (Min. Order)
China manufacturer supplies high quality metric flange bolts
Price: US $0.01-1 / Piece
1000 Pieces (Min. Order)
m6 din6921 zinc plated carbon steel metric hex flange bolt
Price: US $0.001-1 / Piece
1000 Pieces (Min. Order)
Metric Hex Head Flange Bolt
Price: US $2-2.6 / Piece
3000 Pieces (Min. Order)
high strength metric flange bolts from factory
Price: US $0.01-0.3 / Piece
10000 Pieces (Min. Order)
China supplier high hardness standard size metric thread flange bolts
Price: US $0.038-2 / Piece
5000 Pieces (Min. Order)
Grade 10.9 metric flange allen head bolt
Price: US $0.001-0.3 / Piece
50 Pieces (Min. Order)
M14 stainless steel full thread metric flange stud bolt
Price: US $0.025-0.15 / Piece
1 Piece (Min. Order)
titanium Gr.5 metric hex flange bolt manufacturer
Price: US $0.5-7 / Piece
100 Pieces (Min. Order)
3 bolt high tensile flange metric bolt
Price: US $600-1500 / Ton
0.5 Tons (Min. Order)
Metric Flange Head Bolt M8
Price: US $0-1 / Piece
10000 Pieces (Min. Order)
Metric Hex Head Flange Bolt
Price: US $0.01-1 / Piece
1000 Pieces (Min. Order)

High Strength Stainless Steel 12-Point Flange Bolts:

ASTM A325 Bolts

MD Exports LLP — Wed, 28 Feb 2018 11:03:09 +0000

A325 Structural Bolts
ASTM A325 Structural Bolts Price
ASTM A325 Structural Bolts For Sale
ASTM A325 Structural Bolt Dimensions

ASTM A325 Structural Bolts

ASTM A325 covers high strength structural bolts used in structural steel connections. A325s have a heavy hex head, a full body diameter, and are normally short in overall length since they are connecting steel to steel. Unlike other ASTM grades, A325 is specific not only in the chemical and mechanical requirements, but also in the allowed configuration. These bolts are available in a wide sizes in diameter from 1/2" through 1-1/2" and are produced from a medium-carbon or medium-carbon alloy steel material that is quenched and tempered to develop the desired mechanical properties.

Types of ASTM A325 Structural Bolts

ASTM A325 heavy hex structural bolts may be specified in three different types, one of which is no longer available, or as “T” or “M”.

Type 1 ASTM A325 heavy hex structural bolts– Medium carbon, carbon boron, or medium carbon alloy steel which undergoes a heat treating operation to achieve the desired mechanical properties. Type 1 is most commonly specified and is likely most readily available in the marketplace. The head is a heavy hex pattern and these bolts will have a set thread length based on the diameter required.
Type 2 ASTM A325 heavy hex structural bolts – This type was withdrawn in November of 1991.
Type 3 ASTM A325 heavy hex structural bolts – Weathering steel, quenched and tempered. Although the strength is the same as Type 1, Type 3 bolts are made from weathering steel which contains copper, chromium and nickel. This forms an oxide coating which protects the base material from corroding.
A325T heavy hex structural bolts – Fully threaded A325. A325T bolts are available up to four times the diameter in length. A325s longer that this will need to be specially made per ASTM F3125 Grade A325.
A325M heavy hex structural bolts – Metric sized A325s.

ASTM F3125
ASTM F3125 is a specification covering the chemical, physical and mechanical requirements for structural bolts and will eventually replace all six ASTM structural bolt standards, including A325.

ASTM A325 Structural Bolts Dimensions

(Dimensions per ASME B18.2.6 2011).

Diameters Allowed:	1/2" – 1-1/2"
Available Lengths:	Up to 6" – 10" maximum (depending on diameter)
Available Finish:	Plain Finish or Hot Dip Galvanized
Origin:	Import or Domestic

ASTM A325 Bolt Length Tolerances

Nominal Length, in.	Nominal Size, in.
Nominal Length, in.	1⁄2	5⁄8	3⁄4 thru 1	11⁄8 thru 11⁄2
Thru 6 in.	-0.12	-0.12	-0.19	-0.25
Over 6 in.	-0.19	-0.25	-0.25	-0.25

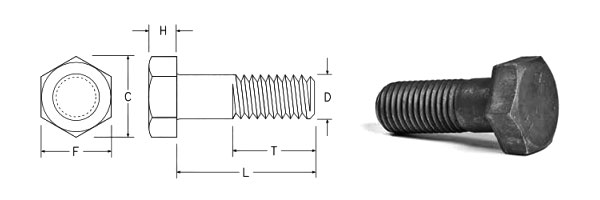

ASTM A325 Structural Bolt Dimensions

ASME B18.2.6 2011, A325 heavy hex bolts

Bolt Diameter	D	F			C		H			T
	Body Diameter	Width Across Flats			Width Across Corners		Height			Thread Length
	Max	Basic	Max	Min	Max	Min	Basic	Max	Min	Basic
1⁄2	0.515	7⁄8	0.875	0.850	1.010	0.969	5⁄16	0.323	0.302	1.00
5⁄8	0.642	11⁄16	1.062	1.031	1.227	1.175	25⁄64	0.403	0.378	1.25
3⁄4	0.768	11⁄4	1.250	1.212	1.443	1.383	15⁄32	0.483	0.455	1.38
7⁄8	0.895	17⁄16	1.438	1.394	1.660	1.589	35⁄64	0.563	0.531	1.50
1	1.022	15⁄8	1.625	1.575	1.876	1.796	39⁄64	0.627	0.591	1.75
11⁄8	1.149	113⁄16	1.812	1.756	2.093	2.002	11⁄16	0.718	0.658	2.00
11⁄4	1.277	2	2.00	1.938	2.309	2.209	25⁄32	0.813	0.749	2.00
13⁄8	1.404	23⁄16	2.188	2.119	2.526	2.416	27⁄32	0.878	0.810	2.25
11⁄2	1.531	23⁄8	2.375	2.300	2.742	2.622	15⁄16	0.974	0.902	2.25
Dimensions per ASME B18.2.6 2011

A325 Chemical Properties

Type 1 Bolts
Element	Carbon Steel	Carbon Boron Steel	Alloy Steel	Alloy Boron Steel
Carbon	0.30 – 0.52%	0.30 – 0.52%	0.30 – 0.52%	0.30 – 0.52%
Manganese, min	0.60%	0.60%	0.60%	0.60%
Phosphorus, max	0.040%	0.040%	0.035%	0.035%
Sulfur, max	0.050%	0.050%	0.040%	0.040%
Silicon	0.15-0.30%	0.10 – 0.30%	0.15 – 0.35%	0.15 – 0.35%
Boron		0.0005 – 0.003%		0.0005 – 0.003%
Alloying Elements			*	*

A325 Alternatives

A325 Mechanical Properties

Size	Tensile, ksi	Yield, ksi	Elong. %, min	RA %, min
1⁄2 – 1	120 min	92 min	14	35
11⁄8 – 11⁄2	105 min	81 min	14	35

ASTM A449

Mechanically and chemically, A449 is virtually identical to A325

Size	Tensile, ksi	Yield, ksi	Elong. %, min	RA %, min
1⁄4 – 1	120 min	92 min	14	35
11⁄8 – 11⁄2	105 min	81 min	14	35
15⁄8 – 3	90 min	58 min	14	35

SAE J429 Grade 5

SAE J429 Grade 5 fasteners are typically used in the automotive industry or OEM type applications, but much like ASTM A449, are very similar mechanically and chemically to ASTM A325.

Size	Tensile, ksi	Yield, ksi	Elong %, min	RA %, min
1⁄4 thru 1	120 min	92 min	14	35
Over 1 thru 11⁄2	105 min	81 min	14	35

Types

Type : 1, 2, 3, T, M
Connection: SC, N, X
ASTM F3125 Grade A325

Dimensions

Stock sizes
Length tolerances
Bolt dimensions

Properties

Mechanical Requirements
Chemical Requirements

Alternatives

Similar Grades
Other Configurations
F3125 Requirements

Hardware

Nuts
Washers
Load Indicating Washers

Manufacturing

Cold Forging
Hot Forging
Testing & Certification

ASTM A325 BOLTS PRICE IN INDIA

ASTM A325 high strength structural bolt TC
Price: US $1-1.4 / Kilogram
500 Kilograms (Min. Order)
ASTM A325 Heavy Hex Bolt
Price: US $0.01-3 / Piece
800 Pieces (Min.Order)
Grade 10.9s A325TC,S10T bolt ASME B 18.2.6(ASTM A325 A490)
Price: US $0.063-1.23 / Piece
3000 Pieces (Min.Order)
Trustworthy India supplier ASTM A325 Structural Heavy Bolt
Price: US $0.01-0.5 / Piece
100 Pieces (Min.Order)
hot dip galvanized astm a325 hex bolts tensile strength bolt
Price: US $0.01-0.1 / Piece
1 Piece (Min.Order)
No China supplier astm a325 heavy steel structural hex bolt
Price: US $0.01-0.8 / Piece
5000 Pieces (Min.Order)
ASTM A325 HDG heavy hex bolt
Price: US $0.01-0.1 / Piece
1 Piece (Min.Order)
Din6921 Flange Socket Black Knurled Carriage Standard A325 Astm A325m 8s Heavy Hex Bolt Galvanized
Price: US $0.001-10 / Piece
1000000 Pieces (Min.Order)
High quality stainless steel astm a325 full threaded hex bolt
Price: US $0.01-0.2 / Piece
1000 Pieces (Min.Order)
Astm a325 stainless steel bolt 17MM
Price: US $500-800 / Ton
200 Kilograms (Min.Order)
alloy steel HDG heavy astm a325 hex bolts
Price: US $0.01-2 / Piece
1000 Pieces (Min.Order)
Stainless steel ASTM A325 Heavy Hex Structural Bolts
Price: US $0.01-2 / Piece
100 Pieces (Min.Order)
ASTM A325 Stainless Steel Hex Flange Bolt M16
Price: US $0.1-1 / Piece
10000 Pieces (Min.Order)
Hot selling astm a325 heavy hex structural bolts
Price: US $0.024-0.089 / Piece
10000 Pieces (Min.Order)
ASTM A325 HEAVY STRUCTURAL HEX BOLTS
Price: US $600-1200 / Strand
1 Strand (Min.Order)
ASTM A325 Heavy Hex structural Bolts
Price: US $0.1-2 / Piece
100 Pieces (Min.Order)
Grade 8.8 ~12.9 Screw Bolts And Nuts , Standard ASTM A325 Stud Bolts
Price: US $0.22 / Sets
30000 Sets (Min.Order)
ansi/asme b 18.2.6 astm a325 heavy hex structural bolt
Customs Data
Price: US $800-1800 / Ton
1 Ton (Min.Order)
High quality Hot Dip Galvanized ASTM A325 Heavy Duty Hex Bolt And Nut
Price: US $0.01-0.5 / Piece
1000 Pieces (Min.Order)
High Strength Steel Structure 8.8 Grade ASTM A325 Bolt and Nuts
Price: US $0.1-0.25 / Pieces
10000 Pieces (Min.Order)
Hot Dip Galvanized Heavy Hex bolt ASTM A325 &A563 Heavy hex nut and F436 plain washer
Price: US $1100-1500 / Ton
5 Tons (Min.Order)
heavy duty alloy steel astm a325 stainless steel hex bolts
Price: US $0.01-0.5 / Piece
1000 Pieces (Min.Order)
Fastener Factory Production High Strength Carbon Steel Black Zinc M4*25 Grade 8.8 ASTM A325 Hex Bolt
Price: US $0.1-0.2 / Piece
1000 Pieces (Min.Order)
ASTM A325 grade8.8 hot dip galvanized heavy hex bolt and nut
Price: US $0.01-0.03 / Pieces
1000 Pieces (Min.Order)
astm a325 galvanized hex bolts
Price: US $0.41-0.5 / Unit
1 Unit (Min.Order)
ASTM A325 high strength structural steel bolts,nut and washer,bolt and nut
Price: US $1-1.4 / Kilogram
500 Kilograms (Min.Order)
Heavy hex astm a325 structural bolt din933 galvanized
Price: US $0.01-0.3 / Piece
10000 Pieces (Min.Order)
ASTM A325 Heavy hex structural bolt
Price: US $1-5 / Ton
0.5 Tons (Min.Order)
high tensile astm a325 structural bolt manufacturer in India Hex Nuts And Washer For Steel Structures
Price: US $54.9-55.0 / Pieces
1000 Pieces (Min.Order)
LEITE Astm A325 Quick Release Bolt For Steel Structure
Price: US $0.05-0.5 / Piece
1000 Pieces (Min.Order)
Made in Taiwan ASTM A325 Structural Hexagon Heavy Bolt Hex Head Structural Bolt
Price: US $0.01-0.1 / Unit
10000 Units (Min.Order)
Heavy Hex Structural Bolts ASTM A325 Type1 Black Finish
Price: US $0.05-0.1 / Piece
400 Kilograms (Min.Order)
astm a490m/astm a325 type 3 tc bolts
Price: US $0.05-0.1 / Piece
10000 Pieces (Min.Order)
ANSI ASME B18.2.1 ASTM A307 A325 A449 A394 A193 Heavy Hex Bolts
Price: US $0.8-2 / Piece
1000 Pieces (Min.Order)
DIN 933 / ASTM A325 Full Threaded Hex Bolt
Price: US $0.02-0.15 / Piece
500 Pieces (Min.Order)
Grade 8.8 ~12.9 Screw Bolts And Nuts , Standard ASTM A325 Stud Bolts
Price: US $0.01-1 / Set
30000 Sets (Min.Order)
Wholesale India goods customized high strength astm a325 hex bolts
Price: US $0.01-0.12 / Piece
100 Pieces (Min.Order)
A2 70 M10x1.25 10.9 Grade 8 Stainless Steel Bolts Full Thread Stainless Steel Nuts and Bolts/Astm A325 Hex Bolts
Price: US $0.01-0.15 / Piece
1 Piece (Min.Order)
DIN 933 / ASTM A325 FULL THREADED HEX BOLT/GRADE 10.9 HEX BOLT HEX HEAD BOLT
Price: US $690.0 / Kilograms
300 Kilograms (Min.Order)
India supplier hexagon bolts astm a325 a490 a325m a490m
Price: US $0.001-0.3 / Piece
1000 Pieces (Min.Order)
Hot dip galvanized ASTM A325 A490 heavy hex structural bolt with ISO certified
Price: US $0.1-10 / Piece
1 Piece (Min.Order)
High Quality A2-70 Stainless Steel 316L Astm A325 Hex Bolt.
Price: US $0.01-1 / Piece
1 Piece (Min.Order)
GR.5 heavy hex bolt ASTM A325
Price: US $1000-1100 / Ton
1 Ton (Min.Order)
Din975 Class 4 8 Thread Rod Grade 4.8 Roofing India Fastener Din916 Cup Screw Black Finish Astm A325 Hex Bolt Galvanized
Price: US $0.001-10 / Piece
1000000 Pieces (Min.Order)
Astm a325 bolts
Price: US $500.0-800.0 / Ton
1 Ton (Min.Order)
M8 M24 SS304 astm a325 stainless steel hex m24 bolt and nuts
Price: US $600-800 / Ton
1 Ton (Min.Order)
High strength ASTM A325 TC structural bolt
Price: US $0.25 / Sets
500 Sets (Min.Order)
Lowest Price 316L Astm A325 Screw Bolt
Price: US $0.01-0.1 / Piece
1000 Pieces (Min.Order)
Gb5782/Astm a325 bolt /tower bolt/structure bolt
Price: US $0.05-0.8 / Piece
5000 Pieces (Min.Order)
ASTM A325 Grade 5 Heavy Hex Structural Bolt With ACME Threaded
Price: US $0.005-1 / Piece
50000 Pieces (Min. Order)

ASTM A193 B8 Bolt

MD Exports LLP — Wed, 28 Feb 2018 10:48:10 +0000

ASTM A193 B8 Bolts
ASTM A193 B8 Bolts Price
ASTM A193 B8 Bolts For Sale

ASTM A193 B8 Bolts

Product Name	a193 b8 b8m srud bolt and a194 gr.8 8m nut for high speed railways, a193 b8 b8m srud bolt and a194 gr.8 8m nut, button head allen bolt, button head allen screw, Stud Bolt ASTM A193 B8 SS316, Stainless Steel SS304 ASTM A193 B8 Hex Heavy Bolt Asme/ANSI B 18.2.1
Material	Stainless steel：A2-70, A2-80, A4-70, A4-80
Process Method	Cold forming / cold forging & hot forging
Size	Diameter M8-M52 (5/16″-2″ ), length 40mm-500mm (1-1/4″-20″ )
Bolt type	Round head, hex head, square head, allen head, hexagon socket head, ect.
Standard	ASTM A307M/ 325M/ 490M, F1852, F2280, DIN931/ DIN933/ 930/ 961/ 960/ 6914
Surface	Black, Phosphating and Saponification, HDG, hot dip galvanized, dacromet etc
Grade	4.8, 6.8, 8.8S, 10.9S, 12.9S
Size Tolerance	+/- 2.5%~-2.5%
WT Tolerance	+/- 2.5%~2.5%
Tensile Strength	400~830 MPa /830~1030 MPa/1040~1240 MPa
Head type	Round head, hex head, square head, allen head, hexagon socket head, ect.
Packaging	Carton box + wooden pallet or tin containers + wooden pallet or as customer’s request

Tech. Standard		Material	Grade	Size	Finish
Thread rod	DIN/ ASTM	1008	GB Standard 4.8 Grade ASTM Standard Grade2	M2- M120 1/2-5″	ZINC, HDG, Black
Hs3404	ASTM A193/ A193M	GB Standard 40Cr 35CrMo 25CrMoVA 0Cr18Ni9, 0Cr17Ni12Mo2 etc ASTM standard Alloy and stainless steel	GB standard Grade 8.8, 10.9, 12.9 A2-70, A4-70 ASTM Standard B5, B7, B7M, B8, B8M, B16 L7, L7M, BC, BD, 660A, 660B, 651A, 651B	GB standard M12- M120 ASTM Standard 1/2-5″	Black, zinc plated HDG, Cadmium Plated, Dacromet, Passivation Teflon (PTFE, FEP PFA ETFE)
HG/T20634	ASTM A320/ A320M
HG/T20613	ASTM A354
JB/T4707	ASTM A453
SH3404	ASTM A194/ 194M	GB Standard 40Cr, 35CrMo, 25CrMoVA, 0CR18Ni9, 45#, 0Cr17Ni12Mo2 ASTM Standard Alloy and stainless steel	GB Standard Grade8, 10, A2-70, A4-80 ASTM Standard 660A 660B 651A, 651B 2H, 2HM, 4, 6.7, 8, 16O, A, B, C, D, DH	GB or DIN standard M12- M120 ASTM Standard 1/2-5″	Black, zinc plated HDG, Cadmium Plated, Dacromet, Passivation Teflon (PTFE, FEP PFA ETFE)
HG/T20613	ASTM A563/ 563M
HG/T20634
HG/T21573.3

A193 Grades

ASTM A193 B7: Alloy steel, AISI 4140 or 4142, quenched and tempered
ASTM A193 B6 : Stainless steel, AISI 410, heat treated
ASTM A193 B8 : Class 1 Stainless steel, AISI 304, carbide solution treated.
ASTM A193 B8M : Class 1 Stainless steel, AISI 316, carbide solution treated.
ASTM A193 B8 Class 2 Stainless steel, AISI 304, carbide solution treated, strain hardened
ASTM A193 B8M Class 2 Stainless steel, AISI 316, carbide solution treated, strain hardened
ASTM A193 B8T: Class 1 or 2 Stainless steel, AISI 321, with additional element of Titanium
ASTM A193 B16: Chromium-Molybdenum-Vanadium, similar to B7 with Vandium added
ASTM A193 B7M Similar properties as B7 but with specialized heat treating to create differing mechanical properties
ASTM A193 B8R: Stainless steel, AISI 209, also known as Nitronic 50, nitrogen strengthened
ASTM A193 B8S: Stainless Steel, AISI 218, also known as Nitronic 60, nirtrogen strengthened

A193 Mechanical Properties

Grade	Size	Tensile ksi, min	Yield, ksi, min	Elong, %, min	RA % min	HBW	HRC
B7	Up to 2-1/2	125	105	16	50	321 max	35 max
	2-5/8 – 4	115	95	16	50
	4-1/8 – 7	100	75	18	50
B8 Class 1	All	75	30	30	50	223 max	35 max
B8M Class 1	All	75	30	30	50	223 max	96 max
B8 Class 2	Up to 3/4	125	100	12	35	321 max	35 max
	7/8 – 1	115	80	15	35
	1-1/8 – 1-1/4	105	65	20	35
	1-3/8 – 1-1/2	100	50	28	45
B8M Class 2	Up to 3/4	110	95	15	45	321 max	35 max
	7/8 – 1	100	80	20	45
	1-1/8 – 1-1/4	95	65	25	45
	1-3/8 – 1-1/2	90	50	30	45

Grade	Size	Tensile ksi, min	Yield, ksi, min	Elong, %, min	RA % min	HBW	HRC
B8M Class 1	All	75	30	30	50	223 max	96 max
B8M Class 2	Up to 3/4	110	95	15	45	321 max	35 max
	7/8 – 1	100	80	20	45
	1-1/8 – 1-1/4	95	65	25	45
	1-3/8 – 1-1/2	90	50	30	45

A193 Chemical Properties

Element	B7 (AISI 4140)	B8 (AISI 304)	B8M (AISI 316)
Carbon	0.38 – 0.48%	0.08% max	0.08% max
Manganese	0.75 – 1.00%	2.00% max	2.00% max
Phosphorus, max	0.035%	0.045%	0.045%
Sulfur, max	0.040%	0.030%	0.030%
Silicon	0.15 – 0.35%	1.00% max	1.00% max
Chromium	0.80 – 1.10%	18.0 – 20.0%	16.0 – 18.0%
Nickel		8.0 – 11.0%	10.0 – 14.0%
Molybdenum	0.15 – 0.25%		2.00 – 3.00%

A193 Recommended Hardware

Bolt Grade	Nuts	Washers
B7	A194 Grade 2H	F436
B8 Class 1	A194 Grade 8	SS304
B8M Class 1	A194 Grade 8M	SS316
B8 Class 2	A194 Grade 8	SS304
B8M Class 2	A194 Grade 8M	SS316

Heat treated conditions for the ferritic materials include:

normalized & tempered
quenched & tempered.

Heat treated conditions for the austentic stainless steels include:

Carbide solution treated (Class 1)
Carbide solution treated after finishing (Class 1A)
Carbide solution treated nitrogen-bearing stainless steels (Class 1B & 1C)
Carbide solution treated by cooling rapidly from the rolling temperature (Class 1D)
Carbide solution treated and Strain-hardened (Classes 2, 2B, and 2C)

ASTM A193 TENSILE STRENGTH / HARDNESS CHART

Grade and Class	Diameter	Tensile Strength Min KSI	Yield Strength 0.2% Offset KSI	Elongation in 4D, Min, %	Reduction of Area Min, %	Hardness Max Brinell	Hardness Max Rockwell
B5	up to 4″ incl	100	80	16	50	–	–
B6	up to 4″ incl	110	85	15	50	–	–
B6X	up to 4″ incl	90	70	16	50	–	C26
B7	to 2-1/2″	125	105	16	50	–	C35
	over 2-1/2 to 4″	115	95	16	50	–	C35
	over 4″ to 7″	100	75	18	50	–	C35
B7M	up to 4″ incl	100	80	18	50	235	B99
	over 4″ to 7″	100	75	18	50	235	B99
B16	to 2-1/2″	125	105	18	50	321	C35
	over 2-1/2″ to 4″	110	95	17	45	321	C35
	over 4″ to 7″	100	85	16	45	321	C35
Classes 1 and 1D: B8, B8M, B8P, B8LN, B8ML	ALL	75	30	30	50	223	B96
Class 1: B8C, B8T	ALL	75	30	30	50	223	B96
Class 1A: B8A, B8CA, B8MA, B8PA, B8TA, B8LNA, B8MLNA, B8NA, B8MNA, B8MLCuNA	ALL	75	30	30	50	192	B90
Classes 1B & 1D: B8N, B8MN, B8MLCuN	ALL	80	35	30	40	223	B96
Class 1C and 1D: B8R	ALL	100	55	35	55	271	C28
Class 1C: B8RA	ALL	100	55	35	55	271	C28
Classes 1C and 1D: B8S	ALL	95	50	35	55	271	C28
Classes 1C: B8SA	ALL	95	50	35	55	271	C28
Class 2: B8, B8C, B8P, B8T, B8N	to 3/4″	125	100	12	35	321	C35
	over 3/4″ to 1″	115	80	15	35	321	C35
	over 1″ to 1-1/4″	105	65	20	45	321	C35
	over 1-1/4 to 1-1/2″ incl	100	50	28	45	321	C35
Class 2 B8M, B8MN, B8MLCuN	to 3/4″	110	96	15	45	321	C35
	over 3/4″ to 1″	100	80	20	45	321	C35
	over 1″ to 1-1/4″	95	65	25	45	321	C35
	over 1-1/4 to 1-1/2″ incl	90	50	30	45	321	C35
Class 2B: B8, B8M2	to 2″ incl	95	75	25	40	321	C35
	over 2″ to 2-1/2″ incl	90	65	30	40	321	C35
	over 2-1/2 ” to 3″ incl	80	55	30	40	321	C35
Class 2C: B8M3	to 2″ incl	85	65	30	60	321	C35
	over2″	85	60	30	60	321	C35

ASTM A193 Characteristics

Grade	Description	Diameter	Tensile Strength, min.	Yield Strength, min.	Hardness, max.	Marking
ASTM A193 B6	S41000 (410)	Up to 4”	110	85		B6
ASTM A193 B7	Chromium-Molybdenum	2 1/2” and under	125	105	321 HB or 35 HRC	B7
		over 2 1/2” to 4”	115	95	321 HB or 35 HRC
		over 4” to 7”	100	75	321 HB or 35 HRC
ASTM A193 B7M	Chromium-Molybdenum	4” and under	100	80	235 HB or 99 HRB	B7M
		over 4” to 7”	100	75	235 HB or 99 HRB
ASTM A193 B16	Chromium-Molybdenum- Vanadium	2 1/2” and under	125	105	321 HB or 35 HRC	B16
		over 2 1/2” to 4”	110	95	321 HB or 35 HRC
		over 4” to 8”	100	85	321 HB or 35 HRC
ASTM A193 B8 class 1	S30400 (304)	all	75	30	223 HB or 96 HRB	B8
ASTM A193 B8 class 2	S30400 (304)	3/4” and under	125	100	321 HB or 35 HRC	B8SH
		over 3/4” to 1”	115	80	321 HB or 35 HRC
		over 1” to 1 1/4”	105	65	321 HB or 35 HRC
		over 1 1/4” to 1 1/2”	100	50	321 HB or 35 HRC
ASTM A193 B8C class 1	S34700 (347)	all	75	30	223 HB or 96 HRB	B8C
ASTM A193 B8C class 2	S34700 (347)	3/4” and under	125	100	321 HB or 35 HRC	B8CSH
		over 3/4” to 1”	115	80	321 HB or 35 HRC
		over 1” to 1 1/4”	105	65	321 HB or 35 HRC
		over 1 1/4” to 1 1/2”	100	50	321 HB or 35 HRC
ASTM A193 B8M class 1	S31600 (316)	all	75	30	223 HB or 96 HRB	B8M
ASTM A193 B8M class 2	S31600 (316)	3/4” and under	110	95	321 HB or 35 HRC	B8MSH
		over 3/4” to 1”	100	80	321 HB or 35 HRC
		over 1” to 1 1/4”	95	65	321 HB or 35 HRC
		over 1 1/4” to 1 1/2”	90	50	321 HB or 35 HRC
ASTM A193 B8T class 1	S32100 (321)	all	75	30	223 HB or 96 HRB	B8T
ASTM A193 B8T class 2	S32100 (321)	3/4” and under	125	100	321 HB or 35 HRC	B8TSH
		over 3/4” to 1”	115	80	321 HB or 35 HRC
		over 1” to 1 1/4”	105	65	321 HB or 35 HRC
		over 1 1/4” to 1 1/2”	100	50	321 HB or 35 HRC
ASTM A193 B8R	S20910	all	100	55	271 HB or 28 HRC	B8R
ASTM A193 B8S	S21800	all	95	50	271 HB or 28 HRC	B8S

ASTM A193 B8 Bolts Price in India

B7 L7 L7m Black Stud Bolt and 2h Nut Stainless Steel ASTM A193 B8 B8m Ss304 Ss316 Stud Bolt with Heavy Hex Nut (M4-M100)
Price: US $0.1-10 / Bag
1 Bag (Min. Order)
M6-M100 304 stainless steel astm a193 b8 stainless steel stud bolt and nut
Price: US $0.1-1 / Piece
1 Piece (Min. Order)
stainless steel b8 b8m stud bolt nuts astm a193 galvanized
Price: US $800-1600 / Ton
900 Tons (Min. Order)
Stainless Steel SS304 ASTM A193 B8 Hex Heavy Bolt Asme/ANSI B 18.2.1
Price: US $0.12-0.5 / Piece
1000 Pieces (Min. Order)
Stud Bolt ASTM A193 B8 SS316
Price: US $0.01-0.1 / Piece
1000 Pieces (Min. Order)
ASTM A193 B8 stainless steel stud bolt and nut
Price: US $0.01-0.5 / Piece
1000 Pieces (Min. Order)
astm a193 b8/b8m hex bolt and nut
Price: US $0.01-0.1 / Piece
1 Piece (Min. Order)
ASTM ASME/ANSI B 18.31.2 A193 B8 Double Thread End Stud Bolt
Price: US $0.005-0.1 / Piece
500 Pieces (Min. Order)
Cheap Price Stainless Steel B8 B8M Stud Bolt Astm A193 On Stock
Price: US $0.6-1.1 / Piece
8000 Pieces (Min. Order)
ASTM A193 B6 B8 B8m B7 B7m DIN975 full thread galvanized bolt and nut
Price: US $0.6-1.8 / Piece
5000 Pieces (Min. Order)
ASTM 193 GRADE B7/B7M/B8/B8M/B8C/B8T/ B16 STUD BOLT, THREAD ROD
Price: US $35.0 / Pieces
10 Pieces (Min. Order)
Specializing in the production of high-quality 304 b8 stud bolts and nuts
Price: US $0.01-2 / Piece
1000 Pieces (Min. Order)
ASTM A193 grade b7 stud bolt with 2h nut
Price: US $0.01-1 / Piece
100 Pieces (Min. Order)
ASTM A193 B8/B8M/B16/B16M Stud Bolts/bolt
Price: US $0.15-6.59 / Set
1000 Sets (Min. Order)
High strength double end stud stud bolt 10.9s 12.9s 8.8s flange stud bolt
Price: US $0.01-0.1 / Piece
1000 Pieces (Min. Order)
AISI 304/316 ASTM a193 b8/b8M hex bolt
Price: US $0.01-0.1 / Piece
1 Piece (Min. Order)
Carbon steel ASTM A193 double Ends Threads Stud Bolt
Price: US $1-20 / Kilogram
10 Kilograms (Min. Order)
A193 GR.B8 Full Stud Bolts No China
Price: US $0.01-0.09 / Piece
8000 Pieces (Min. Order)
3/4 inch Stainless steel A193 B8 Thread rod / stud bolt
Price: US $600-1400 / Ton
0.5 Tons (Min. Order)
Stud Bolt DIN975/ASTM A193 B7/ B7M/B8/B8M
Price: US $399-799 / Ton
5 Tons (Min. Order)
ASTM A193 B7 B8 B8M Stainless Steel 18-8 Stud Bolts
Price: US $0.01-1 / Piece
2000 Pieces (Min. Order)
Stainless Steel Stud Bolt Astm A193 Gr B8
Price: US $0.01-0.5 / Piece
2000 Pieces (Min. Order)
High strength ASME/ANSI B 18.2.1 Astm A325 A193 B8 1/2” 2” stainless steel Heavy hex bolts and nut
Price: US $0.005-0.1 / Piece
500 Pieces (Min. Order)
ASTM A193 GRB7 B8 B16 B8M B8T B8C HEX BOLT STUD BOLT
Price: US $1.9-2.1 / Pieces
50 Pieces (Min. Order)
A193 ASTM B8 stainless steel SS round head ribbed neck carriage bolt
Price: US $0.015-0.25 / Piece
500 Pieces (Min. Order)
Best quality Stainless steel GH145 Material thread rod/ Stud bolt
Price: US $500-700 / Ton
1 Ton (Min. Order)
High Temperature Service ASTM A193 B7 threaded rod nut and bolt
Price: US $0.02-250 / Piece
1 Piece (Min. Order)
Hex Full Thread Tunnel T Furniture Aisi 316 Oval Neck Carriage Astm A193 B8 Stainless Steel Stud Bolt And Nut
Price: US $0.001-10 / Piece
1000000 Pieces (Min. Order)
LEITE Stainless Steel B8 B8M Stud Bolt Astm A193
Price: US $0.01-0.02 / Piece
1000 Pieces (Min. Order)
High strength ASME/ANSI B 18.2.1 Astm A325 A193 B8 1/2” 2” stainless steel Heavy hex bolts and nut
Price: US $0.05-5 / Piece
100 Pieces (Min. Order)
stainless steel b8 b8m hdg astm a193 b7 full thread stud bolt
Price: US $800-1600 / Ton
0.9 Tons (Min. Order)
ASTM A193 / ASTM A193M Grade B8, B8A stud bolt astm a193 b8
Price: US $0.05-0.09 / Piece
1 Piece (Min. Order)
ASTM A193 B6 B8 B8m B7 B7m DIN975 full thread stud bolt
Price: US $0.6-1.8 / Piece
5000 Pieces (Min. Order)
M14 Yellow Zinc-plated ASTM A193 B8 Stud Bolt
Price: US $0.15-25 / Piece
100 Pieces (Min. Order)
stainless steel astm a193 b8 cap stud bolt
Price: US $800-1600 / Ton
0.9 Tons (Min. Order)
Teflon ASTM a193 b8 bolt
Price: US $0.2-10 / Piece
1 Piece (Min. Order)
ASTM A193 High Strength B8 Stud Bolts
Price: US $1500-2500 / Ton
300 Tons (Min. Order)
No China stainless steel b8 b8m stud bolt astm a193
Price: US $0.001-8 / Piece
1000 Pieces (Min. Order)
Hot selling M10-M60 stud bolt astm a193 b8 bolt
Price: US $0.1-5 / Piece
100 Kilograms (Min. Order)
Stud Bolts ASTM A193 B8 Ss304 Ss316 Stud bolt High Strength Double End Stud Bolts DIN 835
Price: US $0.28-0.3 / Pieces
1000 Pieces (Min. Order)
astm a193 b8 bolt m24x1.5 bolt
Price: US $0.1-100 / Piece
1 Piece (Min. Order)
High qulity? stainless steel b8 b8m stud bolt astm a193
Price: US $917-1250 / Ton
1 Ton (Min. Order)
No China Fastener Manufacture Stainless Steel M6 A193 B8 A194 8 Stud Bolt And Nut
Price: US $0.1-0.2 / Piece
1000 Pieces (Min. Order)
A193 Ss Hex Head A4-80 Din933 Full Thread Hexagon And Nut Gr8.8 10.9 Din6021 B7 Grade 8.8 Cup B8 Stud Bolt
Price: US $0.001-10 / Piece
1000000 Pieces (Min. Order)
Chinese-made cheap wholesale double ended screw bolt
Price: US $0.01-0.015 / Piece
5000 Pieces (Min. Order)
astm a193 gr b7 stud bolt with hex nut
Price: US $0.008-0.05 / Piece
1000 Pieces (Min. Order)
High tensile astm a193 b7 stud bolts
Price: US $0.1-0.2 / Piece
1 Piece (Min. Order)
STUD BOLT
Price: US $0.1-0.2 / Piece
1000 Pieces (Min. Order)
Stainless steel/carbon steel/alloy steel threaded stud bolts
Price: US $0.1-0.2 / Piece
1 Piece (Min. Order)
a193 b8 b8m srud bolt and a194 gr.8 8m nut for high speed railways
Price: US $1050-1500 / Ton
1 Ton (Min. Order)

ASTM A193 B8 Bolt for sale

ASTM A193 B7 Bolt

MD Exports LLP — Wed, 28 Feb 2018 10:35:43 +0000

ASTM A193 B7 Bolts
ASTM A193 B7 Bolts Price
ASTM A193 B7 Bolts For Sale

ASTM A193 B7 Bolts

Stud Bolt 5/8inch x 4inch ASTM A193 Grade B7 with Nuts ASTM A194 Grade 2H

astm a193 b7 low temperature high strength bolts / 307b structural bolts / bolt for steel structure, ASTM A193 B7 Stud bolt

Product Name	Hex Bolt
Material	Stainless Steel: SS201, SS303, SS304, SS316, SS410, SS420
	Carbon Steel: 4.8, 6.8, 8.8, 10.9, 12.9
	Titanium: GR1-GR5
	Aluminum,Brass,etc.
Size	M1.6-M39 Length: Up to 300mm
Head Type	Flat, JIS pan, Oval, Round, Binding, I.HD, Brazier, PF. HD, Button, Fillister, Ansi.Pan, Pan washer, Indented Hex etc
Standard	ISO,GB, DIN, JIS, ANSI, BSW, ASME ASME B 18.2.1, IFI149,DIN931, DIN933, DIN558, DIN960, DIN961, DIN558, ISO4014 and etc.
Grade	SAE J429 Gr.2, 5,8; ASTM A307Gr.A, Class 4.8, 5.8, 6.8, 8.8, 10.9, 12.9 and etc.
Certificate	ISO9001:2008, SGS testing report & RoHS
Screw Drivers	Phillips, Slotted, Square, Crossed, Y-type, T-type, Torx, PZ drives, Hex socket etc
Finishing	Zn- Plated, Ni-plated, Tin-Plated, Radiant Plated, Passivated, Brass plated, Cd- plated, Phosphate Anodize, Cr-plated, Black Oxide etc
Heat Treatment	Tempering,Hardening,Spheroidizing,Stress Relieving etc
Package	General export package, or according to customer’s requirement
Delivery time	About 7 -15 days after all details confirmed and able to offering fast delivery for urgent order
Customer Service	Replacement at all our cost for rejected products if the part does not match with the PO drawings

A193 Grades

ASTM A193 B7: Alloy steel, AISI 4140 or 4142, quenched and tempered
ASTM A193 B6 : Stainless steel, AISI 410, heat treated
ASTM A193 B8 : Class 1 Stainless steel, AISI 304, carbide solution treated.
ASTM A193 B8M : Class 1 Stainless steel, AISI 316, carbide solution treated.
ASTM A193 B8 Class 2 Stainless steel, AISI 304, carbide solution treated, strain hardened
ASTM A193 B8M Class 2 Stainless steel, AISI 316, carbide solution treated, strain hardened
ASTM A193 B8T: Class 1 or 2 Stainless steel, AISI 321, with additional element of Titanium
ASTM A193 B16: Chromium-Molybdenum-Vanadium, similar to B7 with Vandium added
ASTM A193 B7M Similar properties as B7 but with specialized heat treating to create differing mechanical properties
ASTM A193 B8R: Stainless steel, AISI 209, also known as Nitronic 50, nitrogen strengthened
ASTM A193 B8S: Stainless Steel, AISI 218, also known as Nitronic 60, nirtrogen strengthened

A193 Mechanical Properties

Grade	Size	Tensile ksi, min	Yield, ksi, min	Elong, %, min	RA % min	HBW	HRC
B7	Up to 2-1/2	125	105	16	50	321 max	35 max
	2-5/8 – 4	115	95	16	50
	4-1/8 – 7	100	75	18	50
B8 Class 1	All	75	30	30	50	223 max	35 max
B8M Class 1	All	75	30	30	50	223 max	96 max
B8 Class 2	Up to 3/4	125	100	12	35	321 max	35 max
	7/8 – 1	115	80	15	35
	1-1/8 – 1-1/4	105	65	20	35
	1-3/8 – 1-1/2	100	50	28	45
B8M Class 2	Up to 3/4	110	95	15	45	321 max	35 max
	7/8 – 1	100	80	20	45
	1-1/8 – 1-1/4	95	65	25	45
	1-3/8 – 1-1/2	90	50	30	45

Grade	Size	Tensile ksi, min	Yield, ksi, min	Elong, %, min	RA % min	HBW	HRC
B8M Class 1	All	75	30	30	50	223 max	96 max
B8M Class 2	Up to 3/4	110	95	15	45	321 max	35 max
	7/8 – 1	100	80	20	45
	1-1/8 – 1-1/4	95	65	25	45
	1-3/8 – 1-1/2	90	50	30	45

A193 Chemical Properties

Element	B7 (AISI 4140)	B8 (AISI 304)	B8M (AISI 316)
Carbon	0.38 – 0.48%	0.08% max	0.08% max
Manganese	0.75 – 1.00%	2.00% max	2.00% max
Phosphorus, max	0.035%	0.045%	0.045%
Sulfur, max	0.040%	0.030%	0.030%
Silicon	0.15 – 0.35%	1.00% max	1.00% max
Chromium	0.80 – 1.10%	18.0 – 20.0%	16.0 – 18.0%
Nickel		8.0 – 11.0%	10.0 – 14.0%
Molybdenum	0.15 – 0.25%		2.00 – 3.00%

A193 Recommended Hardware

Bolt Grade	Nuts	Washers
B7	A194 Grade 2H	F436
B8 Class 1	A194 Grade 8	SS304
B8M Class 1	A194 Grade 8M	SS316
B8 Class 2	A194 Grade 8	SS304
B8M Class 2	A194 Grade 8M	SS316

Heat treated conditions for the ferritic materials include:

normalized & tempered
quenched & tempered.

Heat treated conditions for the austentic stainless steels include:

Carbide solution treated (Class 1)
Carbide solution treated after finishing (Class 1A)
Carbide solution treated nitrogen-bearing stainless steels (Class 1B & 1C)
Carbide solution treated by cooling rapidly from the rolling temperature (Class 1D)
Carbide solution treated and Strain-hardened (Classes 2, 2B, and 2C)

ASTM A193 TENSILE STRENGTH / HARDNESS CHART

Grade and Class	Diameter	Tensile Strength Min KSI	Yield Strength 0.2% Offset KSI	Elongation in 4D, Min, %	Reduction of Area Min, %	Hardness Max Brinell	Hardness Max Rockwell
B5	up to 4″ incl	100	80	16	50	–	–
B6	up to 4″ incl	110	85	15	50	–	–
B6X	up to 4″ incl	90	70	16	50	–	C26
B7	to 2-1/2″	125	105	16	50	–	C35
	over 2-1/2 to 4″	115	95	16	50	–	C35
	over 4″ to 7″	100	75	18	50	–	C35
B7M	up to 4″ incl	100	80	18	50	235	B99
	over 4″ to 7″	100	75	18	50	235	B99
B16	to 2-1/2″	125	105	18	50	321	C35
	over 2-1/2″ to 4″	110	95	17	45	321	C35
	over 4″ to 7″	100	85	16	45	321	C35
Classes 1 and 1D: B8, B8M, B8P, B8LN, B8ML	ALL	75	30	30	50	223	B96
Class 1: B8C, B8T	ALL	75	30	30	50	223	B96
Class 1A: B8A, B8CA, B8MA, B8PA, B8TA, B8LNA, B8MLNA, B8NA, B8MNA, B8MLCuNA	ALL	75	30	30	50	192	B90
Classes 1B & 1D: B8N, B8MN, B8MLCuN	ALL	80	35	30	40	223	B96
Class 1C and 1D: B8R	ALL	100	55	35	55	271	C28
Class 1C: B8RA	ALL	100	55	35	55	271	C28
Classes 1C and 1D: B8S	ALL	95	50	35	55	271	C28
Classes 1C: B8SA	ALL	95	50	35	55	271	C28
Class 2: B8, B8C, B8P, B8T, B8N	to 3/4″	125	100	12	35	321	C35
	over 3/4″ to 1″	115	80	15	35	321	C35
	over 1″ to 1-1/4″	105	65	20	45	321	C35
	over 1-1/4 to 1-1/2″ incl	100	50	28	45	321	C35
Class 2 B8M, B8MN, B8MLCuN	to 3/4″	110	96	15	45	321	C35
	over 3/4″ to 1″	100	80	20	45	321	C35
	over 1″ to 1-1/4″	95	65	25	45	321	C35
	over 1-1/4 to 1-1/2″ incl	90	50	30	45	321	C35
Class 2B: B8, B8M2	to 2″ incl	95	75	25	40	321	C35
	over 2″ to 2-1/2″ incl	90	65	30	40	321	C35
	over 2-1/2 ” to 3″ incl	80	55	30	40	321	C35
Class 2C: B8M3	to 2″ incl	85	65	30	60	321	C35
	over2″	85	60	30	60	321	C35

ASTM A193 Characteristics

Grade	Description	Diameter	Tensile Strength, min.	Yield Strength, min.	Hardness, max.	Marking
ASTM A193 B6	S41000 (410)	Up to 4”	110	85		B6
ASTM A193 B7	Chromium-Molybdenum	2 1/2” and under	125	105	321 HB or 35 HRC	B7
		over 2 1/2” to 4”	115	95	321 HB or 35 HRC
		over 4” to 7”	100	75	321 HB or 35 HRC
ASTM A193 B7M	Chromium-Molybdenum	4” and under	100	80	235 HB or 99 HRB	B7M
		over 4” to 7”	100	75	235 HB or 99 HRB
ASTM A193 B16	Chromium-Molybdenum- Vanadium	2 1/2” and under	125	105	321 HB or 35 HRC	B16
		over 2 1/2” to 4”	110	95	321 HB or 35 HRC
		over 4” to 8”	100	85	321 HB or 35 HRC
ASTM A193 B8 class 1	S30400 (304)	all	75	30	223 HB or 96 HRB	B8
ASTM A193 B8 class 2	S30400 (304)	3/4” and under	125	100	321 HB or 35 HRC	B8SH
		over 3/4” to 1”	115	80	321 HB or 35 HRC
		over 1” to 1 1/4”	105	65	321 HB or 35 HRC
		over 1 1/4” to 1 1/2”	100	50	321 HB or 35 HRC
ASTM A193 B8C class 1	S34700 (347)	all	75	30	223 HB or 96 HRB	B8C
ASTM A193 B8C class 2	S34700 (347)	3/4” and under	125	100	321 HB or 35 HRC	B8CSH
		over 3/4” to 1”	115	80	321 HB or 35 HRC
		over 1” to 1 1/4”	105	65	321 HB or 35 HRC
		over 1 1/4” to 1 1/2”	100	50	321 HB or 35 HRC
ASTM A193 B8M class 1	S31600 (316)	all	75	30	223 HB or 96 HRB	B8M
ASTM A193 B8M class 2	S31600 (316)	3/4” and under	110	95	321 HB or 35 HRC	B8MSH
		over 3/4” to 1”	100	80	321 HB or 35 HRC
		over 1” to 1 1/4”	95	65	321 HB or 35 HRC
		over 1 1/4” to 1 1/2”	90	50	321 HB or 35 HRC
ASTM A193 B8T class 1	S32100 (321)	all	75	30	223 HB or 96 HRB	B8T
ASTM A193 B8T class 2	S32100 (321)	3/4” and under	125	100	321 HB or 35 HRC	B8TSH
		over 3/4” to 1”	115	80	321 HB or 35 HRC
		over 1” to 1 1/4”	105	65	321 HB or 35 HRC
		over 1 1/4” to 1 1/2”	100	50	321 HB or 35 HRC
ASTM A193 B8R	S20910	all	100	55	271 HB or 28 HRC	B8R
ASTM A193 B8S	S21800	all	95	50	271 HB or 28 HRC	B8S

ASTM A193 B7 Bolts Price in India

Stud Bolt 5/8inch x 4inch ASTM A193 Grade B7 with Nuts ASTM A194 Grade 2H
Price: US $0.2-10 / Piece
1 Piece (Min. Order)
astm a193 b7 low temperature high strength bolts / 307b structural bolts / bolt for steel structure
Price: US $0.001-10 / Ton
1 Ton (Min. Order)
B7 L7 L7m Black Stud Bolt and 2h Nut Stainless Steel ASTM A193 B8 B8m Ss304 Ss316 Stud Bolt with Heavy Hex Nut (M4-M100)
Price: US $0.1-10 / Bag
1 Bag (Min. Order)
ASTM A193 B7 Stud bolt
Price: US $0.6-1.8 / Piece
500 Pieces (Min. Order)
standard astm a193 b7 a194 2h stud bolts and nuts black
Customs Data
Price: US $0.5-1 / Piece
1 Piece (Min. Order)
astm a193 b7 a194 2h stud bolts and nuts
Price: US $0.01-1 / Piece
1000 Pieces (Min. Order)
astm a193 b7 a194 2h stud bolts and nuts black
Price: US $0.5-1 / Piece
1 Piece (Min. Order)
No China manufacturer astm a193 gr b7 stud bolt with heavy hex nut
Price: US $0.01-0.5 / Piece
3000 Pieces (Min. Order)
Stud bolt astm a193 gr b7 full thread
Price: US $0.01-1 / Piece
1000 Pieces (Min. Order)
India manufacturer ASTM A193 B7 full threaded rod / stud bolt
Customs Data
Price: US $600-1400 / Ton
0.5 Tons (Min. Order)
Stud bolt astm a193 b7 bolt m8x50
Price: US $500-800 / Ton
200 Kilograms (Min. Order)
astm a193 b7 b16 stud bolt with nuts grade a193 b7
Price: US $900-1500 / Ton
0.9 Tons (Min. Order)
ASTM A193 B7 studs bolts for high temperature and high pressure
Price: US $1230-1650 / Ton
1 Tonne (Min. Order)
Cheap Price Auto Parts Manufacturer Hex Bolt Zinc Din933 /Din931/ Astm A193 B7/B 8 Hex Bolts Wholesale hex bolt 4.8 8.8
Price: US $550.0 / Ton
1 Ton (Min. Order)
Astm a193 grade b7 m42 stud bolts
Price: US $0.1-5 / Piece
100 Kilograms (Min. Order)
Italian astm a193 b7 a194 2h stud bolts and nuts
Price: US $0.0001-0.002 / Piece
30000 Pieces (Min. Order)
ASTM standard A193 B7 stud bolt with A194 2H nuts
Price: US $0.1-20 / Piece
1000 Pieces (Min. Order)
Fasteners manufacturers stainless steel hex bolt
Price: US $0.1-3 / Piece
1 Piece (Min. Order)
High strength double end stud stud bolt 10.9s 12.9s 8.8s flange stud bolt
Price: US $0.01-0.1 / Piece
1000 Pieces (Min. Order)
Stainless Steel A320 L7 L7M Stud Bolt M12 M16 M20 M8, M30 B7 Stud Bolts,Stud Bolt Astm A193 Gr B7
Price: US $0.1-10 / Piece
10 Pieces (Min. Order)
best ASTM A193 B7 B16 black oxide double head stud bolt
Price: US $520-599 / Ton
1 Ton (Min. Order)
Stock ASTM A193 GR B7 Heavy Hex Bolt
Price: US $0.01-1 / Piece
1 Piece (Min. Order)
Good pirce astm a193 b16 stud bolt /a193 b7 thread rod astm a194 gr 2h hex nut
Price: US $0.01-3 / Piece
3000 Pieces (Min. Order)
ASTM A193 B7 Stud Bolt Alloy Steel / Steel Thread Rod High Strength Double End Stud Bolts & Threaded Rod
10 Pieces (Min. Order)
No China manufacturer high tensile DIN976 stud bolt astm a193 gr b7 with 2h heavy hex nut
Price: US $0.01-3 / Piece
2000 Pieces (Min. Order)
Best quality Stainless steel GH145 Material thread rod/ Stud bolt
Price: US $500-700 / Ton
1 Ton (Min. Order)
astm a193 grade b16 bolts and nuts
Price: US $0.15-6.59 / Set
1000 Sets (Min. Order)
astm a193 gr b7 stud bolt with 2h heavy hex nut
Price: US $680-800 / Unit
1 Unit (Min. Order)
stud bolt astm a193 gr b7 made by Ningbo Jiaju Machinery Manufacturing Co., Ltd.
Price: US $0.1-1.8 / Piece
1 Piece (Min. Order)
LEITE 20Mm Diameter Anchor Stud Bolt Astm A193 Gr B7
Price: US $0.01-0.02 / Piece
1000 Pieces (Min. Order)
Specializing in the production of high-quality stud bolt astm a193 b7 black color
Price: US $0.01-2 / Piece
1000 Pieces (Min. Order)
ASTM A193 B7 Stud Bolts / Full thread rod
Price: US $0.01-1 / Piece
1000 Pieces (Min. Order)
Haiyan bafang carbon steel stud bolt astm a193 gr b7
Price: US $0.001-0.1 / Piece
1 Piece (Min. Order)
No China supplier high tensile astm a193 grade b7 stud bolts
Price: US $0.01-0.1 / Piece
1 Piece (Min. Order)
High Quality Stainless Steel Stud Bolt Astm a193 b7 Hollow a2 Hex Head A2 70 Rag Reamer Bolt
Price: US $0.01-0.08 / Piece
10000 Pieces (Min. Order)
Zinc astm a193 b7 stud bolt and nut For spiral electric heater
Price: US $0.01-2.5 / Piece
50 Pieces (Min. Order)
steel b7 stud bolt, stud bolt astm a193 b7 m30 stud bolt
Price: US $0.15-6.59 / Set
1000 Sets (Min. Order)
Stainless steel m10 m14 m24 m42 types of stud bolts astm a193 gr b7
Price: US $0.1-1.5 / Piece
1 Piece (Min. Order)
hexagon socket astm a193 grade b7 bolts
Price: US $0.1-1 / Piece
5000 Pieces (Min. Order)
astm a193 b7 double ended stud bolt with hex nut
Price: US $550-600 / Ton
1 Ton (Min. Order)
High tensile black anodized stud bolt astm a193 gr b7 / bolt and nut supplier
Price: US $0.01-1 / Piece
1 Piece (Min. Order)
High Quality Authentication Fastener M6 M8 M10 Stud Bolt Astm A193 Gr B7
Price: US $0.1-0.2 / Piece
1000 Pieces (Min. Order)
astm a193 b7 bolt
Price: US $0.01-0.02 / Piece
10000 Pieces (Min. Order)
HIGH TENSILE ASTM A193 B7 STAINLESS STEEL LIFTING EYE BOLTS
Price: US $0.01 / Pieces
100 Pieces (Min. Order)
threaded steel astm a193 b7 stud bolt
Price: US $0.05-3 / Piece
10000 Pieces (Min. Order)
din939 anodize black ASTM A193 B7 full threaded stud anchor bolt
Price: US $0.8-1.0 / Units
1000 Units (Min. Order)
Best Sale Stud Bolt Astm A193 Gr B7 In Stock
Price: US $0.6-1.1 / Piece
8000 Pieces (Min. Order)
Stud Bolt ASTM A193 Gr B7
Price: US $0.1-1 / Piece
100 Pieces (Min. Order)
ASTM A193 B7 stud bolt with ASTM A194 2H nut
Price: US $0.01-0.8 / Piece
1000 Pieces (Min. Order)
India wholesale High quality carbon steel stud bolt astm a193 gr b7 No China
Price: US $0.01-0.1 / Pieces
100 Pieces (Min. Order)

ASTM A193 B7 Bolt for sale

ASTM A307 Bolts

MD Exports LLP — Wed, 28 Feb 2018 10:21:22 +0000

ASTM A307 Bolts
ASTM A307 Bolts Price
ASTM A307 Bolts For Sale

ASTM A307 Bolts

Materials – Carbon Steel Bolts in ASTM A307 (Grades A and B)

ASTM A307 is the standard specification for carbon steel bolts, studs, and threaded rods of 60000 PSI tensile strength in sizes from ¼ inch to 4 inches in diameter. MD Exports LLP manufacturing these A307 bolts in two grades, A and B.

Types of ASTM A307 Bolts

Grade A – headed bolts, threaded rods and bent bolts with a minimum tensile strength of 60 ksi for a wide range of general-purpose applications.
Grade B – heavy hex bolts and studs with a tensile strength of 60 to 100 ksi for flanged joints in piping systems with cast iron flanges.

ASTM A307 Bolts Properties

Grade	Tensile strength – ksi	Elongation % min
A	60 min	18
B	60 – 100	18

Element	Grade A % max	Grade B % max
Carbon	0.29	0.29
Manganese	1.20	1.20
Phosphorus	0.04	0.04
Sulfur	0.15	0.05

Recommended nuts and washers for ASTM A307 Bolts

Bolt	Nut	Washer
Grade A – 1/4 inch to 11/2 inches	A563A Hex	F844
Grade A – 11/2 inches to 4 inches	A563A Heavy hex	F844
Grade B – 1/4 inch to 4 inches	A563A Heavy hex	F844

ASTM A307 Bolts Price in India

ASTM A307 GradeB Heavy Hex Bolt
Price: US $0.01-3 / Piece
800 Pieces (Min. Order)
astm a307 hex bolt
Price: US $0.01-0.1 / Piece
1 Piece (Min. Order)
ANSI ASME B18.2.1 ASTM A307 A325 A449 A394 A193 Heavy Hex Bolt
Price: US $0.12-0.5 / Piece
1000 Pieces (Min. Order)
Customized wholesale quality standard astm a307 hex bolts
Price: US $0.001-1 / Piece
3000 Pieces (Min. Order)
China supplier standard astm a307 hex bolts
Price: US $0.01-0.09 / Piece
5000 Pieces (Min. Order)
China supplier astm a307 heavy hex bolt
Price: US $0.01-0.8 / Piece
5000 Pieces (Min. Order)
high quality astm a325 A307 heavy indented hex bolts
Customs Data
Price: US $900-1500 / Ton
0.9 Tons (Min. Order)
China supplier astm a307 hex bolt
Price: US $500-800 / Ton
200 Kilograms (Min. Order)
price astm a325 hex bolt a307 bolt from factory
Price: US $0.1-5 / Piece
100 Pieces (Min. Order)
astm a307 stainless steel hex bolts manufacture
1000 Pieces (Min. Order)
grade 8.8s Astm A307 bolt with iso9001:2000 certified
Price: US $1350-1500 / Ton
1 Ton (Min. Order)
DIN6914 High-strength Hex bolts, ASTM A325M, A490M Heavy Hex Bolt for steel structure grade 8.8S/10.9S/10.9HV structural bolt 18
Price: US $530-762 / Ton
13 Tons (Min. Order)
Production and sales astm a307 hex bolt
Price: US $0.01-0.8 / Piece
5000 Pieces (Min. Order)
ASTM A193 B8 stainless steel stud bolt and nut
Price: US $0.01-0.5 / Piece
1000 Pieces (Min. Order)
grade 8.8s A307 TC structural bolt for steel structure
Price: US $1350-1500 / Ton
1 Ton (Min. Order)
Chuanghe supplier astm a307 carriage bolts
Price: US $0.01-0.5 / Piece
5000 Pieces (Min. Order)
china supplier astm a307 grade b heavy hex bolt
Price: US $0.001-0.3 / Piece
1000 Pieces (Min. Order)
carbon steel astm a307 hex bolt
Price: US $0.01-2 / Piece
100 Pieces (Min. Order)
astm a307 metric hex bolt 10.9
Price: US $0-1 / Piece
50000 Pieces (Min. Order)
ANSI/ASTM/ASME B18.2.1 Square Bolts A307 Grade/Class a Hot DIP Galvanized (WITHOUT WASHE hex bolts hot dip galvanizing grade 8.8
Price: US $0.25 / Pieces
1000 Pieces (Min. Order)
ASTM A307 TEFLON anticorrosive coating Hex Bolts M10*40
Price: US $0.15-0.2 / Piece
10000 Pieces (Min. Order)
Fastener Hot Sale High Strength Carbon Steel Yellow Zinc Plated M8 ASTM A307 Grade 4.6 Hex Bolt
Price: US $0.1-0.2 / Piece
1000 Pieces (Min. Order)
astm a307 hex bolt
1 Unit (Min. Order)
Made In Taiwan High Quality Astm A307 Hex Bolt
Price: US $0.001-0.1 / Unit
10000 Pieces (Min. Order)
ANSI ASME B18.2.1 ASTM A307 A325 A449 A394 A193 Heavy Hex Bolts
Price: US $0.8-2 / Piece
1000 Pieces (Min. Order)
China wholesale carbon steel a307 bolt with ASTM DIN JIS Standard
Price: US $0.0005-0.01 / Piece
5000 Pieces (Min. Order)
ASTM a307 hex bolt
Price: US $0.02-0.2 / Piece
1 Piece (Min. Order)
ASTM A307 HEX BOLT/HALF THREAD HEX BOLT DIN931
Price: US $690.0 / Kilograms
300 Kilograms (Min. Order)
Socket Head 12.9 Grade Nylon Threaded Rod A4 70 Stainless Steel U S10t Tc Nut And Astm A307 Hex Bolt
Price: US $0.001-10 / Piece
1000000 Pieces (Min. Order)
5/8"X 4" ASTM A307 Zinc Plated hex tap Bolt
Price: US $1000-1500 / Ton
5 Tons (Min. Order)
m2-m100 carbon steel black astm a307 hex head hollow bolt hex bolt
Price: US $0.01-0.36 / Piece
10 Pieces (Min. Order)
Best price carbon steel astm a307 hex bolts
Price: US $0.01-1 / Piece
50 Kilograms (Min. Order)
astm a307 carriage bolts
Price: US $0.002-0.05 / Piece
10000 Pieces (Min. Order)
ansi asme b18.2.1 astm a307 a325 a449 heavy hex bolts
Price: US $0.001-0.86 / Piece
1 Piece (Min. Order)
astm a307 grade 4.6-10.9 hex bolt
Price: US $0.13-1 / Piece
5000 Pieces (Min. Order)
china manufacturer carbon steel black astm a307 hex head hollow bolt hex bolt
Price: US $0.01-0.36 / Piece
5000 Pieces (Min. Order)
ASTM A307 hex bolt ss304
Price: US $0.01-1 / Piece
1000 Pieces (Min. Order)
ASTM A307 Hex Bolt
Price: US $500-1000 / Ton
1 Ton (Min. Order)
carbon steel astm a307 hex bolt for bulding construction
Price: US $1350-1500 / Ton
1 Ton (Min. Order)
Hex nuts and bolts Zinc plated hex bolt Standard astm a307 hex bolts
Price: US $0.01-0.15 / Piece
1 Twenty-Foot Container (Min. Order)
ASTM A307 Grade A Round Head Carriage Bolt
Price: US $0.01-0.1 / Piece
1 Piece (Min. Order)
astm a307 hex bolt, outside hex bolts and nuts (over 10 years factory direct sale)
Price: US $0.1-3.2 / Piece
100 Pieces (Min. Order)
ASTM A307 Grade A Plain Finish Square Head Bolt Square Head 3/4-10 x 12 Bolts square head lag bolt
Price: US $0.01-0.1 / Piece
3000 Pieces (Min. Order)
China Supplier High quality Carbon Steel Zinc Plated A325m Astm A307 Heavy Hex Bolt
Price: US $0.1-10 / Piece
1 Piece (Min. Order)
A307 ASTM A325 Heavy Duty Hex Bolt And Nut
Price: US $500.0-800.0 / Ton
1 Ton (Min. Order)
Wholesale zinc plated astm a307 stud bolt
Price: US $0.01-1 / Piece
10000 Pieces (Min. Order)
Hexagon head bolts DIN 933(full thread) standard astm a307 hex bolts
Price: US $0.05-0.09 / Piece
1 Piece (Min. Order)
astm a307 bolts made by MD Exports LLP
Price: US $0.1-1.8 / Piece
1 Piece (Min. Order)
ASME B18.2.1 ASTM A307 Grade A steel hex head bolt
Price: US $0.9-1.4 / Kilogram
100 Kilograms (Min. Order)
Plain / Zinc Plated Full Thread Partial Thread astm grade a307 bolt
Price: US $0.03-0.08 / Piece
10000 Pieces (Min. Order)

ASTM A307 Bolts for sale

Metric Threaded Rod

MD Exports LLP — Wed, 28 Feb 2018 10:09:55 +0000

Metric Threaded Rod
Metric Threaded Rod Price
Metric Threaded Rod For Sale

Metric Threaded Rod

All metric thread rods or metric threaded rod is used for general purpose fastening. The applications can run from a simple anchor bolt to a specific length through bolt application. A threaded rod, also known as a stud bolt, is a long rod that is threaded on double ends; the thread may extend along the complete length of the rod. They are designed to be used in tension. Threaded rod in bar stock form is often called all-thread.

Carbon Steel Material Long Metric DIN 975 Full Threaded Rod, short metric threaded rod white zinc plated steel grade 4.8 din 976

Product Name	short metric threaded rod white zinc plated steel grade 4.8 din 976
Standard	ISO, JIS, GB, ANSI, BSW, DIN or non standard as customize
Material	Stainless Steel, carbon steel, Steel, Brass, titanium, Aluminum Alloy, etc
Size	M3-M64 or non-standard as request & design
Length	M6-M1000 or non-standard as request & design
Surface Treatment	Zn- Plated, Ni-plated, Passivated, Tin-plated, Sandblast and Anodize, Polish, Electro Painting, Black Anodize, Plain, Chrome plated, Hot Deep Galvanize (H. D. G. ) etc.
Heat Treatment	Tempering, Hardening, Spheroidizing, Stress Relieving.
Grade	4.8, 6.8, 8.8, 10.9, 12.9, A2-70, A4-80;
Payment term	30% in advance, 70% before shipment. Samples Free
Packing	Bulk in cartons (25kg Max.)+wood Pallet or according to customer special demand
Notice	Please lets know the Size, quantity, Material or Grade, surface, If it is special and Non-standard products, please supply the Drawing or Photos or Samples to us

Metric Threaded Rod Price in India

Carbon Steel Material Long Metric DIN 975 Full Threaded Rod
Price: US $750-780 / Ton
1 Ton (Min. Order)
Metric Thread Rods of hot sales
Price: US $0.1-1.0 / Pieces
1000 Pieces (Min. Order)
Astm ansi metric stainles steel ansi304 B8 thread rod
Price: US $0.005-0.1 / Piece
500 Pieces (Min. Order)
Good pirce short metric threaded rod white zinc plated steel grade 4.8 din 976
Price: US $0.01-3 / Piece
3000 Pieces (Min. Order)
Stainless Steel 18-8 Metric Full Threaded Rod 12mm In Stock
Price: US $0.01-0.1 / Piece
1000 Pieces (Min. Order)
Chuanghe supplier 200mm m6 4.8 galvanized metric threaded rod
Price: US $0.01-1.05 / Piece
3000 Pieces (Min. Order)
metric trapezoidal threaded rod
Price: US $0.03-0.5 / Piece
3000 Pieces (Min. Order)
Stud B16 Metric Hex Large Head Grade 5.6 Galvanized Black Square Threaded Rod Stainless Steel Bolt Nut Washer Din933
Price: US $0.001-10 / Piece
1000000 Pieces (Min. Order)
China supplier metric inch female internally threaded rod
Price: US $0.01-1 / Piece
5000 Pieces (Min. Order)
cheap wholesale metric threaded rod in china
Price: US $0.0002-0.005 / Piece
5000 Pieces (Min. Order)
Factory wholesale din 975 standard all thread rod manufacturers
Price: US $0.02-2 / Piece
5000 Pieces (Min. Order)
Factory wholesale t-thread self drilling all threaded rod
Price: US $0.008-0.05 / Piece
5000 Pieces (Min. Order)
Factory wholesale cast iron threaded rod
Price: US $0.01-0.1 / Piece
5000 Pieces (Min. Order)
Factory wholesale coil spring wire rod
Price: US $0.008-0.05 / Piece
5000 Pieces (Min. Order)
Zhejiang All Types metric trapezoidal threaded rod
Price: US $0.001-0.5 / Piece
1 Piece (Min. Order)
Made in china supplier quality metric threaded rod
Price: US $0.01-1 / Piece
1000 Pieces (Min. Order)
Short Thread Rod Din976 Grade 4.8 8.8 10.9 12.9 Carbon/Stainless Steel Plain Black Zinc Plated HDG Threaded Rods Bar
10 Pieces (Min. Order)
VMT Stainless Steel Type Hollow M10 Metric Half Internally Female Threaded Rod
Price: US $0.1-5 / Piece
5000 Pieces (Min. Order)
Popular metric steel threaded rods with CE certificates
Price: US $0.1-0.8 / Piece
1000 Pieces (Min. Order)
Manufacturer hot slae internally metric all thread rod with high quality
Price: US $97.8-99.28 / Piece
5 Pieces (Min. Order)
China Screw Factory SUS304 316 Thread Rod
Price: US $0.65-1 / Piece
1 Piece (Min. Order)
1Meter long M8x1000 metric 5.8 grade din975/din976 steel threaded rod
Price: US $0.01 / Pieces
100 Pieces (Min. Order)
stainless steel 18-8 metric full threaded rod 12mm in stock
Price: US $0.001-0.86 / Piece
1 Piece (Min. Order)
High strength HDG DIN 975 DIN 976 3/8-16 Metric Thread Rods
Price: US $0.01 / Pieces
100 Pieces (Min. Order)
Top quality stainless steel Threaded Rod Zinc Plated Metric Threaded Rod
Price: US $1.0 / Pieces
10 Pieces (Min. Order)
Good price din 975 threaded rod metric and inch studs din 975
Price: US $0.01-0.8 / Quart
8000 Quarts (Min. Order)
Stainless Steel 304 316 Metric Thread Stud Bolts/Threaded Rods
Price: US $0.001-0.1 / Kilogram
500 Kilograms (Min. Order)
1.4541 Metric hardware DIN975 threaded rods GB15389 C1-110 full thread rods
Price: US $0.04-4.5 / Piece
1200 Pieces (Min. Order)
china supplier high tensile stainless steel metric threaded rods
Price: US $0.01-0.5 / Piece
50 Pieces (Min. Order)
M12 metric thread sherardizing thread Rod din975/din976 steel threaded rod
Price: US $900-1000 / Ton
3 Tons (Min. Order)
The price of reasonable metric thread rods
Price: US $0.01-5 / Kilogram
500 Kilograms (Min. Order)
Metric Coarse All thread Threaded Rod Cut To Length
Price: US $0.01-0.02 / Piece
100000 Pieces (Min. Order)
metric size one-end threaded studs threaded rods
Price: US $0.01-0.02 / Pieces
10000 Pieces (Min. Order)
Best quality hot sale metric hollow acme threaded rods
Price: US $0.01-0.05 / Piece
50 Pieces (Min. Order)
Metric Threaded Rod
Price: US $1.5-2 / Piece
300 Kilograms (Min. Order)
DIN975 metric threaded rod
Price: US $600-1090 / Ton
0.5 Tons (Min. Order)
High quality 316 b8m metric threaded rod
Price: US $0.01-2 / Piece
500 Kilograms (Min. Order)
Metric Threaded Bar / Rod / Stud Bolts with Round Neck
Price: US $0.01-0.03 / Piece
100000 Pieces (Min. Order)
tensile stainless steel metric threaded rods (DIN975)
Price: US $0.005-1 / Piece
10000 Pieces (Min. Order)
stainless steel 18-8 metric continuously threaded rod 12mm
Price: US $1-5 / Piece
500 Pieces (Min. Order)
3/8" Steel Metric Threaded Rod
Price: US $1-10 / Piece
1 Ton (Min. Order)
DIN975 Grade 4.8 Galvanized thread rod
Price: US $600-800 / Metric Ton
1 Metric Ton (Min. Order)
inconel625 bolt and screw 625 inconel alloy625 metric threaded rod
Price: US $0.1-5 / Piece
100 Pieces (Min. Order)
Din976 Metric Thread Stud rod Grade 4.8 8.8 10.9 12.9 Carbon/Stainless Steel Plain Black Zinc Plated HDG Threaded Rods
Price: US $900-1100 / Ton
1 Ton (Min. Order)
metric threaded rod,double threaded rod with wooden screw
Price: US $0.01-1 / Piece
1 Ton (Min. Order)
m28 metric acme threaded rod
Price: US $920-1230 / Ton
2 Tons (Min. Order)
ASME/ANSI Galvanized All Thread Rod with 1/4",5/16",3/8",7/16",1/2",9/16",5/8"3/4",13/16",7/8"15/16"diameter
Price: US $0.01-2.5 / Piece
1 Piece (Min. Order)
Metric Threaded Rod
Price: US $650.0 / Ton
1 Ton (Min. Order)
Din976 Metric Thread Stud Bolts Grade 4.8 8.8 10.9 12.9 Carbon/Stainless Steel Plain Black Zinc Plated HDG Threaded Rods
Price: US $0.04-10 / Piece
1000 Pieces (Min. Order)
DIN975 Galvanized Threaded Rod screw rod screw threaded rod
1 Ton (Min. Order)

Metric Threaded Rod for sale

Threaded rod is available in national coarse thread, fine thread, acme thread, and metric threads.

Metric Threaded Rod Steel Zinc
Metric Threaded rod Steel Plain
Metric Threaded Rod Medium Carbon Steel
Metric Threaded Rod Alloy Steel
Metric Threaded Rod 4140 Steel
Metric Threaded Rod B7
Metric Threaded Rod 18-8 Stainless Steel
Metric Threaded Rod 303 Stainless Steel
Metric Threaded Rod 316 Stainless SteelMetric Threaded Rod 309 Stainless Steel
Metric Threaded Rod 310 Stainless Steel
Metric Threaded Rod Aluminum
Metric Threaded Rod Brass
Metric Threaded Rod Titanium
Metric Threaded Rod Plastic
Metric Threaded Rod Delrin
Metric Threaded Rod Fiberglass
Metric Threaded Rod Nylon

ASTM A193 B8M Bolt

MD Exports LLP — Wed, 28 Feb 2018 08:50:42 +0000

ASTM A193 B8M
ASTM A193 B8M Hex Bolt
ASTM A193 B8M Hex Bolt Price
ASTM A193 B8M Stud Bolt
ASTM A193 B8M Bolt For Sale

ASTM A193, Grade B8M Class 1 Stainless steel, AISI 316, carbide solution treated.
Stainless steel, AISI 316, carbide solution treated.
ASTM A193, Grade B8 Class 2 Stainless steel, AISI 304, carbide solution treated, strain hardened
Specialized manufacturer of: ASTM A193 Carriage Bolt, ASTM A193 B8M Flange Bolt, ASTM A193 heavy hex bolt, ASTM A193 B8M Hex Cap Screw, ASTM A193 B8M Allen Cap Screw, ASTM A193 Machine Screw

ASTM A193 B8M

ASTM A193 Grade B8M Class 1 fasteners are similar to Grade B8 but instead are manufactured from AISI 316 stainless steel as opposed to AISI 304 stainless steel.

ASTM A193 specification covers alloy steel and stainless steel bolting material for pressure vessels, valves, flanges, and fittings for high temperature or high pressure service, or other special purpose applications.Several grades are covered, including ferritic steels and austenitic stainless steels designated B5, B8,B8M and so forth. Selection will depend upon design, service conditions, mechanical properties, and high temperature characteristics.Material according to ASTM A193 B8M is often available in national coarse (UNC) thread pitches, if being used in traditional applications, threads are specified 8 threads per inch (tpi) for diameters above one inch.

ASTM A193 B8M HEX BOLT

ASTM A193 B8M HEX BOLTS, ASTM A193 HEX HEAD BOLT, B8M SOCKET CAP SCREW, SS ASTM A193 HEX CAP SCREW, HIGH TENSILE FASTENERS, ASTM A193 B8M SOCKET CAP SCREW, ASTM A193 B8M FLANGE BOLT SUPPLIER & EXPORTER

A193 Grades

ASTM A193 B7: Alloy steel, AISI 4140 or 4142, quenched and tempered
ASTM A193 B6 : Stainless steel, AISI 410, heat treated
ASTM A193 B8 : Class 1 Stainless steel, AISI 304, carbide solution treated.
ASTM A193 B8M : Class 1 Stainless steel, AISI 316, carbide solution treated.
ASTM A193 B8 Class 2 Stainless steel, AISI 304, carbide solution treated, strain hardened
ASTM A193 B8M Class 2 Stainless steel, AISI 316, carbide solution treated, strain hardened
ASTM A193 B8T: Class 1 or 2 Stainless steel, AISI 321, with additional element of Titanium
ASTM A193 B16: Chromium-Molybdenum-Vanadium, similar to B7 with Vandium added
ASTM A193 B7M Similar properties as B7 but with specialized heat treating to create differing mechanical properties
ASTM A193 B8R: Stainless steel, AISI 209, also known as Nitronic 50, nitrogen strengthened
ASTM A193 B8S: Stainless Steel, AISI 218, also known as Nitronic 60, nirtrogen strengthened

TAGS: ASTM A193 Grade B8 Class 2 Bolts : A193 B8M,Astm A93 grade B8M,A193 B8M Class 2,Astm A193 B8M,B8M Bolts,B8M Studs,Grade B8M,B8M Stainless,Astm A193 Grade B8M Stud Bolts etc

MD Exports LLP is your source for ASTM A193 B8M Class 2 Bolts from 1/4” to 2” Diameter in multiple lengths with standard or custom thread lengths. These bolts are typically bought and sold in a plain, bare metal finish but are often hot-dip galvanized, zinc plated, Xylan coated, PTFE coated, or otherwise coated for corrosion resistance. The IFI abstract of ASTM A193 indicates that the mechanical requirements of B8 studs and B8 hex bolts are actually the same as B8M studs, B8m hex bolts, and other B8M fasteners.

A193 Mechanical Properties

Grade	Size	Tensile ksi, min	Yield, ksi, min	Elong, %, min	RA % min	HBW	HRC
B7	Up to 2-1/2	125	105	16	50	321 max	35 max
	2-5/8 – 4	115	95	16	50
	4-1/8 – 7	100	75	18	50
B8 Class 1	All	75	30	30	50	223 max	35 max
B8M Class 1	All	75	30	30	50	223 max	96 max
B8 Class 2	Up to 3/4	125	100	12	35	321 max	35 max
	7/8 – 1	115	80	15	35
	1-1/8 – 1-1/4	105	65	20	35
	1-3/8 – 1-1/2	100	50	28	45
B8M Class 2	Up to 3/4	110	95	15	45	321 max	35 max
	7/8 – 1	100	80	20	45
	1-1/8 – 1-1/4	95	65	25	45
	1-3/8 – 1-1/2	90	50	30	45

Grade	Size	Tensile ksi, min	Yield, ksi, min	Elong, %, min	RA % min	HBW	HRC
B8M Class 1	All	75	30	30	50	223 max	96 max
B8M Class 2	Up to 3/4	110	95	15	45	321 max	35 max
	7/8 – 1	100	80	20	45
	1-1/8 – 1-1/4	95	65	25	45
	1-3/8 – 1-1/2	90	50	30	45

A193 Chemical Properties

Element	B7 (AISI 4140)	B8 (AISI 304)	B8M (AISI 316)
Carbon	0.38 – 0.48%	0.08% max	0.08% max
Manganese	0.75 – 1.00%	2.00% max	2.00% max
Phosphorus, max	0.035%	0.045%	0.045%
Sulfur, max	0.040%	0.030%	0.030%
Silicon	0.15 – 0.35%	1.00% max	1.00% max
Chromium	0.80 – 1.10%	18.0 – 20.0%	16.0 – 18.0%
Nickel		8.0 – 11.0%	10.0 – 14.0%
Molybdenum	0.15 – 0.25%		2.00 – 3.00%

A193 Recommended Hardware

Bolt Grade	Nuts	Washers
B7	A194 Grade 2H	F436
B8 Class 1	A194 Grade 8	SS304
B8M Class 1	A194 Grade 8M	SS316
B8 Class 2	A194 Grade 8	SS304
B8M Class 2	A194 Grade 8M	SS316

Heat treated conditions for the ferritic materials include:

normalized & tempered
quenched & tempered.

Heat treated conditions for the austentic stainless steels include:

Carbide solution treated (Class 1)
Carbide solution treated after finishing (Class 1A)
Carbide solution treated nitrogen-bearing stainless steels (Class 1B & 1C)
Carbide solution treated by cooling rapidly from the rolling temperature (Class 1D)
Carbide solution treated and Strain-hardened (Classes 2, 2B, and 2C)

ASTM A193 TENSILE STRENGTH / HARDNESS CHART

Grade and Class	Diameter	Tensile Strength Min KSI	Yield Strength 0.2% Offset KSI	Elongation in 4D, Min, %	Reduction of Area Min, %	Hardness Max Brinell	Hardness Max Rockwell
B5	up to 4″ incl	100	80	16	50	–	–
B6	up to 4″ incl	110	85	15	50	–	–
B6X	up to 4″ incl	90	70	16	50	–	C26
B7	to 2-1/2″	125	105	16	50	–	C35
	over 2-1/2 to 4″	115	95	16	50	–	C35
	over 4″ to 7″	100	75	18	50	–	C35
B7M	up to 4″ incl	100	80	18	50	235	B99
	over 4″ to 7″	100	75	18	50	235	B99
B16	to 2-1/2″	125	105	18	50	321	C35
	over 2-1/2″ to 4″	110	95	17	45	321	C35
	over 4″ to 7″	100	85	16	45	321	C35
Classes 1 and 1D: B8, B8M, B8P, B8LN, B8ML	ALL	75	30	30	50	223	B96
Class 1: B8C, B8T	ALL	75	30	30	50	223	B96
Class 1A: B8A, B8CA, B8MA, B8PA, B8TA, B8LNA, B8MLNA, B8NA, B8MNA, B8MLCuNA	ALL	75	30	30	50	192	B90
Classes 1B & 1D: B8N, B8MN, B8MLCuN	ALL	80	35	30	40	223	B96
Class 1C and 1D: B8R	ALL	100	55	35	55	271	C28
Class 1C: B8RA	ALL	100	55	35	55	271	C28
Classes 1C and 1D: B8S	ALL	95	50	35	55	271	C28
Classes 1C: B8SA	ALL	95	50	35	55	271	C28
Class 2: B8, B8C, B8P, B8T, B8N	to 3/4″	125	100	12	35	321	C35
	over 3/4″ to 1″	115	80	15	35	321	C35
	over 1″ to 1-1/4″	105	65	20	45	321	C35
	over 1-1/4 to 1-1/2″ incl	100	50	28	45	321	C35
Class 2 B8M, B8MN, B8MLCuN	to 3/4″	110	96	15	45	321	C35
	over 3/4″ to 1″	100	80	20	45	321	C35
	over 1″ to 1-1/4″	95	65	25	45	321	C35
	over 1-1/4 to 1-1/2″ incl	90	50	30	45	321	C35
Class 2B: B8, B8M2	to 2″ incl	95	75	25	40	321	C35
	over 2″ to 2-1/2″ incl	90	65	30	40	321	C35
	over 2-1/2 ” to 3″ incl	80	55	30	40	321	C35
Class 2C: B8M3	to 2″ incl	85	65	30	60	321	C35
	over2″	85	60	30	60	321	C35

ASTM A193 Characteristics

Grade	Description	Diameter	Tensile Strength, min.	Yield Strength, min.	Hardness, max.	Marking
ASTM A193 B6	S41000 (410)	Up to 4”	110	85		B6
ASTM A193 B7	Chromium-Molybdenum	2 1/2” and under	125	105	321 HB or 35 HRC	B7
		over 2 1/2” to 4”	115	95	321 HB or 35 HRC
		over 4” to 7”	100	75	321 HB or 35 HRC
ASTM A193 B7M	Chromium-Molybdenum	4” and under	100	80	235 HB or 99 HRB	B7M
		over 4” to 7”	100	75	235 HB or 99 HRB
ASTM A193 B16	Chromium-Molybdenum- Vanadium	2 1/2” and under	125	105	321 HB or 35 HRC	B16
		over 2 1/2” to 4”	110	95	321 HB or 35 HRC
		over 4” to 8”	100	85	321 HB or 35 HRC
ASTM A193 B8 class 1	S30400 (304)	all	75	30	223 HB or 96 HRB	B8
ASTM A193 B8 class 2	S30400 (304)	3/4” and under	125	100	321 HB or 35 HRC	B8SH
		over 3/4” to 1”	115	80	321 HB or 35 HRC
		over 1” to 1 1/4”	105	65	321 HB or 35 HRC
		over 1 1/4” to 1 1/2”	100	50	321 HB or 35 HRC
ASTM A193 B8C class 1	S34700 (347)	all	75	30	223 HB or 96 HRB	B8C
ASTM A193 B8C class 2	S34700 (347)	3/4” and under	125	100	321 HB or 35 HRC	B8CSH
		over 3/4” to 1”	115	80	321 HB or 35 HRC
		over 1” to 1 1/4”	105	65	321 HB or 35 HRC
		over 1 1/4” to 1 1/2”	100	50	321 HB or 35 HRC
ASTM A193 B8M class 1	S31600 (316)	all	75	30	223 HB or 96 HRB	B8M
ASTM A193 B8M class 2	S31600 (316)	3/4” and under	110	95	321 HB or 35 HRC	B8MSH
		over 3/4” to 1”	100	80	321 HB or 35 HRC
		over 1” to 1 1/4”	95	65	321 HB or 35 HRC
		over 1 1/4” to 1 1/2”	90	50	321 HB or 35 HRC
ASTM A193 B8T class 1	S32100 (321)	all	75	30	223 HB or 96 HRB	B8T
ASTM A193 B8T class 2	S32100 (321)	3/4” and under	125	100	321 HB or 35 HRC	B8TSH
		over 3/4” to 1”	115	80	321 HB or 35 HRC
		over 1” to 1 1/4”	105	65	321 HB or 35 HRC
		over 1 1/4” to 1 1/2”	100	50	321 HB or 35 HRC
ASTM A193 B8R	S20910	all	100	55	271 HB or 28 HRC	B8R
ASTM A193 B8S	S21800	all	95	50	271 HB or 28 HRC	B8S

OTHER TYPES OF ASTM A193 B8M HEX BOLT

ASTM A193 B8M Hex Bolts	SS ASTM A193 B8M Hex Bolt
Stainless Steel B8M heavy hex bolt ASTM A193 B8M hex screw Exporter ASTM A193 B8M countersunk slotted screw ASTM A193 B8M Hex Head Bolt Supplier ASTM A193 Grade B8M Plow Bolt Supplier Grade B8M Hanger Bolt Stainless Steel B8M Bolts B8M Stainless Steel Bolts ASTM A193 Anchor Bolt Exporter ASTM A193 Grade B8M U Bolt ASTM A193 Socket Cap Screw	ASTM A193 B8M hex cap screw Supplier B8M socket cap screw ASTM A193 Bolts Manufacturer Grade B8M Machine Bolt Distributor B8M Anchor Bolt ASTM A193 Grade B8M Step Bolt Manufacturer ISO Certified ASTM A193 B8M Head Bolts ASTM A193 B8M Grub Screw B8M Step Bolt Stockist ASTM A193 Grade B8M J Bolt Grade B8M Carriage Bolt Exporter

ASTM A193 B8M HEX BOLT PRICE IN INDIA

B7 L7 L7m Black Stud Bolt and 2h Nut Stainless Steel ASTM A193 B8 B8m Ss304 Ss316 Stud Bolt with Heavy Hex Nut (M4-M100)
Price: US $0.1-10 / Bag
1 Bag (Min. Order)
No China supplier ASTM A193 stainless steel SS316 B8 B8m stud bolt
Price: US $500-900 / Ton
200 Pieces (Min. Order)
Ansi Astm A193 stainless steel aisi316 B8ma B8m stud bolt
Price: US $0.005-0.1 / Piece
500 Pieces (Min. Order)
Hot selling ASTM A193 B8M hex bolt/screw
Price: US $1-1.8 / Piece
2000 Pieces (Min. Order)
m20 galvanized a325 brass astm a193 b8m hex bolt class 2
Price: US $900-1200 / Ton
1 Ton (Min. Order)
Specializing in the production of high-quality astm a193 grade b8m stainless steel stud bolts
Price: US $0.01-2 / Piece
1000 Pieces (Min. Order)
Thread Rod/Bar DIN975/ASTM A193 B7/ B7M/B8/B8M with grade4.8/8.8/10.9/12.9/A2/A4 made in India
Price: US $0.1-0.2 / Piece
50 Pieces (Min. Order)
ASTM A193 B7 Studs Teflon Coated
Price: US $0.15-0.86 / Piece
0.5 Tons (Min. Order)
Cheap Price Stainless Steel B8 B8M Stud Bolt Astm A193 On Stock
Price: US $0.6-1.1 / Piece
8000 Pieces (Min. Order)
din975 stainless steel 316 a4 ASTM A193 B8M thread rod
Price: US $0.001-0.5 / Piece
5000 Pieces (Min. Order)
Carbon steel Stainless steel DIN835 stud bolt, Stainless steel 316 ASTM A193 B8M stud bolt nut/bolt
Price: US $0.01-1 / Piece
1 Piece (Min. Order)
AISI 304/316 ASTM a193 b8/b8M hex bolt
Price: US $0.01-0.1 / Piece
1 Piece (Min. Order)
Astm a193 grade b7 m42 stud bolts
Price: US $0.1-5 / Piece
100 Kilograms (Min. Order)
India manufacturer ASTM A 193 B7 threaded rod with hole
Price: US $0.001-0.5 / Piece
500 Pieces (Min. Order)
DIN975/Thread Rod internal thread/ASTM A193 B7/ B7M/B8/B8M with grade4.8/8.8/10.9/12.9/A2/A4
Price: US $0.1-0.2 / Piece
50 Pieces (Min. Order)
Stud Bolt DIN975/ASTM A193 B7/ B7M/B8/B8M
Price: US $399-799 / Ton
5 Tons (Min. Order)
UNC UNF stainless steel316 B8M stud bolt and nuts
Price: US $0.001-0.5 / Piece
500 Pieces (Min. Order)
Factory direct low price high quarlity A193 B8M stud bolt
Price: US $0.01-1 / Piece
1000 Pieces (Min. Order)
DIN 975/Thread Rod/ASTM A193 B7/ B7M/B8/B8M with grade4.8/8.8/10.9/12.9/A2/A4
Price: US $0.1-0.2 / Piece
50 Pieces (Min. Order)
M2 M6 ASTM A193 B7/B7M/B8/B8M Dacromet Threaded Bar DIN975
Price: US $0.0012-0.005 / Piece
1000 Pieces (Min. Order)
AISI 304/316 ASTM A193 B8/B8M Hex/Hexagon Heavy Bolt ANSI B18.2.1
Price: US $0.012-0.05 / Piece
1000 Pieces (Min. Order)
B8T B8M B8C STUD BOLT M12 X 400MM ASTM A193
Price: US $0.9-1.1 / Pieces
50 Pieces (Min. Order)
Stud Bolt DIN975/ASTM A193 B7/ B7M/B8/B8M
1000 Pieces (Min. Order)
Hot Stainless ASTM A193 B8M ACME stud India factory
Price: US $0.05-3.1 / Piece
800 Pieces (Min. Order)
B8M A193 B8M ASTM A193 GR B8M 8 HEX BOLT
Price: US $1.8-2.3 / Pieces
50 Pieces (Min. Order)
Stainles Steel Heavy Hex bolts ASTM A193 B8M B8
Price: US $0.1-1 / Piece
1000 Pieces (Min. Order)
heavy duty stainless steel half thread B8M stud bolt
Price: US $0.001-0.5 / Piece
5000 Pieces (Min. Order)
ASTM A193 B8 stud bolts
Price: US $0.01-0.5 / Piece
500 Pieces (Min. Order)
ASTM A193 B8M stainless steel thread rod
Price: US $0.01-1 / Piece
1000 Pieces (Min. Order)
Stainless Steel SS304 A2-70 ASTM A193 B8m Hex Bolt (DIN933 DIN931)
Price: US $0.12-0.5 / Piece
1000 Pieces (Min. Order)
Standard size ASTM A193 B8M Stainless steel stud bolt
Price: US $600-1400 / Ton
0.5 Tons (Min. Order)
3/8 ASTM A193 B6 B8 B8m B7 B7m DIN 975 thread bar
Price: US $0.6-1.8 / Piece
5000 Pieces (Min. Order)
7/8 ASTM A193 B6 B8 B8m B7 B7m DIN 975 thread bar
Price: US $0.6-1.8 / Piece
5000 Pieces (Min. Order)
M8 ASTM A193 B6 B8 B8m B7 B7m DIN 975 thread bar
Price: US $0.6-1.8 / Piece
5000 Pieces (Min. Order)
Thread Rod/Bar DIN975/ASTM A193 B7/ B7M/B8/B8M
Price: US $600-750 / Ton
1 Ton (Min. Order)
headless ASTM A193 B7/B7M/B8/B8M stud bolt
Price: US $800-1600 / Ton
0.9 Tons (Min. Order)
stud bolt din975/astm a193 b7/ b7m/b8/b8m
Price: US $0.0001-1 / Piece
1000 Pieces (Min. Order)
stud bolts with hex nut DIN975/astm a193 B7/ B7M/B8/B8M black/zinc plated/HDG surface finish
Price: US $0.01-0.02 / Piece
1000 Pieces (Min. Order)
High quality DIN 938 Astm A193 gr B8M Stud Bolt
Price: US $0.5-1.0 / Pieces
1000 Pieces (Min. Order)
Stainless steel 316 ASTM A193 B8M stud bolt nut/bolt
Price: US $0.02-250 / Piece
1 Piece (Min. Order)
Thread Rod/Bar DIN975/ASTM A193 B7/ B7M/B8/B8M with grade4.8/8.8/10.9/12.9/A2/A4
10 Pieces (Min. Order)
Stainless steel 316 ASTM A193 B8M stud bolt nut/bolt
Price: US $378.0 / Tons
10 Tons (Min. Order)
Carbon steel Stainless steel DIN835 stud bolt, Stainless steel 316 ASTM A193 B8M stud bolt nut/bolt
Price: US $0.08-0.72 / Piece
1000 Pieces (Min. Order)
Stainless steel 316 ASTM A193 B8M stud bolt
Price: US $0.01-1 / Piece
10000 Pieces (Min. Order)
Stainless Steel Stud Bolt 304 316 A2-70 A4-80 ASTM A193 Grade B8M
Price: US $0.05-50 / Piece
10 Pieces (Min. Order)
Low price M22 ASTM A193 Grade B8M AISI 316 nickel plating stud bolt
Price: US $0.01-150 / Piece
1 Piece (Min. Order)
High tensile astm a193 b7 stud bolts
Price: US $0.1-0.2 / Piece
1 Piece (Min. Order)
best quality astm a453 gr. 660 thread rod
Price: US $0.001-0.86 / Piece
1 Piece (Min. Order)
2017 hot sales astm a193 grade b7 stud bolt
Price: US $0.01-1 / Piece
5000 Pieces (Min. Order)
Stud bolt DIN 975 grade8.8 ASTM A193 B6 B7 B7m B8m B8 stud bolt
Price: US $500-900 / Ton
200 Pieces (Min. Order)

EN 14399-4 10.9 HV Bolts

MD Exports LLP — Wed, 28 Feb 2018 08:37:53 +0000

HEAVY HEX BOLTS STANDARD

EN 14399 – 4

Nominal size and thread diameter d	Pitch of thread P	Thread Length b	Depth of washer face c		Transition diameter da	Diameter of unthreaded shank ds		Diameter of washer face dw	Width across corners e	Thickness of head k		Radius under head r	Width across flats s
Nominal size and thread diameter d	coarse pitch	Bolt ≤125	min.	max.	min.	min.	max.	min.	min.	min.	max.	min.	min.	max.
M12	1.75	23	0.4	0.6	15.20	11.30	12.70	20.10	23.91	7.55	8.45	1.2	21.16	22.00
M16	2.00	28	0.4	0.6	19.20	15.30	16.70	24.90	29.56	9.25	10.75	1.2	26.16	27.00
M20	2.50	33	0.4	0.8	24.00	19.16	20.84	29.50	35.03	12.10	13.90	1.5	31.00	32.00
M22	2.50	34	0.4	0.8	26.00	21.16	22.84	33.30	39.55	13.10	14.90	1.5	35.00	36.00
M24	3.00	39	0.4	0.8	28.00	23.16	24.84	38.00	45.20	14.10	15.90	1.5	40.00	41.00
M27	3.00	41	0.4	0.8	32.00	26.16	27.84	42.80	50.85	16.10	17.90	2.0	45.00	46.00
M30	3.50	44	0.4	0.8	35.00	29.16	30.84	46.60	55.37	17.95	20.05	2.0	49.00	50.00
M36	4.00	52	0.4	0.8	41.00	35.00	37.00	55.90	66.44	21.95	24.05	2.0	58.80	60.00

EN 14399-4 Dimensions of bolts

Thread d			M12		M16		M20		M22		M24		M27		M30		M36
l			ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.
nom.	min.	max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.
35	33.75	36.25	6.75	12.00
40	38.75	41.25	11.75	17.00	6.00	12.00
45	43.75	46.25	16.75	22.00	11.00	17.00	4.50	12.00
50	48.75	51.25	21.75	27.00	16.00	22.00	9.50	17.00	8.50	16.00
55	53.50	56.50	26.75	32.00	21.00	27.00	14.50	22.00	13.50	21.00
60	58.50	61.50	31.75	37.00	26.00	32.00	19.50	27.00	18.50	26.00	12.00	21.00
65	63.50	66.50	36.75	42.00	31.00	37.00	24.50	32.00	23.50	31.00	17.00	26.00
70	68.50	71.50	41.75	47.00	36.00	42.00	29.50	37.00	28.50	36.00	22.00	31.00	20.00	29.00
75	73.50	76.50	46.75	52.00	41.00	47.00	34.50	42.00	33.50	41.00	27.00	36.00	25.00	34.00	20.50	31.00
80	78.50	81.50	51.75	57.00	46.00	52.00	39.50	47.00	38.50	46.00	32.00	41.00	30.00	39.00	25.50	36.00
85	83.25	86.75	56.75	62.00	51.00	57.00	44.50	52.00	43.50	51.00	37.00	46.00	35.00	44.00	30.50	41.00	21.00	33.00
90	88.25	91.75	61.75	67.00	56.00	62.00	49.50	57.00	48.50	56.00	42.00	51.00	40.00	49.00	35.00	47.00	26.00	38.00
95	93.25	96.75	66.75	72.00	61.00	67.00	54.50	62.00	53.50	61.00	47.00	56.00	45.00	54.00	40.50	51.00	31.00	43.00
100	98.25	101.75			66.00	72.00	59.50	67.00	58.50	66.00	52.00	61.00	50.00	59.00	45.50	56.00	36.00	48.00
105	103.25	106.75			71.00	77.00	64.50	72.00	63.50	71.00	57.00	66.00	55.00	64.00	50.50	61.00	41.00	53.00
110	108.25	111.75			76.00	82.00	69.50	77.00	68.50	76.00	62.00	71.00	60.00	69.00	55.50	66.00	46.00	58.00
115	113.25	116.75			81.00	87.00	74.50	82.00	73.50	81.00	67.00	76.00	65.00	74.00	60.50	71.00	51.00	63.00
120	118.25	121.75			86.00	92.00	79.50	87.00	78.50	86.00	72.00	81.00	70.00	79.00	65.50	76.00	56.00	68.00

Thread d			M12		M16		M20		M22		M24		M27		M30		M36
l			ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.
nom.	min.	max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.
125	123.00	127.00			91.00	97.00	84.50	92.00	83.50	91.00	77.00	86.00	75.00	84.00	70.50	81.00	61.00	73.00
130	128.00	132.00			96.00	102.00	89.50	97.00	88.50	96.00	82.00	91.00	80.00	89.00	75.50	86.00	66.00	78.00
135	133.00	137.00					94.50	102.00	93.50	101.00	87.00	96.00	85.00	94.00	80.50	91.00	71.00	83.00
140	138.00	142.00					99.50	107.00	98.50	106.00	92.00	101.00	90.00	99.00	85.50	96.00	76.00	88.00
145	143.00	147.00					104.50	112.00	103.50	111.00	97.00	106.00	95.00	104.00	90.50	101.00	81.00	93.00
150	148.00	152.00					109.50	117.00	108.50	116.00	102.00	111.00	100.00	109.00	95.50	106.00	86.00	98.00
155	153.00	159.00					114.50	122.00	113.50	121.00	107.00	116.00	105.00	114.00	100.50	111.00	91.00	103.00
160	158.00	164.00							118.50	126.00	112.00	121.00	110.00	119.00	105.50	116.00	96.00	108.00
165	163.00	169.00							123.50	131.00	117.00	126.00	115.00	124.00	110.50	121.00	101.00	113.00
170	168.00	174.00									122.00	131.00	120.00	129.00	115.50	126.00	106.00	118.00
175	173.00	179.00									127.00	136.00	125.00	134.00	120.50	131.00	111.00	123.00
180	178.00	184.00									132.00	141.00	130.00	139.00	125.50	136.00	116.00	128.00
185	182.70	189.60									137.00	146.00	135.00	144.00	130.50	141.00	121.00	133.00
190	187.70	194.60									142.00	151.00	140.00	149.00	135.50	146.00	126.00	138.00
195	192.70	199.60									147.00	156.00	145.00	154.00	140.50	151.00	131.00	143.00
200	197.70	204.60											150.00	159.00	147.50	156.00	136.00	148.00

Specification for bolts and reference standards

Characteristic		Standard
Material		Steel
General Requirements		EN 14399-1
Thread	Tolerance	6ga
Thread	International Standard	ISO 261, ISO 965-2
Mechanical Properties	Property Class	10.9
Mechanical Properties	European Standard	EN ISO 898-1
Impact Strength	Value	Kv, min = 27 J at -20°C
	Test Pieceb	ISO 148
	Test	EN 10045-1
Tolerances	Product Grade	C except: dimensions c and r. + IT 17 Tolerance for length≥ 155mm: – 1/2 IT 17
Tolerances	International Standard	EN ISO 4759-1
Surface Finishc	Self Colour	as processed
	Hot Dip Galvanised	EN ISO 1461
	Others	to be agreed
Surface discontinuities		Limits for surface discontinuities as specified in EN26157-1.
Acceptability		For acceptance procedure, see EN ISO 3269.
a The tolerance class specified applies before hot-dip galvanising. Hot-dip galvanised bolts are intended for assembly with oversize tapped nuts. b The location of chappy V-notch test pieces in the bolt shall be specified in EN ISO 898-1. c Attention is drawn to the need to consider the risk of hydrogen embrittlement in the case of bolts of property class 10.9, when selecting an appropriate surface treatment process (e.g. cleaning and coating), see the relevant coating standards. d “As processed” means the normal finish resulting from manufacture with a light coating of oil. e Other coatings may be negotiated between the purchaser and the manufacturer provided they do not impair the mechanical properties or the functional characteristics. Coatings of cadmium or cadmium alloy are not permitted.

Fasteners Specification

MD Exports LLP — Wed, 28 Feb 2018 07:41:40 +0000

HV 14399_4 Bolts & Nuts
Din 931/Din En Iso 4014 Bolts
Din 933/Din EN ISO 4017 Hex Set Screws
Standard Specification for ASTM A193
Chemical Composition SS 304 Grade
Chemical Composition SS 316 Grade
316S31 | Steel grades
Din 934/Din EN ISO 4032 Hex Head Nuts
Standard Specification for ASTM A194
Stainless Steel A2 Grades and Classification
Stainless Steel A4 Grades and Classification
Stainless Steel Grades Comparison Chart
DIN 125 A (ISO 7089) _ Washers
DIN 912 / DIN EN ISO 4762 Socket Cap Screws
High Tensile HV Bolts & Nuts | HDG | Hot Dip Galvanised Bolts | DIN 6914 | DIN 6915
U_Bolts Datasheets | Big Size Bolts Nuts
Shank | Clamping | Threading | Tightening Length HV Hot Dip Galvanised Bolt & Nut
DAST Guidelines/Dimensions 021 Bolts & Nut
HV Clamping Length Dast Guideline 021 Bolt & Nut
HV Bolts & Nuts Weight Count Chart Dast Guideline 021, Bigger & Large Diameter

HV 14399_4 Bolts & Nuts

Heavy Hex Bolts Standard

EN 14399 – 4

Nominal size and thread diameter d	Pitch of thread P	Thread Length b	Depth of washer face c		Transition diameter da	Diameter of unthreaded shank ds		Diameter of washer face dw	Width across corners e	Thickness of head k		Radius under head r	Width across flats s
Nominal size and thread diameter d	coarse pitch	Bolt ≤125	min.	max.	min.	min.	max.	min.	min.	min.	max.	min.	min.	max.
M12	1.75	23	0.4	0.6	15.20	11.30	12.70	20.10	23.91	7.55	8.45	1.2	21.16	22.00
M16	2.00	28	0.4	0.6	19.20	15.30	16.70	24.90	29.56	9.25	10.75	1.2	26.16	27.00
M20	2.50	33	0.4	0.8	24.00	19.16	20.84	29.50	35.03	12.10	13.90	1.5	31.00	32.00
M22	2.50	34	0.4	0.8	26.00	21.16	22.84	33.30	39.55	13.10	14.90	1.5	35.00	36.00
M24	3.00	39	0.4	0.8	28.00	23.16	24.84	38.00	45.20	14.10	15.90	1.5	40.00	41.00
M27	3.00	41	0.4	0.8	32.00	26.16	27.84	42.80	50.85	16.10	17.90	2.0	45.00	46.00
M30	3.50	44	0.4	0.8	35.00	29.16	30.84	46.60	55.37	17.95	20.05	2.0	49.00	50.00
M36	4.00	52	0.4	0.8	41.00	35.00	37.00	55.90	66.44	21.95	24.05	2.0	58.80	60.00

EN 14399-4 Dimensions of bolts

Thread d			M12		M16		M20		M22		M24		M27		M30		M36
l			ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.
nom.	min.	max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.
35	33.75	36.25	6.75	12.00
40	38.75	41.25	11.75	17.00	6.00	12.00
45	43.75	46.25	16.75	22.00	11.00	17.00	4.50	12.00
50	48.75	51.25	21.75	27.00	16.00	22.00	9.50	17.00	8.50	16.00
55	53.50	56.50	26.75	32.00	21.00	27.00	14.50	22.00	13.50	21.00
60	58.50	61.50	31.75	37.00	26.00	32.00	19.50	27.00	18.50	26.00	12.00	21.00
65	63.50	66.50	36.75	42.00	31.00	37.00	24.50	32.00	23.50	31.00	17.00	26.00
70	68.50	71.50	41.75	47.00	36.00	42.00	29.50	37.00	28.50	36.00	22.00	31.00	20.00	29.00
75	73.50	76.50	46.75	52.00	41.00	47.00	34.50	42.00	33.50	41.00	27.00	36.00	25.00	34.00	20.50	31.00
80	78.50	81.50	51.75	57.00	46.00	52.00	39.50	47.00	38.50	46.00	32.00	41.00	30.00	39.00	25.50	36.00
85	83.25	86.75	56.75	62.00	51.00	57.00	44.50	52.00	43.50	51.00	37.00	46.00	35.00	44.00	30.50	41.00	21.00	33.00
90	88.25	91.75	61.75	67.00	56.00	62.00	49.50	57.00	48.50	56.00	42.00	51.00	40.00	49.00	35.00	47.00	26.00	38.00
95	93.25	96.75	66.75	72.00	61.00	67.00	54.50	62.00	53.50	61.00	47.00	56.00	45.00	54.00	40.50	51.00	31.00	43.00
100	98.25	101.75			66.00	72.00	59.50	67.00	58.50	66.00	52.00	61.00	50.00	59.00	45.50	56.00	36.00	48.00
105	103.25	106.75			71.00	77.00	64.50	72.00	63.50	71.00	57.00	66.00	55.00	64.00	50.50	61.00	41.00	53.00
110	108.25	111.75			76.00	82.00	69.50	77.00	68.50	76.00	62.00	71.00	60.00	69.00	55.50	66.00	46.00	58.00
115	113.25	116.75			81.00	87.00	74.50	82.00	73.50	81.00	67.00	76.00	65.00	74.00	60.50	71.00	51.00	63.00
120	118.25	121.75			86.00	92.00	79.50	87.00	78.50	86.00	72.00	81.00	70.00	79.00	65.50	76.00	56.00	68.00

Thread d			M12		M16		M20		M22		M24		M27		M30		M36
l			ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.
nom.	min.	max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.
125	123.00	127.00			91.00	97.00	84.50	92.00	83.50	91.00	77.00	86.00	75.00	84.00	70.50	81.00	61.00	73.00
130	128.00	132.00			96.00	102.00	89.50	97.00	88.50	96.00	82.00	91.00	80.00	89.00	75.50	86.00	66.00	78.00
135	133.00	137.00					94.50	102.00	93.50	101.00	87.00	96.00	85.00	94.00	80.50	91.00	71.00	83.00
140	138.00	142.00					99.50	107.00	98.50	106.00	92.00	101.00	90.00	99.00	85.50	96.00	76.00	88.00
145	143.00	147.00					104.50	112.00	103.50	111.00	97.00	106.00	95.00	104.00	90.50	101.00	81.00	93.00
150	148.00	152.00					109.50	117.00	108.50	116.00	102.00	111.00	100.00	109.00	95.50	106.00	86.00	98.00
155	153.00	159.00					114.50	122.00	113.50	121.00	107.00	116.00	105.00	114.00	100.50	111.00	91.00	103.00
160	158.00	164.00							118.50	126.00	112.00	121.00	110.00	119.00	105.50	116.00	96.00	108.00
165	163.00	169.00							123.50	131.00	117.00	126.00	115.00	124.00	110.50	121.00	101.00	113.00
170	168.00	174.00									122.00	131.00	120.00	129.00	115.50	126.00	106.00	118.00
175	173.00	179.00									127.00	136.00	125.00	134.00	120.50	131.00	111.00	123.00
180	178.00	184.00									132.00	141.00	130.00	139.00	125.50	136.00	116.00	128.00
185	182.70	189.60									137.00	146.00	135.00	144.00	130.50	141.00	121.00	133.00
190	187.70	194.60									142.00	151.00	140.00	149.00	135.50	146.00	126.00	138.00
195	192.70	199.60									147.00	156.00	145.00	154.00	140.50	151.00	131.00	143.00
200	197.70	204.60											150.00	159.00	147.50	156.00	136.00	148.00

Specification for bolts and reference standards

Characteristic		Standard
Material		Steel
General Requirements		EN 14399-1
Thread	Tolerance	6ga
Thread	International Standard	ISO 261, ISO 965-2
Mechanical Properties	Property Class	10.9
Mechanical Properties	European Standard	EN ISO 898-1
Impact Strength	Value	Kv, min = 27 J at -20°C
	Test Pieceb	ISO 148
	Test	EN 10045-1
Tolerances	Product Grade	C except: dimensions c and r. + IT 17 Tolerance for length≥ 155mm: – 1/2 IT 17
Tolerances	International Standard	EN ISO 4759-1
Surface Finishc	Self Colour	as processed
	Hot Dip Galvanised	EN ISO 1461
	Others	to be agreed
Surface discontinuities		Limits for surface discontinuities as specified in EN26157-1.
Acceptability		For acceptance procedure, see EN ISO 3269.
a The tolerance class specified applies before hot-dip galvanising. Hot-dip galvanised bolts are intended for assembly with oversize tapped nuts. b The location of chappy V-notch test pieces in the bolt shall be specified in EN ISO 898-1. c Attention is drawn to the need to consider the risk of hydrogen embrittlement in the case of bolts of property class 10.9, when selecting an appropriate surface treatment process (e.g. cleaning and coating), see the relevant coating standards. d “As processed” means the normal finish resulting from manufacture with a light coating of oil. e Other coatings may be negotiated between the purchaser and the manufacturer provided they do not impair the mechanical properties or the functional characteristics. Coatings of cadmium or cadmium alloy are not permitted.

Important Note

Preloaded bolted assemblies are very sensitive to differences in manufacture and lubrication. Therefore it is important that the assembly is supplied by one manufacturer who is always responsible for the function of the assembly. For the same reason, it is important that the coating of the assembly is under the control of one manufacturer. Beside the mechanical properties of the components, the functionality of the assembly requires that the specific preload can be achieved if the assembly is tightened with a suitable procedure. For this purpose a test method for the suitability of the components for preloading was created, which will demonstrate whether the function of the assembly is fulfilled.

Din 931/Din En Iso 4014 Bolts

DIN 931 / DIN EN ISO 4014

Hex head bolts

Hex Bolts Mechanical and physical properties

Mechanical or physical property		Property Class
		8.8		10.9	12.9
		≤ M16	> M16
Tensile Strength	nom.	800		1000	1200
	min.	800	830	1040	1220
Yield Strength 0.2% offset non- proportional elongation	nom.	640	640	900	1080
	min.	640	660	940	1100
Percentage elongation after fracture for machined test piece	min.	12	12	9	8
Stress Under Proof Load	nom.	580	600	830	970
Rockwell Hardness, HRC	min.	22	23	32	39
	max.	32	34	39	44
All units are displayed as newton per square millimeter (N/mm²)

Specification for bolts and reference standards

Characteristic

Standard

Material

Steel

General
Requirements

International Standards

ISO 8992

Thread

Tolerance

International Standard

ISO 724, ISO 965-1

Mechanical Properties

Property Classa

d < 3mm: as agreed 3mm ≤ d ≤ 39mm: 8.8, 10.9 d > 39mm: as agreed

International Standards

3mm ≤ d ≤ 39mm: ISO 898-1 d < 3mm and d > 39mm

Tolerances

International Standard

ISO 4759-1

Finish and/or coating

As processed

Requirements for electroplating are covered in ISO 4042

Requirements for non-electrolytically applied zinc flake coatings are covered in ISO 10683

If different electroplating requirements are desired or if requirements are needed for other finishes, they should be agreed between customer and supplier.

Limits for surface discontinuities are covered in ISO 6157-1

Acceptibility

For acceptance procedure, see ISO 3269.

a For other property classes see ISO 898-1.

d	M33		M36		M39		M42		M45		M48		M52		M56		M60
l	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.
nom.
130	34.50	52.00
140	44.50	62.00	36.00	56.00
150	54.50	72.00	46.00	66.00	40.00	60.00
160	64.50	82.00	56.00	76.00	50.00	70.00	41.50	64.00
180	84.50	102.00	76.00	96.00	70.00	90.00	61.50	84.00	55.50	78.00	47.00	72.00
200	104.50	122.00	96.00	116.00	90.00	110.00	81.50	104.00	75.50	98.00	57.00	92.00	59.00	84.00
220	111.50	129.00	103.00	123.00	97.00	117.00	88.50	111.00	82.50	105.00	74.00	99.00	66.00	91.00	55.50	83.00
240	131.50	149.00	123.00	143.00	117.00	137.00	108.50	131.00	102.50	125.00	94.00	119.00	86.00	111.00	75.50	103.00	67.50	95.00
260	151.50	169.00	143.00	163.00	137.00	157.00	128.50	151.00	122.50	145.00	114.00	139.00	106.00	131.00	95.50	123.00	87.50	115.00
280	171.50	189.00	163.00	183.00	157.00	177.00	148.50	171.00	142.50	165.00	134.00	159.00	126.00	151.00	115.50	143.00	107.50	135.00
300	191.50	209.00	183.00	203.00	177.00	197.00	168.50	191.00	162.50	185.00	154.00	179.00	146.00	171.00	135.50	163.00	127.50	155.00
320	211.50	229.00	203.00	223.00	197.00	217.00	188.50	211.00	182.50	205.00	174.00	199.00	166.00	191.00	155.50	183.00	147.50	175.00
340			223.00	243.00	217.00	237.00	208.50	231.00	202.50	225.00	194.00	219.00	186.00	211.00	175.50	203.00	167.50	195.00
360			243.00	263.00	237.00	257.00	228.50	251.00	222.50	245.00	214.00	239.00	206.00	231.00	195.50	223.00	187.50	215.00
380					257.00	277.00	248.50	271.00	242.50	265.00	234.00	259.00	226.00	251.00	215.50	243.00	207.50	235.00
400							288.50	291.00	262.50	285.00	254.00	279.00	246.00	271.00	235.50	263.00	227.50	255.00
420							298.50	311.00	282.50	305.00	274.00	299.00	266.00	291.00	255.50	283.00	247.50	275.00
440							308.50	331.00	302.50	325.00	294.00	319.00	286.00	311.00	275.50	303.00	267.50	295.00
460											314.00	339.00	306.00	331.00	295.50	323.00	287.50	315.00
480											334.00	359.00	326.00	351.00	315.50	343.00	307.50	335.00
500															335.50	363.00	327.50	355.00

EN ISO 4014 (DIN931) Dimensions of bolts (concluded)

d	M10		M12		M14		M16		M18		M20		M22		M24		M27		M30
l	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.
nom.
50	16.50	24.00	11.25	20.00
55	21.50	29.00	16.25	25.00
60	26.50	34.00	21.25	30.00	16.00	26.00
65	31.50	39.00	26.25	35.00	21.00	31.00	17.00	27.00
70	36.50	44.00	31.25	40.00	26.00	36.00	22.00	32.00	15.50	28.00
80	46.50	54.00	41.25	50.00	36.00	46.00	32.00	42.00	25.50	38.00	21.50	34.00
90	56.50	64.00	91.25	60.00	46.00	56.00	42.00	52.00	35.50	48.00	31.50	44.00	27.50	40.00	21.00	36.00
100	66.50	74.00	61.25	70.00	56.00	66.00	52.00	62.00	45.50	58.00	41.50	54.00	37.50	50.00	31.00	46.00	25.00	40.00
110			71.25	80.00	66.00	76.00	62.00	72.00	55.50	68.00	51.50	64.00	47.50	60.00	41.00	56.00	35.00	50.00	26.50	44.00
120			81.25	90.00	76.00	86.00	72.00	82.00	65.50	78.00	61.50	74.00	57.50	70.00	51.00	66.00	45.00	60.00	36.50	54.00
130					80.00	90.00	76.00	86.00	69.50	82.00	65.50	78.00	61.50	74.00	55.00	70.00	49.00	64.00	40.50	58.00
140					90.00	100.00	86.00	96.00	79.50	92.00	75.50	88.00	71.50	84.00	65.00	80.00	59.00	74.00	50.50	68.00
150							96.00	106.00	89.50	102.00	85.50	98.00	81.50	94.00	75.00	90.00	69.00	84.00	60.50	78.00
160							106.00	116.00	99.50	112.00	95.50	108.00	91.50	104.00	85.00	100.00	79.00	94.00	70.50	88.00
180									119.50	132.00	115.50	128.00	111.50	124.00	105.00	120.00	99.00	114.00	90.50	108.00
200											135.50	148.00	131.50	144.00	125.00	140.00	119.00	134.00	110.50	128.00
220													138.50	151.00	132.00	147.00	126.00	141.00	117.50	135.00
240															152.00	157.00	146.00	161.00	137.50	155.00
260																	166.00	181.00	157.50	175.00
280																			177.50	195.00
300																			197.50	215.00

Hex Bolts Sizes

Nominal size and threaddiameter d	Pitch of thread P	Thread Length b			Depth of washer face c		Transition Diameter da	Diameter of unthreaded shank ds		Dia. of washer face dw	Width across corners e	Thickness of head k	Radius under head r	Width across flats s
	coarse pitch	Bolt ≤125	Bolt 125-200	Bolt ≥200	min.	max.	max.	min.	max.	min.	min.	nom.	min.	min.	max.
M10	1.50	26	32	45	0.15	0.6	11.20	9.64	10.0	14.47	17.59	6.40	0.4	15.57	16.00
M12	1.75	30	36	49	0.15	0.6	13.70	11.57	12.00	16.47	19.85	7.50	0.6	17.57	18.00
M14	2.00	34	40	53	0.15	0.6	15.70	13.57	14.00	19.15	22.78	8.80	0.6	20.16	21.00
M16	2.00	38	44	57	0.2	0.8	17.70	15.57	16.00	22.00	26.17	10.00	0.6	23.15	24.00
M18	2.50	42	48	61	0.2	0.8	20.20	17.57	18.00	24.85	29.56	11.50	0.6	26.16	27.00
M20	2.50	46	52	65	0.2	0.8	22.40	19.48	20.00	27.70	32.95	12.50	0.8	29.16	30.00
M22	2.50	50	56	69	0.2	0.8	24.40	21.48	22.00	31.35	37.29	14.00	0.8	33.00	34.00
M24	3.00	54	60	73	0.2	0.8	26.40	23.48	24.00	33.25	39.55	15.00	0.8	35.00	36.00
M27	3.00	60	66	79	0.2	0.8	30.40	26.48	27.00	38.00	45.20	17.00	1.0	40.00	41.00
M30	3.50	66	72	85	0.2	0.8	33.40	29.48	30.00	42.75	50.85	18.70	1.0	45.00	46.00
M33	3.50	–	78	91	0.2	0.8	36.40	32.38	33.00	46.55	55.37	21.00	1.0	49.00	50.00
M36	4.00	–	84	97	0.2	0.8	39.40	35.38	36.00	51.11	60.79	22.50	1.0	53.80	55.00
M39	4.00	–	90	103	0.3	1.0	42.40	38.38	39.00	55.86	66.44	25.00	1.0	58.80	60.00
M42	4.50	–	95	109	0.3	1.0	45.60	41.38	42.00	59.95	71.30	26.00	1.2	63.10	65.00
M45	4.50	–	102	115	0.3	1.0	48.6	44.38	45.00	64.70	76.95	28.00	1.2	68.10	70.00
M48	5.00	–	108	121	0.3	1.0	52.60	47.38	48.00	69.45	82.60	30.00	1.6	73.10	75.00
M52	5.00	–	116	129	0.3	1.0	56.60	51.26	52.00	74.20	88.25	33.00	1.6	78.10	80.00
M56	5.50	–	–	137	0.3	1.0	63.00	55.26	56.00	78.66	93.56	35.00	2.0	82.80	85.00
M60	5.50	–	–	145	0.3	1.0	67.00	59.26	60.00	83.41	99.21	38.00	2.00	87.0	90.00
M64	6.00	–	–	153	0.3	1.0	71.00	63.26	64.00	88.16	104.86	40.00	2.0	92.80	96.00

Din 933/Din EN ISO 4017 Hex Set Screws

DIN 933 / DIN EN ISO 4017

Hex head screws

Nominal size and thread	Pitch of thread P	Depth of washer face c		Transition Diameter da	Dia. of washer face dw	Width across corners e	Thickness of head k	Radius under head r	Width across flats s
diameter d	coarse pitch	min.	max.	max.	min.	min.	nom.	min.	min.	max.
M10	1.50	0.15	0.6	11.20	14.47	17.59	6.40	0.4	15.57	16.00
M12	1.75	0.15	0.6	13.70	15.47	19.95	7.50	0.6	17.57	18.00
M14	2.00	0.15	0.6	15.70	19.15	22.78	8.80	0.6	20.16	21.00
M16	2.00	0.2	0.8	17.70	22.00	26.17	10.00	0.6	23.16	24.00
M18	2.50	0.2	0.8	20.20	24.85	29.56	11.50	0.6	26.16	27.00
M20	2.50	0.2	0.8	22.40	27.70	32.95	12.50	0.8	29.16	30.00
M22	2.50	0.2	0.8	24.40	31.95	37.29	14.00	0.8	33.00	34.00
M24	3.00	0.2	0.8	25.40	33.25	39.55	15.00	0.8	35.00	36.00
M27	3.00	0.2	0.8	30.40	38.00	45.20	17.00	1.0	40.00	41.00
M30	3.50	0.2	0.8	33.40	42.75	50.85	18.70	1.0	45.00	46.00
M33	3.50	0.2	0.8	36.40	46.55	55.37	21.00	1.0	49.00	50.00
M36	4.00	0.2	0.8	39.40	51.11	60.79	22.50	1.0	53.80	55.00
M39	4.00	0.3	1.0	42.40	55.86	66.44	25.00	1.0	58.80	60.00
M42	4.50	0.3	1.0	45.60	59.95	71.30	26.00	1.2	63.10	65.00
M45	4.50	0.3	1.0	48.60	64.70	76.95	28.00	1.2	68.10	70.00
M48	5.00	0.3	1.0	52.60	69.45	82.50	30.00	1.6	73.10	75.00
M52	5.00	0.3	1.0	56.60	74.20	88.25	33.00	1.6	78.10	80.00
M56	5.50	0.3	1.0	63.00	78.66	93.56	35.00	2.0	82.80	85.00
M60	5.50	0.3	1.0	67.00	83.41	99.21	38.00	2.0	87.80	90.00
M64	6.00	0.3	1.0	71.00	88.16	104.86	40.00	2.0	92.80	95.00

Specification for bolts and reference standards

Characteristic

Standard

Material

Steel

General
Requirements

International Standards

ISO 8992

Thread

Tolerance

International Standard

ISO 724, ISO 965-1

Mechanical Properties

Property Classa

d < 3mm: as agreed
3mm ≤ d ≤ 39mm: 8.8, 10.9 d > 39mm: as agreed

International Standards

d ≤ 39mm: ISO 898-1
d < 3mm and d > 39mm: as agreed

Tolerances

International Standard

ISO 4759-1

Finish and/or coating

As processed

Requirements for electroplating are covered in ISO 4042

Requirements for non-electrolytically applied zinc flake coatings are covered in ISO 10683

If different electroplating requirements are desired or if requirements are needed for other finishes, they should be agreed between customer and supplier.

Limits for surface discontinuities are covered in ISO 6157-1

Acceptibility

For acceptance procedure, see ISO 3269.

a For other property classes see ISO 898-1.

Mechanical and physical properties

Mechanical or physical property		Property Class
		8.8		10.9	12.9
		≤ M16	> M16
Tensile Strength	nom.	800		1000	1200
	min.	800	830	1040	1220
Yield Strength 0.2% offset non- proportional elongation	nom.	640	640	900	1080
	min.	640	660	940	1100
Percentage elongation after fracture for machined test piece	min.	12	12	9	8
Stress Under Proof Load	nom.	580	600	830	970
Rockwell Hardness, HRC	min.	22	23	32	39
	max.	32	34	39	44
All units are displayed as newton per square millimeter (N/mm²)

Standard Specification for ASTM A193

ASTM A 193

Chemical Composition for Stainless steel bolts & nuts

Grade of alloy steel for Stud-Bolts to BS 1750 , ASTM A 193 and A 320
1	SYMBOL B7 B7M B16				B8	B8M	B8T	L7 / L7M	L43
2	Type	Ferritic	Ferritic	Austenitic	Austenitic Unstabilized	Asutenitic	Austenitic Stabilized	Ferritic	Ferritic
3	Service conditions	High Temp.	High Temp.	High Temp.	High Low. Temp.	High Low. Temp.	High Low. Temp.	Low Temp.	Low Temp.
4	Material specification
5	ASTM	A193 Grade B7	A193 Grade B7M	A193 Gr. B16	A193 Grade B8	A193 Grade B8M	A193 Grade B8T	A320 Grade L7	A320 GradeL43
5	Chemical composition	%	%	%	%	%	%	%	%
6	C.	0.37—0.49	0.37—0.49	0.36—0.47	0.08 max.	0.08 max.	0.08 max.	0.38—0.48	0.38—0.43
	Mn.	0.65—1.10	0.65—1.10	0.45—0.70	2.00 max.	2.00 max.	2.00 max.	0.75—1.00	0.60—0.85
	Si.	0.15—0.35	0.15—0.35	0.15—0.35	1.00 max.	1.00 max.	1.00 max.	0.15—0.35	0.15—0.35
	P.	0.035 max.	0.035 max.	0.035 max.	0.045 max.	0.045 max.	0.045 max.	0.035 max.	0.040 max.
	S.	0.04 max.	0.04 max.	0.04 max.	0.030 max.	0.030 max.	0.030 max.	0.040 max.	0.040 max.
	Cr.	0.75—1.20	0.75—120	0.80—1.15	18.00—20.00	16.00—18.00	17.00—9.00	0.80—1.10	0.70—0.90
	Ni.	— —	— —	— —	8.00—10.50	10.00—14.00	9.00—12.00	— —	1.65—2.00
	Mo.	0.15—0.25	0.15—0.25	0.50—0.65	— —	2.00—3.00	— —	0.15-0.25	0.20—0.30
	V.	— —	— —	0.25—0.35	— —	— —	— —	— —	— —
	Ti.	— —	— —	— —	— —	— —	5xCMIN	— —	— —
	Brinell Hardness	Not applicable	max. 20 RC	Not applicable	223 B.H.N. max.	223 B.H.N. max.	223 B.H.N. max.	Not applicable	Not applicable
7	Impact Value	Not applicable	Not applicable	Not applicable	Not applicable	Not applicable	Not applicable	20 ft. lbf. at 1500 F	20 ft. lbf. 1500F min
8	Physicalas per ASTM A 193 & B.S. 1506-621 & B.S. 4882.
9	U.T.S.	88kg/MM2min	70.3 min.	88kg/MM2min	52.75/MM2min	52.75kg/MM2	52.75kg/MM2	88kg/MM2	88kg/MM2
	Elongation	16% min	18% min	18% min	30% min	30% min	30% min	16% min	16% min
	Yield	70.39kg/MM2	56.26 min.	73.8kg/MM2	21.1kg/MM2min	21.1kg/MM2	21.1kg/MM2	73.8kg/MM2	73.8kg/MM2
	Reduction area	50% min	50% min	50% min	50% min	50% min	50% min	50% min	50% min
	Heat treatment	Oil quenched & tempered	Oil quenched & tempered	Oil quenched & tempered	Carbide solution treated	Carbide solution treated	Carbide solution treated	Oil quenched & tempered	Oil quenched & tempered
10	Tempering temperature	11000F min 5930C	11500F min 6200C	12000F min 6500C	— —	— —	— —	11000F min 5930C min	11000F min 5930C min

Chemical Composition SS 304 Grade

SS 304

Chemical Composition for Stainless steel bolts & nuts

Grade	AISI	Chemical Composition (% maxima unless stated)
		C	Si	Mn	P	S	Cr	Mo	Ni	Cu
A1	SS 202	0.12	1.0	6.5	0.20	0.15-0.35	16,0 – 19,0	0.7	5,0 – 10,0	1.75-2.25
A2	SS 304	0.08	1.0	2.0	0.05	0.03	15,0 – 20,0	0.0	8,0 – 19,0	4.0
A3	SS 321	0.08	1.0	2.0	0.05	0.03	17,0 – 19,0	0.0	9,0 – 12,0	1.0
A4	SS 316	0.08	1.0	2.0	0.05	0.03	16,0 – 18,5	2,0 – 3,0	10,0 – 15,0	4.0
C1	SS 410	0.09-0.15	1.0	1.0	0.05	0.03	11,5 – 14,0	–	1	–
C3	SS 431	0.17-0.25	1.0	1.0	0.04	0.03	16,0 – 18,0	–	1,5 – 2,5	–
C4	SS 416	0.08-0.15	1.0	1.5	0.06	0.15-0.35	12,0 – 14,0	0.6	1	–
F1	SS 430	0.12	1.0	1.0	0.04	0.03	15,0 – 18,0	0.0	1	–

Chemical Composition SS 316 Grade

SS 316 bolts & nuts

Chemical Composition for Stainless steel bolts & nuts

Grade	AISI	Chemical Composition (% maxima unless stated)
		C	Si	Mn	P	S	Cr	Mo	Ni	Cu
A1	SS 202	0.12	1.0	6.5	0.20	0.15-0.35	16,0 – 19,0	0.7	5,0 – 10,0	1.75-2.25
A2	SS 304	0.08	1.0	2.0	0.05	0.03	15,0 – 20,0	0.0	8,0 – 19,0	4.0
A3	SS 321	0.08	1.0	2.0	0.05	0.03	17,0 – 19,0	0.0	9,0 – 12,0	1.0
A4	SS 316	0.08	1.0	2.0	0.05	0.03	16,0 – 18,5	2,0 – 3,0	10,0 – 15,0	4.0
A4	316S31	0.08	1.0	2.0	0.05	0.03	16,0 – 18,5	2,0 – 3,0	10,0 – 15,0	4.0
C1	SS 410	0.09-0.15	1.0	1.0	0.05	0.03	11,5 – 14,0	–	1	–
C3	SS 431	0.17-0.25	1.0	1.0	0.04	0.03	16,0 – 18,0	–	1,5 – 2,5	–
C4	SS 416	0.08-0.15	1.0	1.5	0.06	0.15-0.35	12,0 – 14,0	0.6	1	–
F1	SS 430	0.12	1.0	1.0	0.04	0.03	15,0 – 18,0	0.0	1	–

316S31 | Steel grades

316S31

COMPARISON FOR STAINLESS STEEL INTERNATIONAL GRADES

EN	DIN	AISI	UNS	SS	AFNOR	BS

1.4005	X 12CrS13	416	S 41600	2380	Z 11 CF 13	416 S 21
1.4006	X 10Cr13	410	S 41000	2302	Z 10 C 13	410 S 21
1.4016	X 6Cr17	430	S 43000	2320	Z 8 C 17	430 S 15
1.4021	X 20 Cr 13	420	S 42000	2303	Z 20 C 13	420 S 37
1.4034	X 46Cr13			2304	Z 40 C 14	( 420 S 45 )
1.4057	X 20CrNi172	431	S 43100	2321	Z 15 CN 16.02	431 S 29
1.4104	X 12CrMoS 17	430 F	S 43020	2383	Z 13 CF 17	( 441 S 29 )
1.4112	X 90CrMoV 18	440 B	S 44003
1.4122	X 35CrMo17
1.4301	X 5CrNi1810	304	S 30400	2332	Z 6 CN 18.09	304 S 15
1.4305	X 10CrNiS189	303	S 30300	2346	Z 8 CNF 18.09	303 S 31
1.4306	X 2CrNi1911	304 L	S 30403	2352	Z 2 CN 18.10	304 S 11
1.4310	X 12CrNi177	301	S 30100	2331	Z 12 CN 18.08	301 S 22
1.4401	X 5 CrNiMo 17 12 2	316	S 31600	2347	Z 7 CND 17.12.02	316 S 31
1.4404	X 2 CrNiMo 17 13 2	316 L	S 31603	2348	Z 3 CND 18.12.02	316 S 11
1.4435	X 2 CrNiMo 18 14 3	316 L	S 31603	2353	Z 3 CND 18.14.03	316 S 11
1.4436	X 5 CrNiMo 17 13 3	316	S 31600	2343	Z 7 CND 18.12.03	316 S 31
1.4438	X 2 CrNiMo 18 16 4	317 L	S 31703	2367	Z 3 CND 19.15.04	317 S 12
1.4439	X 2 CrNiMoN 17 13	317 LNM
1.4449	X 5 CrNiMo 17 13	317	S 31700			317 S 16
1.4460	X 4 CrNiMoN 27 5 2	329	S 32900	2324	Z 5 CND 27.05 AZ
1.4462	X 2 CrNiMoN 22 5 3		S 31803	2377	(Z 5 CNDU 21.08)
1.4539	X 1 NiCrMoCuN 25 20 5		N 08904	2562	Z 1 NCDU 25.20
1.4541	X 6 CrNiTi 18 10	321	S 32100	2337	Z 6 CNT 18.10	321 S 31
1.4550	X 6 CrNiNb 18 10	347	S 34700	2338	Z 6 CNNb 18.10	347 S 31
1.4571	X 6 CrNiMoTi 17 12 2	316 TI	S 31635	2350	Z 6 CNDT 17.12	320 S 31
1.4713	X 10 CrAl 7				Z 8 CA 7
1.4724	X 10 CrAl 13				(Z 10 C 13)
1.4742	X 10 CrAl 18				Z 10 CAS 18
1.4762	X 10 CrAl 24	446	(S 44600 )	2322	Z 10 CAS 24
1.4821	X 20 CrNiSi 25 4				Z 20 CNS 25.04
1.4828	X 15 CrNiSi 20 12	309	(S 30900 )		Z 15 CNS 20.12	309 S 24
1.4841	X 15 CrNiSi 25 20	314	S 314600		Z 12 CNS 25.20	314 S 25
1.4845	X 12 CrNi 25 21	310 S	S 31008	2361	Z 12 CN 25.20	310 S 24
1.4864	X 12 NiCrSi 36 16	330	N 08330		Z 12 CNS 35.16	( 3076 NA 17 )
1.4876	X 10 NiCrAlTi 32 20	B 163			Z 8 NC 32.21	3076 NA 15 H
1.4878	X 12 CrNiTi 18 9	321	S 32100	2337	Z 6 CNT 18.12	321 S 51

Din 934/Din EN ISO 4032 Hex Head Nuts

DIN 934 / DIN EN ISO 4032

Hex head nuts

Nominal size and thread diameter d	p	da		dw	e	m		s
Nominal size and thread diameter d	(coarse pitch series)	min.	max.	min.	min.	min.	max.	min.	nom.
M10	1.50	10.00	10.80	14.60	17.77	8.04	8.40	15.73	16.00
M12	1.75	12.00	13.00	16.60	20.03	10.37	10.80	17.73	18.00
M14	2.00	14.00	15.10	19.60	23.36	12.10	12.80	20.67	21.00
M16	2.00	16.00	17.30	22.50	26.75	14.10	14.80	23.67	24.00
M18	2.50	18.00	19.50	24.90	29.56	15.10	15.80	26.16	27.00
M20	2.50	20.00	21.60	27.70	32.95	16.90	18.00	29.16	30.00
M22	2.50	22.00	23.70	31.40	37.29	18.10	19.40	33.00	34.00
M24	3.00	24.00	25.90	33.30	39.55	20.20	21.50	35.00	36.00
M27	3.00	27.00	29.10	38.00	45.20	22.50	23.80	40.00	41.00
M30	3.50	30.00	32.40	42.80	50.85	24.30	25.60	45.00	46.00
M33	3.50	33.00	35.60	46.60	55.37	27.40	28.70	49.00	50.00
M36	4.00	36.00	38.90	51.10	60.79	29.40	31.00	53.80	55.00
M39	4.00	39.00	42.10	55.90	66.44	31.80	33.40	58.80	60.00
M42	4.50	42.00	45.40	60.00	71.30	32.40	34.00	63.10	65.00
M45	4.50	45.00	48.60	64.70	76.95	34.40	36.00	68.10	70.00
M48	5.00	48.00	51.80	69.50	82.60	36.40	38.00	73.10	75.00
M52	5.00	52.00	56.20	74.20	88.25	40.40	42.00	78.10	80.00
M56	5.50	56.00	60.50	78.70	93.56	43.40	45.00	82.80	85.00
M60	5.50	60.00	64.80	83.40	99.21	46.40	48.00	87.80	90.00
M64	6.00	64.00	69.10	88.20	104.86	49.10	51.00	92.80	95.00

Specification for nuts and reference standards

Characteristic

Standard

Material

Steel

General
Requirements

International Standards

ISO 8992

Thread

Tolerance

International Standard

ISO 724, ISO 965-1

Mechanical Properties

Property Class^a

d < 3mm: as agreed
3mm ≤ d ≤ 39mm: 8.8, 10.9 d > 39mm: as agreed

International Standards

d ≤ 39mm: ISO 898-1
d < 3mm and d > 39mm: as agreed

Tolerances

International Standard

ISO 4759-1

Finish and/or coating

As processed

Requirements for electroplating are covered in ISO 4042

Requirements for non-electrolytically applied zinc flake coatings are covered in ISO 10683

If different electroplating requirements are desired or if requirements are needed for other finishes, they should be agreed between customer and supplier.

Limits for surface discontinuities are covered in ISO 6157-1

Acceptibility

For acceptance procedure, see ISO 3269.

a For other property classes see ISO 898-1.

Standard Specification for ASTM A194

ASTM A194

Chemical Composition for Alloy Steel nuts

Grade of carbon and alloy steel for nuts to BS 1750 and ASTM A 194
1	SYMBOL	2H	2HM	4	8	8M	8T	L4	7 / 7M
2	Type	Ferritic	Ferritic	Ferritic	Austenitic Unstabilized	Austenitic	Austenitic Stabilized	Ferritic	Ferritic
3	Service conditions	High Temp.	High Temp.	High Temp.	High Low. Temp.	High Low. Temp.	High Low. Temp.	Low Temp.	Low Temp.
4	Material specication ASTM	A 194 Grade 2H	A 194 Grade 2HM	A 194 Grade 4	A 194 Grade 8	A 194 Grade 8M	A 194 Grade 8T	A 194 Grade 4	A 320 Grade 7.
5	Chemical composition	%	%	%	%	%	%	%	%
6	C.	0.40 min.	0.40 min.	0.40 — 0.50	0.08 max.	0.08 max.	0.08 max.	0.40—0.50	0.37—0.49
	Mn.	1.00 max.	1.00 max.	0.70—0.90	2.00 max.	2.00 max.	0.70—0.90	0.70—0.90	0.65—1.10
	Si.	0.40 max.	0.040 max.	0.15—0.35	1.00 max.	1.00 max.	0.20—0.35	0.15—0.35	0.15—0.35
	P.	0.040 max.	0.040 max.	0.035 max.	0.045 max.	0.045 max.	0.045 max.	0.035 max.	0.040 max.
	S.	0.050 max.	0.050 max.	0.040 max.	0.030 max.	0.030 max.	0.030 max.	0.040 max.	0.040 max.
	Cr.	— —	— —	— —	18.00—20.00	16.00—18.00	17.00—19.00	— —	0.75—1.20
	Ni.	— —	— —	— —	8.00—10.50	10.00—14.00	9.00—12.00	— —	— —
	Mo.	— —	— —	0.20—0.30	— —	2.00—3.00	— —	0.20—0.30	0.15—0.25
	V.	— —	— —	— —	— —	— —	— —	— —	— —
	Ti.	— —	— —	— —	— —	— —	5xCMIN	— —	— —
	Heat Treatment	Oil quenched & tempered at 8500F 4550C min	Oil quenched & tempered at 11500F 6200C min	Oil quenched & tempered at 11000F or 5950C min	Carbide solution	Carbide solution	Carbide solution	Oil quenched & tempered at 11000F or 5950C min	Oil quenched & tempered at 11000F or 5950C min
7	Brinell Hardness	248/352	22 RC max.	248/352	126/300	126/300	126/300	248/352	248/352
8	Impact value	— —	— —	— —	— —	— —	— —	20 ft. lbf. at 1500F	20 ft. lbf. at 1500F

Stainless Steel A2 Grades and Classification

a2

COMPARISON FOR STAINLESS STEEL INTERNATIONAL GRADES

Grade	AISI	Chemical Composition (% maxima unless stated)
Grade	AISI	C	Si	Mn	P	S	Cr	Mo	Ni	Cu
A1	SS 202	0.12	1.0	6.5	0.20	0.15-0.35	16,0 – 19,0	0.7	5,0 – 10,0	1.75-2.25
A2	SS 304	0.08	1.0	2.0	0.05	0.03	15,0 – 20,0	0.0	8,0 – 19,0	4.0
A3	SS 321	0.08	1.0	2.0	0.05	0.03	17,0 – 19,0	0.0	9,0 – 12,0	1.0
A4	SS 316	0.08	1.0	2.0	0.05	0.03	16,0 – 18,5	2,0 – 3,0	10,0 – 15,0	4.0
C1	SS 410	0.09-0.15	1.0	1.0	0.05	0.03	11,5 – 14,0	–	1	–
C3	SS 431	0.17-0.25	1.0	1.0	0.04	0.03	16,0 – 18,0	–	1,5 – 2,5	–
C4	SS 416	0.08-0.15	1.0	1.5	0.06	0.15-0.35	12,0 – 14,0	0.6	1	–
F1	SS 430	0.12	1.0	1.0	0.04	0.03	15,0 – 18,0	0.0	1	–

Stainless Steel A4 Grades and Classification

a4

Chemical Composition for Stainless steel bolts & nuts

Grade	AISI	Chemical Composition (% maxima unless stated)
		C	Si	Mn	P	S	Cr	Mo	Ni	Cu
A1	SS 202	0.12	1.0	6.5	0.20	0.15-0.35	16,0 – 19,0	0.7	5,0 – 10,0	1.75-2.25
A2	SS 304	0.08	1.0	2.0	0.05	0.03	15,0 – 20,0	0.0	8,0 – 19,0	4.0
A3	SS 321	0.08	1.0	2.0	0.05	0.03	17,0 – 19,0	0.0	9,0 – 12,0	1.0
A4	SS 316	0.08	1.0	2.0	0.05	0.03	16,0 – 18,5	2,0 – 3,0	10,0 – 15,0	4.0
C1	SS 410	0.09-0.15	1.0	1.0	0.05	0.03	11,5 – 14,0	–	1	–
C3	SS 431	0.17-0.25	1.0	1.0	0.04	0.03	16,0 – 18,0	–	1,5 – 2,5	–
C4	SS 416	0.08-0.15	1.0	1.5	0.06	0.15-0.35	12,0 – 14,0	0.6	1	–
F1	SS 430	0.12	1.0	1.0	0.04	0.03	15,0 – 18,0	0.0	1	–

Stainless Steel Grades Comparison Chart

Stainless Steel Comparison Chart

COMPARISON FOR STAINLESS STEEL INTERNATIONAL GRADES

EN	DIN	AISI	UNS	SS	AFNOR	BS
1.4005	X 12CrS13	416	S 41600	2380	Z 11 CF 13	416 S 21
1.4006	X 10Cr13	410	S 41000	2302	Z 10 C 13	410 S 21
1.4016	X 6Cr17	430	S 43000	2320	Z 8 C 17	430 S 15
1.4021	X 20 Cr 13	420	S 42000	2303	Z 20 C 13	420 S 37
1.4034	X 46Cr13			2304	Z 40 C 14	( 420 S 45 )
1.4057	X 20CrNi172	431	S 43100	2321	Z 15 CN 16.02	431 S 29
1.4104	X 12CrMoS 17	430 F	S 43020	2383	Z 13 CF 17	( 441 S 29 )
1.4112	X 90CrMoV 18	440 B	S 44003
1.4122	X 35CrMo17
1.4301	X 5CrNi1810	304	S 30400	2332	Z 6 CN 18.09	304 S 15
1.4305	X 10CrNiS189	303	S 30300	2346	Z 8 CNF 18.09	303 S 31
1.4306	X 2CrNi1911	304 L	S 30403	2352	Z 2 CN 18.10	304 S 11
1.4310	X 12CrNi177	301	S 30100	2331	Z 12 CN 18.08	301 S 22
1.4401	X 5 CrNiMo 17 12 2	316	S 31600	2347	Z 7 CND 17.12.02	316 S 31
1.4404	X 2 CrNiMo 17 13 2	316 L	S 31603	2348	Z 3 CND 18.12.02	316 S 11
1.4435	X 2 CrNiMo 18 14 3	316 L	S 31603	2353	Z 3 CND 18.14.03	316 S 11
1.4436	X 5 CrNiMo 17 13 3	316	S 31600	2343	Z 7 CND 18.12.03	316 S 31
1.4438	X 2 CrNiMo 18 16 4	317 L	S 31703	2367	Z 3 CND 19.15.04	317 S 12
1.4439	X 2 CrNiMoN 17 13	317 LNM
1.4449	X 5 CrNiMo 17 13	317	S 31700			317 S 16
1.4460	X 4 CrNiMoN 27 5 2	329	S 32900	2324	Z 5 CND 27.05 AZ
1.4462	X 2 CrNiMoN 22 5 3		S 31803	2377	(Z 5 CNDU 21.08)
1.4539	X 1 NiCrMoCuN 25 20 5		N 08904	2562	Z 1 NCDU 25.20
1.4541	X 6 CrNiTi 18 10	321	S 32100	2337	Z 6 CNT 18.10	321 S 31
1.4550	X 6 CrNiNb 18 10	347	S 34700	2338	Z 6 CNNb 18.10	347 S 31
1.4571	X 6 CrNiMoTi 17 12 2	316 TI	S 31635	2350	Z 6 CNDT 17.12	320 S 31
1.4713	X 10 CrAl 7				Z 8 CA 7
1.4724	X 10 CrAl 13				(Z 10 C 13)
1.4742	X 10 CrAl 18				Z 10 CAS 18
1.4762	X 10 CrAl 24	446	(S 44600 )	2322	Z 10 CAS 24
1.4821	X 20 CrNiSi 25 4				Z 20 CNS 25.04
1.4828	X 15 CrNiSi 20 12	309	(S 30900 )		Z 15 CNS 20.12	309 S 24
1.4841	X 15 CrNiSi 25 20	314	S 314600		Z 12 CNS 25.20	314 S 25
1.4845	X 12 CrNi 25 21	310 S	S 31008	2361	Z 12 CN 25.20	310 S 24
1.4864	X 12 NiCrSi 36 16	330	N 08330		Z 12 CNS 35.16	( 3076 NA 17 )
1.4876	X 10 NiCrAlTi 32 20	B 163			Z 8 NC 32.21	3076 NA 15 H
1.4878	X 12 CrNiTi 18 9	321	S 32100	2337	Z 6 CNT 18.12	321 S 51

DIN 125 A (ISO 7089) _ Washers

DIN 125

DIN 125 / DIN EN ISO 7089

A	Bolt size	B	C

21	M20	37	3
23	M22	39	3
25	M24	44	4
28	M27	50	4
31	M30	56	4
34	M33	60	5
37	M36	66	5
40	M39	72	6
43	M42	78	7
50	M48	92	8
54	M52	98	8

DIN 912 / DIN EN ISO 4762 Socket Cap Screws

DIN 912 / DIN EN ISO 4762

Hex head Screws

Nominal size and thread diameter d	Pitch of thread P	Thread length b	Head diameter dk		Transition diameter da	Diameter of unthreaded shank ds		Hex socket width across corners e	Thickness of head k		Radius under head r	Hex socket width across flats s			Hex socket depth t	w
Nominal size and thread diameter d	coarse pitch	max.	min.	max.	max.	min.	max.	min.	min.	max.	nom.	min.	max.	nom.	min.	min.
M10	1.50	32	15.73	16.00	11.20	9.78	10.00	9.15	9.64	10.00	0.4	8.03	8.18	8.00	5.0	4.0
M12	1.75	36	17.73	18.00	13.70	11.73	12.00	11.43	11.57	12.00	0.6	10.03	10.18	10.00	6.0	4.8
M14	2.00	40	20.67	21.00	15.70	13.73	14.00	13.73	13.57	14.00	0.6	12.03	12.21	12.00	7.0	5.8
M16	2.00	44	23.67	24.00	17.70	15.73	16.00	15.73	15.57	16.00	0.6	14.03	14.21	14.00	8.0	6.8
M18	2.50	48	26.67	27.00	20.20	17.73	18.00	17.73	17.57	18.00	0.6	14.03	14.21	14.00	9.0	7.8
M20	2.50	52	29.67	30.00	22.40	19.67	20.00	19.44	19.48	20.00	0.8	17.05	17.23	17.00	10.0	8.6
M22	2.50	56	32.61	33.00	24.40	21.67	22.00	19.44	21.48	22.00	0.8	17.05	17.23	17.00	11.0	9.4
M24	3.00	60	35.61	36.00	26.40	23.67	24.00	21.73	23.48	24.00	0.8	19.07	19.28	19.00	12.0	10.4
M27	3.00	66	39.61	40.00	30.40	26.67	27.00	21.73	26.48	27.00	1.0	19.07	19.28	19.00	13.5	11.9
M30	3.50	72	44.61	45.00	33.40	29.67	30.00	25.15	29.48	30.00	1.0	22.07	22.28	22.00	15.5	13.1
M33	3.50	78	49.61	50.00	36.40	32.61	33.00	27.43	32.38	33.00	1.0	24.07	24.28	24.00	18.0	13.5
M36	4.00	84	53.54	54.00	39.40	35.61	36.00	30.85	35.38	36.00	1.0	27.07	27.28	27.00	19.0	15.3
M42	4.50	95	62.54	63.00	45.50	41.61	42.00	36.57	41.38	42.00	1.2	32.08	32.33	32.00	24.0	16.3
M48	5.00	108	71.54	72.00	52.60	47.61	48.00	41.13	47.38	48.00	1.6	36.08	36.33	36.00	28.0	17.5
M56	5.50	124	83.46	84.00	63.00	55.54	56.00	46.83	56.26	56.00	2.0	41.08	41.33	41.00	34.0	19.0
M64	6.00	140	95.46	96.00	71.00	63.54	64.00	52.53	63.26	64.00	2.0	46.08	46.33	46.00	38.0	22.0
M72	6.00	156	107.46	108.00	79.00	71.54	72.00	62.81	71.26	72.00	2.0	55.10	55.10	55.00	43.0	25.0
M80	6.00	172	119.46	120.00	87.00	79.54	80.00	74.21	79.26	80.00	2.0	65.10	65.40	65.00	48.0	27.0
M90	6.00	192	134.37	135.00	97.00	89.46	90.00	85.61	89.13	90.00	2.5	75.10	75.40	75.00	54.0	32.0
M100	6.00	212	149.37	150.63	107.00	99.46	100.00	97.04	99.13	100.00	2.5	85.12	85.47	85.00	60.0	34.0

DIN 912 Dimensions of Socket Head Screws (concluded)

d	M10		M12		M14		M16		M18		M20		M22		M24		M27		M30
l	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.
nom.
25	–	4.50	–	5.25	–	6.00	–	6.00
30	–	4.50	–	5.25	–	6.00	–	6.00	–	7.50	–	7.50
35	–	4.50	–	5.25	–	6.00	–	6.00	–	7.50	–	7.50	–	7.50
40	–	4.50	–	5.25	–	6.00	–	6.00	–	7.50	–	7.50	–	7.50	–	9.00
45	5.50	13.00	–	5.25	–	6.00	–	6.00	–	7.50	–	7.50	–	7.50	–	9.00	–	9.00	–	10.50
50	10.50	18.00	–	5.25	–	6.00	–	6.00	–	7.50	–	7.50	–	7.50	–	9.00	–	9.00	–	10.50
55	15.50	23.00	10.25	19.00	–	6.00	–	6.00	–	7.50	–	7.50	–	7.50	–	9.00	–	9.00	–	10.50
60	20.50	28.00	15.25	24.00	10.00	20.00	–	6.00	–	7.50	–	7.50	–	7.50	–	9.00	–	9.00	–	10.50
65	25.50	33.00	20.25	29.00	15.00	25.00	11.00	21.00	–	7.50	–	7.50	–	7.50	–	9.00	–	9.00	–	10.50
70	30.50	38.00	25.25	34.00	20.00	30.00	16.00	26.00	9.50	22.00	–	7.50	–	7.50	–	9.00	–	9.00	–	10.50
80	40.50	48.00	35.25	44.00	30.00	40.00	26.00	36.00	19.50	32.00	15.50	28.00	11.50	24.00	–	9.00	–	9.00	–	10.50
90	50.50	58.00	45.25	54.00	40.00	50.00	36.00	46.00	29.50	42.00	25.50	38.00	21.50	34.00	15.00	30.00	–	9.00	–	10.50
100	60.50	68.00	55.25	64.00	50.00	60.00	46.00	56.00	39.50	52.00	35.50	48.00	31.50	44.00	25.00	40.00	19.00	34.00	–	10.50
110			65.25	74.00	60.00	70.00	56.00	66.00	49.50	62.00	45.50	58.00	41.50	54.00	35.00	50.00	29.00	44.00	20.50	38.00
120			75.25	84.00	70.00	80.00	66.00	76.00	59.50	72.00	55.50	68.00	51.50	64.00	45.00	60.00	39.00	54.00	30.50	48.00
130					80.00	90.00	76.00	86.00	69.50	82.00	65.50	78.00	61.50	74.00	55.00	70.00	49.00	64.00	40.50	58.00
140					90.00	100.00	86.00	96.00	79.50	92.00	75.50	88.00	71.50	84.00	65.00	80.00	59.00	74.00	50.50	68.00
150							96.00	106.00	89.50	102.00	85.50	98.00	81.50	94.00	75.00	90.00	69.00	84.00	60.50	78.00
160							106.00	116.00	99.50	112.00	95.50	108.00	91.50	104.00	85.00	100.00	79.00	94.00	70.50	88.00
180									119.50	132.00	115.50	128.00	111.50	124.00	105.00	120.00	99.00	114.00	90.50	108.00
200											135.50	148.00	131.50	144.00	125.00	140.00	119.00	134.00	110.50	128.00

d	M33		M36		M42		M48		M56		M64		M72		M80		M90		M100
l	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.
nom.
50	–	10.50
55	–	10.50	–	12.00
60	–	10.50	–	12.00	–	13.50
65	–	10.50	–	12.00	–	13.50
70	–	10.50	–	12.00	–	13.50	–	15.00
80	–	10.50	–	12.00	–	13.50	–	15.00	–	16.50
90	–	10.50	–	12.00	–	13.50	–	15.00	–	16.50	–	18.00
100	–	10.50	–	12.00	–	13.50	–	15.00	–	16.50	–	18.00	–	18.00
110	14.50	32.00	–	12.00	–	13.50	–	15.00	–	16.50	–	18.00	–	18.00
120	24.50	42.00	16.00	36.00	–	13.50	–	15.00	–	16.50	–	18.00	–	18.00	–	18.00
130	34.50	52.00	26.00	46.00	–	13.50	–	15.00	–	16.50	–	18.00	–	18.00	–	18.00
140	44.50	62.00	36.00	56.00	21.50	44.00	–	15.00	–	16.50	–	18.00	–	18.00	–	18.00	–	18.00
150	54.50	72.00	46.00	66.00	31.50	54.00	–	15.00	–	16.50	–	18.00	–	18.00	–	18.00	–	18.00	–	18.00
160	64.50	82.00	56.00	76.00	41.50	64.00	27.00	52.00	–	16.50	–	18.00	–	18.00	–	18.00	–	18.00	–	18.00
180	84.50	102.00	76.00	96.00	61.50	84.00	47.00	72.00	56.00	56.00	–	18.00	–	18.00	–	18.00	–	18.00	–	18.00
200	104.50	122.00	96.00	116.00	81.50	104.00	67.00	92.00	48.50	76.00	30.00	60.00	–	18.00	–	18.00	–	18.00	–	18.00
220	124.50	142.00	116.00	136.00	101.50	124.00	87.00	112.00	68.50	96.00	50.00	80.00	34.00	64.00	–	18.00	–	18.00	–	18.00
240	144.50	162.00	136.00	156.00	121.50	144.00	107.00	132.00	88.50	116.00	70.00	100.00	54.00	84.00	38.00	68.00	–	18.00	–	18.00
260	164.50	182.00	156.00	176.00	141.50	164.00	127.00	152.00	108.50	136.00	90.00	120.00	74.00	104.00	58.00	88.00	38.00	68.00	–	18.00
280	184.50	202.00	176.00	196.00	161.50	184.00	147.00	172.00	128.50	156.00	110.00	140.00	94.00	124.00	78.00	108.00	58.00	88.00	38.00	68.00
300	204.50	222.00	196.00	216.00	181.50	204.00	167.00	192.00	148.50	176.00	130.00	160.00	114.00	144.00	98.00	128.00	78.00	108.00	58.00	88.00

Specification for bolts and reference standards

Characteristic

Standard

Material

Steel

General Requirements

As specified in DIN 267 Part 1.

Thread

Tolerance

5g6g for property class 12.9; 6ga for other property classes.

Standard

ISO 261, ISO 965.

Mechanical Properties

Property Class (material)

d ≤ M39b: 8.8; 10.9; 12.9
d > M39: as agreed

Standard

DIN ISO 898 Part 1

Tolerances on dimensions and form

Product Grade

Standard

ISO 4759/1/DIN ISO 4759 Part 1

Surface finish

Black oxide (thermal or chemical)

DIN 267 Part 2 shall apply with regard to surface roughness.

DIN 267 Part 19 shall apply with regard to the permissable surface defects.

DIN 267 Part 9 shall apply with regard to electroplating.

If different electroplating or other surface protection is desired, this shall be agreed upn at the time of ordering

Acceptable inspection

DIN 267 Part 5 shall apply with regard to acceptance testing.

a Only for screws without surface protection, 6g makes it possible for normal coating thicknesses to be applied in accordance with DIN 267 Part 9 but the reference line shall not be exceeded. Depending on the coating thickness required, a larger fundamental deviation shall be selected that for the g position. A larger fundamental deviation may impair the stripping strength of the screw/nut connection.
b In ISO 4762, only up to M36 or below.

High Tensile HV Bolts & Nuts | HDG | Hot Dip Galvanised Bolts | DIN 6914 | DIN 6915

ATR Specification sheet

Low carbon all threaded rod, Zinc plated

Diameter	Nominal Size	D ( Major Diameter )
Diameter	Nominal Size	Max.	Min.
1/4″‐20	0.2500	0.2489	0.2408
1/4″‐28	0.2500	0.2490	0.2425
5/16″‐18	0.3125	0.3113	0.3026
5/16″‐24	0.3125	0.3114	0.3042
3/8″‐16	0.3750	0.3737	0.3643
3/8″‐24	0.3750	0.3739	0.3667
7/16″‐14	0.4375	0.4361	0.4258
7/16″‐20	0.4375	0.4362	0.4281
1/2″‐13	0.5000	0.4985	0.4876
1/2″‐20	0.5000	0.4987	0.4906
9/16″‐12	0.5625	0.5609	0.5495
9/16″‐18	0.5625	0.5611	0.5524
5/8″‐11	0.6250	0.6233	0.6113
5/8″‐18	0.6250	0.6236	0.6149
3/4″‐10	0.7500	0.7482	0.7353
3/4″‐16	0.7500	0.7485	0.7391
7/8″‐9	0.8750	0.8731	0.8592
7/8″‐14	0.8750	0.8734	0.8631
1″‐8	1.0000	0.9980	0.9830
1″‐12	1.0000	0.9982	0.9868
1.1/8″‐7	1.1250	1.1228	1.0640
1.1/8″‐12	1.1250	1.1229	1.1118
1.1/4″‐7	1.2500	1.2478	1.2314
1.1/4″‐12	1.2500	1.2482	1.2368
1.3/8″‐6	1.3750	1.3726	1.3544
1.3/8″‐12	1.3750	1.3731	1.3617
1.1/2″‐6	1.5000	1.4976	1.4794
1.1/2″‐12	1.5000	1.4981	1.4867
1.3/4″‐5	1.7500	1.7473	1.7268
2″‐4.5	2.0000	1.9971	1.9751
(L) Measure the length end to end using a tolerance of +/‐ 1/2″

U_Bolts Datasheets | Big Size Bolts Nuts

U BOLT DATA SHEET

Pipe Size		Description	Thread Size	Centres (N)	(M)	Thread Length (K)	S (MAX)	Max. Load up to 3400C	Item Weight	Part No.
Nominal Size	Outside Diameter (A)			Centres (N)	(M)	Thread Length (K)	S (MAX)	Max. Load up to 3400C	Item Weight	Part No.
NB	mm			mm	mm	mm	mm	kN	kg	Carbon Steel	Stainless Steel
15	21.3	15NB U-Bolt Clamp	M8	30	50	25	7	0.68	0.07	181001	181030
20	26.7	20NB U-Bolt Clamp	M8	35	60	25	10	0.54	0.08	181002	181031
25	33.4	25NB U-Bolt Clamp	M8	45	65	25	10	0.43	0.08	181003	181032
32	42.2	32NB U-Bolt Clamp	M8	55	75	25	10	0.34	0.09	181004	181033
40	48.3	40NB U-Bolt Clamp	M10	60	90	35	16	0.60	0.18	181005	181034
50	60.3	50NB U-Bolt Clamp	M10	75	100	35	16	0.48	0.20	181006	181035
65	76.1	65NB U-Bolt Clamp	M12	90	130	45	19	0.70	0.34	181007	181036
80	88.9	80NB U-Bolt Clamp	M16	105	150	50	19	1.50	0.70	181008	181037
100	114.3	100NB U-Bolt Clamp	M16	135	175	50	19	1.17	0.81	181009	181038
125	141.3	125NB U-Bolt Clamp	M16	160	200	50	19	0.94	0.91	181010	181039
150	168.3	150NB U-Bolt Clamp	M20	190	235	55	19	1.52	1.69	181011	181040
175	193.7	175NB U-Bolt Clamp	M20	215	270	55	19	1.32	1.85	181012	181041
200	219.1	200NB U-Bolt Clamp	M20	245	295	55	19	1.17	2.07	181013	181042
225	244.5	225NB U-Bolt Clamp	M20	266	315	60	19	1.05	2.18	181014	181043
250	273.0	250NB U-Bolt Clamp	M20	300	350	60	22	0.94	2.43	181015	181044
300	323.9	300NB U-Bolt Clamp	M20	350	400	60	22	0.79	2.75	181016	181045
350	355.6	350NB U-Bolt Clamp	M24	385	440	65	22	1.25	4.38	181017	181046
400	406.4	400NB U-Bolt Clamp	M24	435	500	65	22	1.09	4.92	181018	181047
450	457.2	450NB U-Bolt Clamp	M24	485	540	70	22	0.97	5.32	181019	181048
500	508.0	500NB U-Bolt Clamp	M24	540	600	70	22	0.87	5.87	181020	181049
550	559.0	550NB U-Bolt Clamp	M24	584	650	70	22	0.73	6.34	181021	181050
600	609.6	600NB U-Bolt Clamp	M24	640	700	70	22	0.67	6.81	181022	181051
650	660.4	650NB U-Bolt Clamp	M24	690	740	70	24	0.62	7.20	181023	181052
700	711.2	700NB U-Bolt Clamp	M30	750	810	80	24	1.18	12.49	181024	181053
750	762	750NB U-Bolt Clamp	M30	800	860	80	24	1.10	13.22	181025	181054
800	812.8	800NB U-Bolt Clamp	M30	850	910	80	24	1.04	13.95	181026	181055
850	863.6	850NB U-Bolt Clamp	M30	900	960	80	24	0.98	14.68	181027	181056
900	914.4	900NB U-Bolt Clamp	M30	950	1010	80	24	0.93	15.41	181028	181057
1000	1016.0	1000NB U-Bolt Clamp	M30	1050	1060	80	24	1.56	24.94	181029	181058

Shank | Clamping | Threading | Tightening Length HV Hot Dip Galvanised Bolt & Nut

HV-bolts Shank & Thread Length

M30 to M64

L	Shank lengths ls and lg
	M30		M36		M39		M42		M45		M48		M56		M64
Nominal Size	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.
70	15,5	26
80	25,5	36	16	28
90	35,5	46	26	38
100	45,5	56	36	48
110	55,5	66	46	58	30	42
120	65,5	76	56	68	40	52	32,5	46	30,5	44
130	75,5	86	66	78	50	62	42,5	56	40,5	54	33	48
140	85,5	96	76	88	60	72	52,5	66	50,5	64	43	58	33,5	50
150	95,5	106	86	98	70	82	62,5	76	60,5	74	53	68	43,5	60	32	50
160	105,5	116	96	108	80	92	72,5	86	70,5	84	63	78	53,5	70	42	60
170	115,5	126	106	118	90	102	82,5	96	80,5	94	73	88	63,5	80	52	70
180	125,5	136	116	128	100	112	92,5	106	90,5	104	83	98	73,5	90	62	80
190	135,5	146	126	138	110	122	102,5	116	100,5	114	93	108	83,5	100	72	90
200	145,5	156	136	148	120	132	112,5	126	110,5	124	103	118	93,5	110	82	100
210	155,5	166	146	158	130	142	122,5	136	120,5	134	113	128	103,5	120	92	110
220	165,5	176	156	168	140	152	132,5	146	130,5	144	123	138	113,5	130	102	120
230	175,5	186	166	178	150	162	142,5	156	140,5	154	133	148	123,5	140	112	130
240	185,5	196	176	188	160	172	152,5	166	150,5	164	143	158	133,5	150	122	140
250	195,5	206	186	198	170	182	162,5	176	160,5	174	153	168	143,5	160	132	150
260	205,5	216	196	208	180	192	172,5	186	170,5	184	163	178	153,5	170	142	160
270	215,5	226	206	218	190	202	182,5	196	180,5	194	173	188	163,5	180	152	170
280	225,5	236	216	228	200	212	192,5	206	190,5	204	183	198	173,5	190	162	180
290	235,5	246	226	238	210	222	202,5	216	200,5	214	193	208	183,5	200	172	190
300	245,5	256	236	248	220	232	212,5	226	210,5	224	203	218	193,5	210	182	200
310	255,5	266	246	258	230	242	222,5	236	220,5	234	213	228	203,5	220	192	210
320	265,5	276	256	268	240	252	232,5	246	230,5	244	223	238	213,5	230	202	220
330	275,5	286	266	278	250	262	242,5	256	240,5	254	233	248	223,5	240	212	230
340	285,5	296	276	288	260	272	252,5	266	250,5	264	243	258	233,5	250	222	240
350	295,5	306	286	298	270	282	262,5	276	260,5	274	253	268	243,5	260	232	250
360	305,5	316	296	308	280	292	272,5	286	270,5	284	263	278	253,5	270	242	260
370	315,5	326	306	318	290	302	282,5	296	280,5	294	273	288	263,5	280	252	270
380	325,5	336	316	328	300	312	292,5	306	290,5	304	283	298	273,5	290	262	280
390	335,5	346	326	338	310	322	302,5	316	300,5	314	293	308	283,5	300	272	290
400	345,5	356	336	348	320	332	312,5	326	310,5	324	303	318	293,5	310	282	300
410	355,5	366	346	358	330	342	322,5	336	320,5	334	313	328	303,5	320	292	310
420	365,5	376	356	368	340	352	332,5	346	330,5	344	323	338	313,5	330	302	320
430	375,5	386	366	378	350	362	342,5	356	340,5	354	333	348	323,5	340	312	330
440	385,5	396	376	388	360	372	352,5	366	350,5	364	343	358	333,5	350	322	340
450	395,5	406	386	398	370	382	362,5	376	360,5	374	353	368	343,5	360	332	350
460	405,5	416	396	408	380	392	372,5	386	370,5	384	363	378	353,5	370	342	360
470	415,5	426	406	418	390	402	382,5	396	380,5	394	373	388	363,5	380	352	370
480	425,5	436	416	428	400	412	392,5	406	390,5	404	383	398	373,5	390	362	380
490	435,5	446	426	438	410	422	402,5	416	400,5	414	393	408	383,5	400	372	390
500	445,5	456	436	448	420	432	412,5	426	410,5	424	403	418	393,5	410	382	400

DAST Guidelines/Dimensions 021 Bolts & Nut

Dimensions as per DASt Guidelines 021

Geometry of HV-bolts with associated HV-nuts and HV-washers

Bolt dimensions* (in millimetres)
Nominal size		M30	M36	M39¹⁾	M42	M45¹⁾	M48	M56	M64
p²⁾		3,5	4	4	4,5	4,5	5	5,5	6
	min.	0,4	0,4	0,5	0,5	0,5	0,5	0,5	0,5
	max.	0,8	0,8	1	1	1	1	1	1
d_a	max.	35	41	45	48	52	55	64,2	73,2
d_s	nom.	30	36	39	42	45	48	56	64
	min.	29,16	35	38	41	44	47	54,8	62,8
	max.	30,84	37	40	43	46	49	57,2	65,2
d_w	min.	46,6	559	60	647	6,945	742	83,4	92,9
e	min.	55,37	66,44	71,3	76,95	82,6	88,25	99,2	11,05
k	nom.	19	23	25	26	28	30	35	40
	min.	17,95	21,95	23,95	24,95	26,95	28,95	33,75	38,75
	max.	20,05	24,05	26,05	27,05	29,05	31,05	36,25	41,25
k_w	min.	12,56	15,36	16,76	17,46	18,86	20,26	23,63	27,13
r	min.	2	2	2,5	2,5	3	3	3,5	4
s	max.	50	60	65	70	75	80	90	100
	min.	49	58,8	63,1	68,1	73,1	78,1	87,8	97,8

Nut dimensions* (in millimetres)

p²⁾		3,5	4	4	4,5	4,5	5	5,5	6
d^a	max.	32,4	38,9	–	–	–	–	–	–
	min.	30	36	–	–	–	–	–	–
d_w	min.	46,6	55,9	60	64,7	69,5	74,2	83,4	92,9
e	min.	55,37	66,44	71,3	76,95	82,6	88,25	99,2	110,5
m	nom. = max.	24	29	31	34	36	38	45	51
	min.	22,7	27,7	29,4	32,4	34,4	36,4	43,4	49,1
m_w	min.	18,16	22,16	23,5	25,9	27,5	291	34,,7	39,3
s	max.	50	60	65	70	75	80	90	100
	min.	49	58,8	63,1	68,1	73,1	78,1	87,8	97,8

Washer dimensions* (in millimetres)

d1	min. = nom.	31	37	40,4	43,4	46,4	49,4	58	66
	max.	31,62	37,62	41,02	44,02	47,02	50,02	58,74	66,74
d2	min.	54,8	64,8	70,8	76,8	83,6	90,6	103,6	113,6
	max. = nom.	56	66	72	78	85	9	105	115
h	Nominal size	5	6	6	8	8	8	10	10
	min.	4,4	5,4	5,4	6,8	6,8	6,8	8,8	8,8
	max.	5,6	6,4	6,4	9,2	9,2	9,2	11,2	11,2
c	min. = nom.	2,5	2,5	3	3	3,4	3,4	4	4,5
	max.	3	3	3,5	3,5	4	4	4.5	5
e	Nominal size = min.	1	1,25	1,25	1,5	1,5	1,5	2	2
	max.	2	2,5	2,5	3	3	3	4	4

*The dimensions before galvanization are for hot dip galvanized bolts, nuts and washers
1) Special sizes; customized production
2) P = Thread pitch (standard thread)
3) d_w,max. = s_act.

HV Clamping Length Dast Guideline 021 Bolt & Nut

Clamping Lengths

Clamping pattern with large width across flats

Clamping length I

Clamping length l_k

M30¹⁾

M36¹⁾

M39

M42

M45

M48

M56

M64

24 – 29

34 – 39

26 – 31

44 – 49

36 – 41

100

54 – 59

46 – 51

110

64 – 69

56 – 61

48 – 58

120

74 – 79

66 – 71

58 – 68

50 – 61

48 – 58

130

84 – 89

76 – 81

68 – 78

60 – 71

58 – 68

54 – 67

140

94 – 99

86 – 91

78 – 88

70 – 81

68 – 78

64 – 77

54 – 65,1

150

104 – 109

96 – 101

88 – 98

80 – 91

78 – 88

74 – 87

64 – 75,1

56 – 69

160

114 – 119

106 – 111

98 – 108

90 – 101

88 – 98

84 – 97

74 – 85,1

66 – 79

170

124 – 129

116 – 121

108 – 118

100 – 111

98 – 108

94 – 107

84 – 95

76 – 89

180

134 – 139

126 – 131

118 – 128

110 – 121

108 – 118

104 – 117

94 – 105

86 – 99

190

144 – 149

136 – 141

128 – 138

120 – 131

118 – 128

114 – 126

104 – 115

96 – 108

200

154 – 159

146 – 151

138 – 148

130 – 141

128 – 138

124 – 136

114 – 125

106 – 118

210

164 – 169

156 – 161

148 – 158

140 – 151

138 – 148

134 – 146

124 – 135

116 – 128

220

174 – 179

166 – 171

158 – 168

150 – 161

148 – 158

144 – 156

134 – 145

126 – 138

230

184 – 189

176 – 181

168 – 178

160 – 171

158 – 168

154 – 166

144 – 155

136 – 148

240

194 – 199

186 – 191

178 – 188

170 – 181

168 – 178

164 – 176

154 – 165

146 – 158

250

204 – 209

196 – 201

188 – 198

180 – 191

178 – 188

174 – 186

164 – 175

156 – 168

260

214 – 219

206 – 211

198 – 208

190 – 201

188 – 198

184 – 196

174 – 185

166 – 178

270

224 – 229

216 – 221

208 – 218

200 – 211

198 – 208

194 – 206

184 – 195

176 – 188

280

234 – 239

226 – 231

218 – 228

210 – 221

208 – 218

204 – 216

194 – 205

186 – 198

290

244 – 249

236 – 241

228 – 238

220 – 231

218 – 228

214 – 226

204 – 215

196 – 208

300

254 – 259

246 – 251

238 – 248

230 – 241

228 – 238

224 – 236

214 – 225

206 – 218

310

264 – 269

256 – 261

248 – 258

240 – 251

238 – 248

234 – 246

224 – 235

216 – 228

320

274 – 279

266 – 271

258 – 268

250 – 260

248 – 258

244 – 256

234 – 244

226 – 238

330

284 – 289

276 – 281

268 – 278

260 – 270

258 – 268

254 – 266

244 – 254

236 – 248

340

294 – 299

286 – 291

278 – 288

270 – 280

268 – 278

264 – 276

254 – 264

246 – 258

350

304 – 309

296 – 301

288 – 298

280 – 290

278 – 288

274 – 286

264 – 274

256 – 268

360

314 – 319

306 – 311

298 – 308

290 – 300

288 – 298

284 – 296

274 – 284

266 – 278

370

324 – 329

316 – 321

308 – 318

300 – 310

298 – 308

294 – 306

284 – 294

276 – 288

380

334 – 339

326 – 331

318 – 328

310 – 320

308 – 318

304 – 316

294 – 304

286 – 298

390

344 – 349

336 – 341

328 – 338

320 – 330

318 – 328

314 – 326

304 – 314

296 – 308

400

354 – 359

346 – 351

338 – 348

330 – 340

328 – 338

324 – 336

314 – 324

306 – 318

410

364 – 369

356 – 361

348 – 358

340 – 350

338 – 348

334 – 345

324 – 334

316 – 327

420

374 – 379

366 – 371

358 – 368

350 – 360

348 – 358

344 – 355

334 – 344

326 – 337

430

384 – 389

376 – 381

368 – 378

360 – 370

358 – 368

354 – 365

344 – 354

336 – 347

440

394 – 399

386 – 391

378 – 388

370 – 380

368 – 378

364 – 375

354 – 364

346 – 357

450

404 – 409

396 – 401

388 – 398

380 – 390

378 – 388

374 – 385

364 – 374

356 – 367

460

414 – 419

406 – 411

398 – 408

390 – 400

388 – 398

384 – 395

374 – 384

366 – 377

470

424 – 429

416 – 421

408 – 418

400 – 410

398 – 408

394 – 405

384 – 394

376 – 387

480

434 – 439

426 – 431

418 – 428

410 – 420

408 – 418

404 – 415

394 – 404

386 – 397

490

444 – 449

436 – 441

428 – 438

420 – 430

418 – 428

414 – 425

404 – 414

396 – 407

500

454 – 459

446 – 451

438 – 448

430 – 440

428 – 438

424 – 435

414 – 424

406 – 417

1) Unlike in DIN EN 14399-4, the clamping lengths åt was converted to l_k for sizes M30 and M36 to obtain a uniform clamping length table in accordance with DASt guideline 021.

Key Tags: Clamping length Bolt & nuts | Clamping Length Dast Guideline 021 Bolt & Nut | DASt guideline 021 bolt & nut | Dast Guideline 021 Bolt & Nut Weight Chart

HV Bolts & Nuts Weight Count Chart _ Dast Guideline 021, Bigger & Large Diameter

HV-BOLTS SETS WEights in kg/100 pcs

Weights of HV Bolts Sets

Thread, d	M30	M36	M39	M42	M45	M48	M56	M64
Nominal length, l	*Weight in kg/100 pcs., with 7.85 kg/dm3**
70	64,4
80	69,9	110,5
90	75,5	118,49
100	81,0	126,48
110	86,6	134,5	161,1
120	92,1	142,5	170,5	200,6	238,6
130	97,7	150,5	179,9	211,5	251,1	294,7
140	103,2	158,4	189,3	222,4	263,6	308,9	431,4
150	108,8	166,4	198,6	233,3	276,1	323,1	450,7	608,0
160	114,3	174,4	208,0	244,1	288,6	337,3	470,1	633,2
170	119,9	182,4	217,4	255,0	301,1	351,5	489,4	658,5
180	125,4	190,4	226,8	265,9	313,5	365,8	508,7	683,7
190	131,0	198,4	236,2	276,8	326,0	380,0	528,1	709,0
200	136,5	206,4	245,5	287,6	338,5	394,2	547,4	734,2
210	142,1	214,4	254,9	298,5	351,0	408,4	566,8	759,5
220	147,6	222,4	264,3	309,4	363,5	422,6	586,1	784,7
230	153,2	230,4	273,7	320,3	376,0	436,8	605,4	810,0
240	158,7	238,3	283,0	331,1	388,5	451,0	624,8	835,3
250	164,3	246,3	292,4	342,0	400,9	465,2	644,1	860,5
260	169,8	254,3	301,8	352,9	413,4	479,4	663,4	885,8
270	175,4	262,3	311,2	363,8	425,9	493,6	682,8	911,0
280	180,9	270,3	320,6	374,6	438,4	507,8	702,1	936,3
290	186,5	278,3	329,9	385,5	450,9	522,0	721,4	961,5
300	192,0	286,3	339,3	396,4	463,4	536,2	740,8	986,8
310	197,6	294,3	348,7	407,3	475,9	550,4	760,1	1012,0
320	203,1	302,3	358,1	418,1	488,3	564,6	779,4	1037,3
330	208,7	310,3	367,4	429,0	500,8	578,8	798,8	1062,5
340	214,2	318,2	376,8	439,9	513,3	593,0	818,1	1087,8
350	219,8	326,2	386,2	450,8	525,8	607,2	837,4	1113,0
360	225,3	334,2	395,6	461,6	538,3	621,4	856,8	1138,3
370	230,9	342,2	404,9	472,5	550,8	635,6	876,1	1163,5
380	236,4	350,2	414,3	483,4	563,2	649,9	895,4	1188,8
390	242,0	358,2	423,7	494,3	575,7	664,1	914,8	1214,1
400	247,5	366,2	433,1	505,1	588,2	678,3	934,1	1239,3
410	253,1	374,2	442,5	516,0	600,7	692,5	953,4	1264,6
420	258,6	382,2	451,8	526,9	613,2	706,7	972,8	1289,8
430	264,2	390,2	461,2	537,8	625,7	720,9	992,1	1315,1
440	269,7	398,2	470,6	548,7	638,2	735,1	1011,4	1340,3
450	275,3	406,1	480,0	559,5	650,6	749,3	1030,8	1365,6
460	280,8	414,1	489,3	570,4	663,1	763,5	1050,1	1390,8
470	286,4	422,1	498,7	581,3	675,6	777,7	1069,5	1416,1
480	291,9	430,1	508,1	592,2	688,1	791,9	1088,8	1441,3
490	297,5	438,1	517,5	603,0	700,6	806,1	1108,1	1466,6
500	303,0	446,1	526,9	613,9	713,1	820,3	1127,5	1491,8

+ 2 HV-washers	12,6	21,2	26,1	41,4	50,0	58,8	94,4	109,4
+ 1 HV-nut	26,2	46,0	69,9	81,8	97,2	116,9	170,4	231,7
Σ	38,8	67,2	96,0	123,2	147,2	175,7	264,8	341,1

Dast Guideline 021 Bolt & Nut Weight Chart | Hot Dip Galvanised Hv Bolt & Nut Weight Count Chart | Bigger Diameter Bolt Weight Count Chart | Large Diameter Bolt & Nut Weight Count Chart

APL fasteners price list

MD Exports LLP — Wed, 21 Feb 2018 13:00:57 +0000

APL Stainless Steel Bolts Price List

APL Stainless Steel Hex Bolts ( Dia 10 mm – Length 3 mm) by APL
Price: Rs. 1,266
Offer Price: Rs. 744
Min. order quantity : 600
APL Stainless Steel Hex Bolts ( Dia 12 mm – Length 170 mm) by APL
Price: Rs. 23,000
Offer Price: Rs. 13,600
Min. order quantity : 100
APL Stainless Steel Hex Bolts ( Dia 55 mm – Length 12 mm) by APL
Price: Rs. 4,935
Offer Price: Rs. 2,912
Min. order quantity : 100
APL Stainless Steel Hex Bolts ( Dia 16 mm – Length 8 mm) by APL
Price: Rs. 2,012
Offer Price: Rs. 1,186
Min. order quantity : 200
APL Stainless Steel Hex Bolts ( Dia 100 mm – Length 6 mm) by APL
Price: Rs. 2,100
Offer Price: Rs. 1,239
Min. order quantity : 100
APL Stainless Steel Hex Bolts ( Dia 100 mm – Length 18 mm) by APL
Price: Rs. 24,700
Offer Price: Rs. 14,600
Min. order quantity : 100
APL Stainless Steel Hex Bolts ( Dia 100 mm – Length 8 mm) by APL
Price: Rs. 3,360
Offer Price: Rs. 1,982
Min. order quantity : 100
APL Stainless Steel Hex Bolts ( Dia 85 mm – Length 6 mm) by APL
Price: Rs. 1,889
Offer Price: Rs. 1,115
Min. order quantity : 100
APL Stainless Steel Hex Bolts ( Dia 25 mm – Length 3 mm) by APL
Price: Rs. 1,224
Offer Price: Rs. 724
Min. order quantity : 400
APL Stainless Steel Hex Bolts ( Dia 40 mm – Length 12 mm) by APL
Price: Rs. 4,095
Offer Price: Rs. 2,416
Min. order quantity : 100
APL Stainless Steel Hex Bolts ( Dia 50 mm – Length 5 mm) by APL
Price: Rs. 1,794
Offer Price: Rs. 1,058
Min. order quantity : 200
APL Stainless Steel Hex Bolts ( Dia 10 mm – Length 5 mm) by APL
Price: Rs. 1,344
Offer Price: Rs. 792
Min. order quantity : 400
APL Stainless Steel Hex Bolts ( Dia 12 mm – Length 3 mm) by APL
Price: Rs. 1,160
Offer Price: Rs. 680
Min. order quantity : 500
APL Stainless Steel Hex Bolts AISI 304 ( Dia 16 mm – Length 110 mm) by APL
Price: Rs. 20,000
Offer Price: Rs. 11,800
Min. order quantity : 100
APL Stainless Steel Hex Bolts ( Dia 85 mm – Length 18 mm) by APL
Price: Rs. 22,700
Offer Price: Rs. 13,400
Min. order quantity : 100
APL Stainless Steel Hex Bolts ( Dia 12 mm – Length 4 mm) by APL
Price: Rs. 1,285
Offer Price: Rs. 755
Min. order quantity : 500
APL Stainless Steel Hex Bolts ( Dia 20 mm – Length 5 mm) by APL
Price: Rs. 1,269
Offer Price: Rs. 750
Min. order quantity : 300
APL Stainless Steel Hex Bolts ( Dia 20 mm – Length 150 mm) by APL
Price: Rs. 46,100
Offer Price: Rs. 27,200
Min. order quantity : 100
APL Stainless Steel Hex Bolts ( Dia 16 mm – Length 3 mm) by APL
Price: Rs. 1,210
Offer Price: Rs. 710
Min. order quantity : 500
APL Stainless Steel Hex Bolts ( Dia 20 mm – Length 4 mm) by APL
Price: Rs. 1,224
Offer Price: Rs. 724
Min. order quantity : 400

APL Stainless Steel Screws Price List

APL Stainless Steel CSK Head/ CSK Philips Self Tapping Screw (Dia 10.00 mm, Length 13 mm) AISI 304 by APL
Price: Rs. 1,280
Offer Price: Rs. 704
Min. order quantity : 400
APL Stainless Steel CSK Head/ CSK Philips Self Tapping Screw (Dia 12.00 mm, Length 25 mm) AISI 304 by APL
Price: Rs. 1,514
Offer Price: Rs. 832
Min. order quantity : 200
APL Stainless Steel Pan Head/ Pan Philips Self Tapping Screw (Dia 14.00 mm, Length 32 mm) AISI 304 by APL
Price: Rs. 1,470
Offer Price: Rs. 808
Min. order quantity : 100
APL Stainless Steel CSK Head/ CSK Philips Self Tapping Screw (Dia 12.00 mm, Length 19 mm) AISI 304 by APL
Price: Rs. 1,232
Offer Price: Rs. 680
Min. order quantity : 200
APL Stainless Steel CSK Head/ CSK Philips Self Tapping Screw (Dia 12.00 mm, Length 13 mm) AISI 304 by APL
Price: Rs. 1,434
Offer Price: Rs. 789
Min. order quantity : 300
APL Stainless Steel CSK Head/ CSK Philips Self Tapping Screw (Dia 12.00 mm, Length 38 mm) AISI 304 by APL
Price: Rs. 2,100
Offer Price: Rs. 1,156
Min. order quantity : 200
APL Stainless Steel CSK Head/ CSK Philips Self Tapping Screw (Dia 6.00 mm, Length 19 mm) AISI 304 by APL
Price: Rs. 1,280
Offer Price: Rs. 705
Min. order quantity : 500
APL Stainless Steel CSK Head/ CSK Philips Self Tapping Screw (Dia 6.00 mm, Length 32 mm) AISI 304 by APL
Price: Rs. 1,143
Offer Price: Rs. 630
Min. order quantity : 300
APL Stainless Steel Pan Head/ Pan Philips Self Tapping Screw (Dia 12.00 mm, Length 25 mm) AISI 304 by APL
Price: Rs. 1,766
Offer Price: Rs. 970
Min. order quantity : 200
APL Stainless Steel CSK Head/ CSK Philips Self Tapping Screw (Dia 14.00 mm, Length 16 mm) AISI 304 by APL
Price: Rs. 1,420
Offer Price: Rs. 780
Min. order quantity : 200
APL Stainless Steel CSK Head/ CSK Philips Self Tapping Screw (Dia 8.00 mm, Length 25 mm) AISI 304 by APL
Price: Rs. 1,233
Offer Price: Rs. 678
Min. order quantity : 300
APL Stainless Steel Pan Head/ Pan Philips Self Tapping Screw (Dia 12.00 mm, Length 32 mm) AISI 304 by APL
Price: Rs. 2,100
Offer Price: Rs. 1,156
Min. order quantity : 200
APL Stainless Steel Pan Head/ Pan Philips Self Tapping Screw (Dia 12.00 mm, Length 16 mm) AISI 304 by APL
Price: Rs. 1,362
Offer Price: Rs. 748
Min. order quantity : 200
APL Stainless Steel Pan Head/ Pan Philips Self Tapping Screw (Dia 10.00 mm, Length 19 mm) AISI 304 by APL
Price: Rs. 1,428
Offer Price: Rs. 783
Min. order quantity : 300
APL Stainless Steel Pan Head/ Pan Philips Self Tapping Screw (Dia 6.00 mm, Length 19 mm) AISI 304 by APL
Price: Rs. 1,164
Offer Price: Rs. 636
Min. order quantity : 400
APL Stainless Steel CSK Head/ CSK Philips Self Tapping Screw (Dia 14.00 mm, Length 25 mm) AISI 304 by APL
Price: Rs. 2,062
Offer Price: Rs. 1,134
Min. order quantity : 200
APL Stainless Steel CSK Head/ CSK Philips Self Tapping Screw (Dia 12.00 mm, Length 16 mm) AISI 304 by APL
Price: Rs. 1,635
Offer Price: Rs. 900
Min. order quantity : 300
APL Stainless Steel Pan Head/ Pan Philips Self Tapping Screw (Dia 8.00 mm, Length 9.5 mm) AISI 304 by APL
Price: Rs. 1,350
Offer Price: Rs. 740
Min. order quantity : 500
APL Stainless Steel Pan Head/ Pan Philips Self Tapping Screw (Dia 10.00 mm, Length 38 mm) AISI 304 by APL
Price: Rs. 1,590
Offer Price: Rs. 874
Min. order quantity : 200
APL Stainless Steel Pan Head/ Pan Philips Self Tapping Screw (Dia 10.00 mm, Length 16 mm) AISI 304 by APL
Price: Rs. 1,299
Offer Price: Rs. 714
Min. order quantity : 300

High Strength APL Stainless Steel 12-Point Flange Bolts

APL Stainless Steel 12-Point Flange Bolts – 1/4-20x.515: $2.63
APL Stainless Steel 12-Point Flange Bolts – 1/4-20×3/4: $2.75
APL Stainless Steel 12-Point Flange Bolts – 1/4-20×1: $3.05
APL Stainless Steel 12-Point Flange Bolts – 1/4-20×1-1/4: $3.03
APL Stainless Steel 12-Point Flange Bolts – 1/4-20×1-1/2: $4.10
APL Stainless Steel 12-Point Flange Bolts – 1/4-20×1-3/4: $4.20
APL Stainless Steel 12-Point Flange Bolts – 1/4-20×2: $4.25
APL Stainless Steel 12-Point Flange Bolts – 1/4-20×2-1/4: $3.88
APL Stainless Steel 12-Point Flange Bolts – 1/4-20×2-1/2: $4.58
APL Stainless Steel 12-Point Flange Bolts – 1/4-20×2-3/4: $4.53
APL Stainless Steel 12-Point Flange Bolts – 1/4-20×3: $4.07
APL Stainless Steel 12-Point Flange Bolts – 1/4-20×3-1/4: $4.14
APL Stainless Steel 12-Point Flange Bolts – 1/4-20×3-1/2: $4.22
APL Stainless Steel 12-Point Flange Bolts – 1/4-20×3-3/4: $5.00
APL Stainless Steel 12-Point Flange Bolts – 1/4-20×4: $4.57
APL Stainless Steel 12-Point Flange Bolts – 1/4-20×4-1/4: $4.41
APL Stainless Steel 12-Point Flange Bolts – 1/4-20×4-1/2: $4.46
APL Stainless Steel 12-Point Flange Bolts – 5/16-18x.560: $2.90
APL Stainless Steel 12-Point Flange Bolts – 5/16-18×3/4: $3.08
APL Stainless Steel 12-Point Flange Bolts – 5/16-18x.812: $2.90
APL Stainless Steel 12-Point Flange Bolts – 5/16-18x.875: $2.94
APL Stainless Steel 12-Point Flange Bolts – 5/16-18x.990: $2.99
APL Stainless Steel 12-Point Flange Bolts – 5/16-18×1: $3.33
APL Stainless Steel 12-Point Flange Bolts – 5/16-18×1-1/4: $3.43
APL Stainless Steel 12-Point Flange Bolts – 5/16-18×1-1/2: $4.85
APL Stainless Steel 12-Point Flange Bolts – 5/16-18×1-3/4: $5.08
APL Stainless Steel 12-Point Flange Bolts – 5/16-18×2: $5.30
APL Stainless Steel 12-Point Flange Bolts – 5/16-18×2-1/4: $5.43
APL Stainless Steel 12-Point Flange Bolts – 5/16-18×2-1/2: $5.40
APL Stainless Steel 12-Point Flange Bolts – 5/16-18×2-3/4: $4.83
APL Stainless Steel 12-Point Flange Bolts – 5/16-18×3: $4.95
APL Stainless Steel 12-Point Flange Bolts – 5/16-18×3-1/4: $5.78
APL Stainless Steel 12-Point Flange Bolts – 5/16-18×3-1/2: $6.05
APL Stainless Steel 12-Point Flange Bolts – 5/16-18×3-3/4: $5.25
APL Stainless Steel 12-Point Flange Bolts – 5/16-18×4: $6.45
APL Stainless Steel 12-Point Flange Bolts – 5/16-18×4-1/4: $6.60
APL Stainless Steel 12-Point Flange Bolts – 5/16-18×4-1/2: $6.50
APL Stainless Steel 12-Point Flange Bolts – 5/16-18×4-3/4: $5.74
APL Stainless Steel 12-Point Flange Bolts – 5/16-18×5: $5.87
APL Stainless Steel 12-Point Flange Bolts – 3/8-16×1/2: $3.20
APL Stainless Steel 12-Point Flange Bolts – 3/8-16×3/4: $3.45
APL Stainless Steel 12-Point Flange Bolts – 3/8-16×7/8: $3.04
APL Stainless Steel 12-Point Flange Bolts – 3/8-16×1: $3.63
APL Stainless Steel 12-Point Flange Bolts – 3/8-16×1-1/4: $3.90
APL Stainless Steel 12-Point Flange Bolts – 3/8-16×1-3/8: $3.36
APL Stainless Steel 12-Point Flange Bolts – 3/8-16×1-1/2: $5.38
APL Stainless Steel 12-Point Flange Bolts – 3/8-16×1-3/4: $5.53
APL Stainless Steel 12-Point Flange Bolts – 3/8-16×2: $5.73
APL Stainless Steel 12-Point Flange Bolts – 3/8-16×2-1/4: $5.06
APL Stainless Steel 12-Point Flange Bolts – 3/8-16×2-1/2: $5.88
APL Stainless Steel 12-Point Flange Bolts – 3/8-16×2-3/4: $6.53
APL Stainless Steel 12-Point Flange Bolts – 3/8-16×3: $6.43
APL Stainless Steel 12-Point Flange Bolts – 3/8-16×3-1/4: $6.68
APL Stainless Steel 12-Point Flange Bolts – 3/8-16×3-1/2: $7.20
APL Stainless Steel 12-Point Flange Bolts – 3/8-16×3-3/4: $6.10
APL Stainless Steel 12-Point Flange Bolts – 3/8-16×4: $6.23
APL Stainless Steel 12-Point Flange Bolts – 3/8-16×4-1/4: $6.32
APL Stainless Steel 12-Point Flange Bolts – 3/8-16×4-1/2: $6.68
APL Stainless Steel 12-Point Flange Bolts – 3/8-16×4-3/4: $6.74
APL Stainless Steel 12-Point Flange Bolts – 3/8-16×5: $7.70
APL Stainless Steel 12-Point Flange Bolts – 7/16-14×1: $5.95
APL Stainless Steel 12-Point Flange Bolts – 7/16-14×1-1/4: $6.15
APL Stainless Steel 12-Point Flange Bolts – 7/16-14×1-1/2: $6.08
APL Stainless Steel 12-Point Flange Bolts – 7/16-14×1-3/4: $5.93
APL Stainless Steel 12-Point Flange Bolts – 7/16-14×2: $7.28
APL Stainless Steel 12-Point Flange Bolts – 7/16-14×2-1/4: $7.48
APL Stainless Steel 12-Point Flange Bolts – 7/16-14×2-1/2: $6.96
APL Stainless Steel 12-Point Flange Bolts – 7/16-14×2-3/4: $7.22
APL Stainless Steel 12-Point Flange Bolts – 7/16-14×3: $7.74
APL Stainless Steel 12-Point Flange Bolts – 7/16-14×3-1/4: $8.01
APL Stainless Steel 12-Point Flange Bolts – 7/16-14×3-1/2: $9.50
APL Stainless Steel 12-Point Flange Bolts – 7/16-14×3-3/4: $9.53
APL Stainless Steel 12-Point Flange Bolts – 7/16-14×4: $10.23
APL Stainless Steel 12-Point Flange Bolts – 7/16-14×4-1/4: $10.60
APL Stainless Steel 12-Point Flange Bolts – 7/16-14×4-1/2: $11.25
APL Stainless Steel 12-Point Flange Bolts – 7/16-14×4-3/4: $11.50
APL Stainless Steel 12-Point Flange Bolts – 7/16-14×5: $11.75
APL Stainless Steel 12-Point Flange Bolts (Small Flange) – 3/8-16×3/4: $2.61
APL Stainless Steel 12-Point Flange Bolts (Small Flange) – 3/8-16×7/8: $3.04
APL Stainless Steel 12-Point Flange Bolts (Small Flange) – 3/8-16×1: $3.43
APL Stainless Steel 12-Point Flange Bolts (Small Flange) – 3/8-16×1-1/4: $3.90
APL Stainless Steel 12-Point Flange Bolts (Small Flange) – 3/8-16×1-1/2: $3.38
APL Stainless Steel 12-Point Flange Bolt (Small Flange) – 3/8-16×1-3/4: $4.15
APL Stainless Steel 12-Point Flange Bolts (Small Flange) – 3/8-16×2: $3.55
